Avenger C345K-1 Barrel Clamp, Silver with T-Knob 42-52mm
Avenger C345K-1 Barrel Clamp, Silver with T-Knob 42-52mm

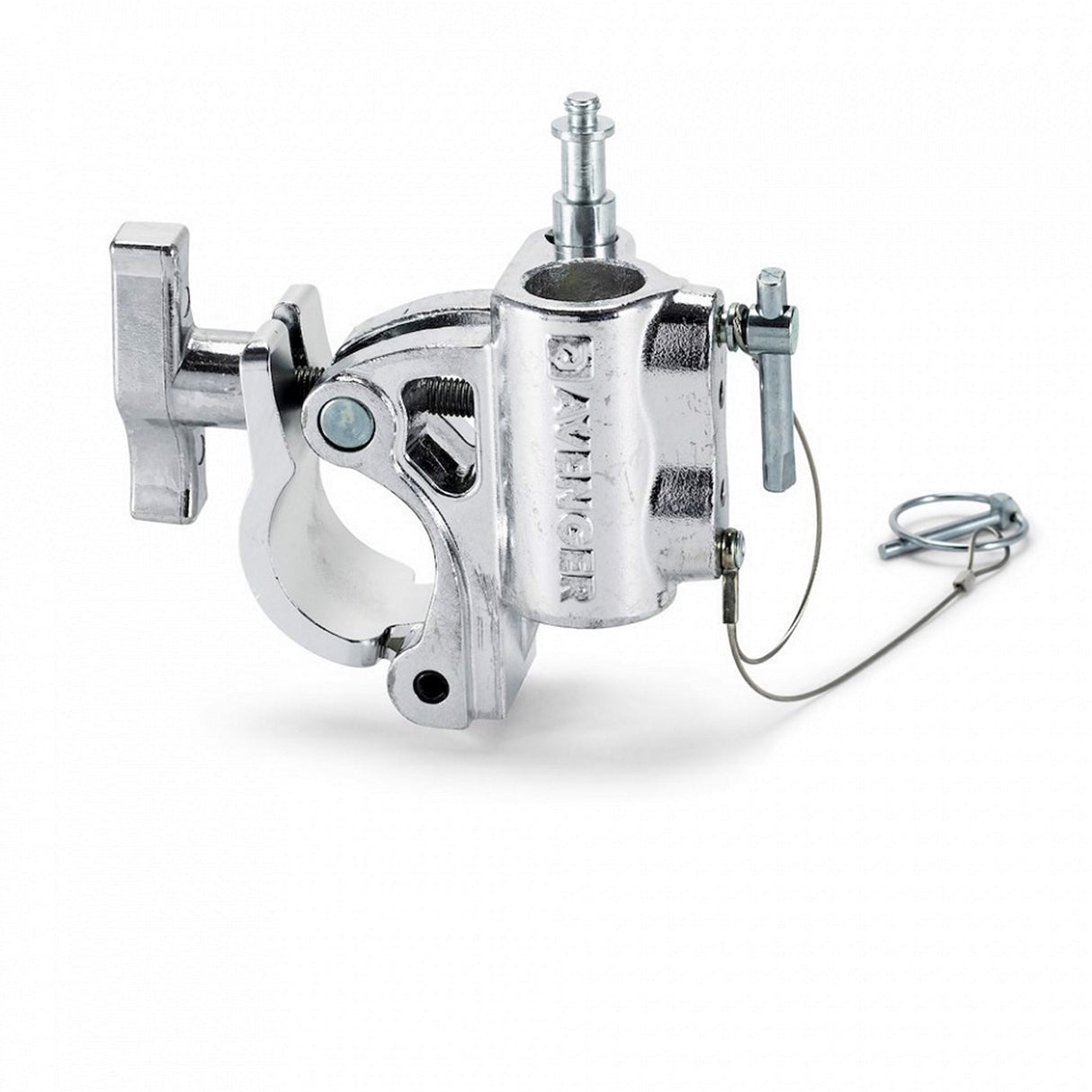

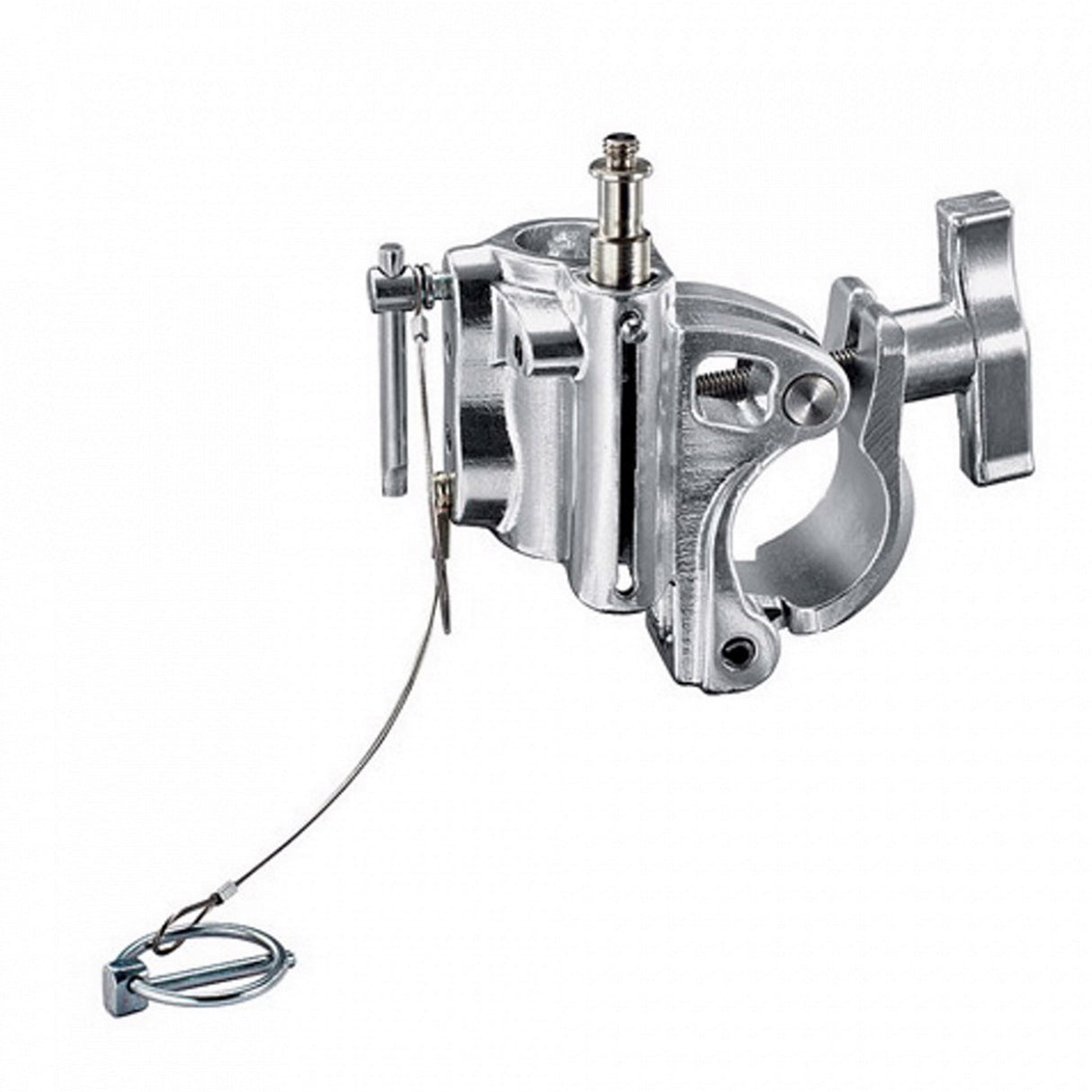

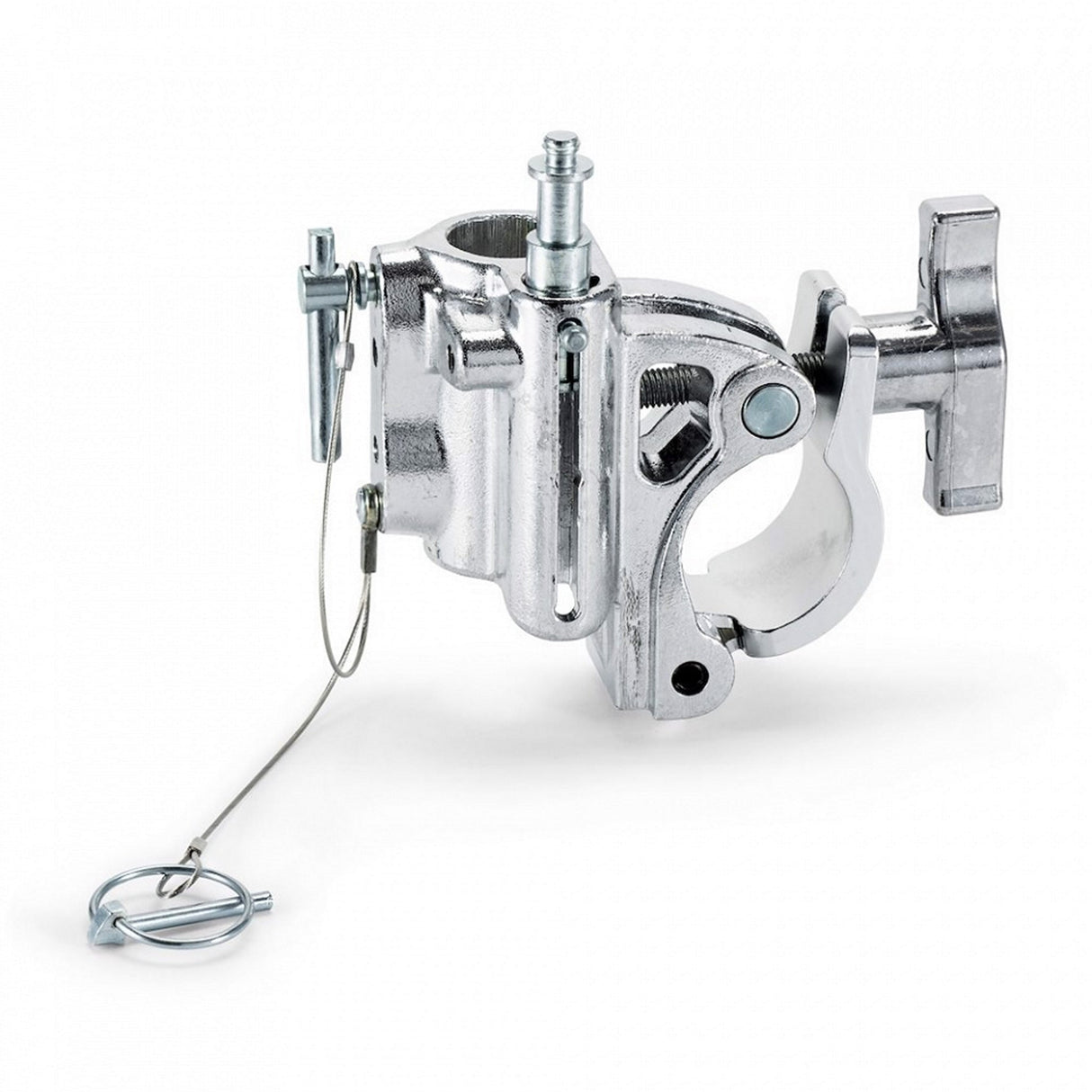

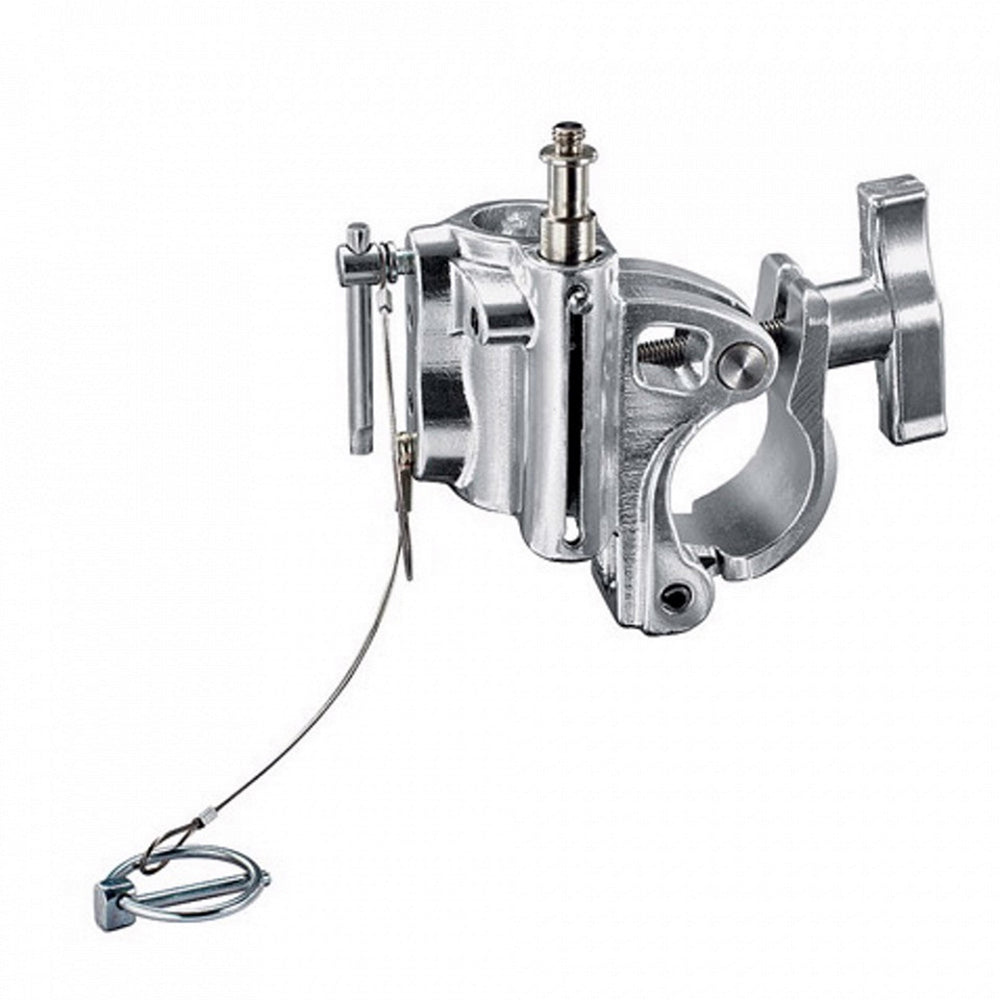

The Avenger C345K-1 Barrel Clamp in silver is made with gravity cast aluminum, has a built in 28 mm/ 1 1/8 inch junior receiver, a 16 mm/ 5/8 inch baby pin with a 1/4” threaded top and a 16 mm/5/8 inch receiver. This barrel clamp is capable of mounting pipes or tubes ranging from 42 - 52 mm/1.65 - 2.05 inch and easily locks into place using a T-Knob. The baby attachment can support loads up to 40 kg/88.2 lb while the junior receiver can take capacities up to 300 kg/661.4 lb. The C345-1 includes a safety cable with locking pin to secure attachments that are mounted in the junior receiver. T?V S?D certified.
Technical Specifications
Weight
0.95 kg
Attachment 01
1 1/8” (28mm) socket - Payload 300 Kg, 5/8” (16mm) socket - Payload 40 Kg, 5/8” (16mm) stud - Payload 40 Kg
Length
3 cm
Certification
TUV
Clamp Range - Max. (Round Tube)
52 mm
Clamp Range Min Round Tube
42 mm
Color
Silver
Material
Aluminum
