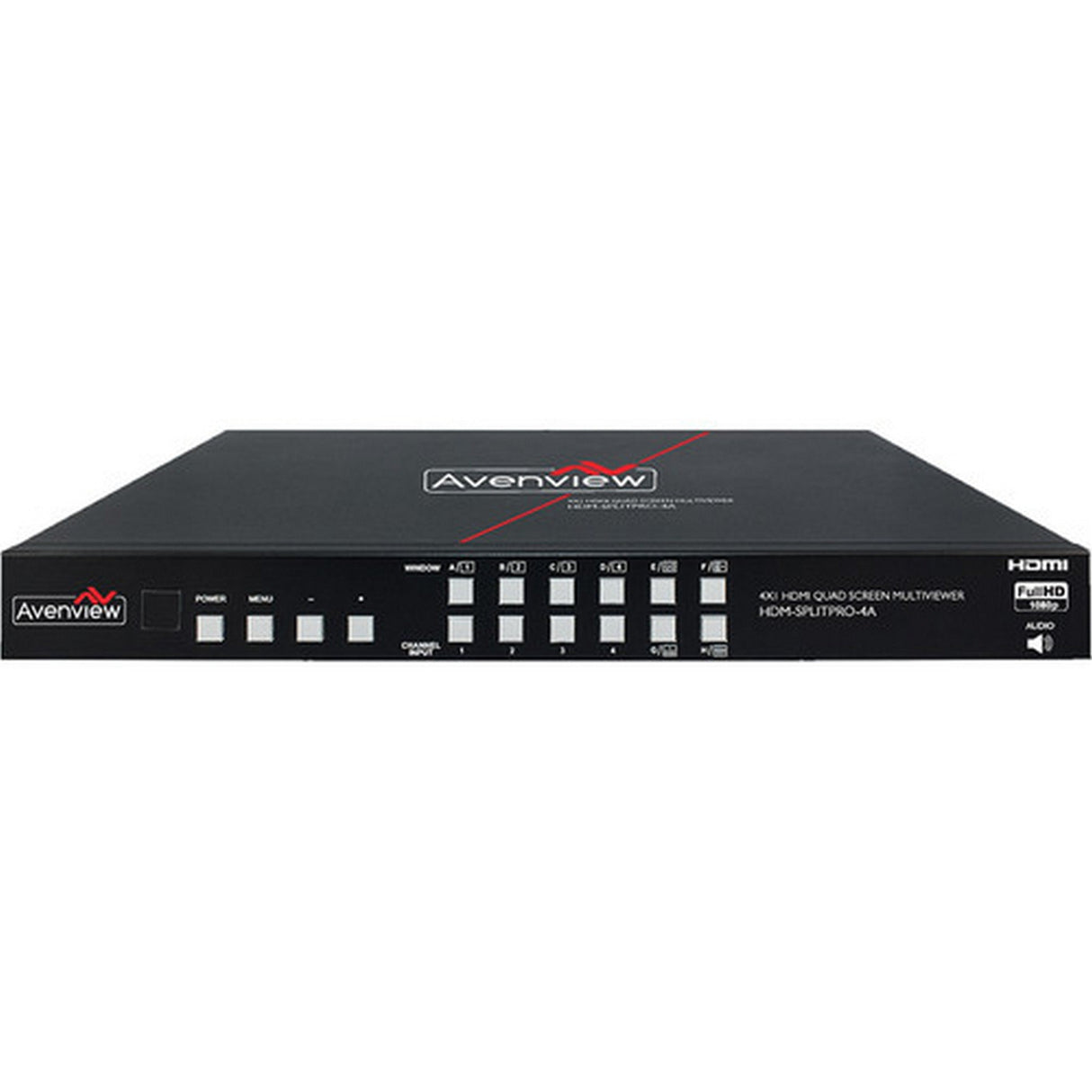

Avenview HDM-SPLITPRO-4A 4 x1 Multiviewer Scaler
Avenview HDM-SPLITPRO-4A 4 x1 Multiviewer Scaler
This 4 x1 Multiviewer Scaler was developed for the growing demand in the security, videoconference and sporting events. This 1U HDMI device can accept 4 HDMI input digital sources and then combine, (4) four video signals onto a single HDMI HD Monitor The user can easily manage each input via the Menu settings and create any layout and position of any of the 4 (four) Inputs on a single Monitor. This device supports full range of video resolutions up to WUXGA@60 (RB) or Full HD1080p and audio supported up to 8-channel LPCM with 192 kHz sampling rate for both input and output. Audio channels can be selected to playback with input or can be muted.
Key Features
- Seamless switching and Fade In Out between input channels and combined images on single HD Monitor;
- Zoom IN/Out the (4) four HDMI Input Channels;
- Supports PIP, POP, PAP and Multi-windows layout configurations;
- Rotation (90 left & right and 180) functions;
- Supports Chromakey Function;
- Mirror the (4) four HDMI Input Channels;
- 8 PreseT-HOT keys for easy control and design layouts;
- 4 Custom Favorite saved layout buttons via the IR Remote;
- Input /Output resolution supported supports full range of video resolutions up to WUXGA@60 (RB) or Full HD1080p;
- Audio Supports LPCM 2CH, 6CH, 8CH/AC3/DTS/Dolby Digital Plus/Dolby TruHD & DTS-HD;
- Fine tuning and adjustments of contrast, brightness, Saturation and hue;
- Auto EDID detect from the source;
- USB for Service Mode and Firmware upgrade;
- Supports OSD, RS-232, Telnet, IR Remote and Front panel buttons
- Factory Reset
- 1RU Size
Technical Specifications
HDCP COMPLIANCE
Yes
VIDEO BANDWIDTH
225 MHz (6.75Gbps)
HDMI INPUT CABLE DISTANCE
Up to 10M/1080p@12 bits
HDMI OUTPUT CABLE DISTANCE
Up to 10M/1080p@8 bits
SUPPORTED RESOLUTIONS
PC -VGA, XGA (1024 x 768), SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200)
480i/720p/1080i/1080p@60
AUDIO SUPPORT
LPCM 2CH, 6CH, 8CH/AC3/DTS/Dolby Digital Plus/Dolby TruHD & DTS-HD

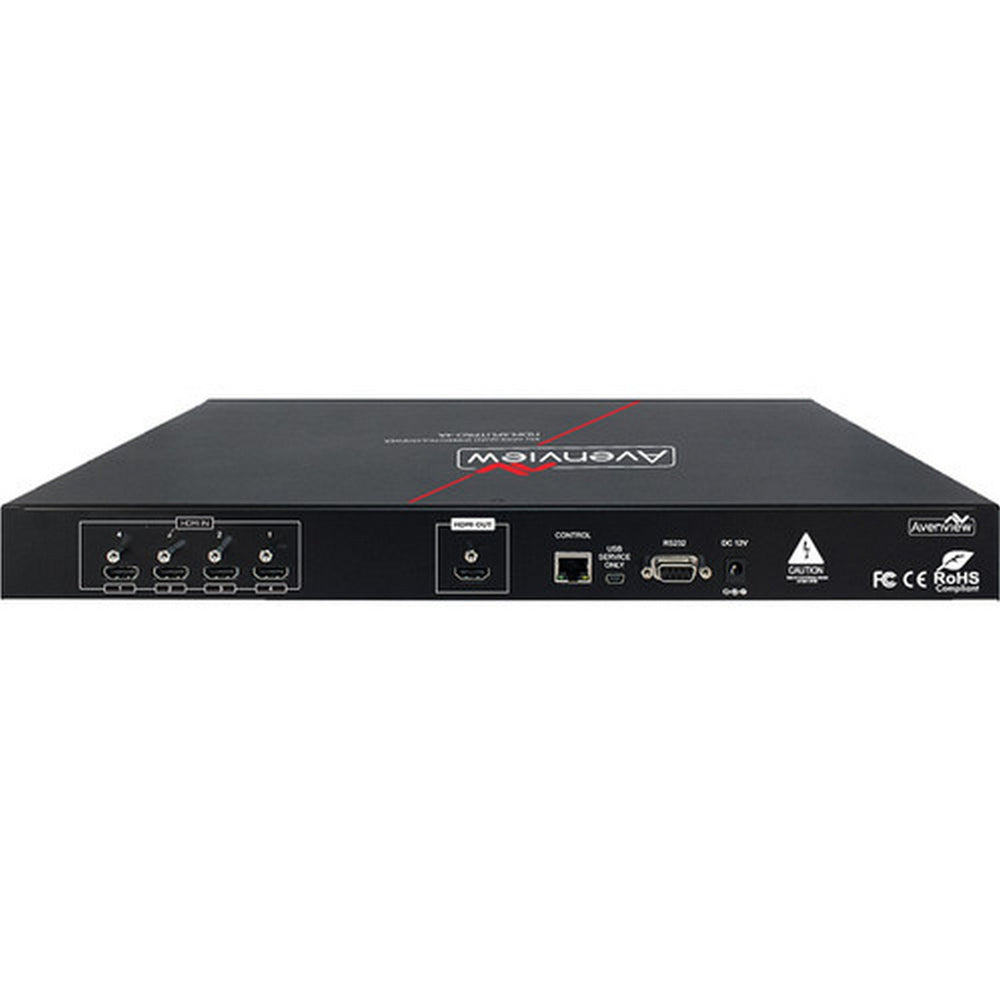

INPUT
4 x HDMI19 Pin Female type connector
1 x RJ45/RS-232 1xMini USB service only
OUTPUT
1 x HDMI 19 Pin Female type connector
USB CONNECTOR
Type A Mini USB
RJ45 CONNECTOR
WE/SS 8P8C with 2 LED indicators
SWITCHING SPEED
-8 kV (air-gap discharge)
-4 kV (contact discharge)
WEIGHT
4.85 lbs
DIMENSIONS (L X W X H)
17.16" x 10" x 1.7"
POWER SUPPLY
12V/3A DC (US/EU standards, CE/FCC/UL certified)
POWER CONSUMPTION
18W
ENVIRONMENTAL
OPERATING TEMPERATURE
32 ~ 104F (0 to 40C)
STORAGE TEMPERATURE
-4 ~ 140F (-20 ~ 60C)
RELATIVE HUMIDITY
20~90% RH (no condensation)
