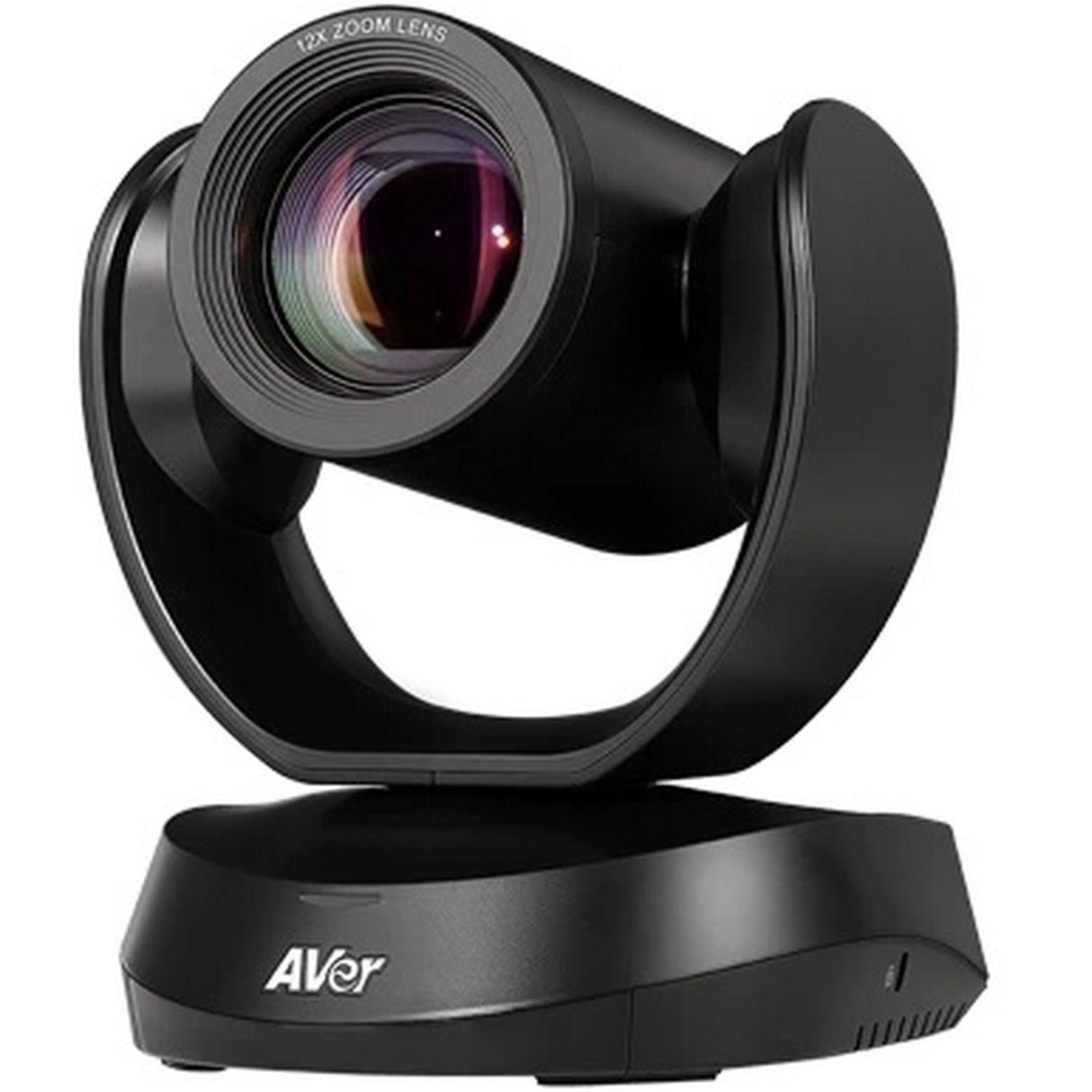

AVer CAM520 12x USB PTZ Conference Camera, Black
AVer CAM520 12x USB PTZ Conference Camera, Black
Free Shipping
AVer CAM520 12x USB PTZ Conference Camera, Black
AVer's CAM520 is a professional-grade yet user-friendly PTZ camera perfect for mid to large conference rooms. With 12X optical zoom, HD 1080p, and whisper-silent Pan/Tilt/Zoom features, CAM520 results in uninterrupted sharp images for an outstanding video communication experience. The built-in USB interface is compatible with any desktop or laptop to use with your favorite meeting and video apps. With the combination of 12X true optical zoom, fast auto-focus functions, and smooth pan/tilt/zoom capabilities, CAM520 can capture the smallest details with absolute clarity at all times.
Key Features
- Full HD 1080p 60fps Resolution
- True 12X Optical Zoom PTZ Camera
- Up to 10 Camera Presets
- Simply Plug and Play
Technical Specifications
Package contents
Camera
Remote control
5m Micro USB 2.0 Type-B to Type-A cable
Power supply
Quick-start guide
Tabletop/wall/ceiling mount
6.35mm tripod mounting screw
Velcro
Camera
Full HD 1080p 60fps
Pan: Ā±130Ā°; 0.45Ā° step
Tilt: +90Ā°/-25Ā°; 0.25Ā° step
Field of view (D): 82Ā° (wide) ~ 6.3Ā° (tele)
Sensor: 1/2.8 low lux CMOS 2M pixel
Resolution: full HD 1080p (1920x1080), HD 720p (1280x720), PAL (1024x576), VGA (640x480), QVGA (320x240), QQVGA (160x120) at 60fps, 30fps and 15fps
Scan: progressive
Zoom: 18X total zoom (12X optical zoom)
Lens focal length: 3.9mm (wide) ~ 47.3mm (tele)
Lens F#: 1.8 (wide) ~ 2.8 (tele)
Auto Iris
S/N ratio: >50dB
Minimum illumination: 1 lx (50 IRE, F1.6, shutter 1/30)
2D and 3D denoise
Backlight compensation
Flip, mirror
Minimum working distance: 1.5 meter
Include table/wall/ceiling mount
Kensington slot
Remote control
IR (Infrared)
10 camera presets (100 presets via VISCA)
System requirements
WindowsĀ® 7/ 8/8.1/10
Mac OSĀ® X 10.7 or higher
Google Chromebook version 29.0.1547.70, Platform 4319.79.0
Hardware requirements
2.4 GHz IntelĀ® Core 2 Duo processor
2 GB RAM or more
USB 2.0 port
Power supply
AC 100V ~ 240V
Consumption: EIAJ 12, 4A
Environmental data
Physical characteristics: 0~40Ā°C
Operation humidity: 20%~80%
Storage temperature: -20~60Ā°C
Storage humidity: 20%~80%
Physical characteristics
Package dimensions: 370 x 252 x 275mm
Package weight: 4.16kg/9.17lbs
Camera: 180 x 140 x 182mm/1.5kg
Remote control: 200 x 50 x 20mm/0.091kg
Optional accessories
RS232 adapter
Compliance and tools
YUV, MJPEG, H.264 SVC, AVC (high and base profile)
Multi-stream capable
USB 2.0
UVC (USB Video Class) 1.1 with H.264 extension
VISCA via RS232
Downloadable diagnostic tool, field firmware upgrade tool, App for advanced features and settings
PTZApp
Free download on WindowsĀ® and MacĀ® computers
Compatible with SkypeTM Plugin for answering and hanging up via remote control
Upgrade firmware automatically or manually control camera
Set parameters and adjust camera image
Diagnose operating status
View live video
Warranty
3-year: camera
1-year: accessories
Compatible applications
Skypeā¢, Skype for Business, V-CUBE, Google Hangoutsā¢, FaceTime, CiscoĀ® WebexĀ®, GoToMeeting, Adobe Connect, BlueJeans, Zoom, Vidyo, Fuze, WebRTC, CyberLink U MeetingĀ®
