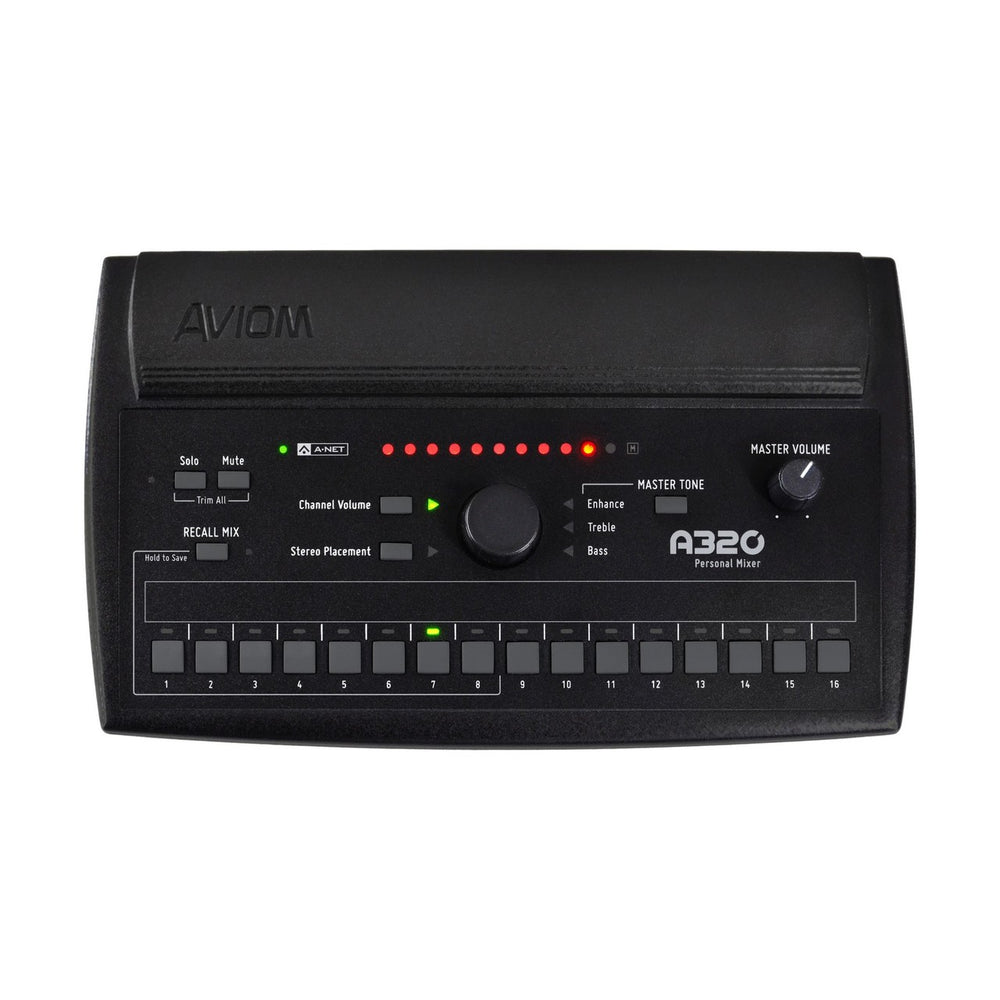

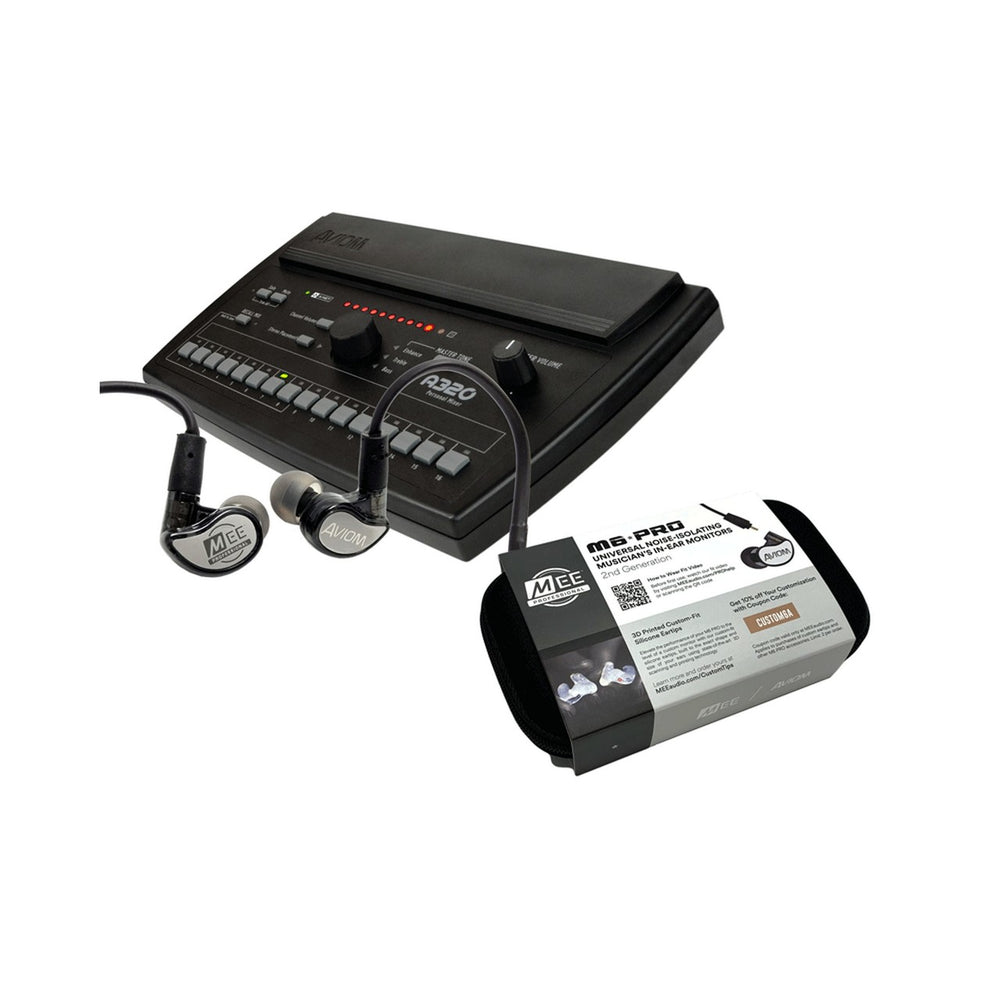

Aviom A320-MEE 64 Channel Personal Mixer with M6 Pro In-Ear Monitors

The A320 Personal Mixer gives performing and recording musicians simple, intuitive control over their monitor mixes. With many of the features of the award-winning A360 Personal Mixer, the A320 gives musicians the ability to get clear, musical monitor mixes every time they play.

Key Features

• 16 mono or stereo sources
• 32-channel mix engine
• Per-channel volume and Stereo Placement
• Eight customizable mix presets
• Universal-fit in-ear monitors perfect for use on and off the stage
• Single 10mm driver delivers full-range sound, crystal clarity, and deep bass without the use of crossovers

Technical Specifications

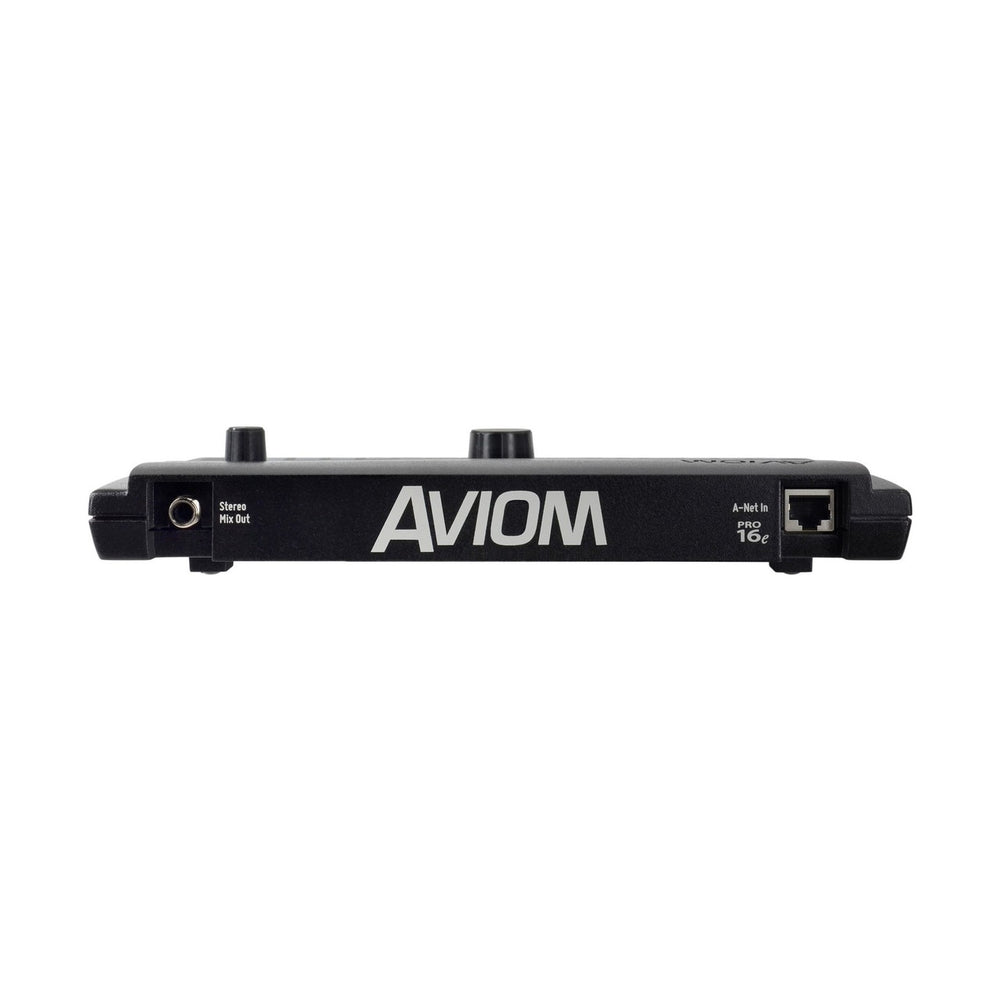

Audio Output
1/4" TRS stereo, headphone or line level
Stereo Mix Output, Headphone/Line
Tip: Audio Left;
Ring: Audio Right;
Sleeve: Ground
A-Net I/O
1 A-Net In, RJ45 connector;
Supports Pro16 (16-channel) and Pro16e (32-channel)
D/A Conversion
44.1/48kHz, 24-bit
Stereo Operation
Stereo Link, per channel pair;
Set at the input module;
Variable pan per mono channel or pan/spread per stereo channel pair
Headphone Output
275 mW per side into 50 Ohms (both sides driven)
Output Impedance
5 Ohms
Freq. Response
3Hz-22kHz +0.2dB/-3dB at 50 Ohms
THD +N
< 0.003%
Output Voltage for Personal Mixers
24VDC, 0.5 amp
Transmitted over the Cat-5e cable
Signal to Noise (unweighted)
-106dB (measured with zero data into all channels)
Latency
0.880 msec (measured from analog input to analog output)
Pro16e A-Net
Use Cat-5e (or better) cable;
Maximum 400 ft (122 m) between devices;
Supports Power Over A-Net
Cat-5 cable
Use shielded Cat-5e (or better) cable to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits.
Power
24 VDC, 0.5 amp;
Power is supplied over the Cat-5 cable when connected to an Aviom
A-Net Distributor (required)
Dimensions
10.26" (260.6 mm) wide x 6.14" (155.95 mm) deep x 1.91" (48.51 mm) high
Weight
1.3 lb. (0.59 kg)
