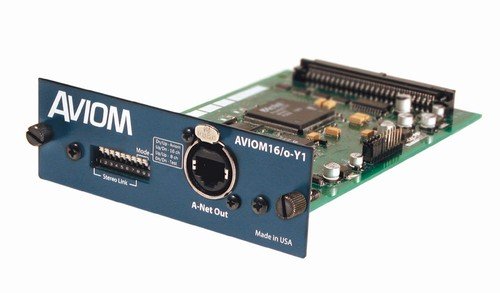

Aviom16/o-Y1 A-Net Card for Yamaha Digital Mixers

The Aviom16/o-Y1 A-Net Card is the ultimate digital solution for integrating your Yamaha digital mixer with an Aviom Pro16 Personal Mixing System. Designed in the industry-standard Mini-YGDAI (MY) format, this essential expansion card plugs directly into a compatible Yamaha console's MY slot, instantly creating a powerful, low-latency monitor mixing or audio distribution system without the need for bulky analog I/O.

This card streams up to 16 channels of 24-bit digital audio via a single, standard Cat-5e cable using the reliable Pro16 A-Net protocol. By converting the console's internal signal to Aviom’s digital format, the Y1 Card eliminates conversion losses and simplifies system setup. Configuration is managed entirely from the Yamaha console's user interface, allowing the engineer to easily assign any combination of channels, aux sends, groups, or sub-mixes to the monitoring network as needed.

The Aviom16/o-Y1 simplifies your audio path, reduces cable clutter, and ensures a pristine, all-digital signal from the console to all Aviom Pro16 personal mixers (A640, A360, A320, etc.). For large-scale productions, multiple Y1 cards can be combined using an optional SB4 System Bridge and D800/D800-Dante Distributor to support up to 64 sources. Upgrade your live sound and studio monitoring with the professional, digital connectivity of the Aviom16/o-Y1 A-Net Card.

Key Features

• Direct Digital Interface: Provides a direct digital link between Yamaha digital consoles (using MY expansion slots) and Aviom Pro16® Series products.
• Pro16 A-Net Output: Features one 16-channel Pro16 A-Net digital output over a single standard Cat-5e cable.
• Analog Elimination: Eliminates the need for an analog input module, simplifying the monitor mixing setup.
• Flexible Digital Routing: Allows assignment of any combination of console channels, direct outputs, aux sends, groups, or sub-mixes to the A-Net stream via the Yamaha console's user interface.
• Stereo Linking: Includes Channel Link DIP switches for simple stereo operation configuration.
• System Expandability: Supports network expansion up to 64 sources when multiple cards are combined using an SB4 System Bridge (sold separately) and a D800/D800-Dante A-Net Distributor.
• Self-Powered: No external power supply is required; the card draws power directly from the host Yamaha device.

Specifications

• Interface Format: Yamaha mini-YGDAI (MY) Expansion Card
• A-Net Output: 16 channels of A-Net digital data (*8 channels on PM1D)
• Digital Conversion: 24-bit
• Sample Rate: 44.1kHz to 48kHz, +/-10%
• A-Net Output Connector: 1 x EtherCon® RJ45 connector
• A-Net Protocol: Pro16
• A-Net Cabling: Unshielded Cat-5e UTP (or better)
• Maximum Cable Length: 500 feet (150m) between devices
• Latency: <0.880 msec (measured from analog input to analog output)
• Power Supply: Not required; uses power from the Yamaha host device
• Dimensions: 4.75" W x 6.25" D x 1.5" H (120.7 mm x 158.8 mm x 38.1 mm)
• Weight: 0.8 lbs (0.36 kg)
• Configuration: DIP switches for Stereo Link (1-8) and A-Net mode (9-10)

Package Content

• Aviom16/o-Y1 A-Net Card
