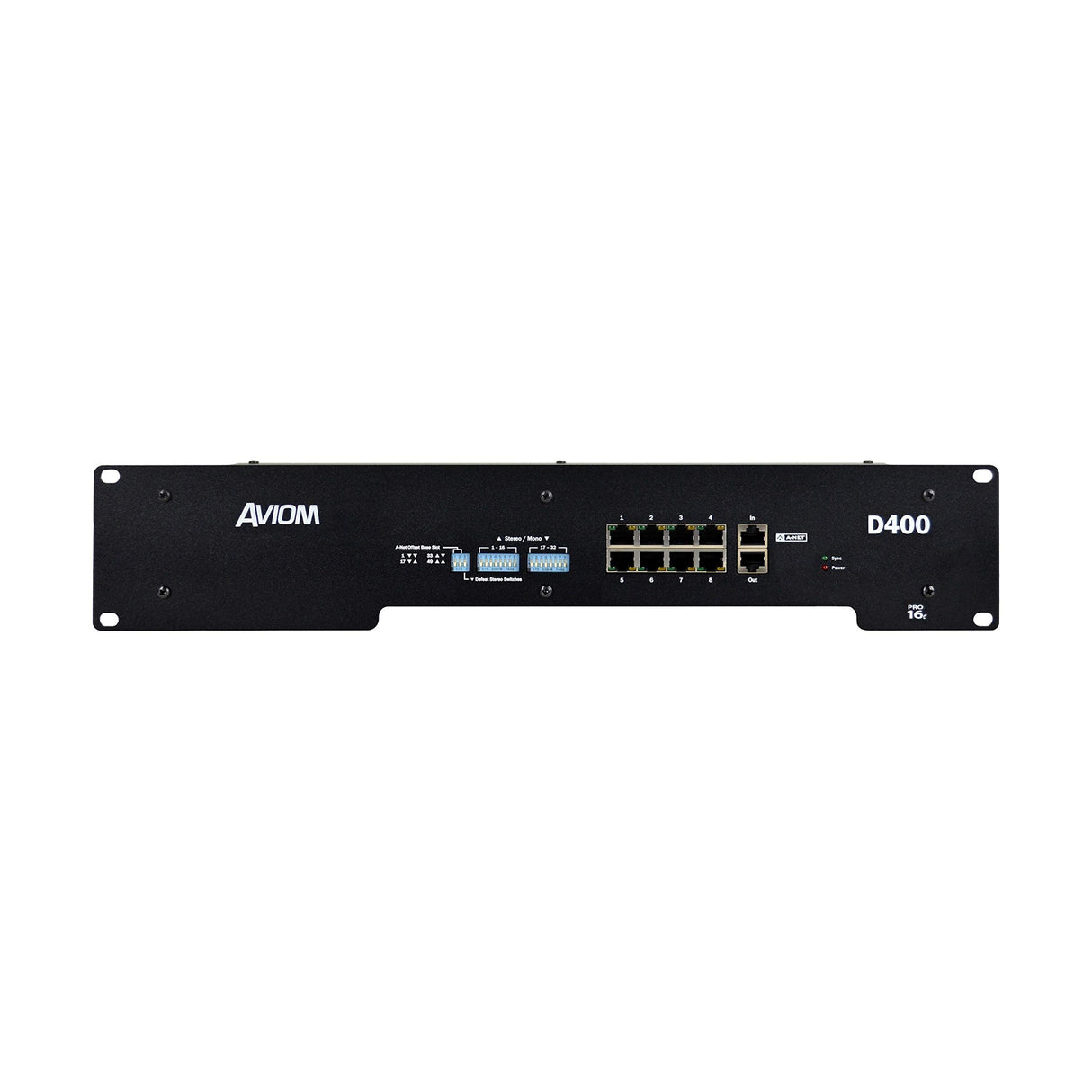

Aviom D400 Pro16e A-Net Distributor for Personal Mixers

The standard D400 has an A-Net input, perfect for using with analog input modules or digital console cards from Aviom or our third party partners. The D400-Dante has a Dante input instead, and allows up to 32 channels (at 44.1/48kHz) to be routed from a Dante-enabled console or digital audio network to the Personal Mixers.

Key Features

• Distributes power and audio to up to eight A320 and A360 Personal Mixers
• One unpowered Pro16e A-Net Out for thru connections
• A-Net Offset switches to set the range of Pro16e network slots to be sent to Personal Mixers (D400 only)
• Stereo Link DIP switches simplify stereo channel assignments
• Supports legacy A-16II and A-16R Personal Mixers

Technical Specifications

A-Net Out to Personal Mixers
Eight RJ45 connectors, powered;
Compatible with A-16II, A320, and A360 Personal Mixers
A-Net Out
Pro16e A-Net;
RJ45 connector, unpowered
Supports system expansion and the A-16II, A320, and A360 Personal Mixers
LEDs
Power On (red); Network Sync (green)
Stereo Link
Two 8-position DIP switch blocks (1-16, 17-32)
Output Voltage for Personal Mixers
24VDC, 0.5 amp;
Transmitted over the Cat-5e cable
A-Net Cables
Front Panel Connections: Shielded Cat-5e (or better) cable must be used to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits.
Unshielded Cat-5e cable may be used on all other network connections

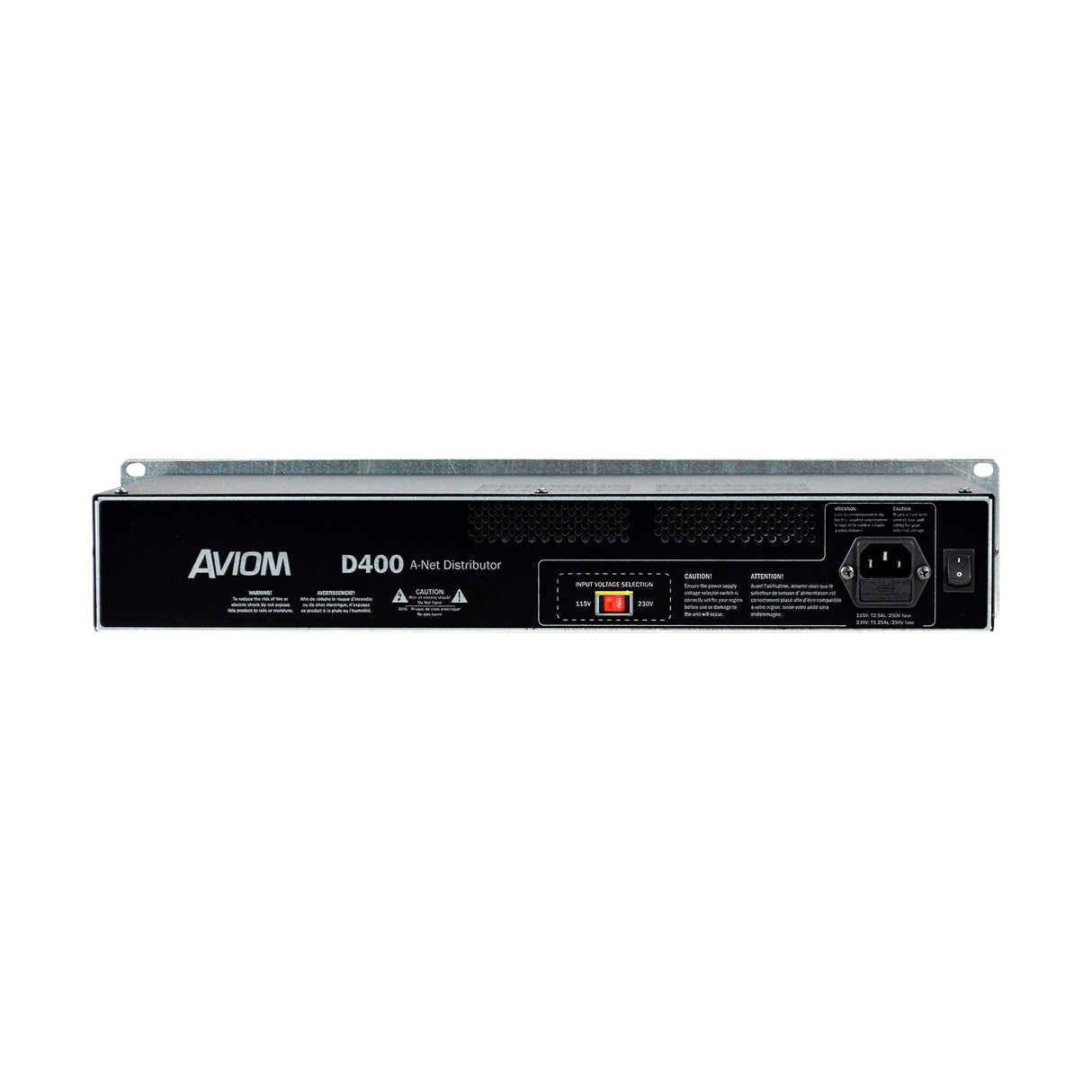

Power Supply
Internal, IEC connector
Input Voltage
100-120 VAC or 200-240 VAC (with selector switch); 50-60Hz @220 W max
AC Fuse Types
115V range: T2.5AL/250V, slow-acting
230V range: T1.25AL/250V; slow-acting
Dimensions
19" (482.6 mm) wide x 7.25" (182 mm) deep; 2U, 3.5" (88.9 mm) high
Weight
12.0 lbs (5.44 kg)
