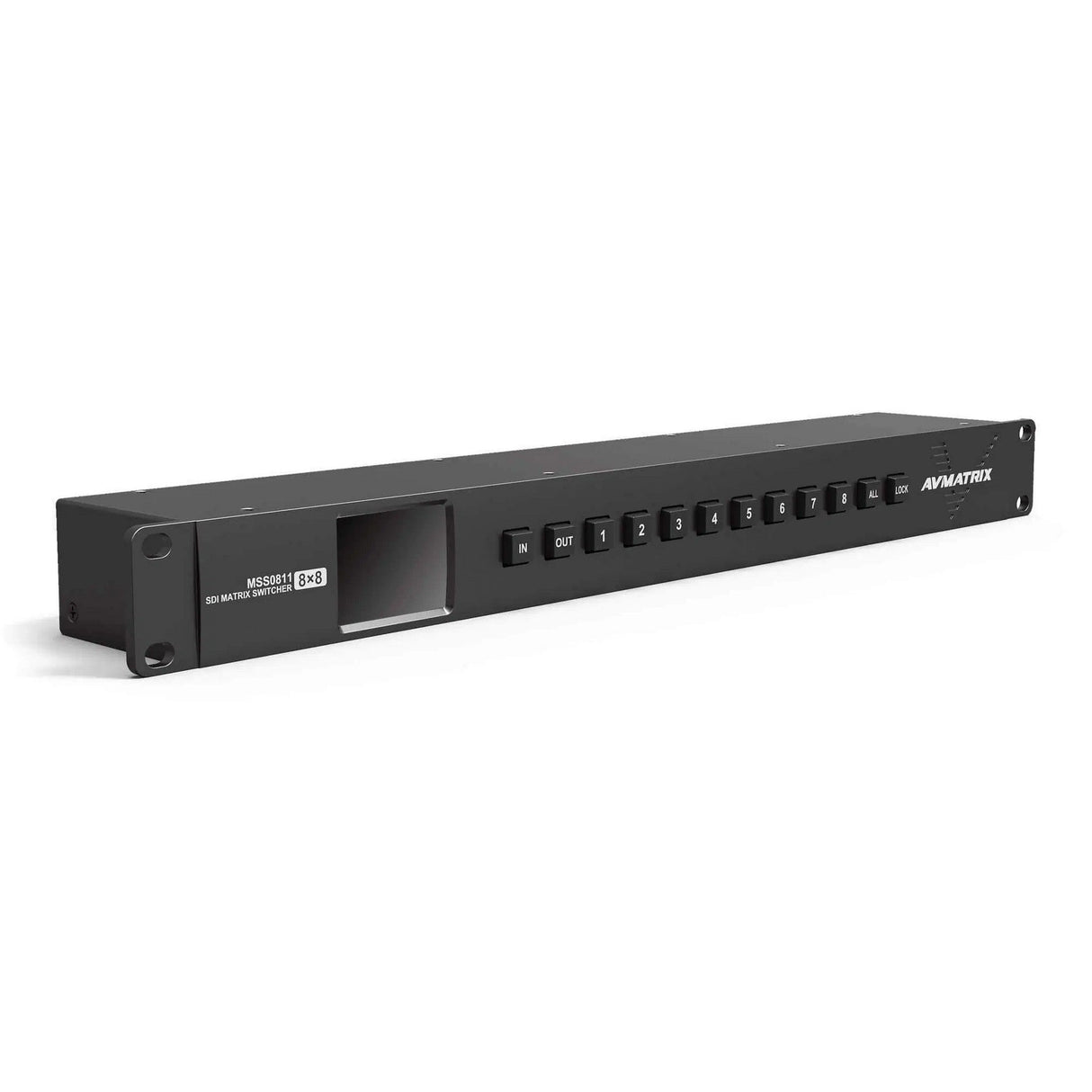

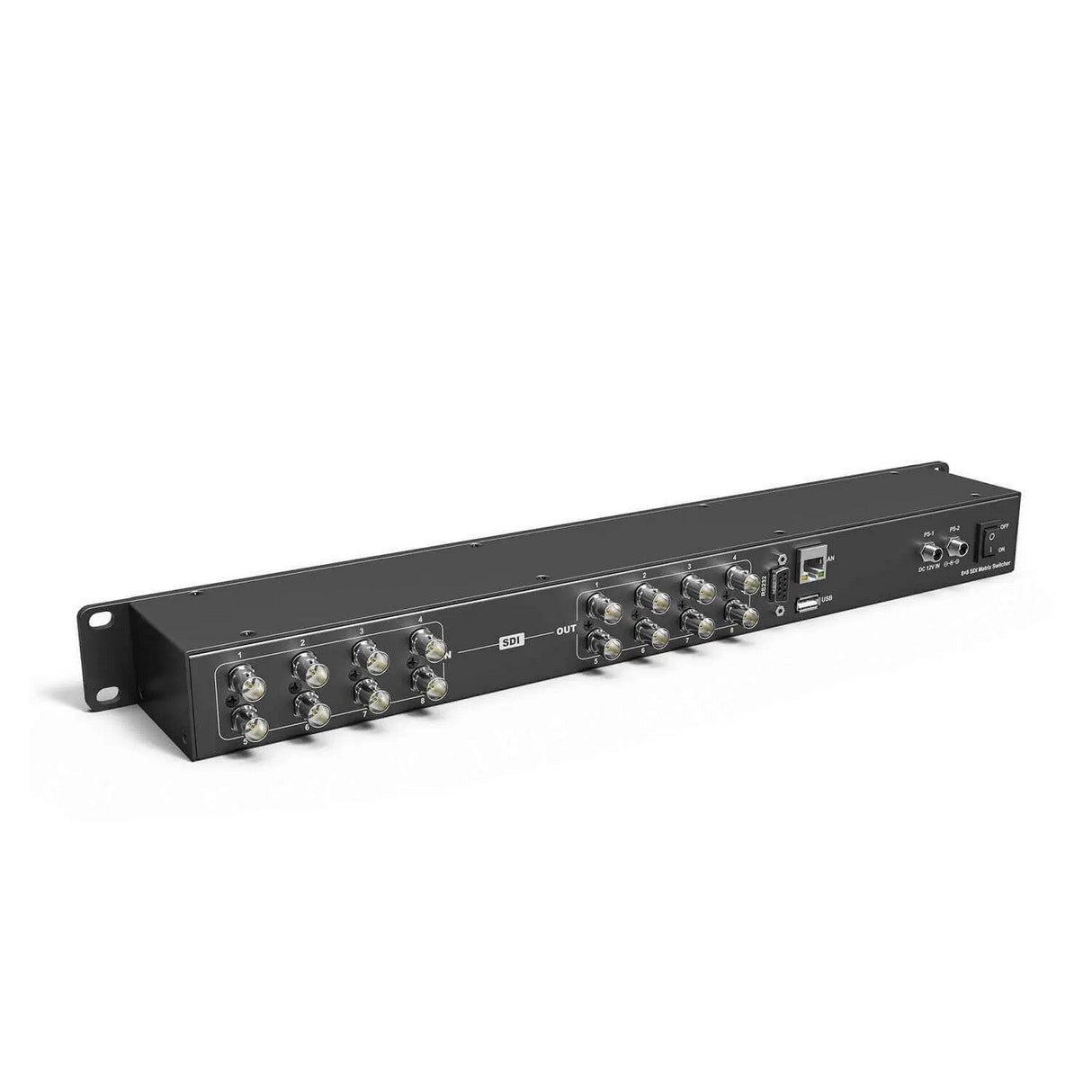

AVMATRIX MSS0811 8 x 8 3G-SDI Matrix Switcher
AVMATRIX MSS0811 8 x 8 3G-SDI Matrix Switcher

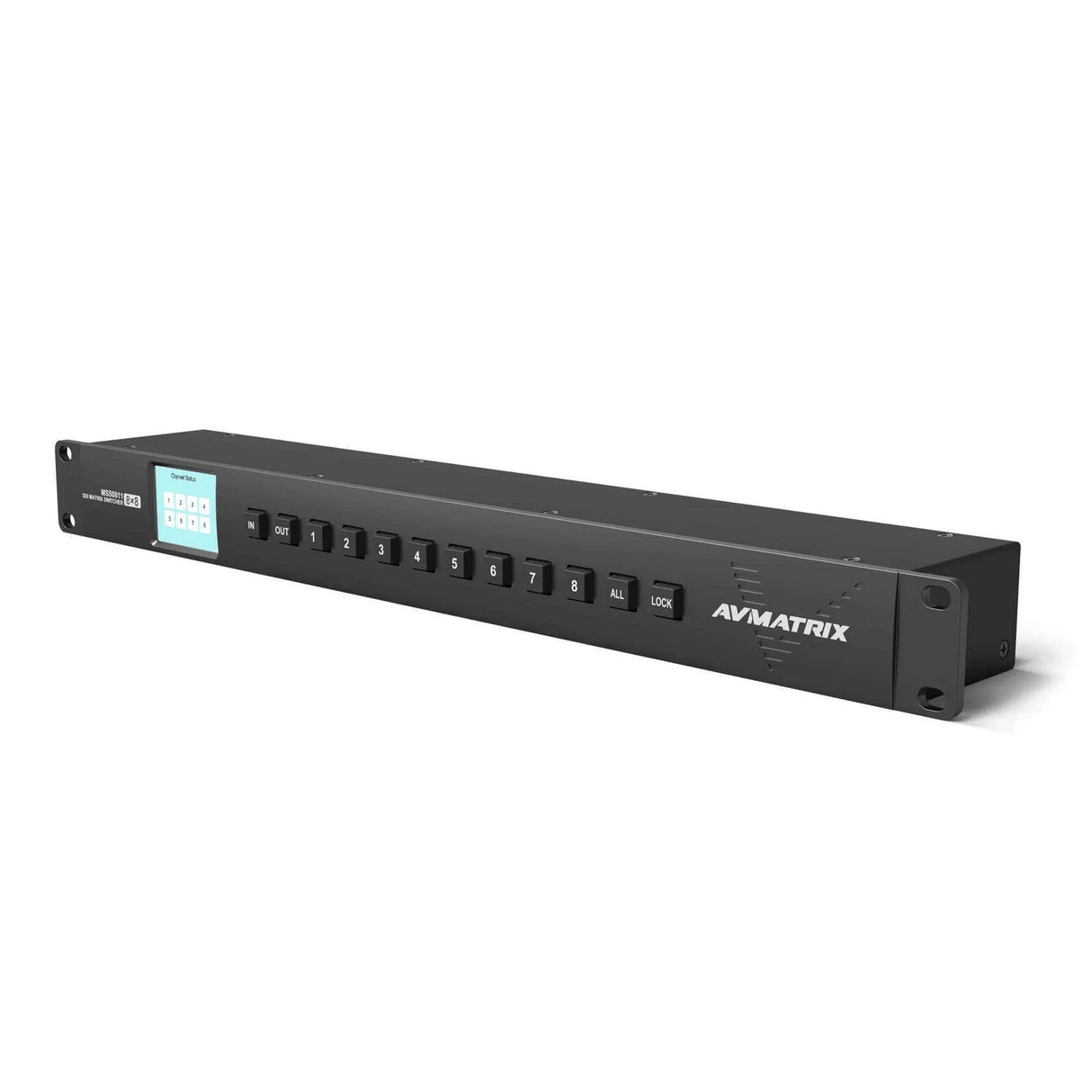

The AVMATRIX MSS0811 is a powerful, versatile 8x8 3G-SDI Matrix Switcher that can be easily integrated into your workflow. The super-compact 1RU design is just a few inches deep, making it the perfect fit for EdIt'suIt's, Sports Trucks, A/V Rigs, Live Theater, Corporate Video and more. The MSS0811 was engineered with multi format technology! It can auto-detect multiple video format sources like SD/HD/3G-SDI (Level A and B) and DVB-ASI at the same time and easily route to multiple destinations in NTSC, PAL, SD720, and 1080 at any frame rate. The Lilliput MSS0811 8x8 3G-SDI Matrix Switcher also features multiple control methods. You can choose from full lockable control on the front panel, there's even a 2.2 inch LCD screen to view channel status. You can also use RS232 control via the serial port, Keyboard control with the usb port or computer control using the included free Windows software! Dual redundant power supplies ensure the highest signal quality and maximum uptime even during power outages. The Lilliput MSS0811 8X8 SDI Matrix Switcher.
Key Features
- 8X3G-SDI inputs, 8X3G-SDI outputs.
- SDI input signal auto detection and equalization.
- Level A and level B signal supported.
- DVB-ASI interface compatible.
- Free PC software control: LAN RS-232.
- Front panel button control and USB Keyboard.
- Redundant power design
Technical Specifications
Standards
SDI Video Input
8xSD/HD/3G-SDI
SDI Video Output
8xSD/HD/3G-SDI
Control
Front panel button,USB keyboard, PC software via LAN/RS-232
SDI Input Format Support
1080p 60/59.94/50
1080p 30/29.97/25/24/23.98
1080PsF 30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50
720p 30/29.97/25/24/23.98
625i 50
525i 59.94
SDI Auto Switching
Automatically detects SD, HD and 3G-SDI
SDI Compliance
SMPTE 259M, SMPTE 292M
SMPTE 296M, SMPTE 372M
SMPTE 424M, SMPTE 425M
SDI Color Space and Precision
RGB 4:4:4 10bit/12bit
YUV 4:2:2 10bit/12bit YUV 4:4:4 10bit/12bit
XYZ 4:4:4 12bit
SDI Output Format Support
1080p 60/59.94/50
1080p 30/29.97/25/24/23.98
1080PsF 30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50
720p 30/29.97/25/24/23.98
625i 50
525i 59.94
Item Includes
MSS0811 (8x8 3G-SDI Matrix Switcher)
DC 12V 2A Power Adapter x 2
Warranty
3 Year Limited Manufacturer's Warranty.
