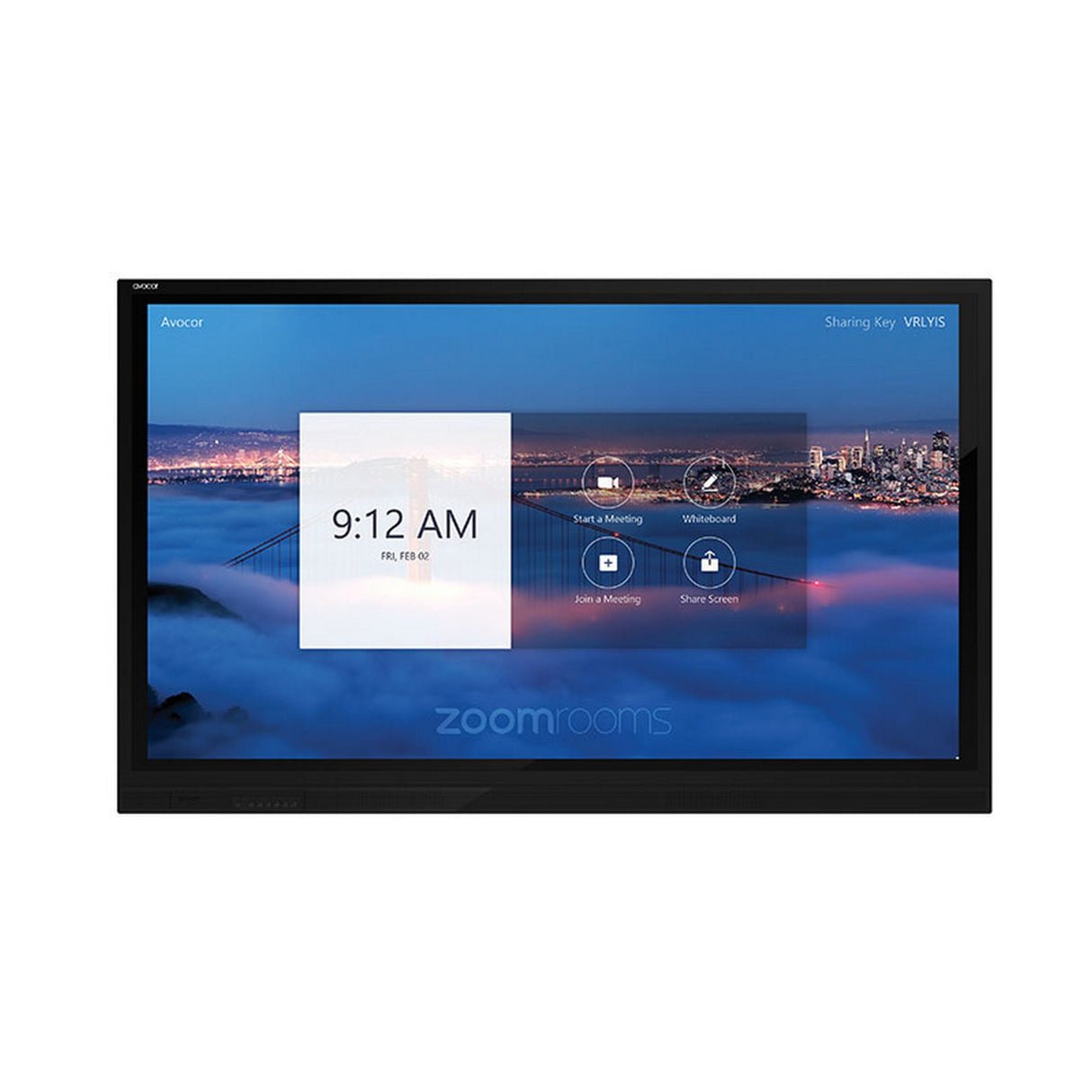

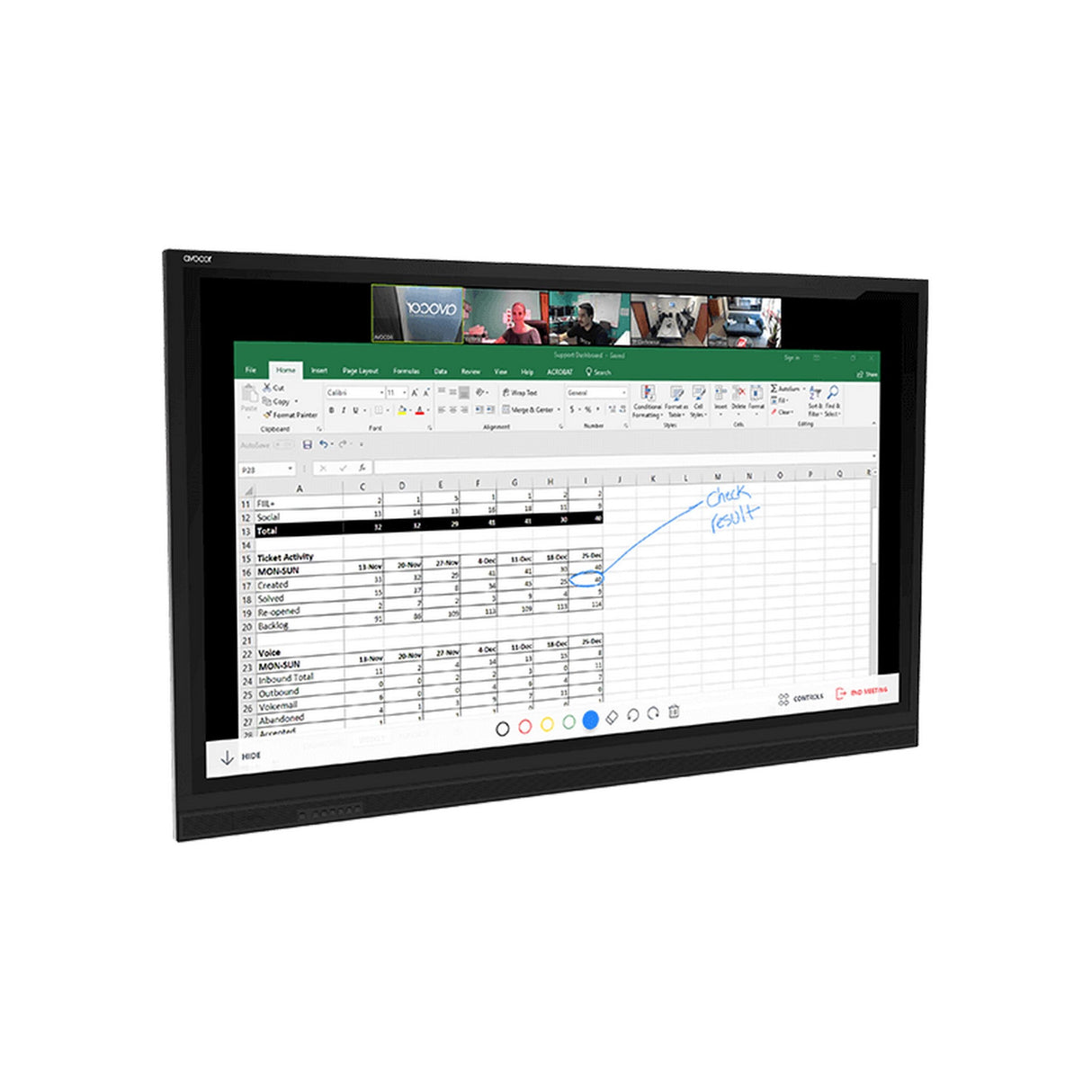

Avocor AVE-6520 65-Inch 4K Interactive Touch Screen

The E6520 from Avocor introduces cutting-edge lightweight LED technology on a 4K IR interactive display. The 65” display comes with ultra-thin, 2mm optically bonded glass delivers up to 20-points of incredibly fast touch using Avocor Intelligent Touch, creating a collaborative environment that’s perfect for huddle spaces, instantly.

Key Features

FIRST-TO-MARKET WITH 2MM OPTICALLY BONDED GLASS ON A 4K IR DISPLAY
The E6520 65” display integrates 2mm optically bonded glass into a 4K IR display producing a visually stunning interactive experience with increased brightness and contrast. With no gap between the glass and the display, parallax is eliminated giving users a pixel-perfect touch experience.

ULTRA-FAST 20-POINTS OF TOUCH
Small group collaboration is easy with ultra-fast 20-points of touch using Avocor Intelligent Touch. The E6520 delivers superior writing capabilities as well as the benefits of simultaneous annotation, enhancing group collaboration in the huddle space and classroom.

OPTIMIZED FOR WINDOWS 10
Optimized for Windows 10, the Avocor E6520 includes edge swipe functionality, giving the user a true-tablet like experience. The anti-glare and anti-fingerprint glass provides an exceptionally smooth and natural writing experience and inspires group collaboration at the display.

PEN AWARE FUNCTIONALITY WITH A FINE-TIP PASSIVE PEN
The fine-tip passive pen delivers a superb pen performance when inking and writing. Object recognition recognizes the size of the object touching it and differentiates easily between a pen, finger or palm.

CONTROL BAR
The E6520 Control bar brings simplicity to the front of the display by providing the ability to easily switch input sources without having to use the remote control. The E6520 also includes 20W of front facing speakers built with custom housing to deliver an increased crisp audio experience.

CONNECTIVITY OPTIONS
Boasting a range of digital connectivity options, the E6520 provides a wide range of options to connect 3rd party devices, including 2 x HDMI, 1 x DisplayPort, 1 x USB Hub, Room control and Room automation system via the RS-232 port, making the E6520 the ideal solution for every meeting and learning space.

Technical Specifications

Diagonal Size (Inch)
65
Backlight
Direct-lit LED
Aspect Ratio
16:9
Resolution
4K, 3840 x 2160 @ 60Hz
Response Time
8 ms
Brightness
370 (cd/m2)
Contrast Ratio
4000:1
Viewing Angle
178 / 178
Supported Colors
30-bit Deep Color
Display Orientation
Landscape
Interface
2 x USB-B 2.0
Touch
Up to 20 Point Avocor Intelligent Touch
Glass
2mm Optically Bonded, Anti-Glare, Anti Fingerprint Glass
Supported Operating System
Windows 7 / 8 / 10; Mac OSX*; Linux*
Built-in Speakers
2 x 10W - Forward Facing
Front Buttons
Power, Source Switch, Home / OPS Source, Freeze, Blank, Volume up, Volume down
Rear IO
1 x VGA, 2 x HDMI 2.0, 1 x DisplayPort 1.2, CAT 5 control, OPS Slot, 2 x Touch Input USB 2.0-Type B, IR input
Audio
1 x 3.5mm Audio In, 1 x 3.5mm Audio Out, 1 x Optical (SPDIF)
Control
1 x RS-232
Wake up on active signal
Yes
Product Dimensions
1546 x 944 x 88.9 mm |60.87 x 37.17 x 3.50 inches
Shipping Dimensions
1706.3 x 1080 x 264.9 mm | 67.13 x 42.52 x 10.43 inches
Weight
Net: 43 kg | 94.80 lbs / Gross: 57 kg | 125.66 lbs
Wall Mount (VESA)
600 x 400 mm | 23.62 inches x 15.75 inches
IPC Mount
N/A
OPS Slot
Yes
Handles
0
Source Auto Detect Function
Yes
OSD Key Lock Function
Yes
Video Wall Mode
N/A
Freeze frame
Yes
Blank Out
Yes
Colour adjustment
5 settings - 5000K, 6500K, 7500K, 9300K, User
Power Supply
AC100-240V (Worldwide), 50/60Hz
Maximum Power Consumption
<220 W
Standby
<=0.5 W
Operating Temperature
0C ~ 40C
Storage Temperature
-20C ~ 60C
Humidity
20% ~ 80%
WHAT COMES IN THE BOX
1 x Remote control & batteries, 1 x 3mm passive touch pen, 1 x 6.5mm passive touch pen, 1x US AC power cord, 1 x USB-A cable (118.11
inches), 1 x USB-B cable, 1 x HDMI cable (118.11 inches), 1 x USB Drivers, 1 x USB drive with MAC Touch Drivers, 1 x USB-B cable, Eraser, Pen
holder, Cleaning cloth, 1 x User Manual, 1 x Quick Start Guide
WARRANTY
3 Year advanced replacement with optional upgrades available for years 4 and 5
