AVPro Edge AC-DA210-HDBT 2x10 HDBaseT Distribution Amplifier | 4K 18Gbps HDR | Long-Distance HDMI Extender | Commercial AV

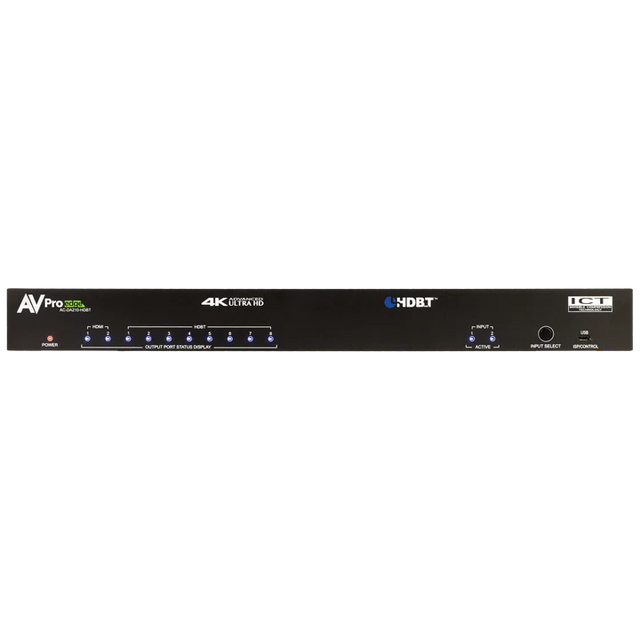

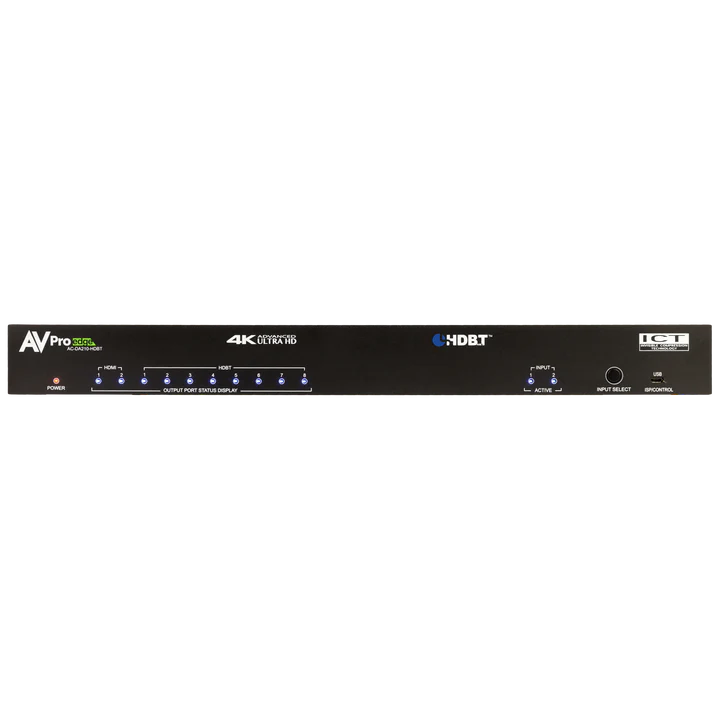

AVPro Edge AC-DA210-HDBT 2x10 HDBaseT Distribution Amplifier

Elevate your commercial AV installations with the AVPro Edge AC-DA210-HDBT 2x10 HDBaseT Distribution Amplifier. Engineered for massive 4K 18Gbps video distribution over extreme distances, this professional-grade solution is perfect for demanding environments like sports bars, retail showrooms, restaurants, and public spaces requiring consistent, high-quality digital signage or video walls.

Key Features & Benefits for Unmatched Performance:

• Unrivaled 4K 18Gbps Distribution: Deliver pristine 4K 60Hz 4:4:4 video (including HDR10, Dolby Vision, HLG) to up to 10 displays over a single CAT cable, ensuring every pixel is perfect for your audience. Supports DCI 4K (4096x2160) for cinema-grade experiences.

• Long-Distance HDBaseT Transmission: Extend 4K signals up to 70 meters (230 feet) and 1080p up to 100 meters (330 feet) using standard CAT 6a cabling, drastically simplifying cable runs in large venues.

• Dual Switchable HDMI Inputs: Maximize system flexibility and reliability with two HDMI inputs, allowing seamless switching between sources. Easily cascade multiple units for virtually endless expansion to hundreds of displays.

• Advanced Audio De-embedding: Extract high-quality audio (2CH Phoenix, SPDIF, Toslink Optical) directly from your HDMI source, enabling integration with secondary audio systems and enhancing the overall AV experience.

• Power Over HDBaseT (PoH): Simplify installation and reduce cable clutter with PoH-compatible AC-EX70-444-RNE Ultra Slim HDBaseT Receivers (sold separately), eliminating the need for external power supplies at each display.

• Robust Endpoint Management: Gain full control over connected displays and devices with built-in RS-232 and IR pass-through, allowing for remote power on/off and other commands.

• "Max Flow" Chassis Design: The 19-inch 1U rack-mountable chassis is engineered for optimal airflow, ensuring reliable operation even when stacked in tight rack environments.

• Plug & Play Simplicity: Designed for quick and easy setup, minimizing installation time and effort.

• HDCP 2.2 Compatible: Fully compliant with the latest content protection standards, ensuring seamless playback of protected content.

Ideal For:

• Sports Bars & Restaurants: Distribute live sports, menus, and promotions to multiple screens.

• Retail & Showrooms: Showcase products and branding with dynamic digital signage.

• Corporate & Education: Share presentations and video content across large spaces.

• Event Venues: Deliver high-impact visual experiences for audiences.

Technical Specifications

HDMI Inputs
2
HDMI Outputs
2
HDBaseT Outputs
8
HDMI Versions Supported
Up to HDMI 2.0
HDCP Versions
2.2 and Earlier
Video Formats Supported
4K60 (4:2:0 8 BIT), 4K30, 1080P, 1080I, 720P, 576P, 480P, 576I, 480I
HDMI Deep Color
12 BIT
Signal Rate
10.2 Gbps
HDR Supported
HDR 10 (w/ EDID)
Transmission Distance over HDMI
45 Feet (15 Meters)
HD Transmission Distance over HDBaseT
70M
UHD Transmission Distance over HDBaseT
40M
Audio Formats Supported
PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, DTS-HD Master Audio, Dolby Atmos, DTS:X
Audio Outputs (Extractors)
2CH (Phoenix), Digital (Toslink and SPDIF)
Control
RS-232, IR
Power Supply
48V 2A (100-240V Input)
Power Consumption
88W (Max)
Operating Temperature
32-95 deg F
Operating Humidity
15-90% RH
Weight
7.3 LBS
