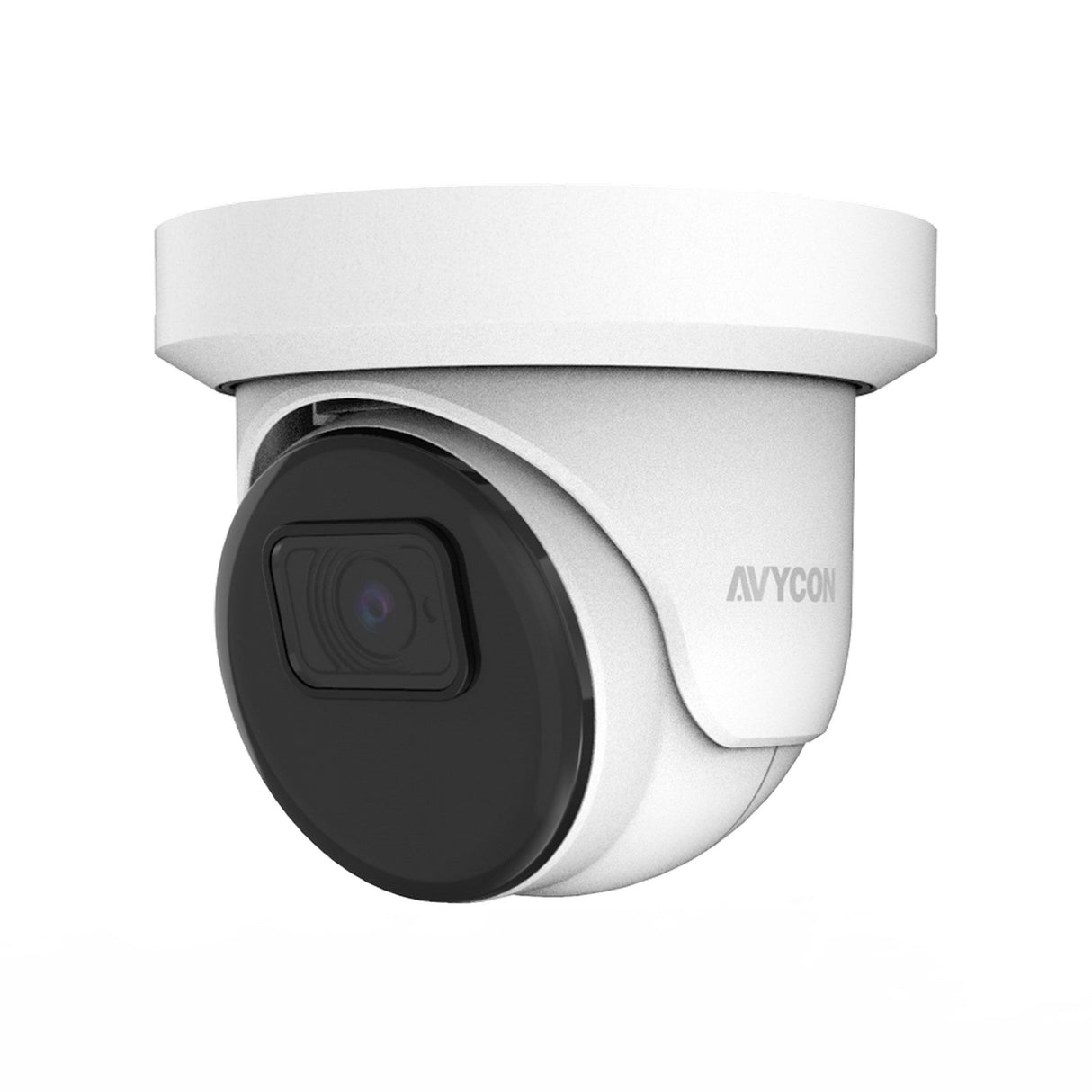

Introducing the Second-Generation HD-TVI Series from AVYCON
Our latest release of the HD-TVI Series maintains AVYCON's exceptional quality. This 5MP camera boasts an enhanced Smart IR LED array, and a redesigned DIP switch which allows for easy switching between video formats (HD-TVI, CVI, AHD, and Analog). A new magnetic ring has been added to the camera, ensuring all mounting screws are hidden from view, creating a seamless design. The newest chipset and board design also increase power efficiency, delivering up to 20% savings in consumption. The series also includes Digital NR, AGC, WDR, BLC, defog capabilities, and IP67 outdoor rating for added convenience.

Key Features

• AVYCON's Second-Generation HD-TVI Series maintains the brand's high-quality standards.
• The 5MP camera in this series features an upgraded Smart IR LED array for improved illumination.
• The new DIP switch design allows for easy format changes between HD-TVI, CVI, AHD, and Analog.
• A sleek magnetic ring is included to hide mounting screws and create a seamless appearance.
• The newest generation chipset and board design enhance power efficiency, potentially saving up to 20% in consumption.
• The camera offers Digital NR, AGC, WDR, BLC, and Defog capabilities for enhanced image quality.
• It has an IP67 outdoor rating, ensuring durability and protection against harsh weather conditions.
• The camera's resolution is 5MP (2592 x 1944), providing high-definition images.
• It comes with a fixed 2.8mm lens for a wide field of view.
• The camera is NDAA compliant and operates on DC 12V with a low consumption of 4W.

Technical Specifications

CAMERA
Image Sensor
1/2.7” Progressive Scan CMOS
Resolution
5MP
Image Size
2592 x 1944
Video Output
1-channel BNC Video Output
Image System
PAL / NTSC
Electronic Shutter
1/15s to 1/50,000s
IR Distance
Up to 66ft.
Video Formats
HD-TVI / AHD / CVI / CVBS (Analog)
Frame Rate
5AHD/5TVI: 5MP @20fps (NTSC / PAL)
AHD/CVI/TVI: 4MP @30fps (NTSC) / @25fps (PAL), 2MP @30fps (NTSC) / @25fps (PAL)
Min. Illumination
0.05lux@F1.2 (AGC ON),0Lux with IR ON
Lens
Fixed 2.8mm Lens
Lens Mount
M12
Horizontal Field of View
92.8°
S/N Ratio
39dB
Function Control
OSD, Control over Coax (UTC)
Day & Night
EXT / Auto / Color / BW (Black and White)
Digital WDR
Yes
Digital NR
Yes (2D DNR)
Auto Gain Control (AGC)
Yes
Auto White Balance (AWB)
Yes
Backlight Compensation (BLC)
Yes
Edge Brightness Compensation
Yes
Defog
No
HLC
No
Sharpness
Yes
Mirror Image
Yes
Smart IR (Anti-SAT)
Yes
Image Setting
Yes
Defect Correction
Auto / Manual
GENERAL
Angle Adjustment
Any Angle
Input Voltage
DC 12V (±10%)
Power Consumption
Maximum 4W
Ingress Protection
IP67
Working Temperature
-22 Degrees ~131 Degrees F (-30 Degrees ~55 Degrees Celsius)
Dimensions
Ø3.93” x 2.55” (Ø100mm x 65mm)
