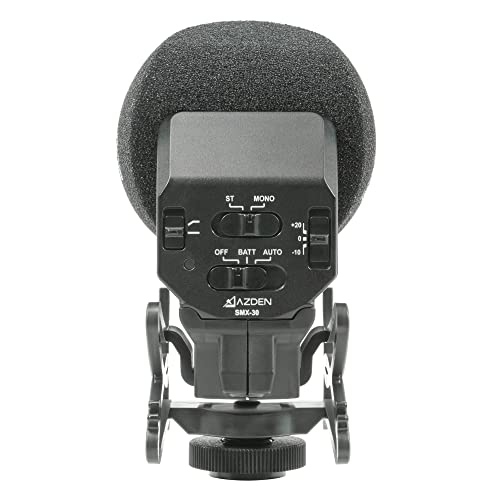

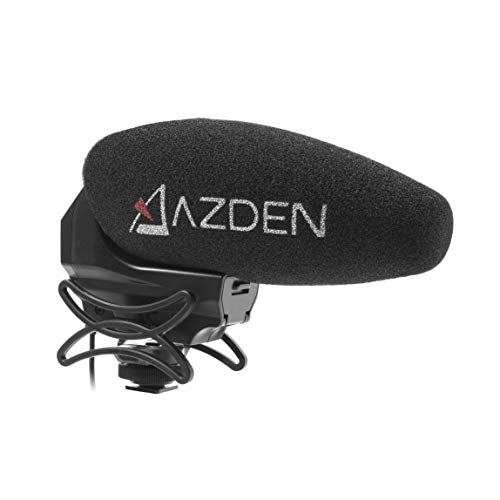

Azden SMX-30 Stereo/Mono Switchable Video Mic

The SMX-30 was engineered to be the ultimate video microphone with outstanding audio quality, appealing design, ergonomic form factor, and all of the functional features one expects in a top-of-the-line, camera-mounted microphone.

Key Features

• Switch between stereo and mono microphones
• Level adjustment: -10dB, 0dB, +20dB
• +20dB gain booster alleviates noise produced by low-quality camera preamps
• -10dB pad for loud sound environments
• Low-cut filter selectable at 120Hz, 3dB/octave
• Operates on (2) AA batteries
• Low noise, high sensitivity, wide frequency response
• 10 year warranty with registration
• Custom, detachable foam windscreen
• Integrated shock-absorbing shoe-mount with 1/4”-20 thread
• Battery indicator LED light
• 3.5mm stereo mini-jack output

Technical Specifications

Polar Pattern
Mono: Super-Cardioid
Stereo: Cardioid (120)
Freq Resp
40Hz - 20kHz
Sensitivity
-36dB @ 1kHz
Dyn Range
118dB
S/N Ratio
82dB, 1kHz@1Pa
Max Input Level
130dB SPL (1kHz@ 1% T.H.D.)
Max Output Level
+6.2dBu
Output Imp
50
Power Req
AA batteries x2
Output Conn
3.5mm Stereo mini plug
Power Switch
Off, Battery, Auto
Gain Control
-10dB, 0dB, +20dB
LCF
120Hz, 3dB/octave
Dims
47mm x 107mm x 145mm
Weight
145g
