Experience the convenience of interactive wireless presentations in any meeting space with the Barco ClickShare C‑10 Gen 2 Wireless Conferencing System with 1 Button. Sharing content has never been easier - simply click the ClickShare Button (compatible with Windows or Mac) or use the ClickShare App on your laptop, mobile, or tablet. Within seconds, you can start presenting without the hassle of cables, software downloads, or the need for training.

Key Features

• ClickShare C-10 enables interactive wireless presentations in any meeting space.

• Sharing content is made easy with a single click using the ClickShare Button or App.

• Presentations can be started within seconds, without the need for cables, software, or training.

• Interactive features such as touchback, annotation, and blackboarding are available.

• Collaboration is enhanced with the ability to display 2 sources on the screen simultaneously.

• The ClickShare Button is an iconic tool that can be used by both employees and guests.

• The system ensures 100% security with encryption and cloud management.

• No additional software downloads are required for the ClickShare App.

• The ClickShare C-10 is compatible with Windows, Mac, laptops, mobile devices, and tablets.

• The wireless presentation system offers a seamless and user-friendly experience.

Technical Specifications

Operating system
Windows 10 and higher macOS 11 (BigSur) and higher
Android v9 and higher (ClickShare App) *
iOS 12 and higher (ClickShare App) *
Video outputs
4K UHD (3840*2160) @ 30Hz. HDMI 1.4b or USB-C DisplayPort 1.2 (only Gen2)
Audio output
HDMI
USB
1 X USB-A, 1 X USB-C
ClickShare Buttons
1 or 2
ClickShare App
Desktop & Mobile
Native protocols
Airplay, Google Cast, Miracast*
Maximum number of simultaneous connections (with Buttons and/or App)
32
Noise Level
Max. 25dBA @ 0-30 Degrees C
Max. 30dBA @ 30-40 Degrees C
Authentication protocol
WPA2-PSK in standalone mode
WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode
Wireless transmission protocol
IEEE 802.11 a/g/n/ac and IEEE 802.15.1
Reach
Adjustable with signal strength modulation; max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit Frequency band 2.4 GHZ and 5 GHz
Frequency band
2.4 GHZ and 5 GHz (DFS channels supported in select number of countries)

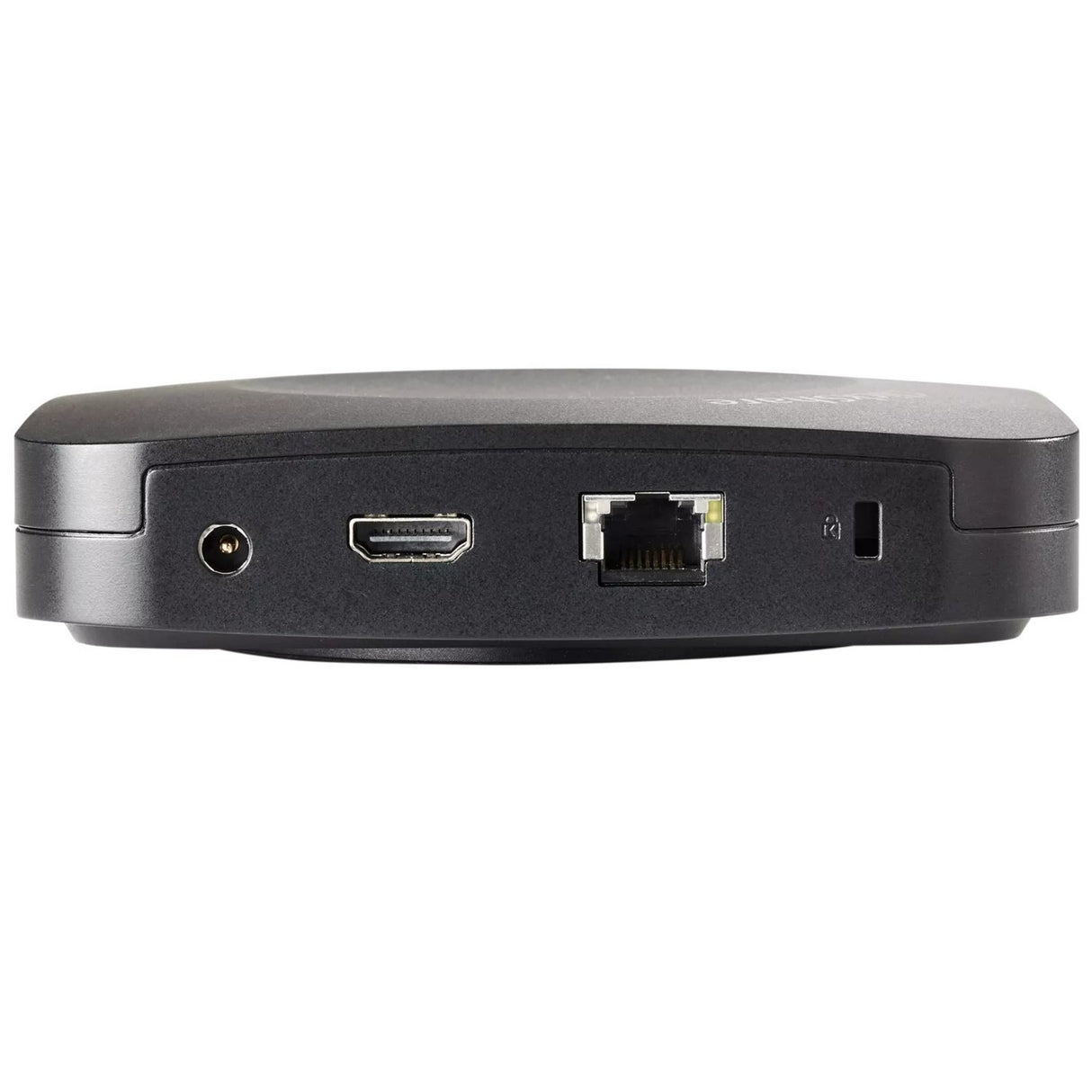

Connections
1x Ethernet LAN 1Gbit
1x USB-C 2.0 (front); 1x USB-A 2.0 (front) - only Gen2: 1x USB-C 3.0 (front); 1x USB-A 3.0 (front)
Temperature range
Operating: 0 Degrees C to +40 Degrees C (+32 Degrees F to +104 Degrees F)
Max: 35 Degrees C (95 Degrees F) at 3000m
Storage: -20 Degrees C to +60 Degrees C (-4 Degrees F to +140 Degrees F)
Humidity
Storage: 0 to 90% relative humidity, non-condensing
Operation: 0 to 85% relative humidity, non-condensing
Anti-theft system
Kensington lock
Certifications
FCC/CE
Touch screen support & Interactivity
Yes
Room Dock (peripheral support)
No
Local view
Yes
Network connection
LAN & WiFi
Management and reporting
Yes
Warranty
1 year standard. 5 years coverage upon registering via SmartCare
*
* depends on configuration, available in future firmware updates
