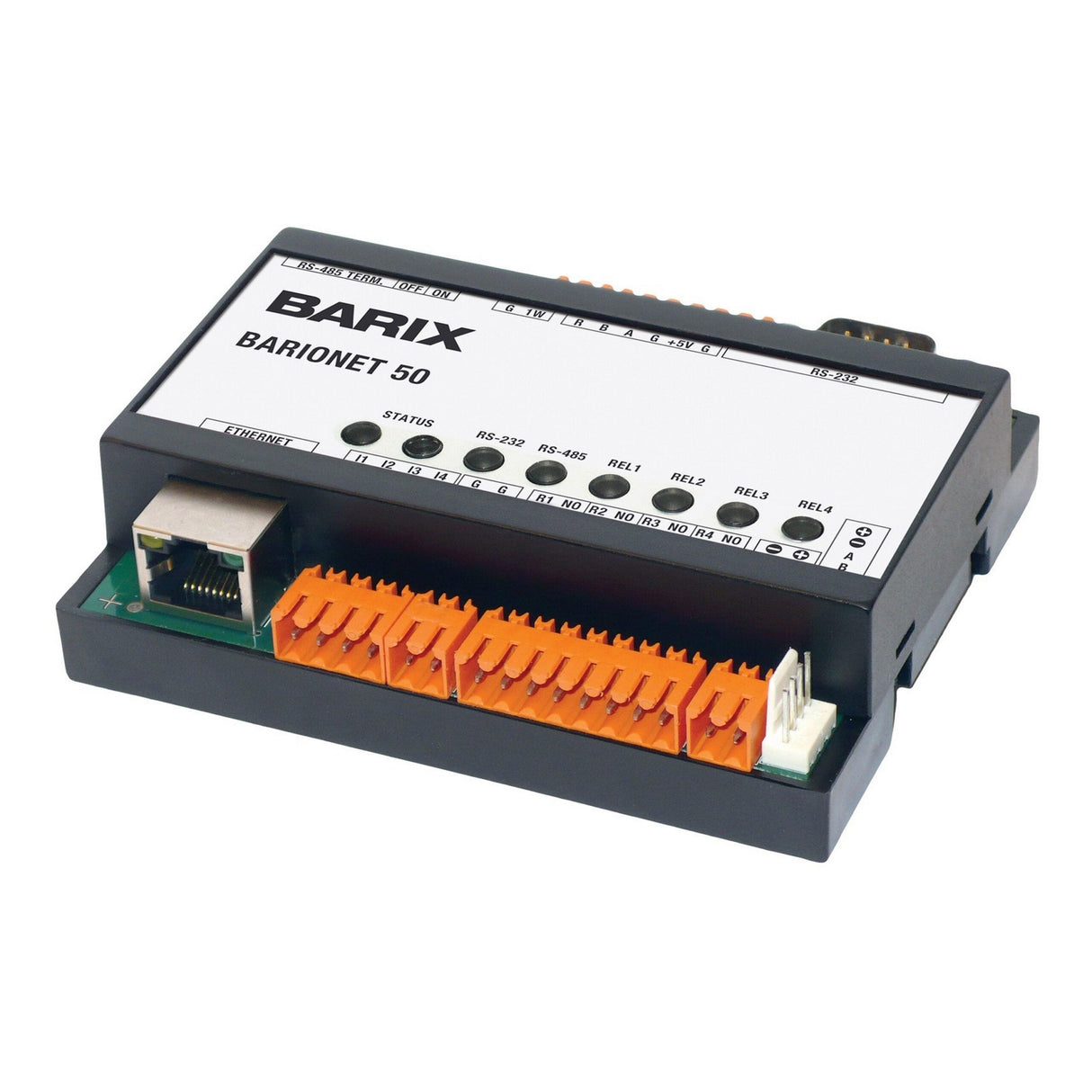

Barix Barionet 50 Programmable I/O Device Server
The Barionet from Barix is family of programmable network-enabled automation controllers for interfacing a wide variety of devices and systems to IP-based networks in home and industrial automation applications. With the Barix Barionet 50, most devices can be networkenabled for monitoring and control via a web browser as well as other standards-based automation systems, such as SNMP and Modbus.
Key Features
- 4 relay outputs
- 4 dry contact inputs
- RS-485 serial interface
- 10/100 Mb auto-sensing Ethernet port
- Integrated web server
- RS-232 serial interface
- Dallas Semiconductor 1-wire interface with built-in support for temperature sensors.
- Support for Modbus/TCP, SNMP, CGI, HTTP and other standard protocols.
- Barix proprietary dynamic tags for creating custom web pages to display status information.
- Programmability via BASIC-like Barix Control Language (BCL).
- Support for control of external Modbus devices via BCL code
- Relay Output (4x24V, 0.5A)
- Contact Closure Input (4)
- RS-232 Serial Port (1)
- RS-485 Serial Port (1)
- Supply Voltage (9-30V) Powered by hardwire to terminal block, no separate power supply included
Technical Specifications
I/O Interfaces
On detachable screw terminal blocks:
4 relay outputs (30 VDC, 0.5 A)
4 digital inputs (dry contacts)
Dallas 1-Wirer interface
Serial Interfaces
RS-232 (DSub-9 male, 5-wire RXD, T XD, RTS, CTS,
GND), RS-485 on detachable screw terminal block as well as on 4 pin extension connector, both with serial speeds from 300 bps to 230 kbps (asynchronous)
Network Interface
RJ45 10/100 Mbit Ethernet (Autodetect)
Supported protocols: TCP/IP, UDP, ICMP, IGMP, AutoIP, IPzatorT, DHCP, CGI, HTTP web server for control, status and configuration.
API
Modbus/TCP, SNMP, CGI, UDP/TCP based ASCII protocol
Misc
8 LED status indicators
Extension connector (4 pin: power and RS-485)
Power input: 9.30 VDC, 4 Watt max.
Case
High quality plastic, 135 g,, DIN-rail mount.
4.13" x 3.34" x 1.25", 105 mm x 85 mm x 31 mm
MTBF
Min. 800 000h acc. to MIL217F at 25Ā°C ambient temperature
Item Includes
Barionet 50, Quick install guide
