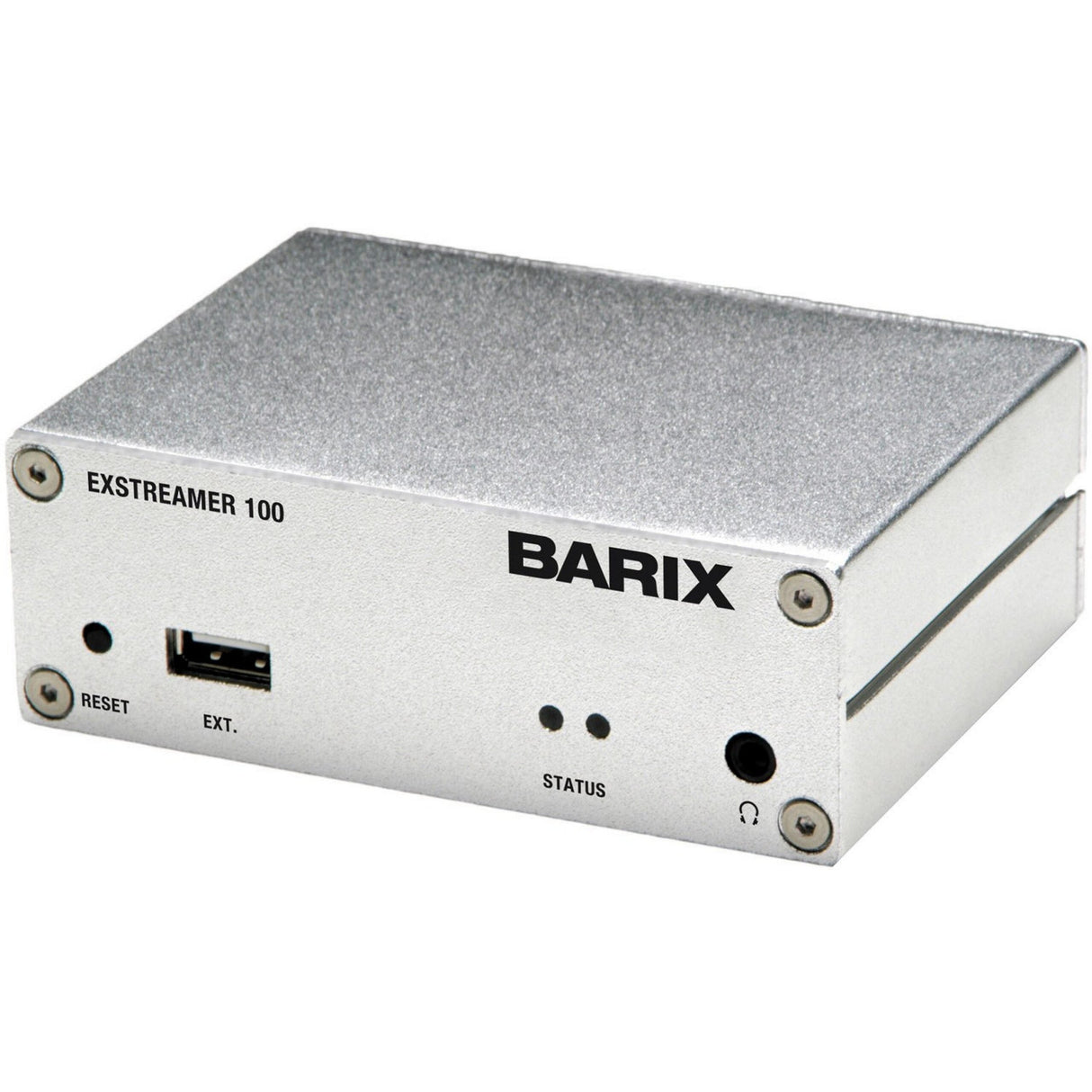

Barix Exstreamer 100 IP Audio Stream Decoder
Barix Exstreamer 100 IP Audio Stream Decoder
Free Shipping
Barix Exstreamer 100 IP Audio Stream Decoder
The Exstreamer 100 decodes IP Audio streams and play out the recieved Audio signal to amplifiers or speakers. Supporting a large number of protocols, encoding methods and application specific firmware, the products can be used for Broadcast, Internet Radio, as well as VoIP applications. Control and local storage interfaces are device specific to match different use cases.
Key Features
- AACplus, MP3, Ogg Vorbis, G.711, PCM Decoding
- IP Streaming via TCP, UDP, RTP, Multicast
- Line Level Output (Stereo)
- RS-232 Serial Port
- Supply Voltage (9.30VDC)
- USB Flash Interface
Technical Specifications
Electrical
9 to 30 VDC, 5 Watt max.
2.1mm barrel connector
Ethernet
10/100Mbps Auto-negotiation
RJ-45 connector with integrated Link/Activity LED
Protocols: TCP/IP, UDP, RTP, SIP, DHCP, Multicast
capable, webserver for control, status and configuration
Analog Output
Line level output, 40..60 Ohm impedance on RCA and 1/8" headphone jack
Output level software controllable
Full scale output voltage: 5.6 dBu, 4 Vpp
Frequency response (-3dB) 19Hz ..22kHz *
Signal to Noise Ratio 87 dB *, THD <0.05% *
Audio formats
MP3 CBR/VBR, up to 320 kbps, 8..48 kHz sample freq.
AAC-HE (AAC, A AC plus, A AC plus V2)
Ogg Vorbis, WMA (up to version 9)
PCM (L16, uLaw, aLaw), 8..48 kHz sample freq.
G.711, G.722
IR Interface
Built-in IR receiver and IR remote control included with
Exstreamer 110 & 120 models only
Optional external IR receiver via serial port (IR Kit)
Discrete I/O
1 Relay 24V 0.5A (normally open, 110 & 120 models only)
RS-232 Interface
Male 9-pin Sub-D connector
300..230`400 Baud asynchron., tunneling or local control
12 VDC supply output for external device (100 mA max.)
Display
Backlit LCD, 2x16 chars (110 & 120 models only)
Miscellaneous
Green and red LED for status display
Button for reset and factory defaults
Mechanical
Aluminum case, 250g
Rack and wall mountable using accessories
Dimensions (W x H x D)
W x H x D : 108x38x78.7mm (4.25x1.5x3.1 inch)
Declarations of conformity
RoHS, FCC, CE, C-Tick
MTBF (Calculated acc. MIL217F at 25C)
Exstreamer 100 : min. 480 000h
Exstreamer 105 : min. 460 000h
Exstreamer 110 : min. 450 000h
Exstreamer 120 : min. 430 000h
Item Includes
Exstreamer 100, AC Power supply, quick install guide
