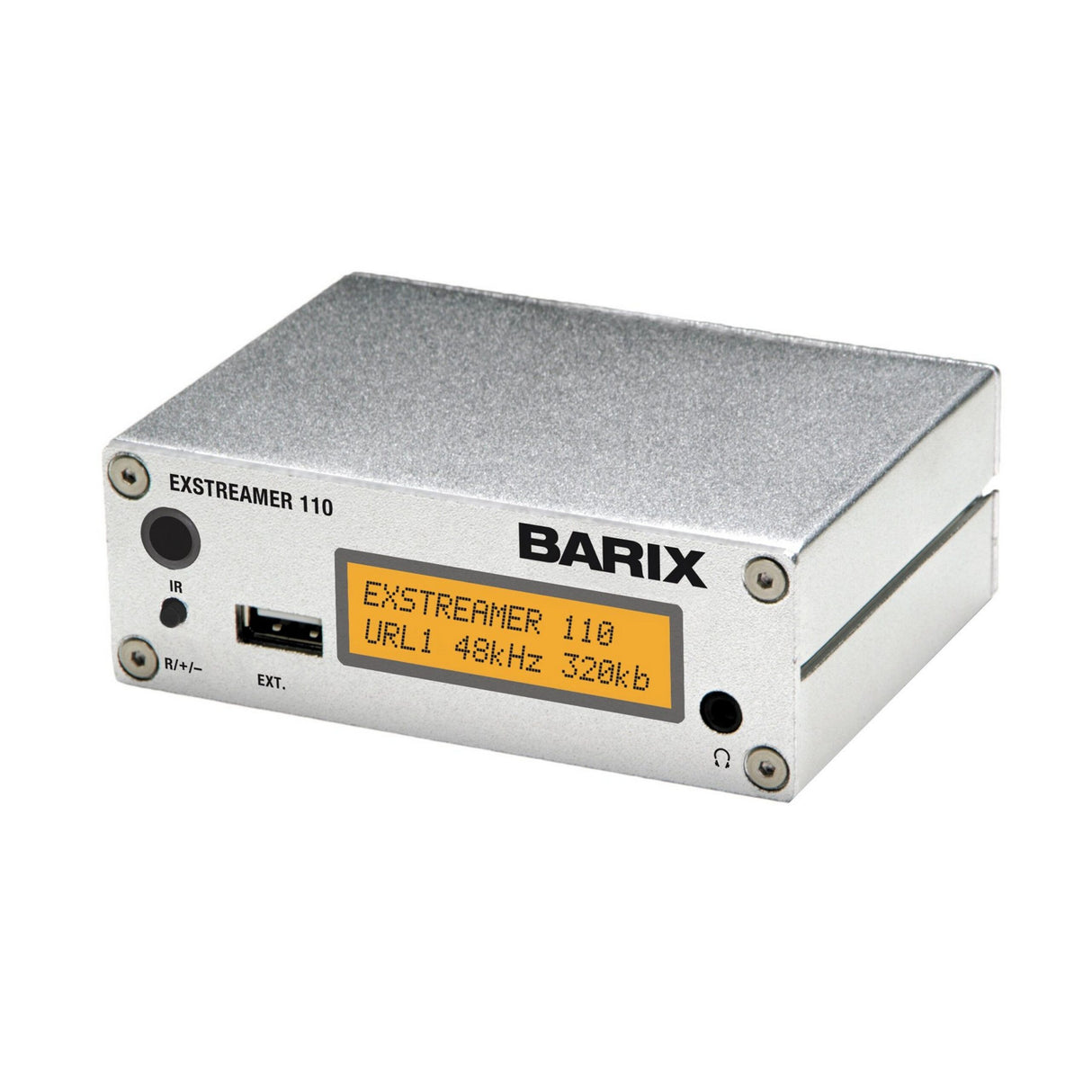

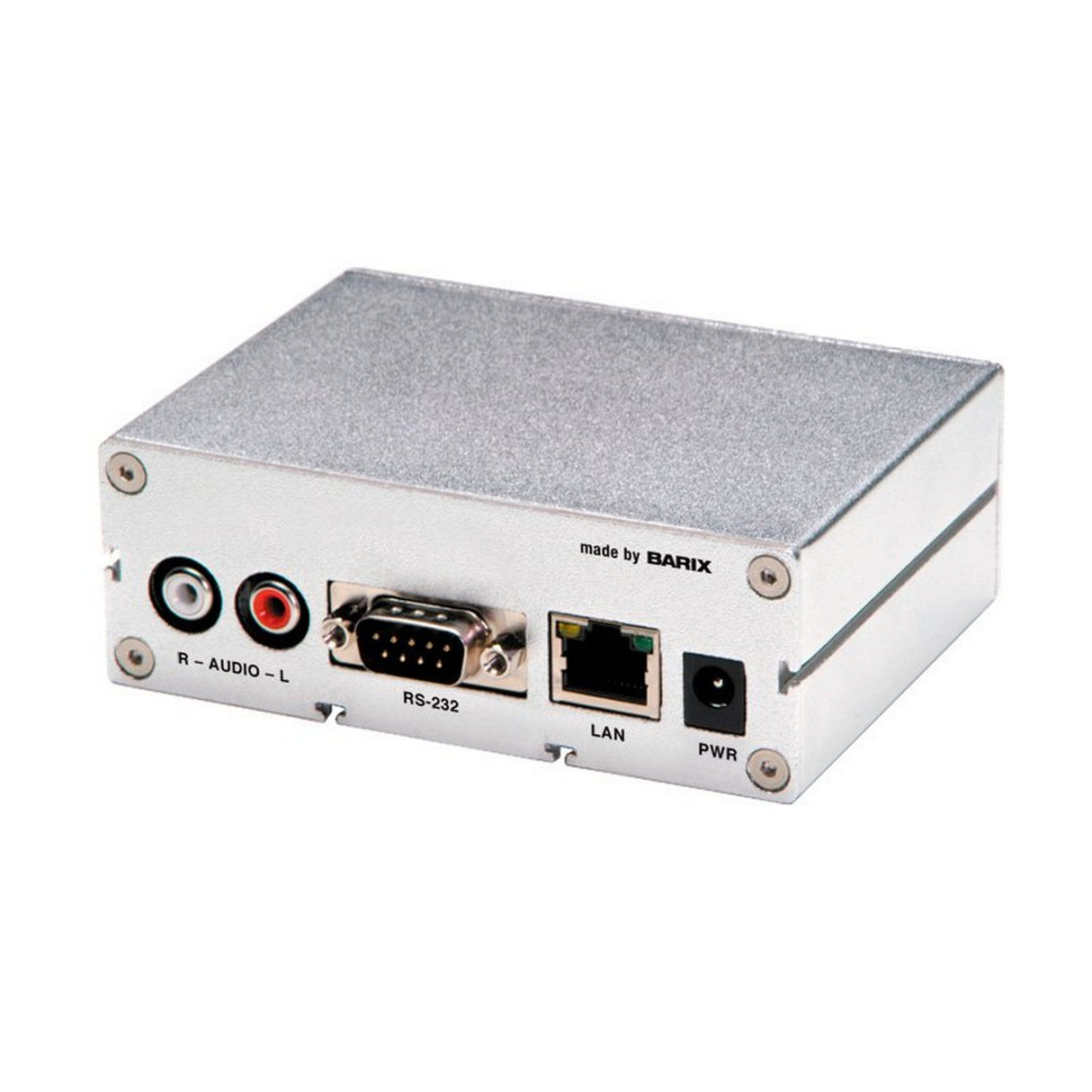

Barix Exstreamer 110 IP Audio Streamer Decoder
IP audio decoder wit USB flash interface, serial port, relay output, and IR receiver and Display built-in. Support of Internet Radio(AACplus, MP3, shoutcast, TCP streaming) and VoIP(SIP, RTP) codecs and protocols.
Key Features
- AACplus, MP3, Ogg Vorbis, G.711, PCM Decoding
- IP Streaming via TCP, UDP, RTP, Multicast
- Line Level Output (Stereo)
- RS-232 Serial Port
- Supply Voltage (9..30VDC)
- USB Flash Interface
- Relay Output
- IR receiver and Display built-in
Technical Specifications
Electrical
9 to 30 VDC, 5 Watt max.
2.1mm barrel connector
Ethernet
10/100Mbps Auto-negotiation
RJ-45 connector with integrated Link/Activity LED
Protocols: TCP/IP, UDP, RTP, SIP, DHCP, Multicast
capable, webserver for control, status and configuration
Analog Output
Line level output, 40..60 Ohm impedance on RCA and 1/8" headphone jack
Output level software controllable
Full scale output voltage: 5.6 dBu, 4 Vpp
Frequency response (-3dB) 19Hz ..22kHz *
Signal to Noise Ratio 87 dB *, THD <0.05% *
Audio formats
MP3 CBR/VBR, up to 320 kbps, 8..48 kHz sample freq.
AAC-HE (AAC, A AC plus, A AC plus V2)
Ogg Vorbis, WMA (up to version 9)
PCM (L16, uLaw, aLaw), 8..48 kHz sample freq.
G.711, G.722
IR Interface
Built-in IR receiver and IR remote control included with
Exstreamer 110 & 120 models only
Optional external IR receiver via serial port (IR Kit)
Discrete I/O
1 Relay 24V 0.5A (normally open, 110 & 120 models only)
RS-232 Interface
Male 9-pin Sub-D connector
300..230`400 Baud asynchron., tunneling or local control
12 VDC supply output for external device (100 mA max.)
Display
Backlit LCD, 2x16 chars (110 & 120 models only)
Miscellaneous
Green and red LED for status display
Button for reset and factory defaults
Mechanical
Aluminum case, 250g
Rack and wall mountable using accessories
Dimensions (W x H x D)
W x H x D : 108x38x78.7mm (4.25x1.5x3.1 inch)
Declarations of conformity
RoHS, FCC, CE, C-Tick
MTBF (Calculated acc. MIL217F at 25C)
Exstreamer 100 : min. 480 000h
Exstreamer 105 : min. 460 000h
Exstreamer 110 : min. 450 000h
Exstreamer 120 : min. 430 000h
Item Includes
Exstreamer 110, AC Power supply, RCA Stereo cable, IR remote control and batteries (2 x AAA), Quick install guide.
