Barnfind BarnOne BTF1-10-AA 16 SFP Ports 8 BNC and 8 Channel Analog Audio Embedding/De-Embedding Fiber Router

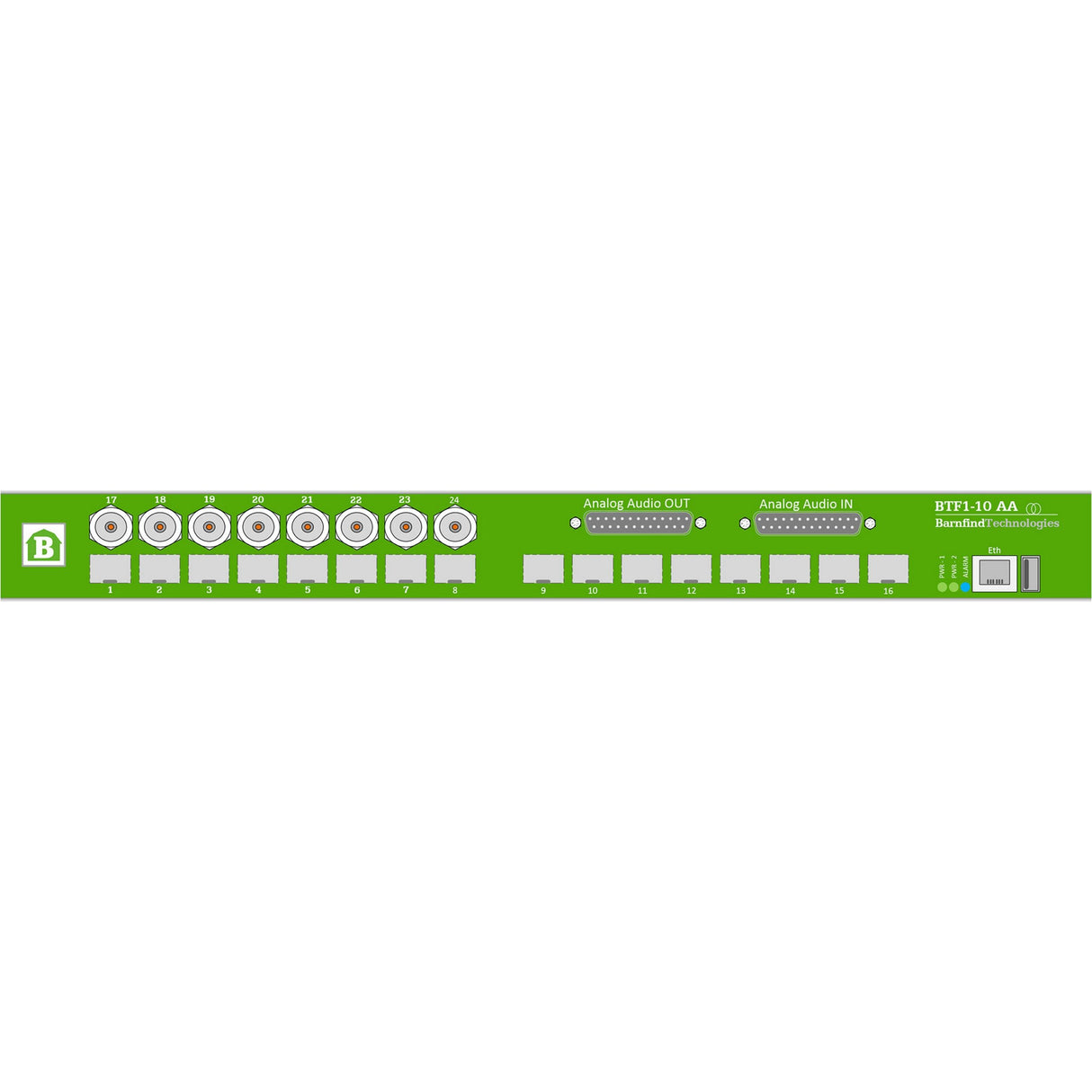

The BTF1-10-AA has 8 bi-directional BNC ports, 16 bi-directional Duplex transceiver cages with LC/PC connectors, and two D-SUB25 analog audio connectors in a convenient and small 1RU design. The BNC ports are 75 Ohm and feature multirate reclocking of outputs 270MbIt's - 3GbIt's. The SFP ports are hot pluggable/swappable and can be programmed to singlemode and/or multimode. The BTF1-10-AA features balanced analog line input/output connections that are individually configurable. A 12V DC 120W power supply is included to power the unit wherever you need it with the option to add redundant power.
Technical Specifications
Analog Ports
8x balanced analog line inputs (DB25), individually configurable +18dBu/+24dBu (default setting: +18dBu)
8x balanced analog line outputs (DB25), individually configurable +18dBu/+24dBu (default setting: +18dBu)
A/D Converter
THD -115dB
SNR -115dB unweighted
THD+N -108dB
D/A Converter
SNR -115dB
THD+N -107dB
MADI Ports
4x MADI (AES10) inputs internally connecting to main matrix
4x MADI (AES10) outputs internally connecting to main matrix
Sample rate 44.1kHz/48kHz (1FS), 2FS supporting 88.2kHz/96kHz
Synchronisation to one of the MADI ports or to internal clock 44.1kHz/48kHz
Single channel routing for all MADI ports and analog I/O
Electrical Ports
8x bi-directional BNC ports
75 OHM BNC connector
SMPTE 259M, 292M, 372M, 424M, DVB-ASI
Multirate reclocking of outputs 270MbIt's - 3GbIt's
Automatic cable EQ (Belden 1694A) 270MbIt's-250m, 1.5GbIt's-140m, 3GbIt's-80m
Optical Ports
16x fiberoptical ports (SFP), Duplex transceivers, LC/PC connectors
SMPTE 259M, 292M, 372M, 424M, 297M, DVB-ASI
Hot pluggable/swappable
Singlemode and/or Multimode
16 CWDM wavelength selections - ITU-T G.694.2
Multirate reclocking of outputs 270MbIt's - 3GbIt's
General
Power supply
12V DC 120W (Redundant power supply optional)
Dimensions
445mm x 280mm x 43.5mm (17.5" x 11" x 1.7")
Weight
3.8 kg (8.3 lbs)
Item Includes
BTF1-10-AA frame
power supply 12V DC
BarnStudio configuration and operation software
