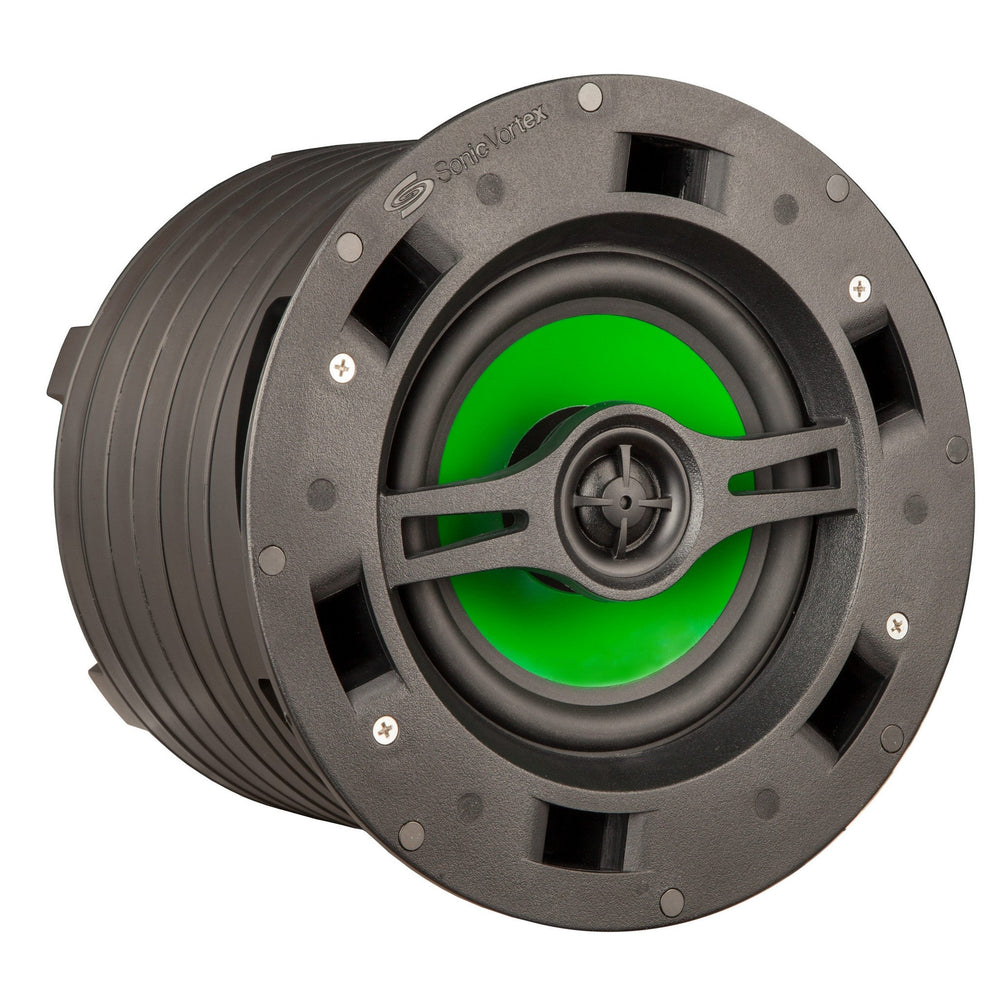

Beale Street Audio IC8-B 8-Inch In-Ceiling 2-way Speaker

Our Sonic Vortex technology generates rich, deep bass and effortless clarity from what most people would call a 'back box', but is not. It is actually a compact, integrated tuned enclosure. This patented technology is a 'twist' on Ported Transmission Line design, that optimizes air movement to produce astonishing sound. The enclosure also keeps sound from bleeding to other rooms while adding 6 to 9dB boost in mid-lower bass.

Key Features

• 2-Way In-Ceiling Speaker w/Sonic Vortex
• Handles 120 watts RMS
• Hear low subs and soaring vocals with a frequency range of sound from 38 Hz-22 kHz
• 8 Ohm impedance extracts maximum power so you will get more output from your speakers

Technical Specifications

Crossover Type
2-way
Impedance (Ohm)
8
Maximum Frequency Response (Hz)
22000
Minimum Frequency Response (Hz)
38
PMPO Output Power (W)
120
Sensitivity
90 dB
Sensitivity (dB)
90
Speaker Size
8”
Tweeter Driver Material
Silk Dome
Tweeter Driver Size
1”
Tweeter Driver Size (mm)
25.4
Wireless Speaker
No
Woofer Driver Material
Injected Polypropylene
Woofer Driver Size
8”
Woofer Driver Size (mm)
203.2
Audio
Maximum Frequency Response
22 kHz
Minimum Frequency Response
38 Hz
PMPO Output Power
120 W
RMS Output Power (W)
5
Physical Characteristics
Color
Black
Cutout Diameter
10.30”
Cutout Diameter (mm)
261.62
Depth
8.60”
Depth (mm)
218.44
Diameter (mm)
287.02
Form Factor
In-ceiling, In-wall
Woofer Diameter
8”
Woofer Diameter (mm)
203.2
Product Information
Diameter
11.3”
Warranty
Limited Warranty
Lifetime
Miscellaneous
Country of Origin
China
