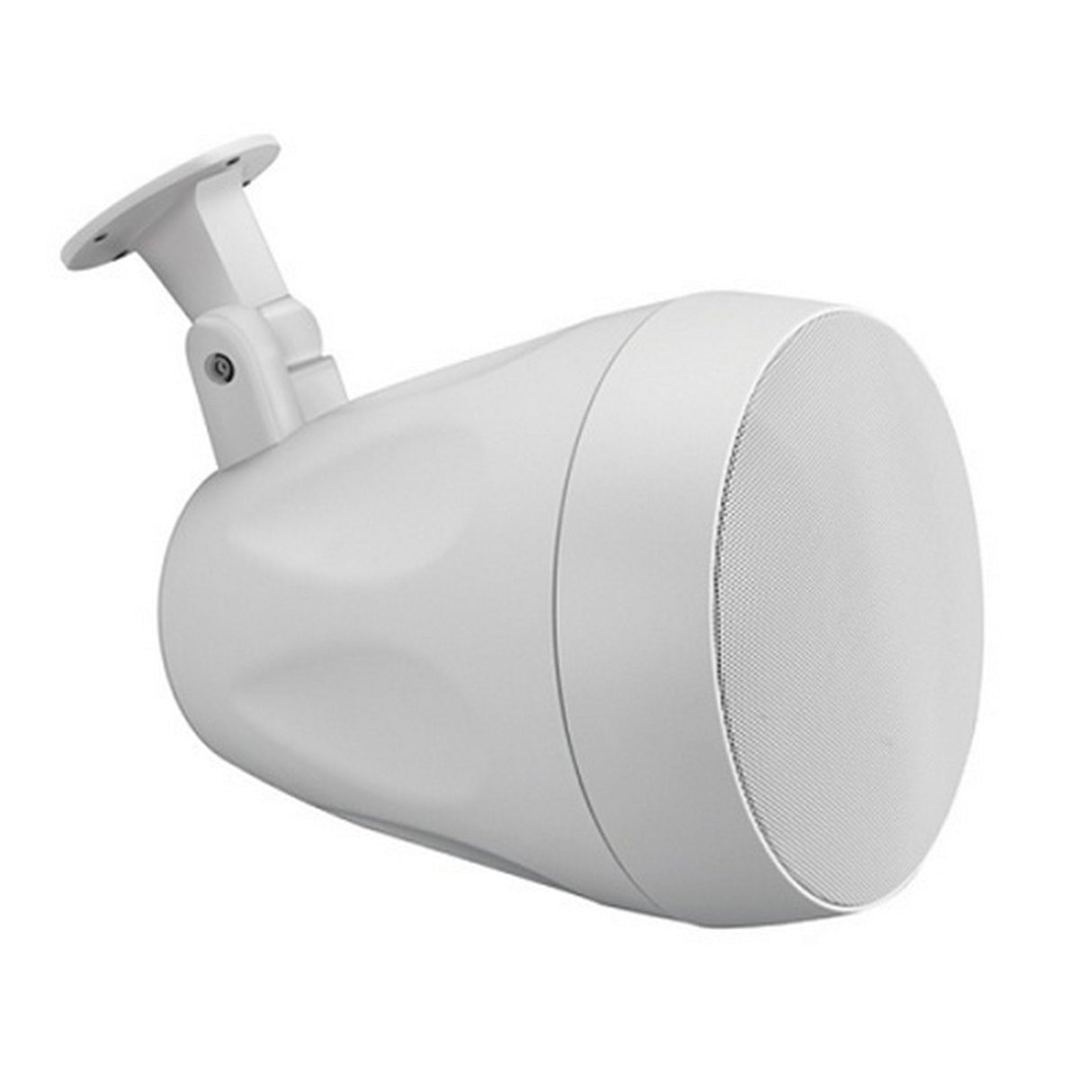

Beale Street Audio WP4VWBSC 4-Inch Indoor/Outdoor On-Wall / Pendant Speaker

The Beale Street Audio WP4VWBSC is a compact, versatile on-wall or pendant-mount speaker engineered for reliable audio performance in both indoor and outdoor settings. Featuring a 4 inch polypropylene woofer and a 0.75 inch silk dome tweeter, this speaker delivers clear, balanced sound for a variety of environments.

With a 20-watt RMS power rating and an 83 dB sensitivity, it supports both 8-ohm and 70V/100V transformer-based audio systems. Designed for commercial or residential applications, it offers dependable performance and flexible mounting options.

The IP66 weather-resistant rating ensures protection against dust and water, making it suitable for installations in patios, eaves, or public venues. This speaker is ideal for background music, paging, and distributed audio systems.

Key Features

• 4 inch polypropylene woofer and 0.75 inch silk dome tweeter
• 20 watts RMS power handling with 83 dB sensitivity
• 8-ohm and 70V/100V transformer taps for flexible system integration
• Weather-resistant IP66 enclosure for indoor and outdoor use
• Includes mounting hardware for wall or pendant installation

Technical Specifications

• Model: WP4VWBSC
• Woofer: 4 inch polypropylene
• Tweeter: 0.75 inch silk dome
• Power Handling: 20 watts RMS
• Sensitivity: 83 dB
• Impedance: 8 ohm
• Transformer Taps (70V): 1.25W, 2.5W, 5W, 10W
• Transformer Taps (100V): 2.5W, 5W, 10W, 20W
• Frequency Response: 120 Hz to 20 kHz (approx.)
• Ingress Protection: IP66
• Weight: approximately 4.5 lb
• Dimensions: 7.5 in (W) × 5.4 in (H)

What’s in the Box

• 1x WP4VWBSC speaker unit
• Wall and pendant mounting hardware
• User manual
