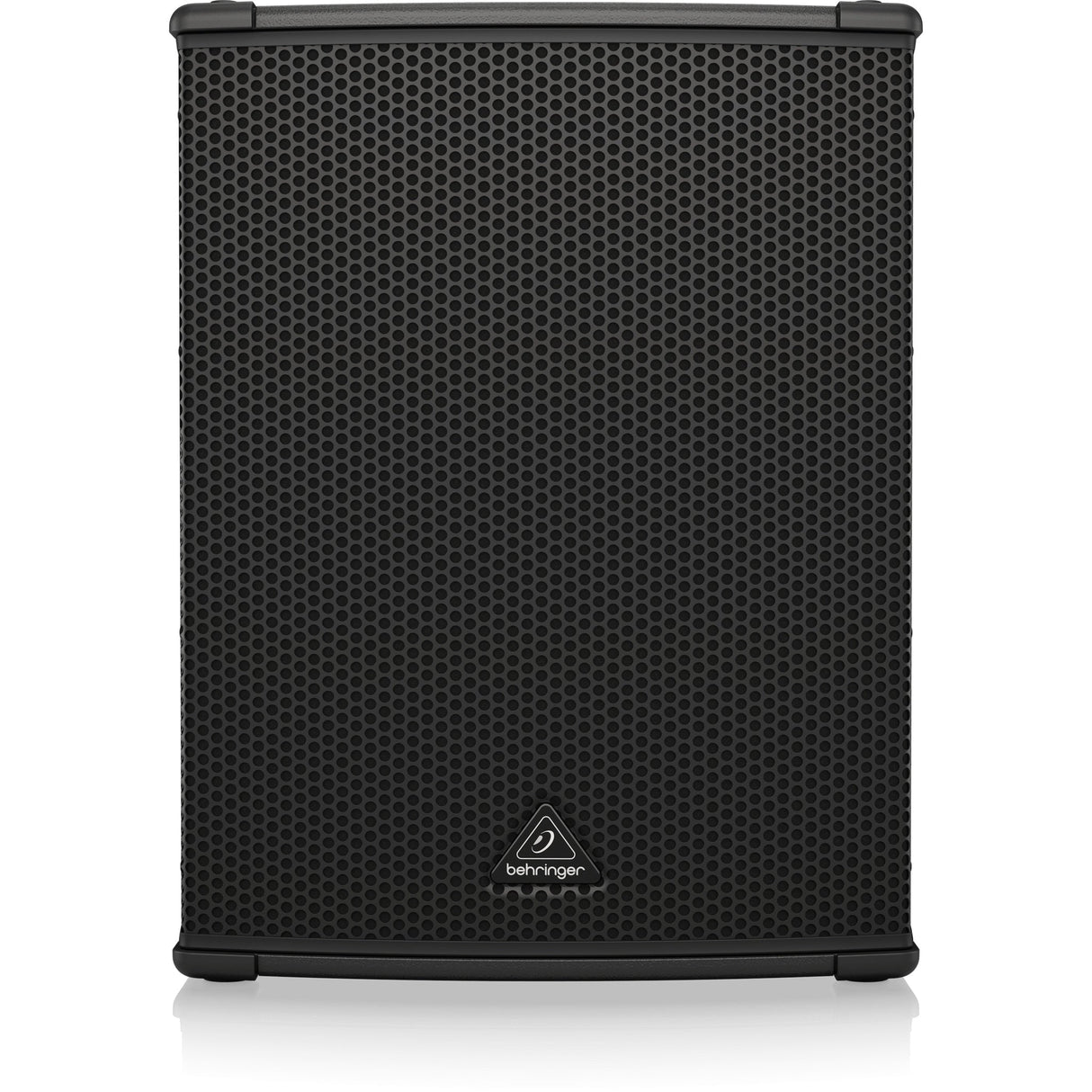

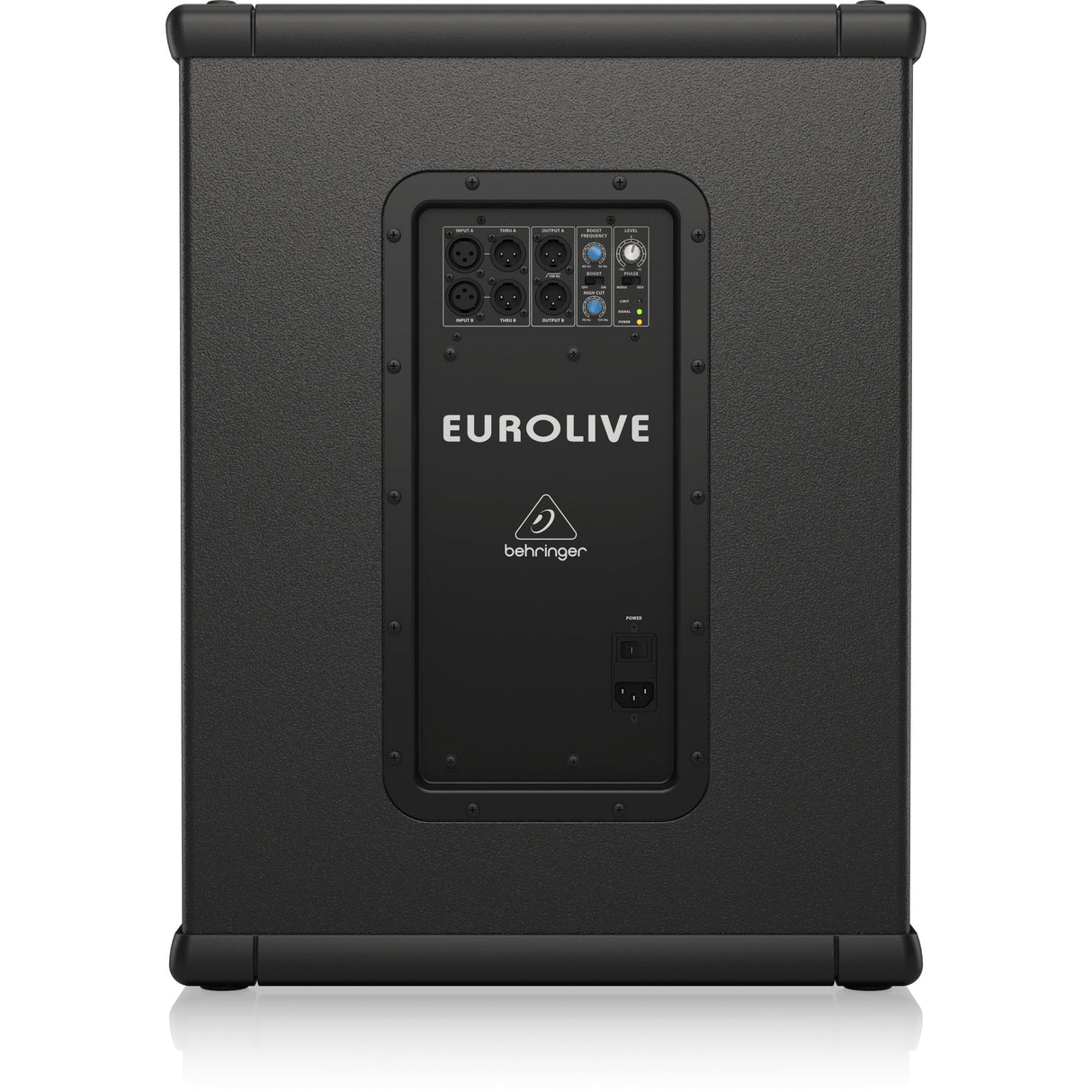

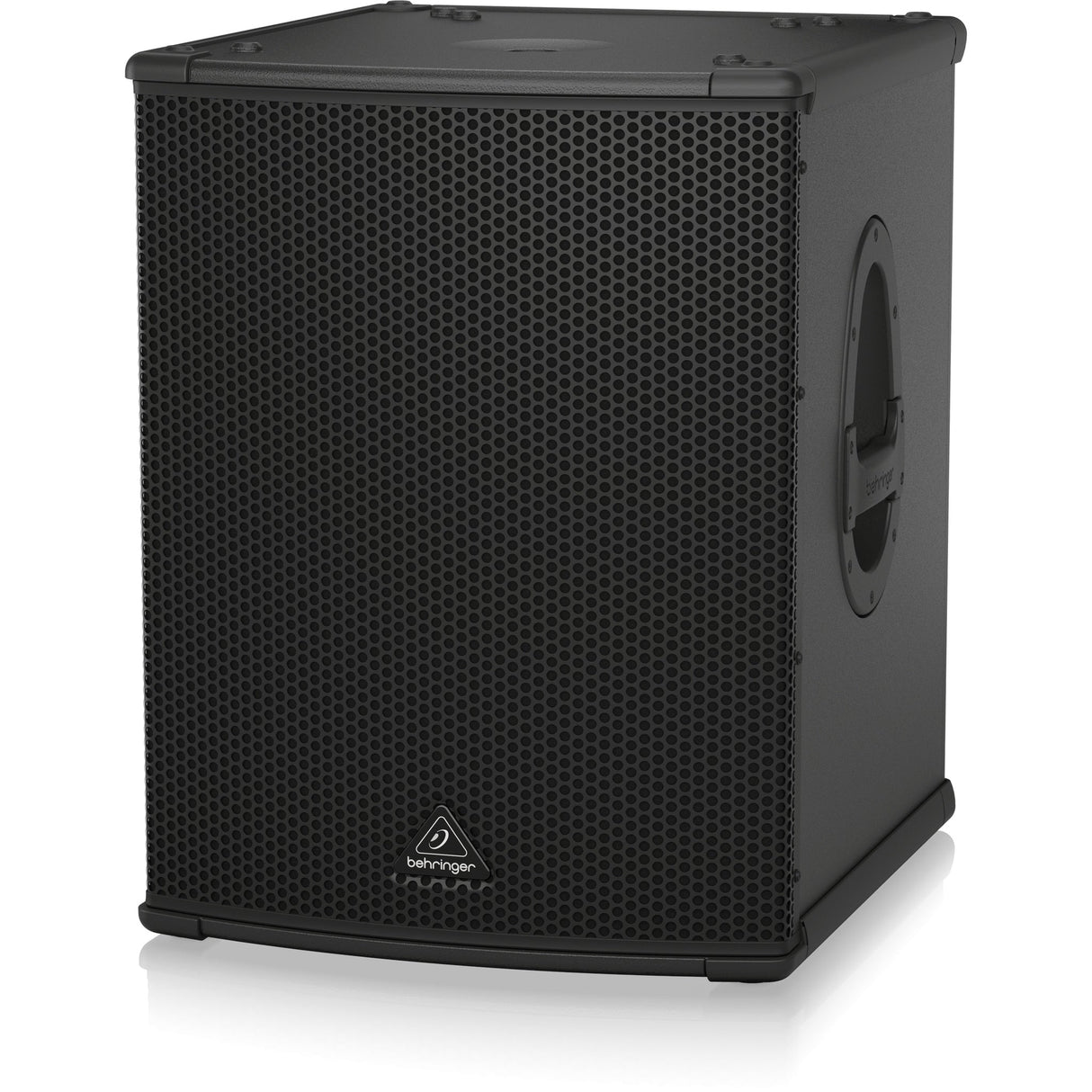

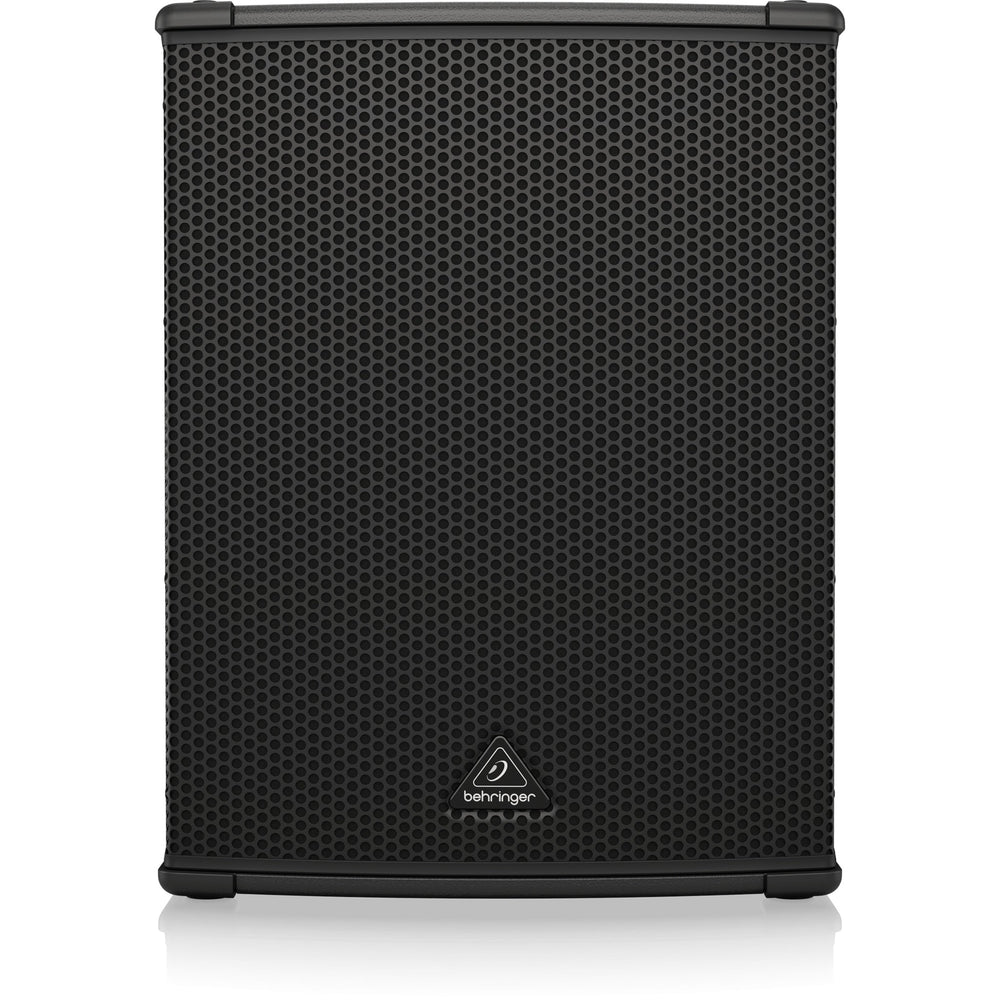

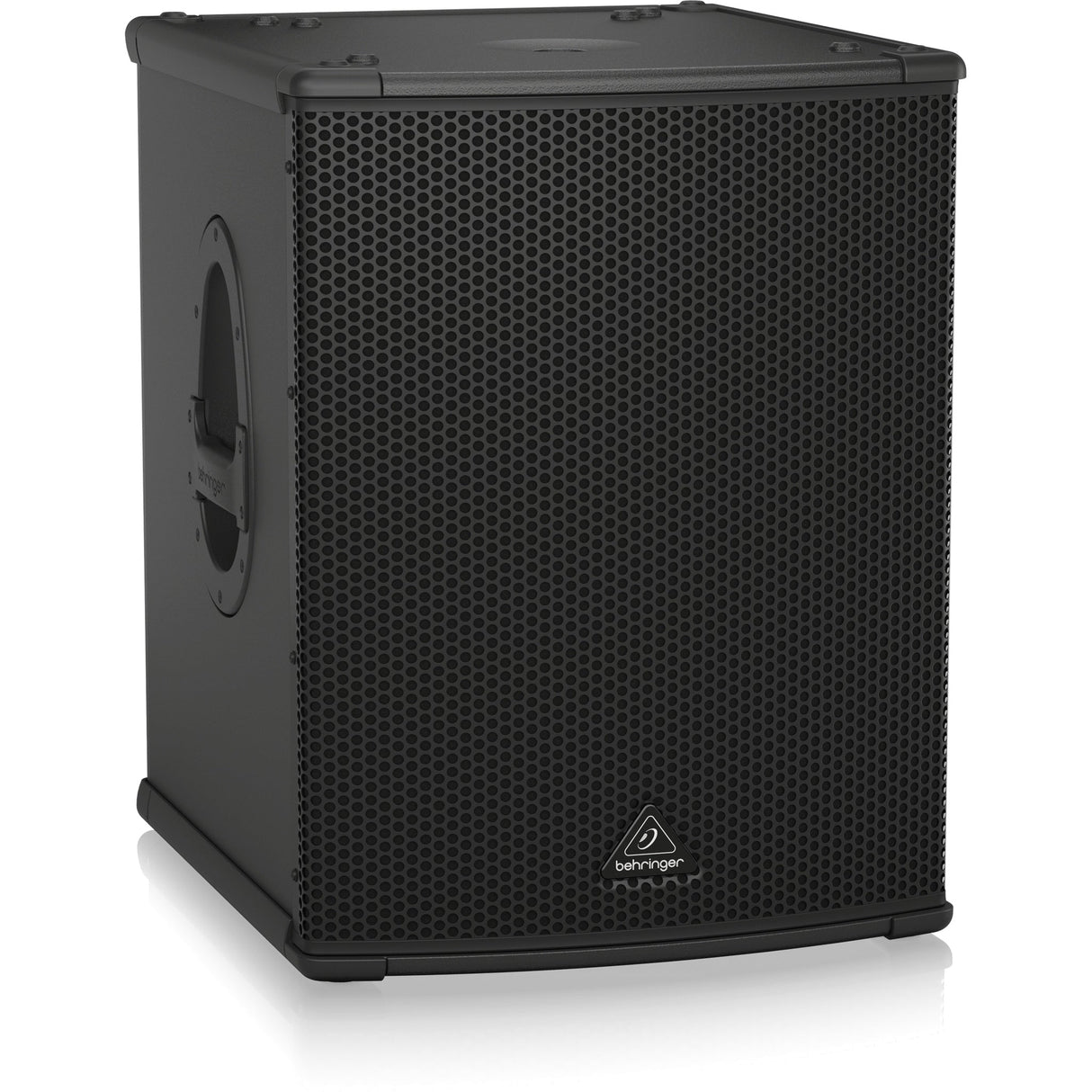

Behringer B1500XP 15" Active PA Subwoofer with Stereo Crossover
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
Behringer B1500XP 15" Active PA Subwoofer with Stereo Crossover
Behringer B1500XP is an active PA subwoofer designed for low-frequency reinforcement in live sound and playback systems. It enables extended bass reproduction for performers, DJs, and audio operators, supporting full-range PA workflows. This makes it ideal for live events, mobile DJ systems, and installed sound setups where controlled sub-bass output is required.
The system uses a Class-D amplifier paired with a 15" Turbosound low-frequency driver to reproduce sub-bass frequencies. A built-in stereo crossover routes high-pass filtered signals to connected full-range loudspeakers.
Integrated controls allow adjustment of bass boost, crossover alignment, and phase settings for system tuning. The enclosure includes transport handles and a pole mount socket to support portable PA deployments.
Key Features
- High Power Amplification: 3000-watt powered PA subwoofer designed for professional sound reinforcement systems
- Turbosound Driver: British engineered 15" Turbosound low-frequency speaker
- Class-D Amplifier: High-efficiency amplifier with over-excursion, thermal, RMS, and clip protection
- Active Stereo Crossover: Built-in crossover provides high-pass outputs for full-range loudspeakers
- Bass System Control: Tunable bass boost and phase switch for system alignment
- Variable High Cut: Adjustable high-cut filter allows integration with full-range speakers
- Subwoofer Level Control: Dedicated level control balances the subwoofer with main speakers
- Status Indicators: Power, signal, and clip LEDs provide system monitoring
- Transport and Mounting: Pole socket and ergonomic handles support portable PA systems
- Protective Construction: Rugged steel grill protects the speaker during transport and use
Technical Specifications
AmplifierMaximum output power: 3000 W
Type: Class-D
Audio Inputs
Input A B: XLR servo-balanced
Sensitivity: +4 dBu to 0 dB center position for full rated power
Max input: +22 dBu balanced, less than 1 percent THD+N
Input impedance: 12 kΩ unbalanced, 24 kΩ balanced
Audio Outputs
Thru A B: XLR servo-balanced
Output A B: XLR servo-balanced
High-pass filter: 100 Hz Butterworth, 18 dB slope
Controls
Level: minus infinity to plus 6 dB
Boost: Switchable
Highcut: 70 to 150 Hz Butterworth, 24 dB slope
Phase: 0 degree or 180 degree phase reverse switch
System Data
Frequency range: 32 Hz to 200 Hz -10 dB
Frequency response: 45 Hz to 150 Hz plus or minus 3 dB
Signal to noise ratio: greater than 100 dB A-weighted
Sound pressure level: max 128 dB at 1 m
Woofer: 15"
Limiter: Optical
Indicators
Signal LED: Green
Limit LED: Red
Power LED: Amber
Circuit Protection
Amplifier protection: Full short circuit, thermal protection
Load protection: Turn on off muting
Power Supply Voltage Fuses
USA Canada Japan: 100 to 120 V AC, 50 / 60 Hz (T 15 A H 250 V)
UK Australia Europe Korea China: 220 to 240 V AC, 50 / 60 Hz (T 10 A H 250 V)
Power consumption at 1/8 rated power: 180 W
Mains connection: Standard IEC receptacle
Weight
75.68 lbs
Height
23.94"
Width
18.39"
Length
20.94"
