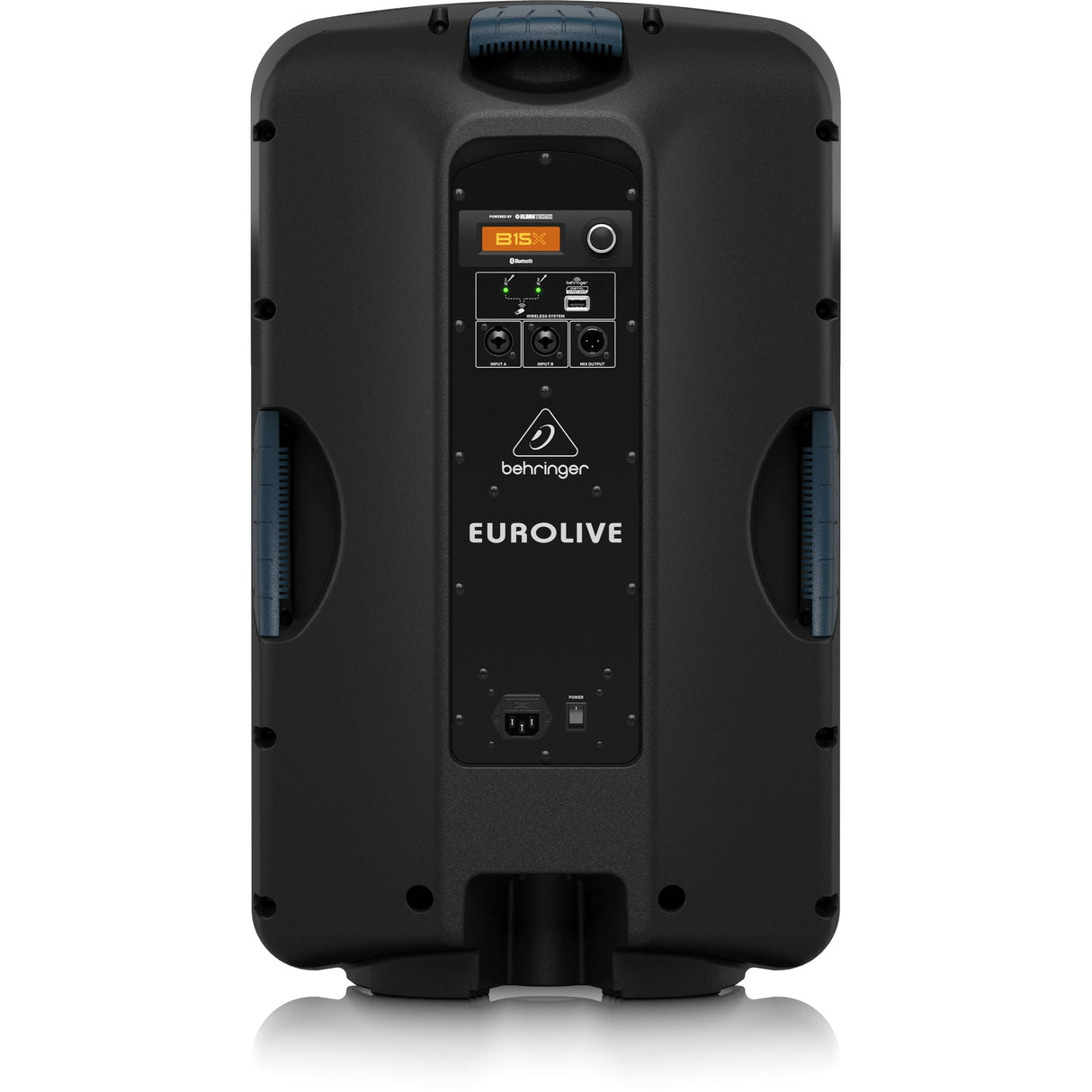

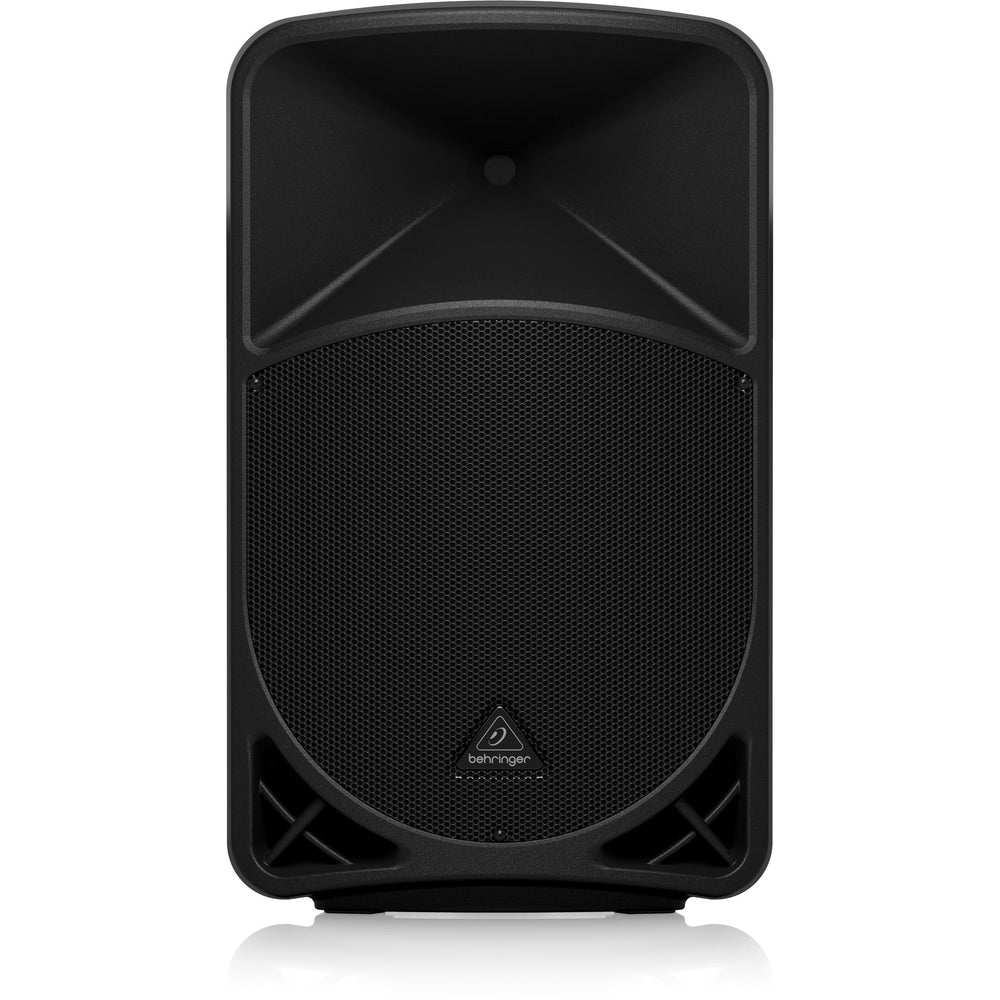

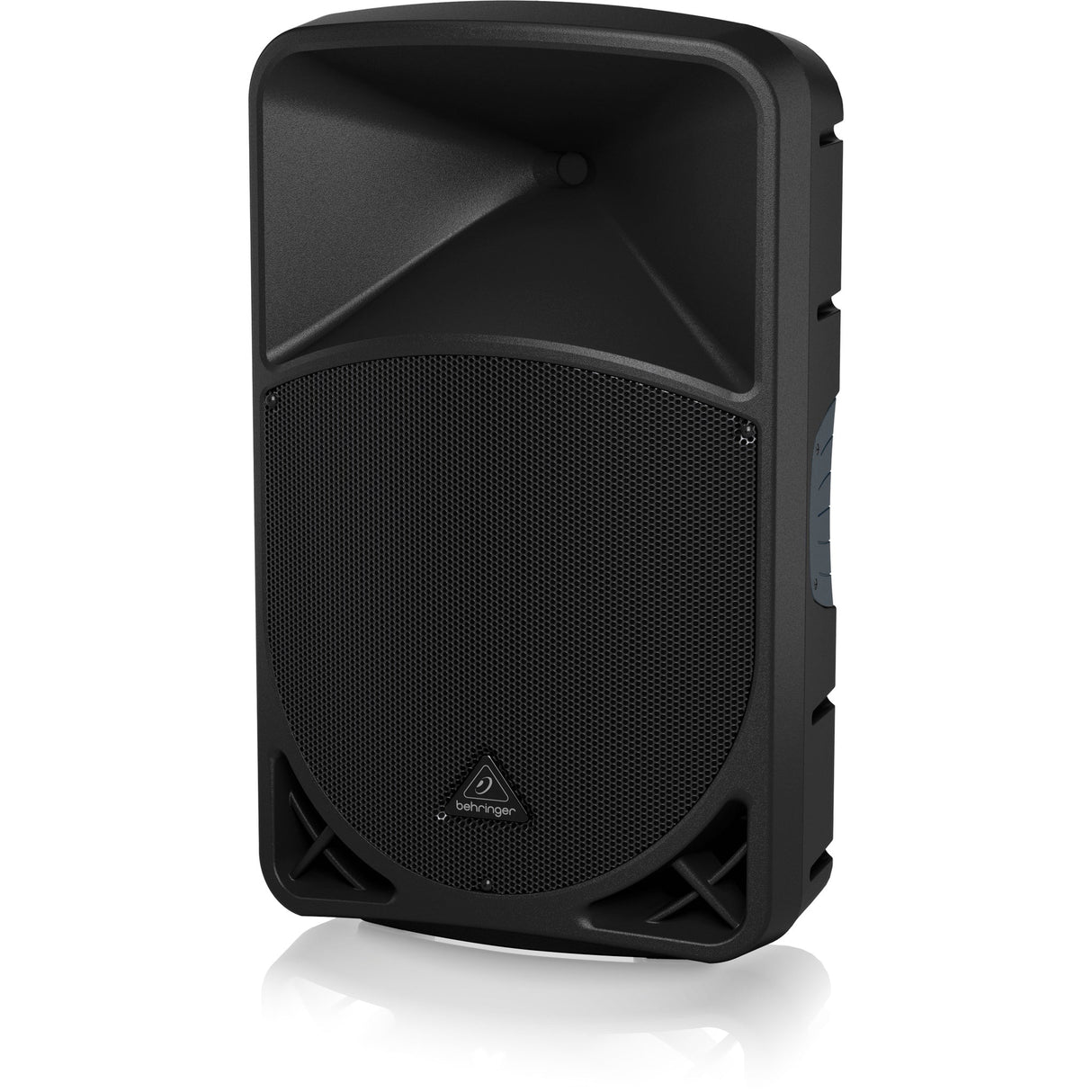

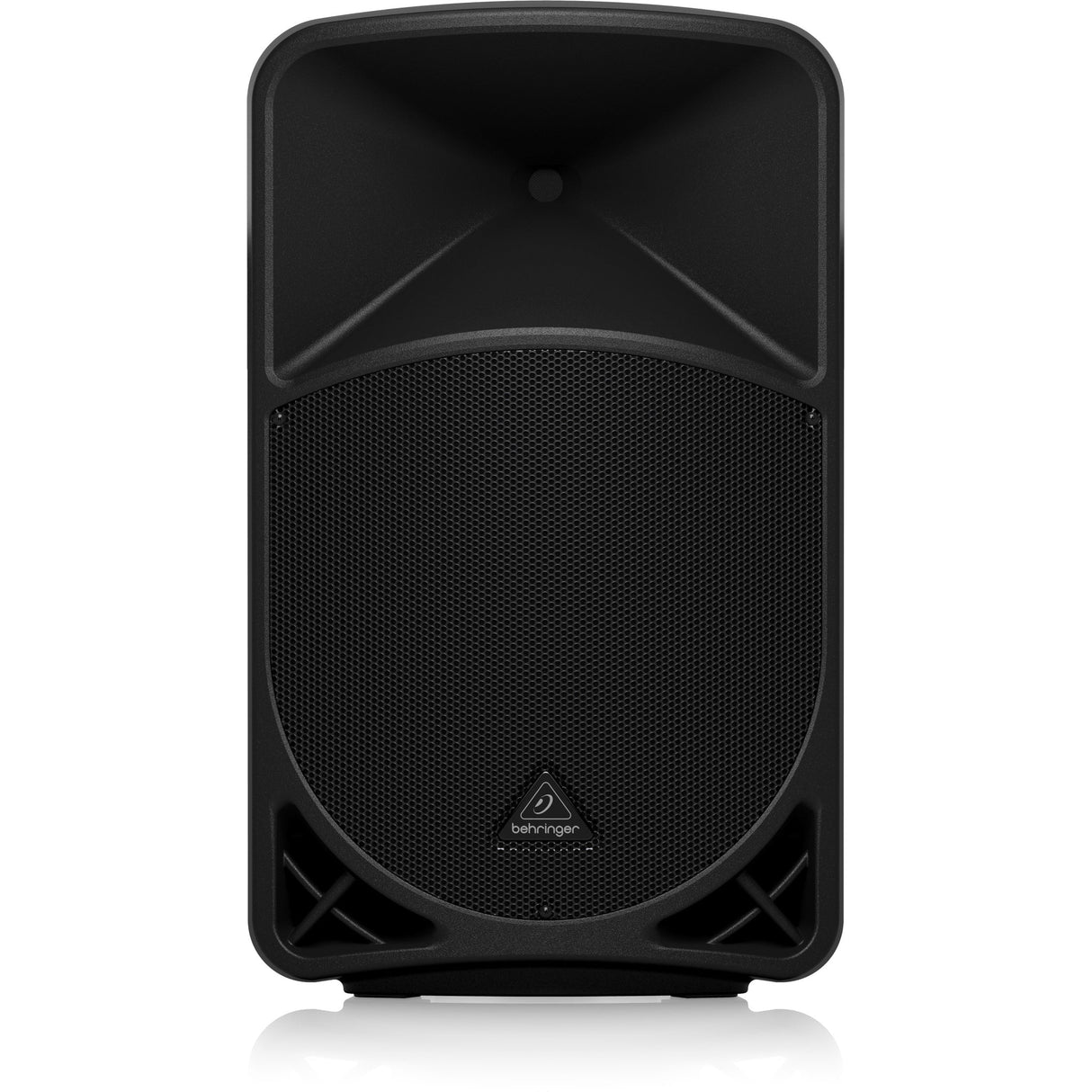

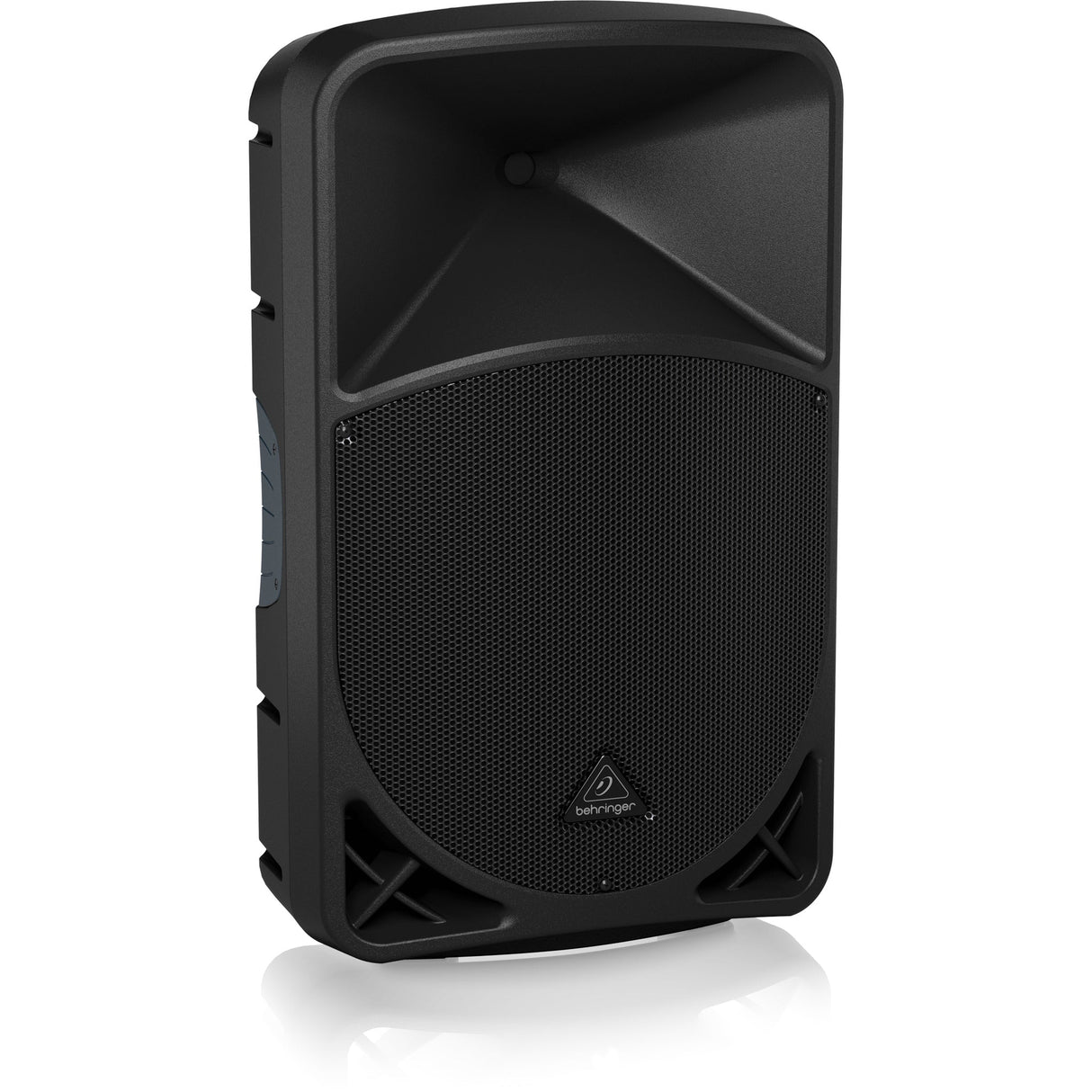

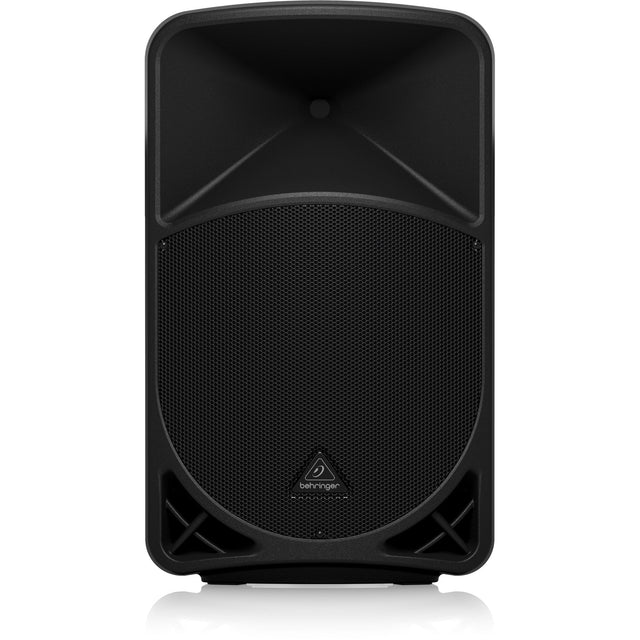

Behringer B15X 15" Powered PA Loudspeaker with Digital Mixer and Bluetooth Streaming

Behringer B15X 15" Powered PA Loudspeaker with Digital Mixer and Bluetooth Streaming

Behringer B15X is a powered PA loudspeaker designed for live sound reinforcement and playback applications. It enables amplified audio output and digital mixing control for performers, presenters, and event operators, supporting portable PA and event sound workflows. This makes it ideal for live performances, mobile DJs, and presentation environments where integrated digital control and wireless audio streaming are required.

The system uses a Class-D amplifier paired with a long-excursion low-frequency driver and a compression driver for high-frequency reproduction. A built-in digital mixer with DSP processing allows system configuration, equalization, and preset management through onboard controls or a mobile device.

Bluetooth audio streaming and remote control via mobile applications allow wireless playback and system adjustment. The enclosure supports pole mounting or floor monitor positioning to accommodate portable PA deployments.

Key Features

• High Power Amplification: 1000-watt 2-way powered PA loudspeaker for live and playback applications
• Digital Mixer Control: Remote controllable 3-channel digital mixer with gain setting recall
• Bluetooth Audio Streaming: Wireless stereo audio streaming from Bluetooth compatible devices
• Mobile App Control: Comprehensive remote control via iOS and Android mobile applications
• Klark Teknik DSP: Digital signal processing provides system management and sound control
• Wireless Microphone Ready: Compatible with Behringer digital wireless microphone systems when optional receiver is installed
• Long Excursion Woofer: 15" driver designed for deep bass and acoustic output
• Compression Driver: 1.35" aluminum-diaphragm compression driver for high-frequency reproduction
• LCD User Interface: Rotary control interface with integrated LCD display for system navigation
• Flexible Enclosure Design: Trapezoidal cabinet supports pole mounting or floor monitor placement

Technical Specifications

Amplifier
Maximum output power: 1000 W
Type: Class-D
Protection: Short circuit, open circuit, thermal

Controls
Hardware: Rotary push-encoder
Software: Apple iOS and Android interface via Bluetooth

Loudspeaker System Data
Woofer: 385 mm (1 x 15) LF driver
Tweeter: 25.4 mm (1 x 1) HF compression driver
Frequency response: 50 Hz to 20 kHz ±3 dB
45 Hz to 20 kHz -10 dB
Nominal dispersion: 85 degrees H x 60 degrees V -6 dB
Maximum SPL: 127 dB
Crossover: 2-way, active
Limiter: Independent HF, LF

Audio Connections
Input A B: 2 x XLR / 1/4" TRS combo jacks servo-balanced
Input impedance: 33 kΩ balanced / 16 kΩ unbalanced
Sensitivity: 4 dBu nominal
Max input level: +22 dBu
Output: 1 x XLR
Output impedance: 440 Ω balanced, 220 Ω balanced
Max output level: +22 dBu

Digital Signal Processor DSP
Display: LCD 128 x 32, amber backlit
Factory EQ presets: Positioning, sound mode, phase
Bass: ±10 dB at 80 Hz shelving
Middle: ±10 dB at 2.5 kHz parametric Q = 0.5
Treble: ±10 dB at 12 kHz shelving
Crossover: High pass, LR-24 dB per octave
Protection: Lockout function for all settings

Wireless System
USB dongle: USB socket accepts signals from 2 independent Behringer ULM microphones
Signal indicator LED: 2 green

Bluetooth MP3
Frequency range: 2402 MHz to 2480 MHz
Channel number: 79
Version: Bluetooth spec 4.0 compliant
Compatibility: Supports GATT, A2DP 1.2 profiles
Max communication range: 30 m without interference
Connectivity: Master-slave stereo pairing link

Power Supply Voltage Fuses
USA Canada Japan: 100 to 120 V AC, 50 / 60 Hz (T 6.3A H 250 V)
UK Australia Europe Korea China: 220 to 240 V AC, 50 / 60 Hz (T 3.15A H 250 V)
Power consumption at 1/8 max power: 90 W
Mains connection: Standard IEC receptacle

Weight
40.04 lbs

Height
28.05"

Width
16.8"

Length
12.32"
