Behringer BRAINS Multi-Engine Digital Oscillator Module

Behringer BRAINS Multi-Engine Digital Oscillator Module

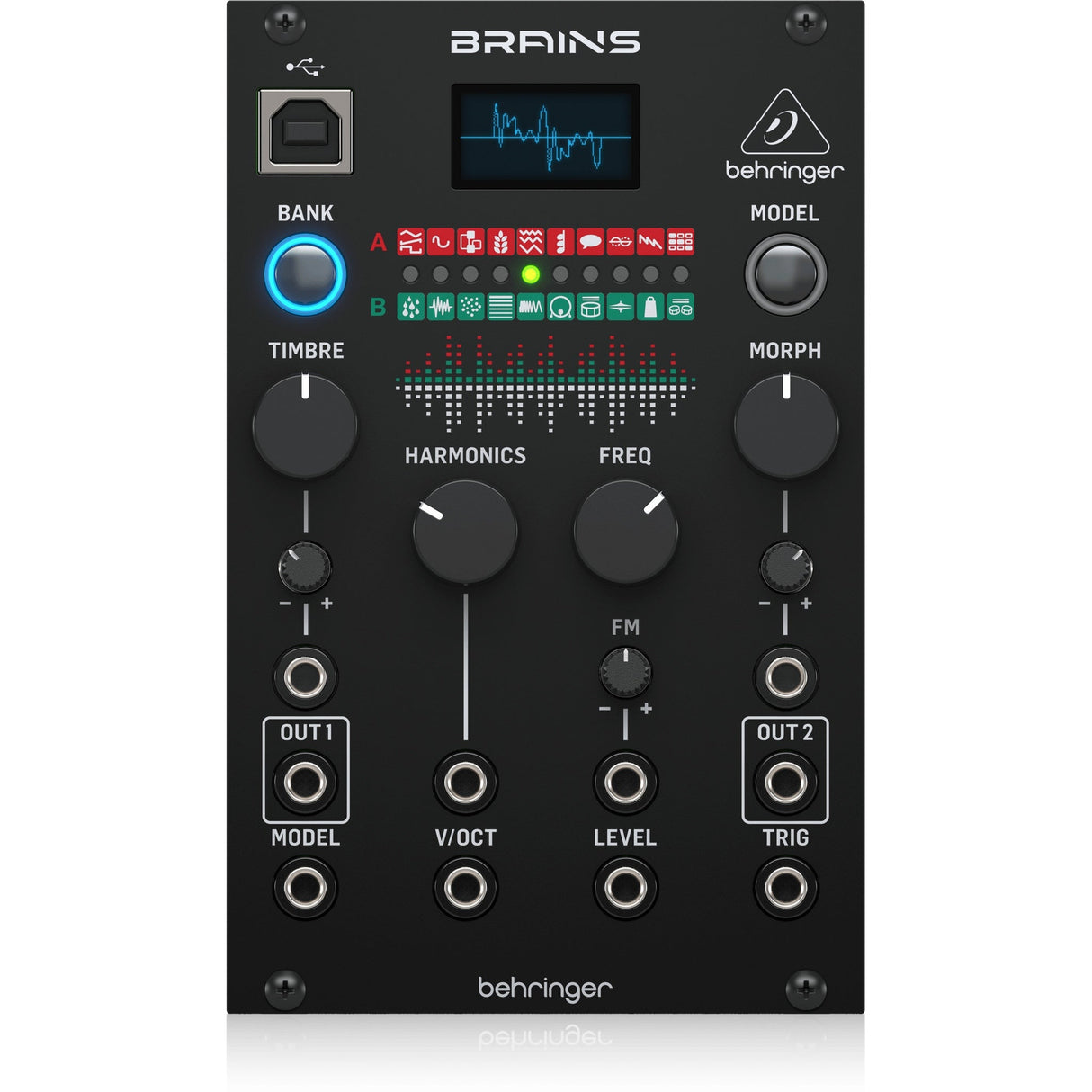

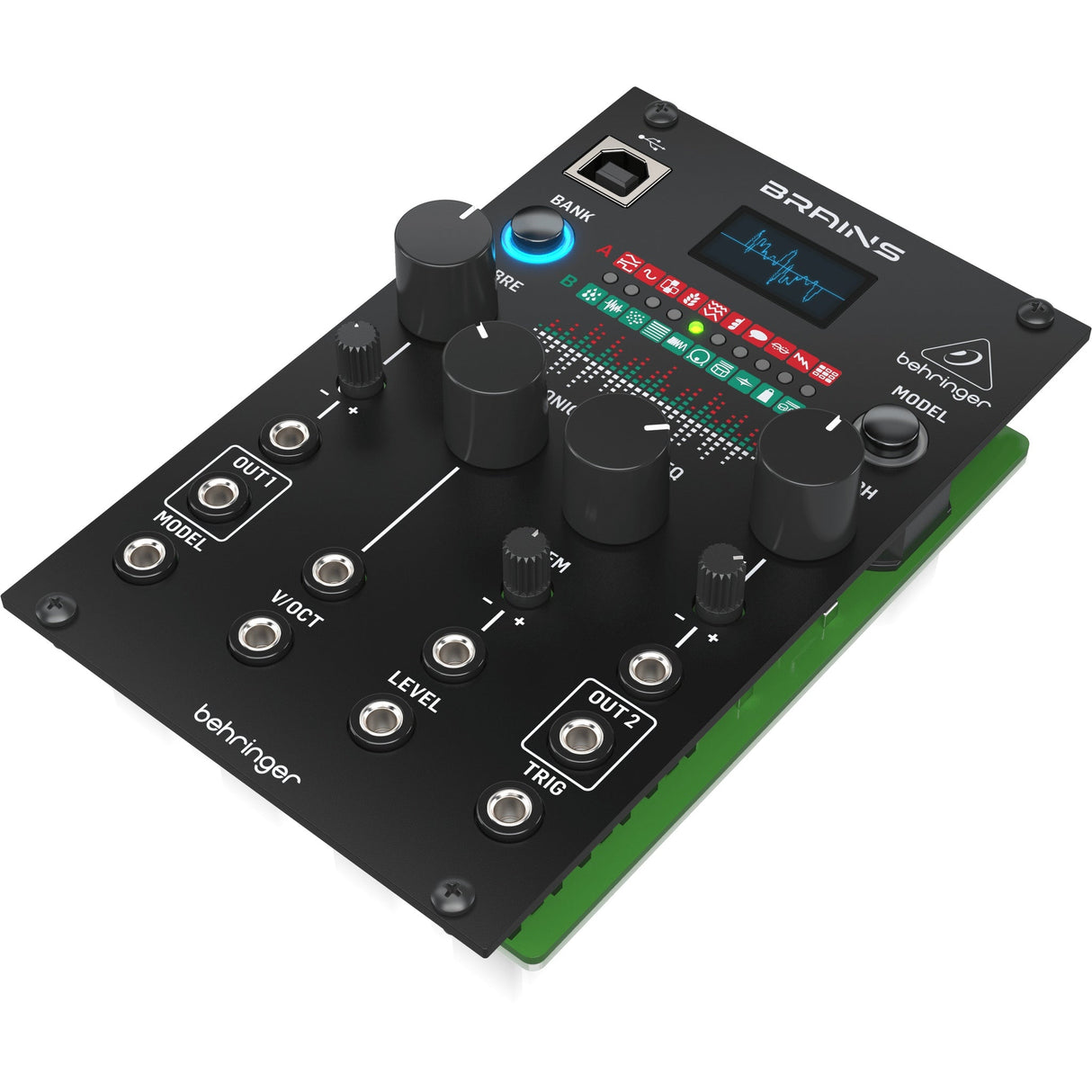

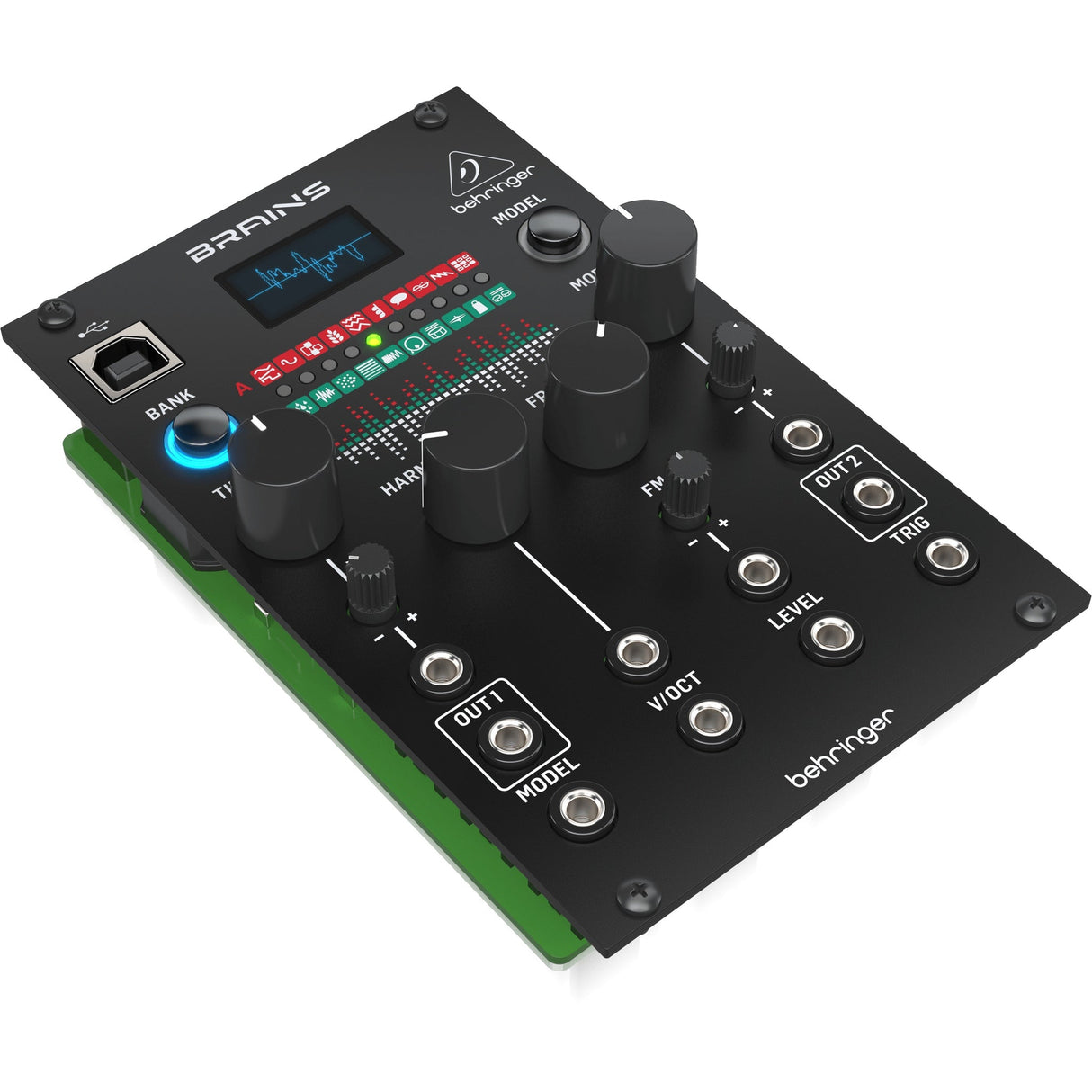

Behringer BRAINS is a digital oscillator module designed for Eurorack modular synthesizer systems used in sound design, music production, and modular performance environments. It enables multi-engine sound generation for musicians and synthesists working with modular synthesis workflows. This makes it ideal for modular setups where flexible synthesis engines and voltage-controlled sound shaping are critical.

The module generates sound using multiple synthesis engines operating at a high internal sampling rate and digital processing resolution. Control voltage inputs allow external modulation of synthesis parameters such as timbre, harmonics, pitch, and morphing between sound models. Dual audio outputs and internal digital processing support flexible signal routing and sound variation.

This design supports modular musicians creating percussion, melodic voices, textures, and evolving soundscapes within a Eurorack system. Users can patch modulation sources to dynamically alter synthesis parameters during performance or sound design. The module integrates with other Eurorack components through control voltage inputs and audio outputs.

Key Features

• Multi-Engine Oscillator Architecture: Digital oscillator module with multiple synthesis engines for diverse sound generation
• 24 Synthesis Engines: Includes multiple oscillator models for melodic synthesis, percussion generation, and sound design
• High Resolution Processing: Operates with 96 kHz internal synthesis for detailed digital sound generation
• Integrated OLED Oscilloscope: Built-in display visualizes waveform activity and signal behavior
• Voltage Controlled Parameters: External CV inputs allow modulation of timbre, harmonics, pitch, morph, and level
• Dual Audio Outputs: Two separate outputs provide main signal and alternate sound variation
• USB Firmware Support: USB connection allows firmware updates for the oscillator module
• Eurorack Compatible Format: Designed for integration with Eurorack modular synthesizer systems

Technical Specifications

Inputs
Timbre CV input
Type: 3.5 mm TS jack, DC to 2 kHz
Impedance: 50 kΩ
Max input level: ±8 V

Harmonics CV input
Type: 3.5 mm TS jack, DC to 2 kHz
Impedance: 100 kΩ
Max input level: ±5 V

Freq CV input
Type: 3.5 mm TS jack, DC to 2 kHz
Impedance: 50 kΩ
Max input level: ±8 V

Morph CV input
Type: 3.5 mm TS jack, DC to 2 kHz
Impedance: 50 kΩ
Max input level: ±8 V

Model CV input
Type: 3.5 mm TS jack, DC to 2 kHz
Impedance: 100 kΩ
Max input level: ±5 V

V/Oct input
Type: 3.5 mm TS jack, DC to 2 kHz
Impedance: 100 kΩ
Max input level: -3 to +7 V

Level input
Type: 3.5 mm TS jack, DC to 2 kHz
Impedance: 50 kΩ
Max input level: 0 to +8 V

Trig input
Type: 3.5 mm TS jack, DC to 2 kHz
Impedance: 50 kΩ
Max input level: 0 to +8 V

Outputs
Out 1
Type: 3.5 mm TS jack, DC coupled
Impedance: 1 kΩ
Max output level: 6.2 V

Out 2
Type: 3.5 mm TS jack, DC coupled
Impedance: 1 kΩ
Max output level: 6.2 V

Controls
Timbre: Darker or brighter content
Harmonics: Frequency spread or tonal balance
Freq: Frequency adjustment
Morph: Panning or character
Bank: Toggles band A and B
Model: Scrolls through models in active bank

Digital Processing
A/D converter resolution: 16 bit
D/A converter resolution: 16 bit
Sampling rate: 96 kHz
Internal processing: 32-bit floating point

USB
Type: USB 2.0, type B

Power
Current draw: 130 mA (+12 V), 10 mA (-12 V)

Physical
Dimensions: 129 x 81 x 45 mm (5.0 x 3.2 x 1.8")
Rack units: 16 HP
Weight: 0.16 kg (0.35 lbs)
