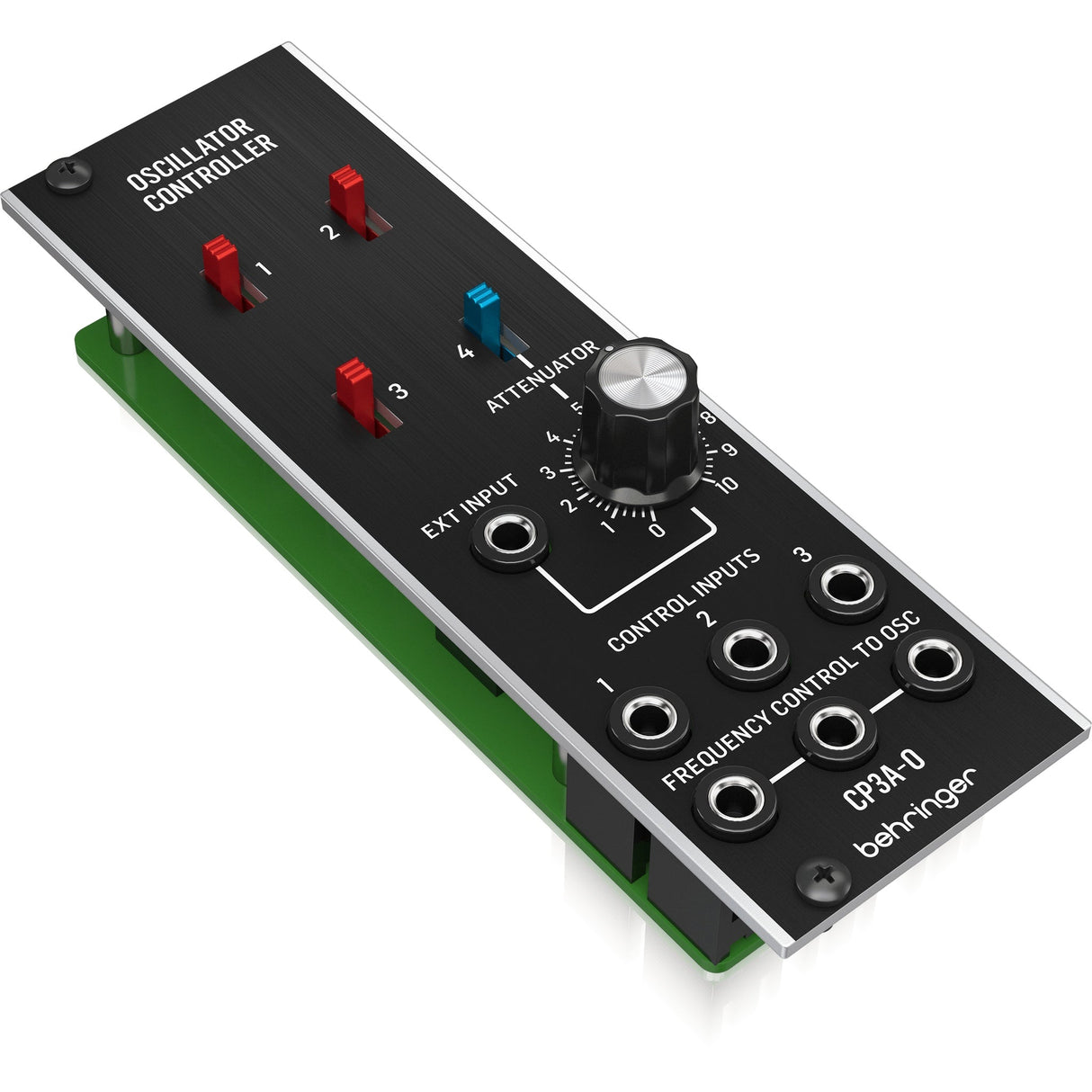

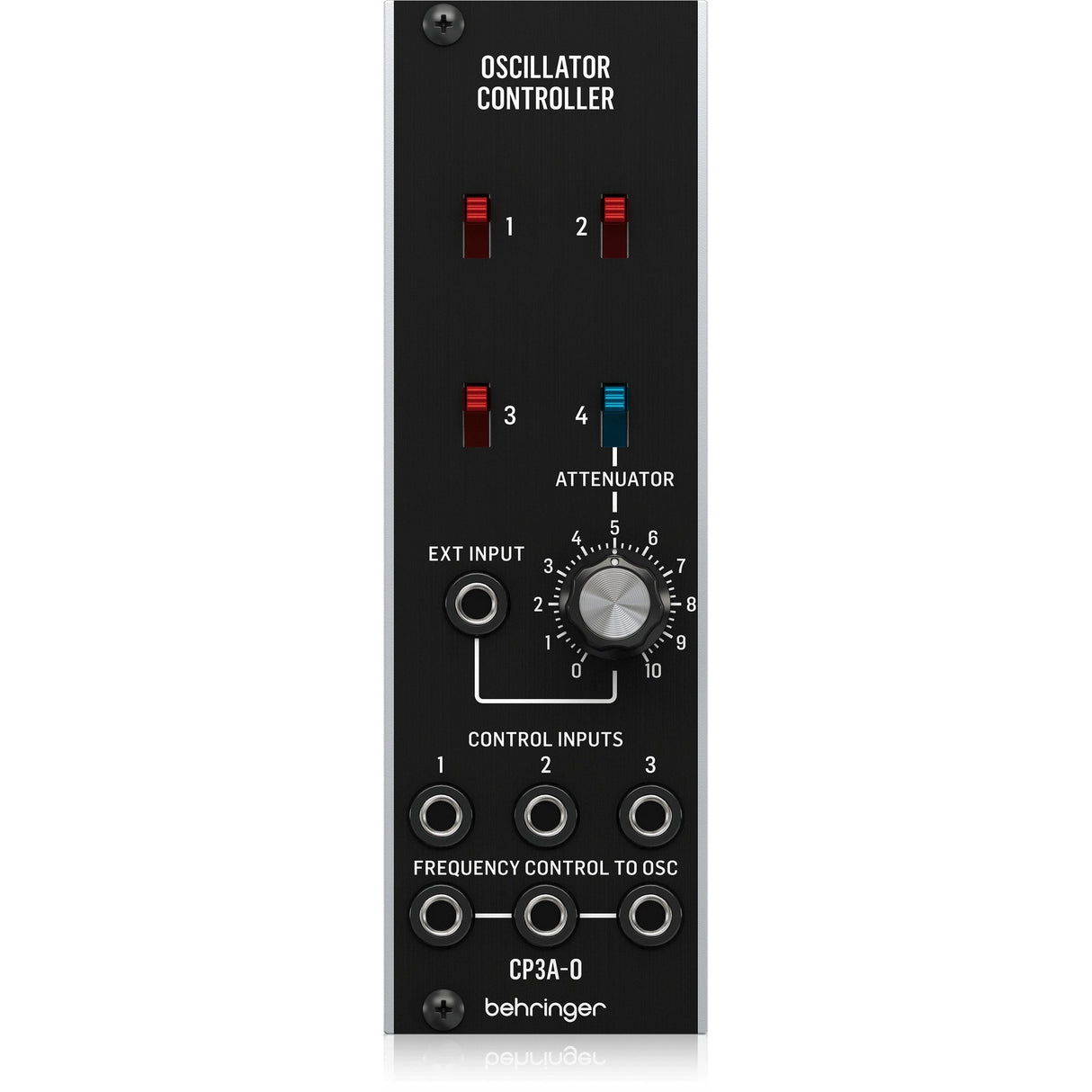

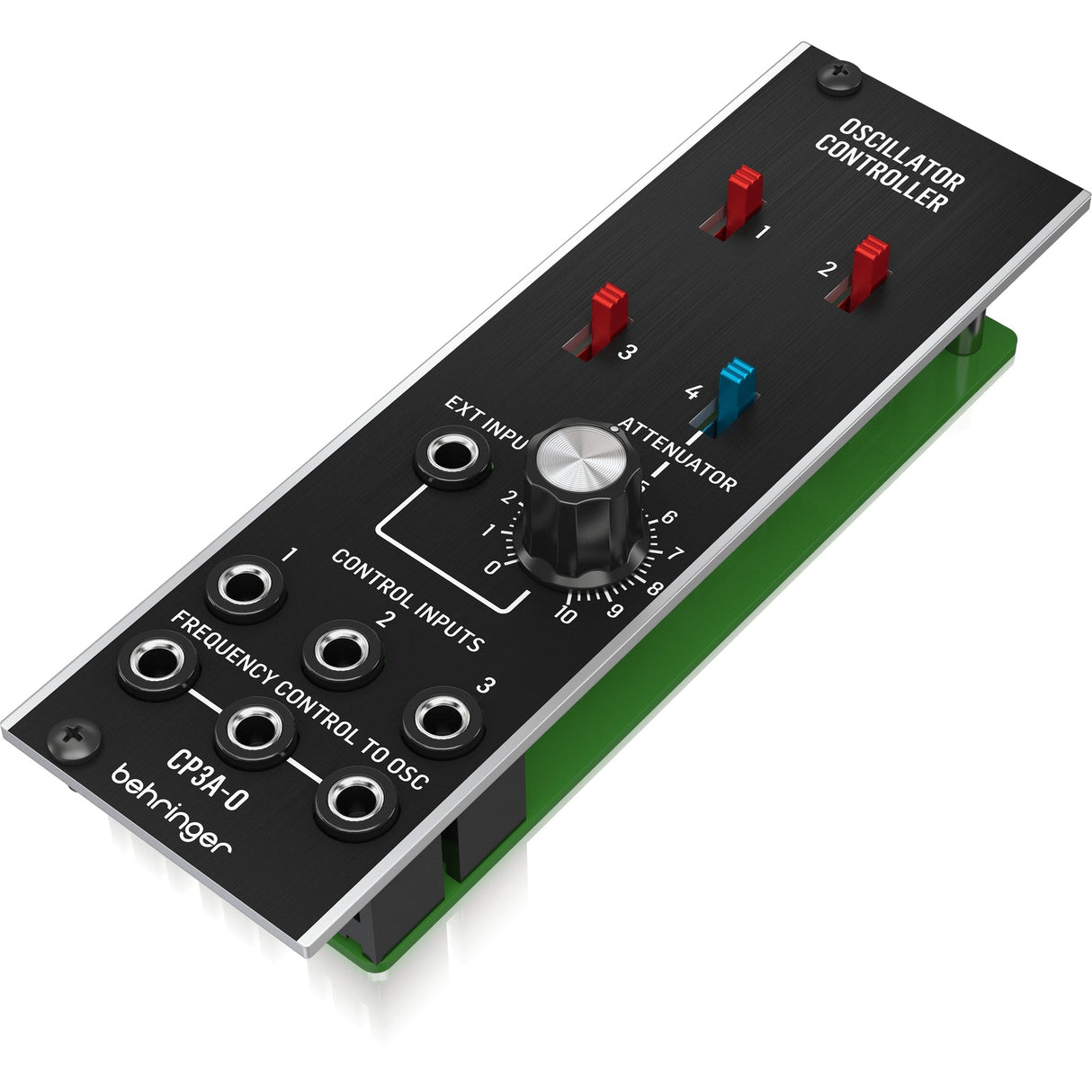

Behringer CP3A-O Oscillator Controller Module for Eurorack
The Behringer CP3A-O is an analog oscillator controller module designed for Eurorack modular synthesizer systems. Inspired by the circuitry of the classic Modular 55 and 35 systems, this module provides centralized control over oscillator pitch modulation and control voltage routing within modular synthesis environments.
The CP3A-O allows users to route control voltages to multiple voltage-controlled oscillators using four dedicated switches. These switches enable flexible routing of pitch control signals to one or more oscillators, making it easier to control multiple VCOs from a single control source or sequencer.
Three switched and summed CV inputs provide frequency control signals for connected oscillators, while an external input jack with its own attenuator allows additional modulation sources to be integrated into the signal path. The module also provides three parallel CV outputs capable of driving multiple oscillator modules such as the Behringer 921A and 921B.
Key Features
- Oscillator Controller Module: Routes control voltages to multiple oscillators in a Eurorack system
- Classic Modular Circuitry: Authentic recreation of circuitry from the Modular 55 and 35 systems
- Flexible CV Routing: Four switches allow CV signals to be sent to one or more oscillators
- Summed CV Inputs: Three switched inputs provide frequency control for connected VCO modules
- External CV Input: Additional input with dedicated attenuator for modulation sources
- Multiple CV Outputs: Three parallel outputs can drive several oscillator modules simultaneously
- Eurorack Compatible: Designed for installation in standard Eurorack modular systems
Technical Specifications
Control Voltage InputsSwitched CV inputs: 3
External CV input: 1 with attenuator
Control Voltage Outputs
Parallel CV outputs: 3
Switching
Routing switches: 4 switches for oscillator control
Power
Power supply: Eurorack
Current draw: 5 mA (+12 V), 5 mA (-12 V)
Physical
Module width: 8 HP
Weight
1.98 lb
Height
1.38"
Width
1.57"
Length
5.08"
