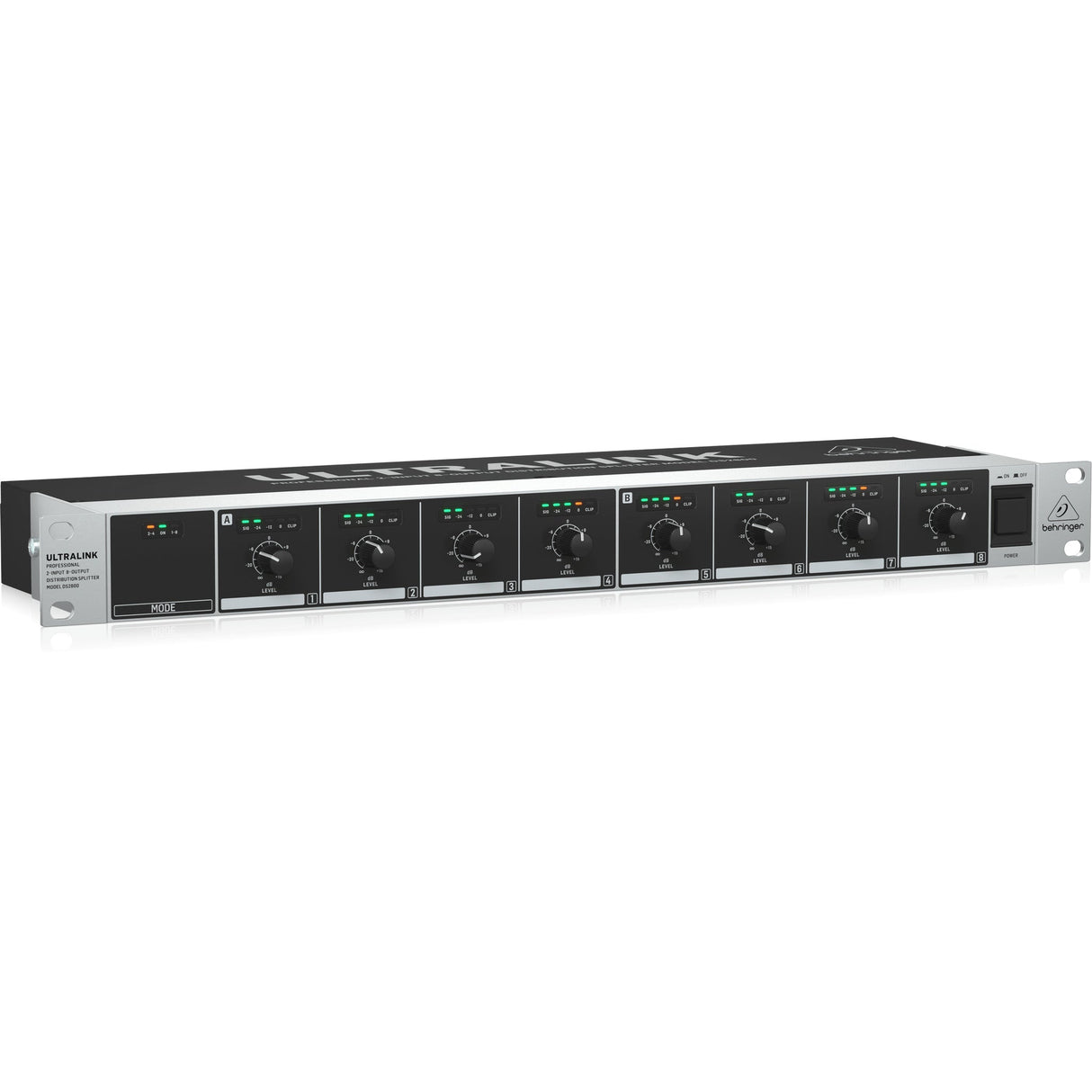

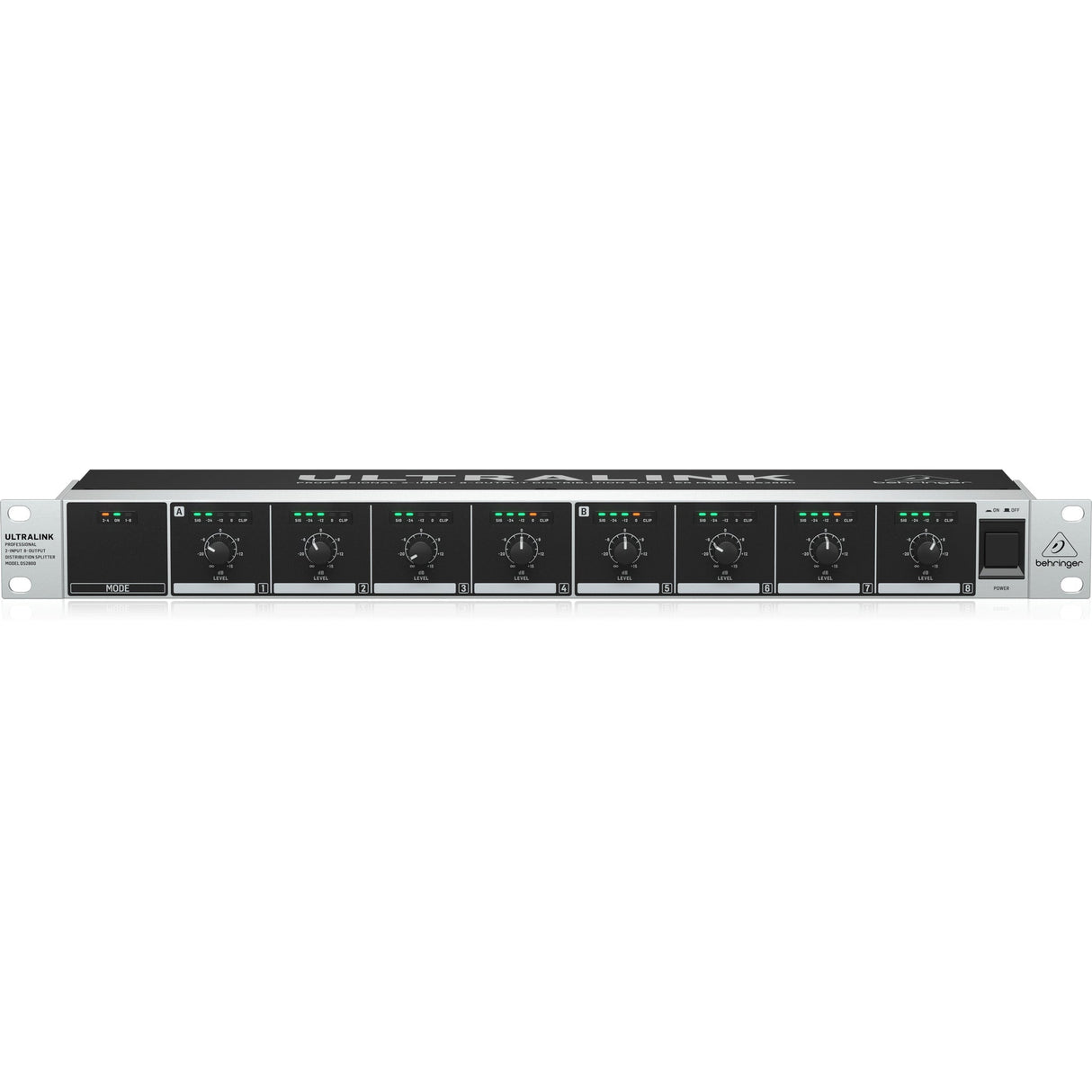

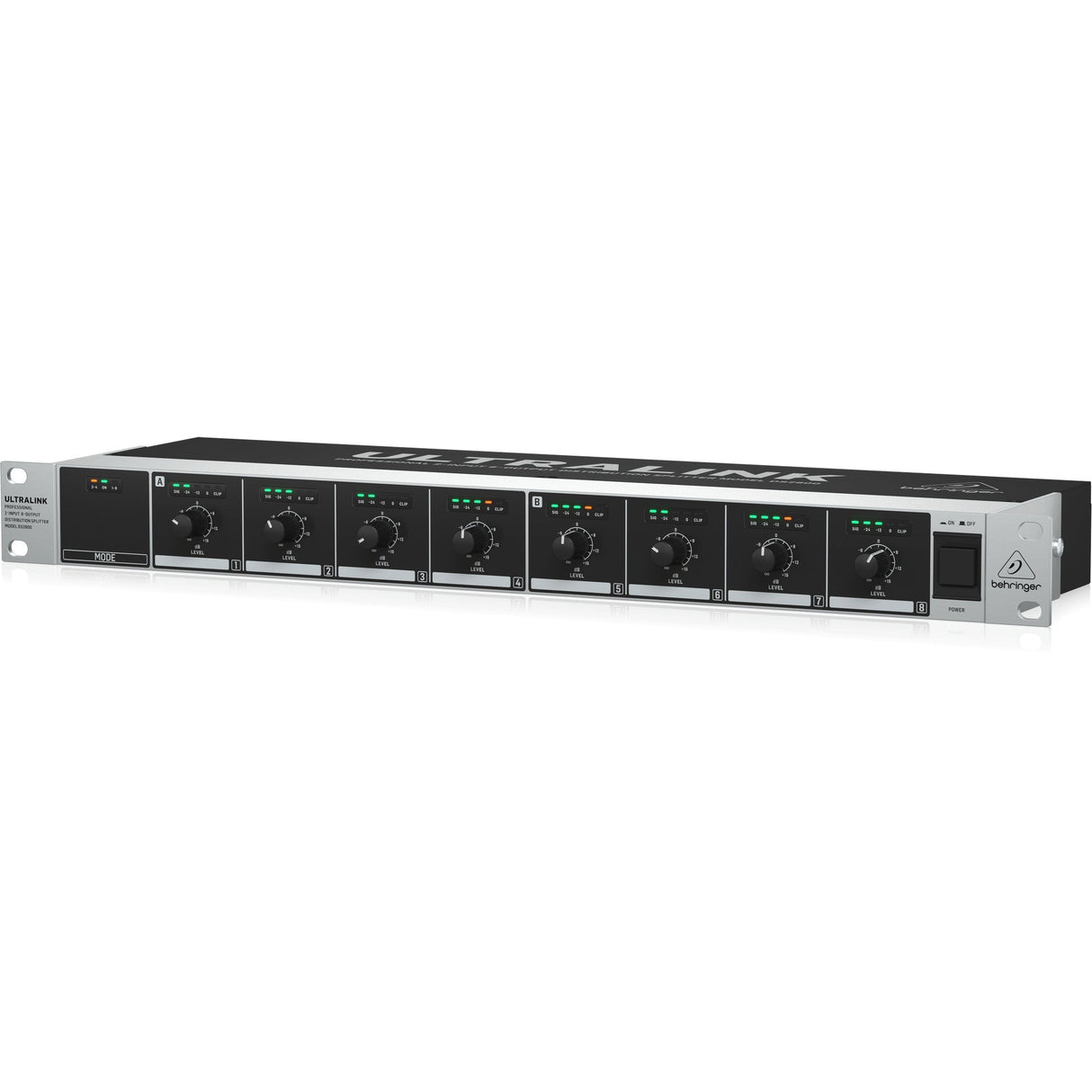

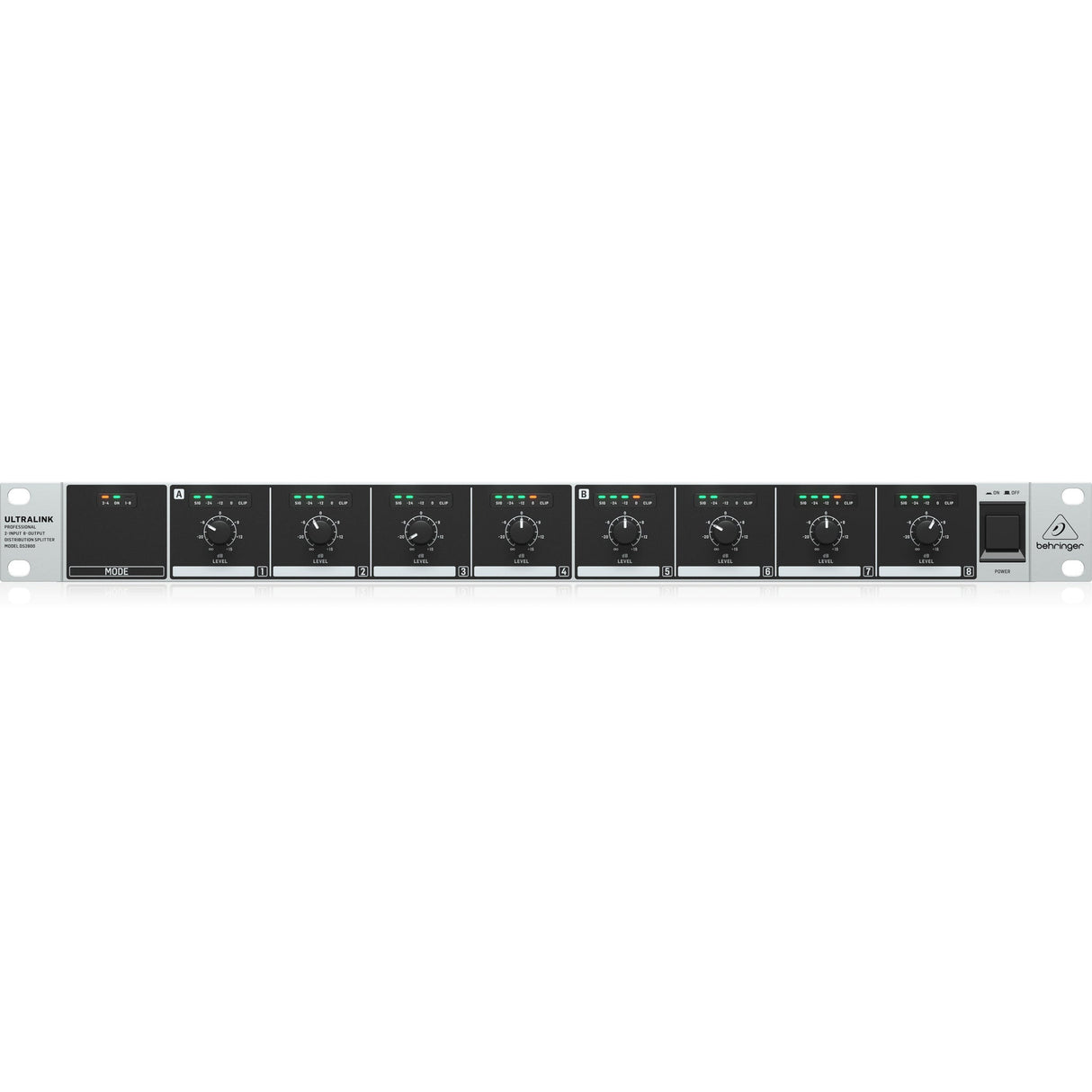

Behringer DS2800 Two Input Eight Output Distribution Splitter

Behringer DS2800 Two Input Eight Output Distribution Splitter

Behringer DS2800 is an audio distribution splitter designed for signal routing and distribution in commercial and professional sound systems. It enables audio engineers and system installers to route one or two input signals to multiple outputs, supporting system distribution and zone routing workflows. This makes it ideal for installed sound systems, live audio setups, and broadcast environments where reliable signal distribution is critical.

The unit operates with balanced input and output circuitry that maintains signal integrity across multiple distribution channels. Individual level controls and LED meters allow users to monitor and adjust output levels for each channel.

This architecture allows audio systems to distribute signals to multiple destinations such as amplifiers, mixers, and processing devices. It supports flexible signal routing and monitoring in both installed and live audio environments.

Key Features

• Flexible Distribution: Professional audio distribution splitter for commercial and live sound applications.
• Dual Operating Modes: Supports 2 input to 4 output or 1 input to 8 output configurations.
• Multiple Output Channels: Eight outputs each with independent level control.
• Signal Monitoring: Five segment LED meters per output indicate signal activity.
• Balanced Connectivity: Servo balanced inputs and outputs with gold plated XLR connectors.
• Low Noise Performance: Ultra low noise circuitry designed for professional audio environments.
• Signal Linking: Separate link output connectors allow signal routing to additional equipment.
• Rack Mount Design: Standard rack format suitable for professional equipment racks.
• Efficient Power Supply: Internal switch mode power supply supports 100 to 240 volt operation.

Technical Specifications

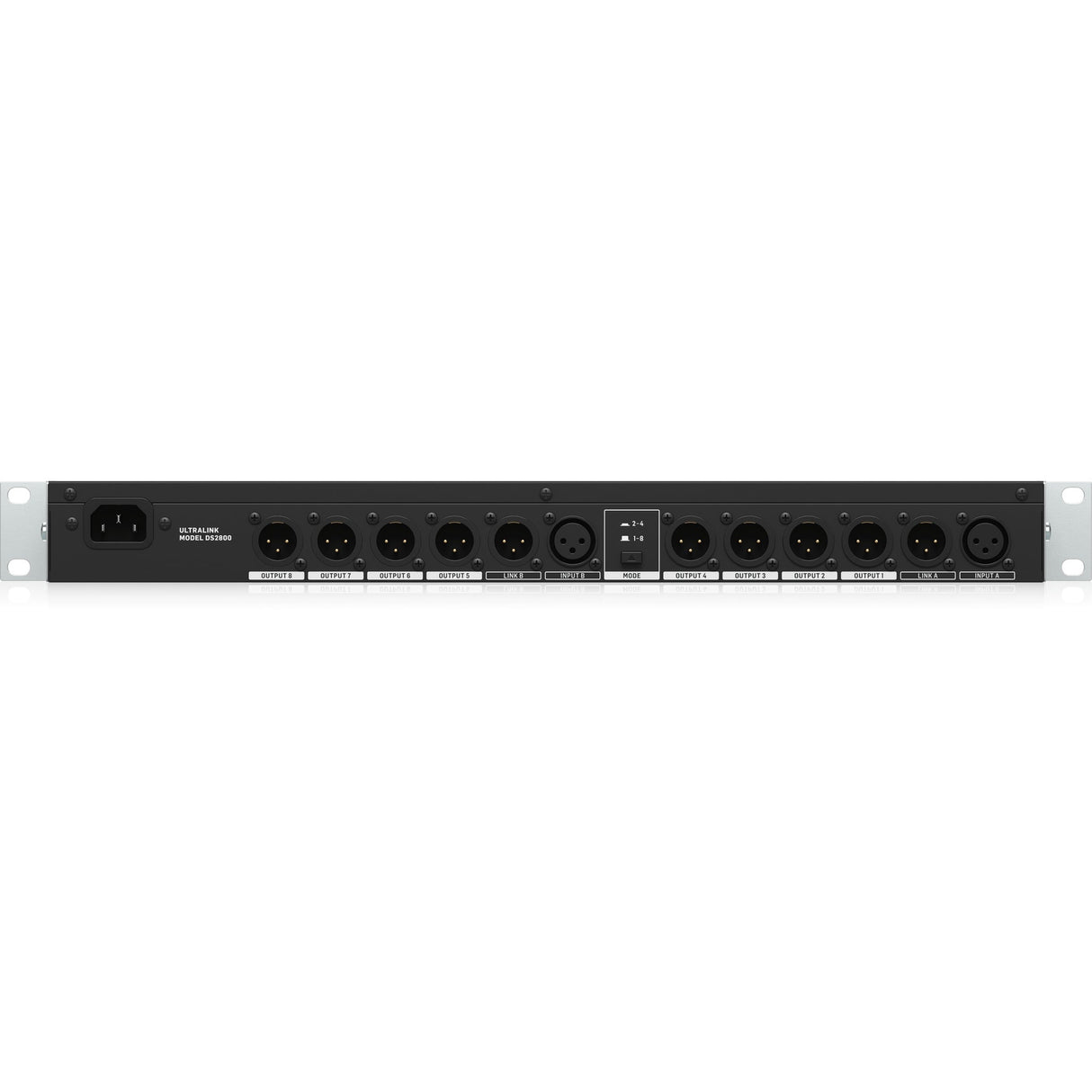

Audio Connections
Input A/B: XLR balanced
Max input level: +21 dBu
CMRR: 64 dB typ @ 1 kHz
Link A/B: XLR balanced
Output 1 - 8: XLR balanced
Max output level: +28 dBu

System
Frequency response: 10 Hz to 75 kHz ±3 dB
Dynamic range: 117 dB
Distortion THD: 0.001% typ @ +4 dBu 1 kHz Gain 1
Crosstalk: less than minus 77 dB @ 1 kHz
Signal to noise ratio: 20 Hz to 20 kHz greater than 97 dB @ 0 dBu

Function Controls Switches
Output level: minus infinity to plus 15 dB variable
Mode: 1 to 8 or 2 to 4 switchable

Displays
Power on: LED indicator
Output level: five segment LED display sig minus 24 minus 12 zero clip
Mode: status LED indicator

Power Supply
Type: switch mode autorange power supply
Mains voltage: 100 to 240 V 50 or 60 Hz
Power consumption: 15 W
Mains connection: standard IEC receptacle

Dimensions/Weight
44 x 483 x 148 mm (1.7 x 19.0 x 5.8")

Weight
11.6 kg (3.5 lbs)
