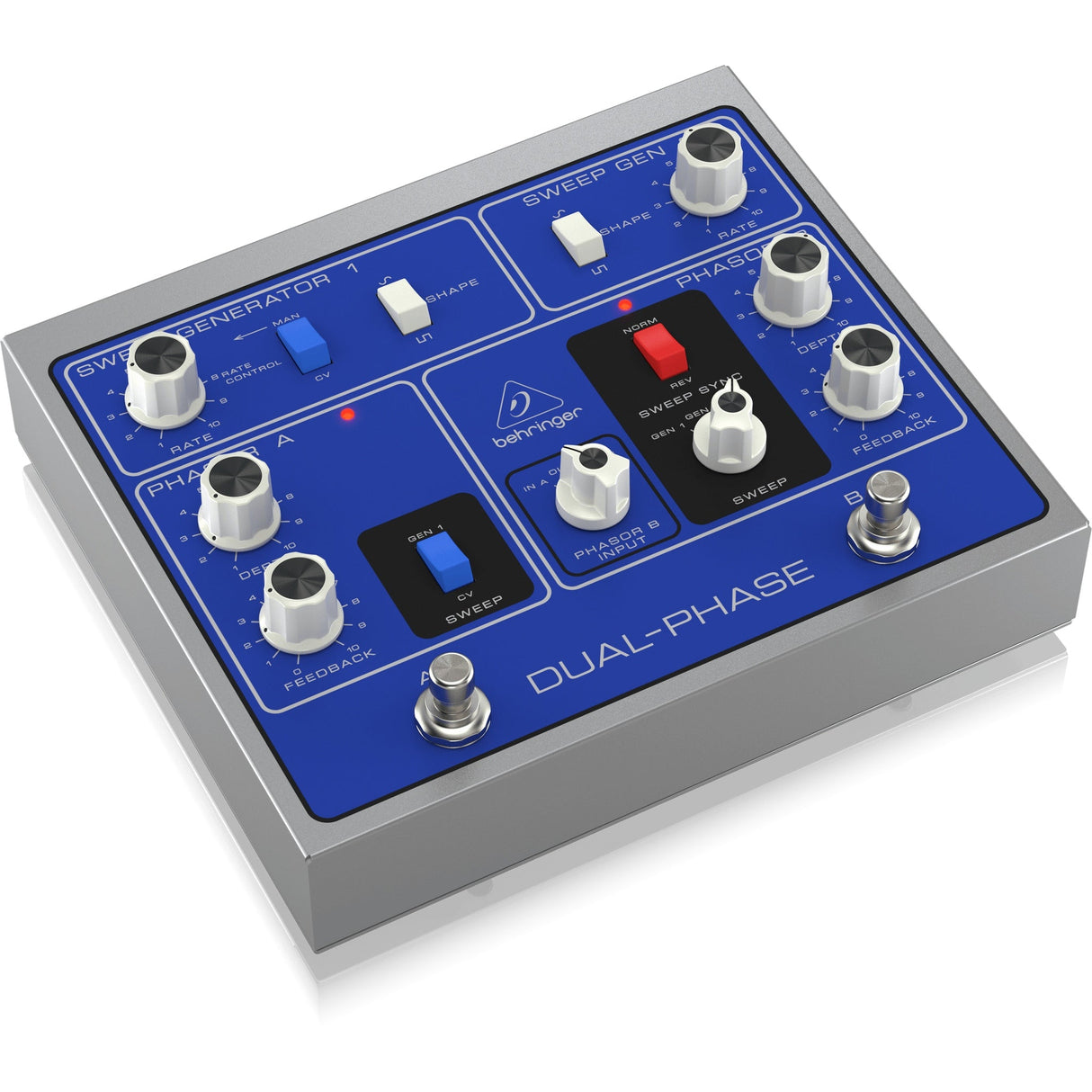

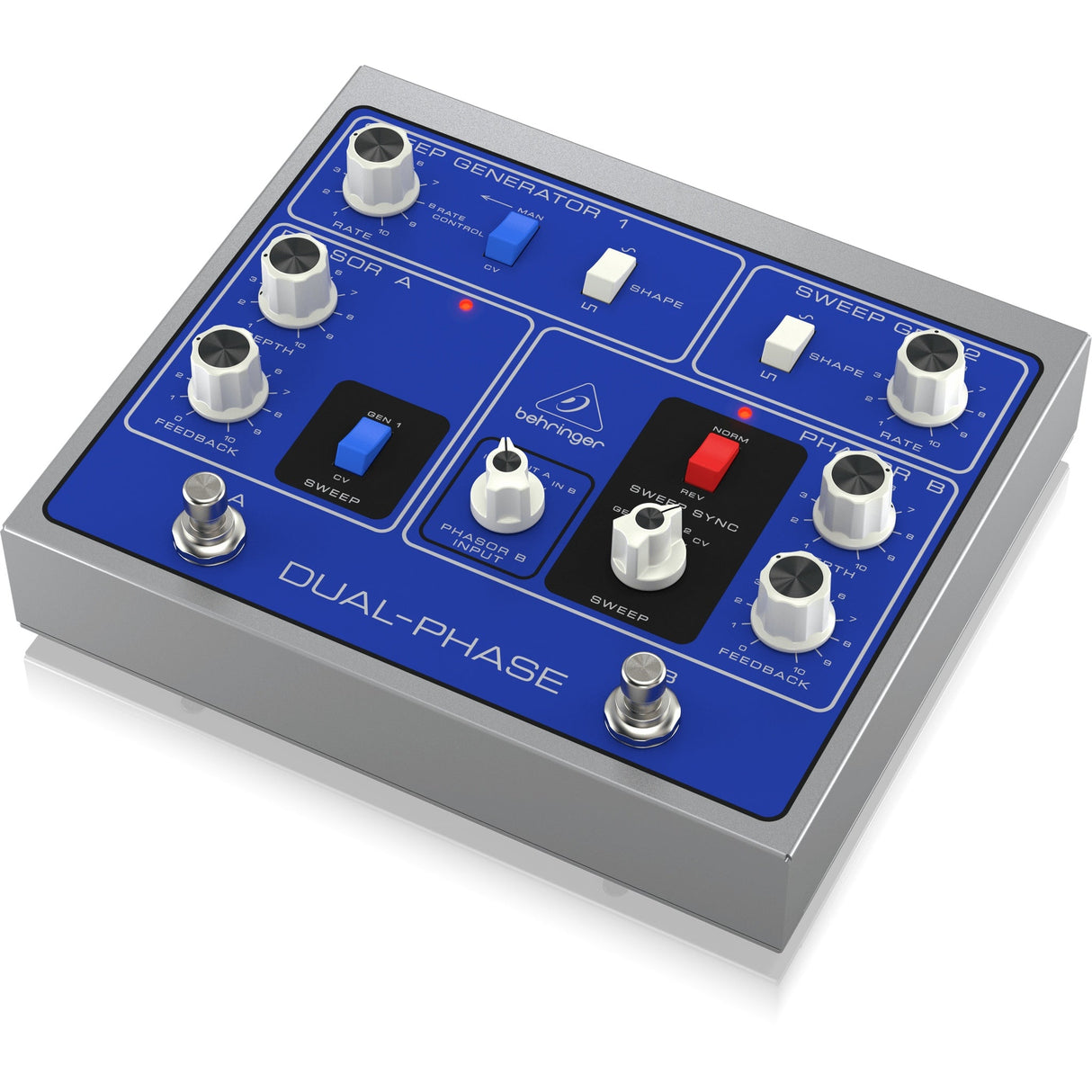

Behringer Dual-Phase Analog Phase Shifter Effects Pedal
Behringer Dual-Phase is an analog phase shifter effects pedal designed for keyboards, guitars, drum machines, and other electronic instruments. It enables phase modulation processing using dual phasing circuits, supporting modulation-based sound shaping workflows. This makes it ideal for studio and stage environments where analog phase shifting effects are required.
The pedal operates using two independent phasor circuits and sweep generators that control modulation depth, rate, and waveform shape. Sweep and synchronization controls allow modulation sources to be assigned for different phasing behaviors.
This architecture allows musicians to produce layered phasing effects and modulation textures across multiple audio sources. It supports flexible signal routing and external control using CV input for expanded performance applications.
Key Features
- Classic Phase Shifter Design: Dual analog phase shifter inspired by vintage 1970s effects units.
- 12 Opto-Couplers: Optical components create deep and natural phasing effects.
- Dual Independent Phasors: Two phasing circuits with individual depth and feedback controls.
- Dual Sweep Generators: Independent modulation generators with adjustable rate and waveform shape.
- Flexible Modulation Routing: Sweep and sync controls enable multiple modulation configurations.
- Input Selector: Combines both phasor circuits for layered phasing effects.
- External Control Input: CV input allows modulation control from external devices.
- Dual Footswitch Operation: True-bypass footswitches maintain signal integrity when disengaged.
- Durable Construction: Rugged metal housing designed for stage and studio use.
Technical Specifications

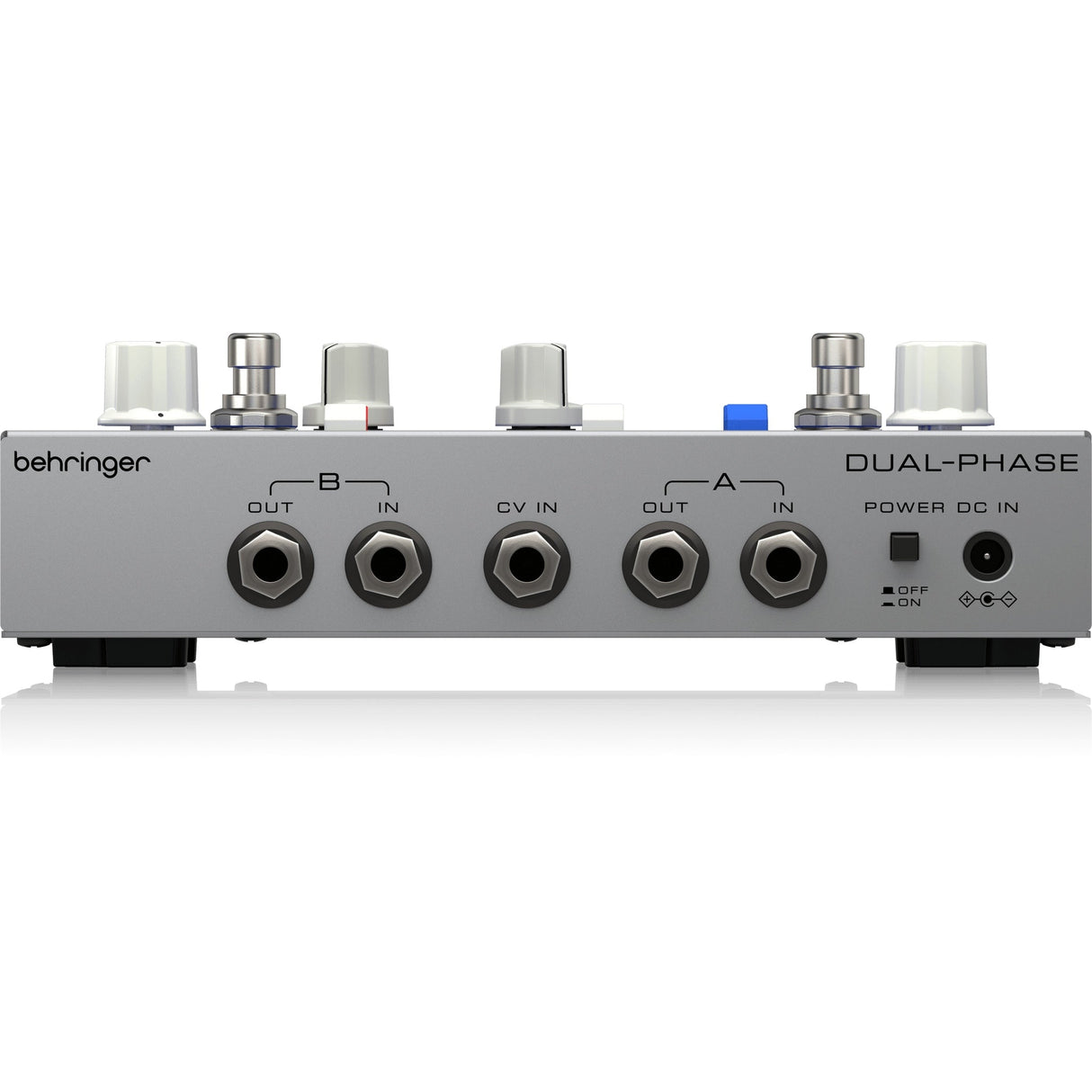

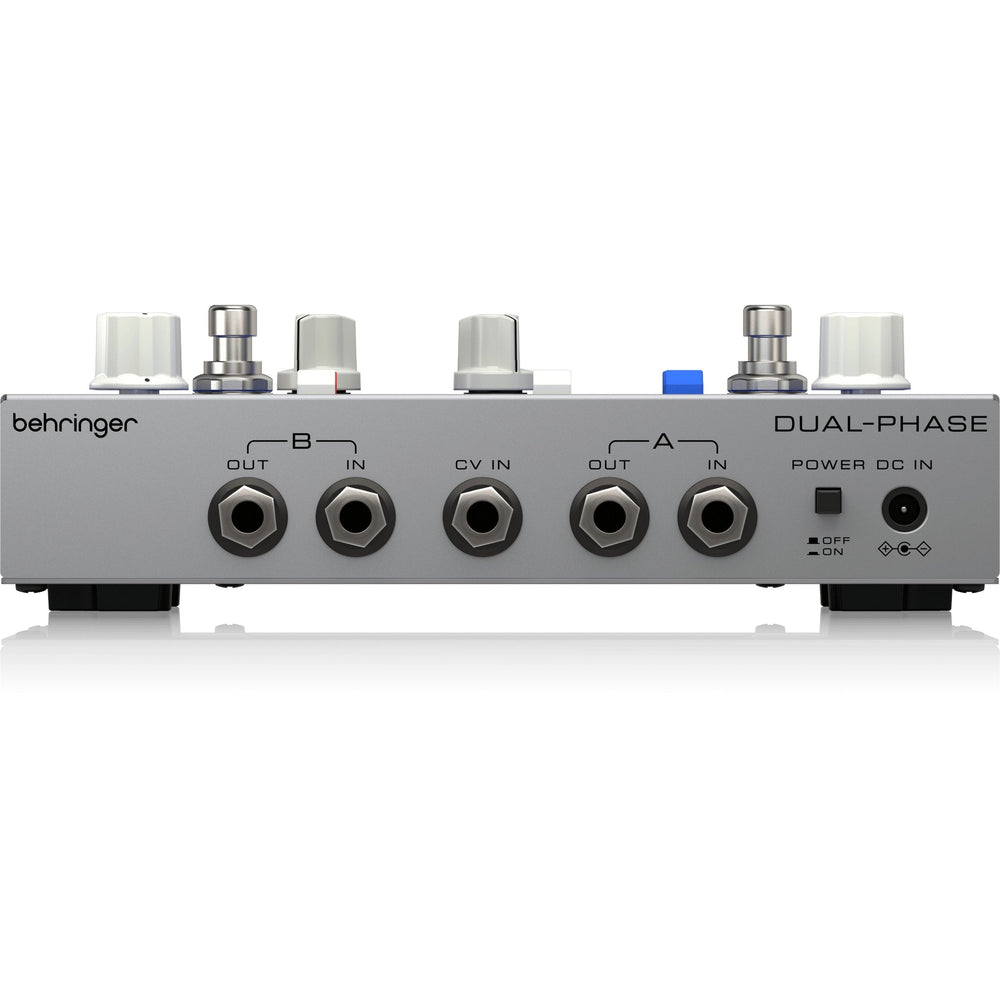

Signal ConnectionsInput A B: 2 x 1/4" TS jacks, unbalanced
Input Impedance: 30 kOhm unbalanced
Maximum Input Level: +20 dBu
Output A B: 2 x 1/4" TS jacks, unbalanced
Output Impedance: less than 470 Ohm unbalanced
Maximum Output Level: +19.5 dBu
CV In: 1 x 1/4" TRS jack, 1 V per octave
CV Input Range: 0 V to +5 V

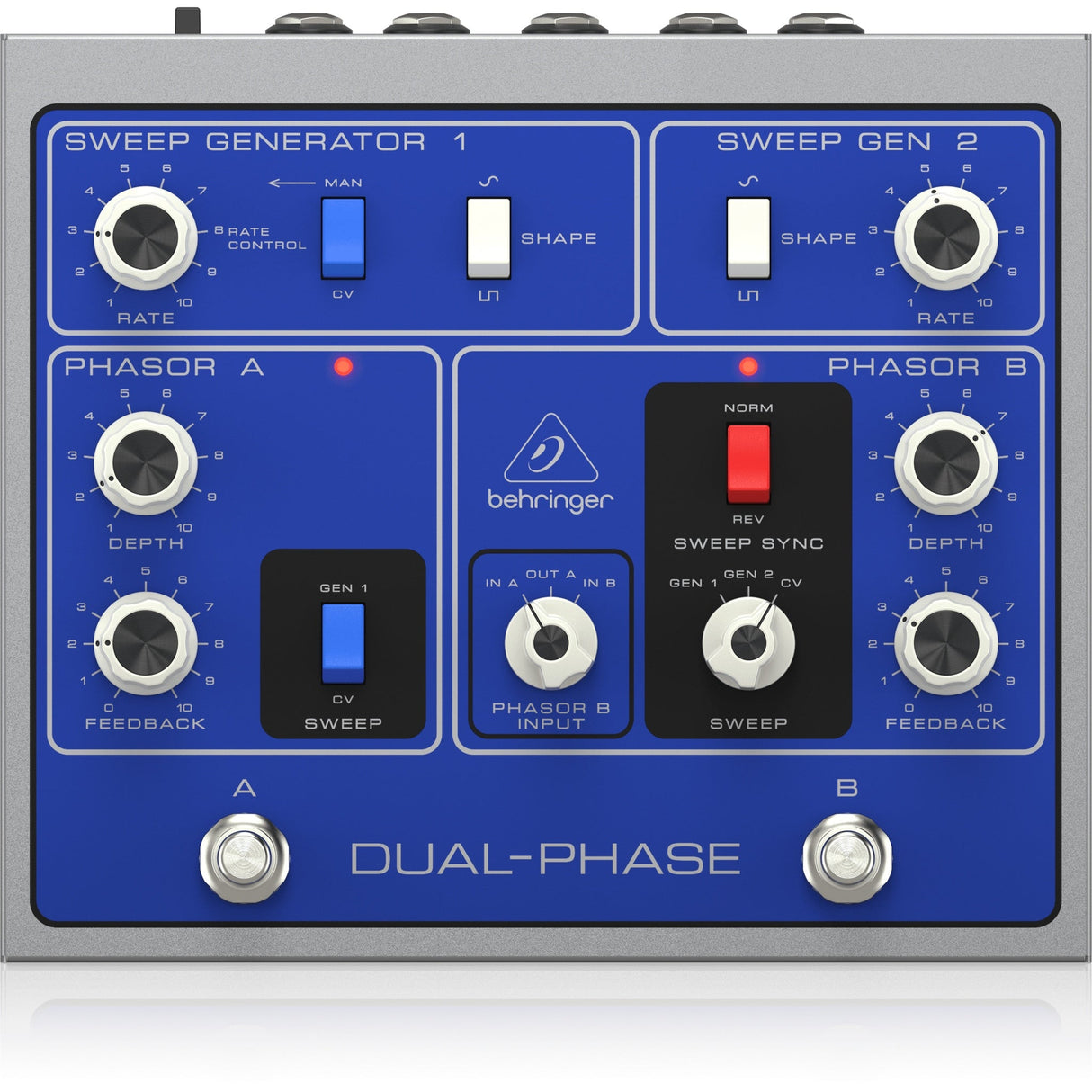

Controls
Sweep Generator 1 2 Rate: 2 x rotary knobs
Control Range: 0.1 Hz to 18 Hz adjustable
Shape: 2 x rocker switch sine or square wave selectable
Phasor A Sweep: 1 x rocker switch sweep generator 1 or control voltage selectable
Depth: 1 x rotary knob
Feedback: 1 x rotary knob
Phasor B Sweep Sync: 1 x rocker switch normal or reverse phase selectable
Sweep: 1 x rotary switch sweep generator 1 generator 2 or control voltage selectable
Depth: 1 x rotary knob
Feedback: 1 x rotary knob
Power Supply
Power Supply: External adapter
Power Input: Standard 9 to 12 V DC center negative greater than 700 mA
Power Consumption: 6 W
Dimensions Weight
Dimensions: 62.9 x 200 x 174.6 mm (2.48 x 7.87 x 6.87 in)
Weight: 1.2 kg (2.7 lbs)
