Description

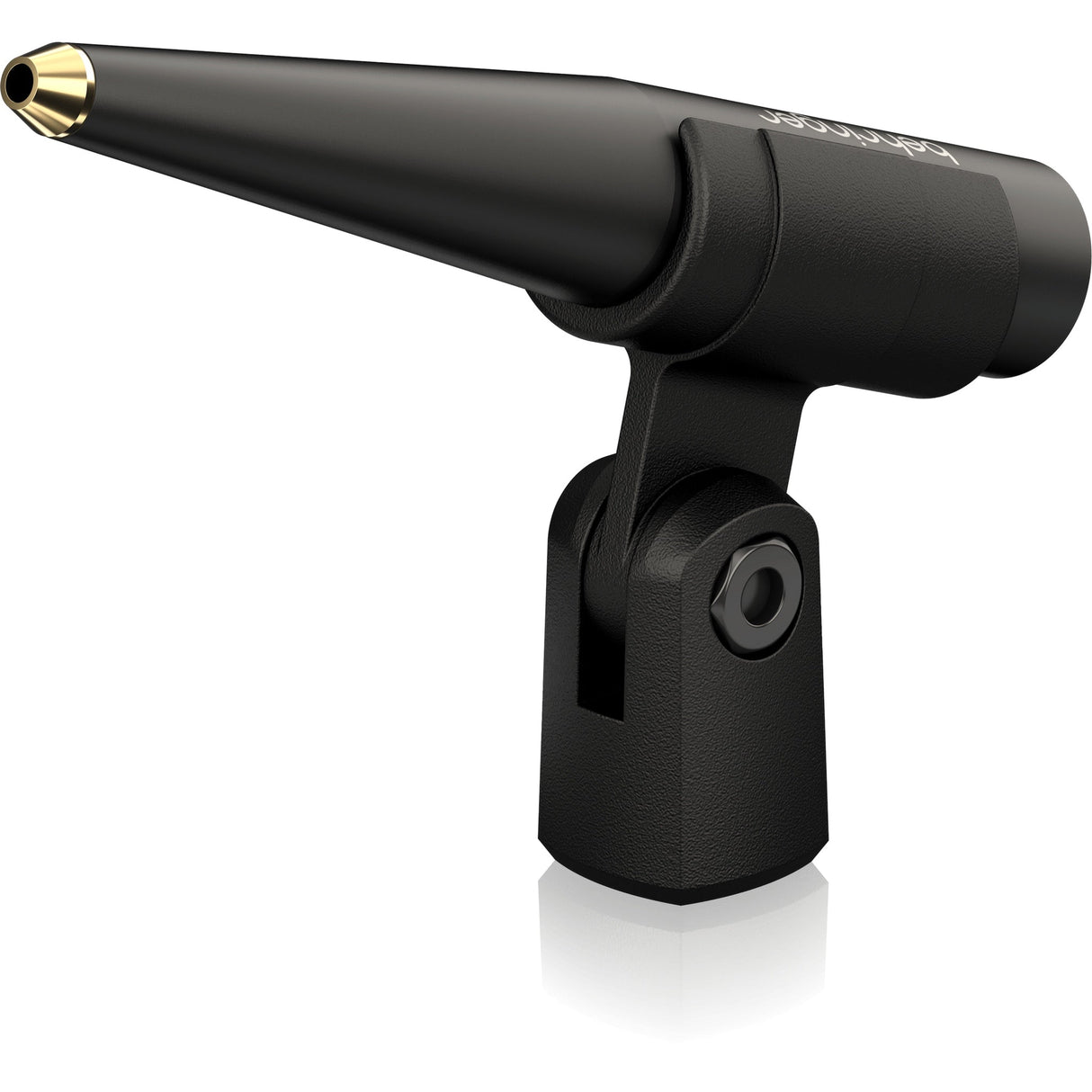

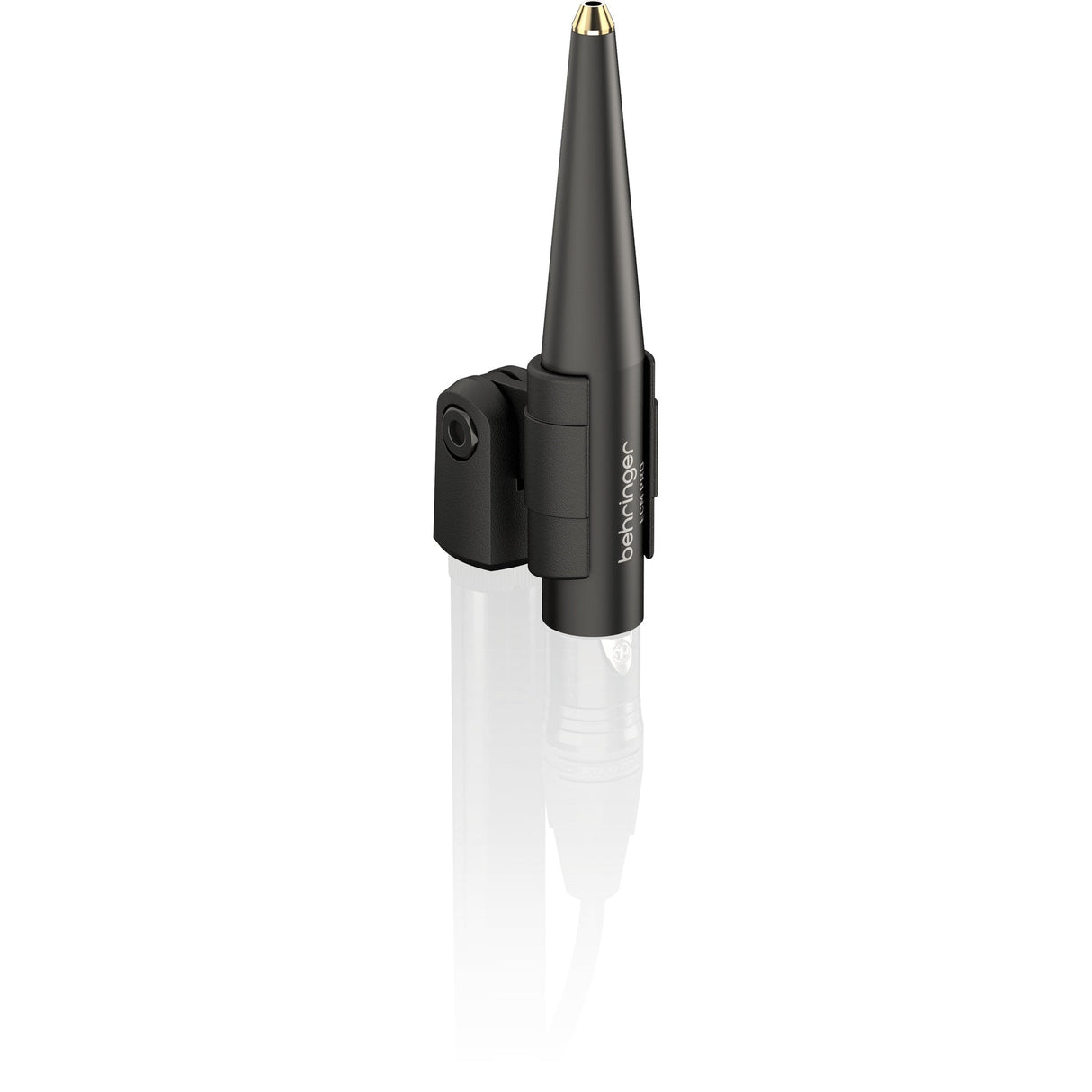

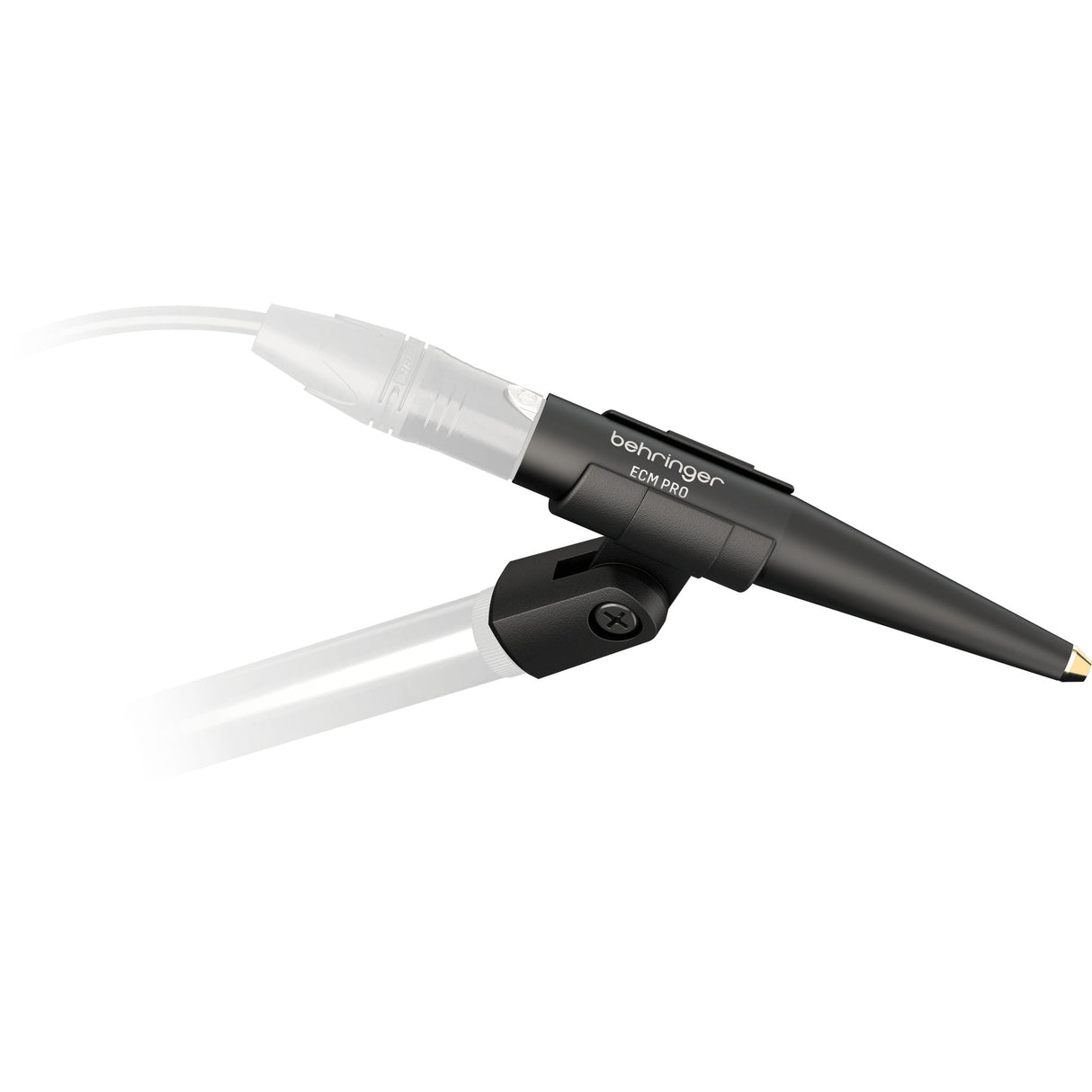

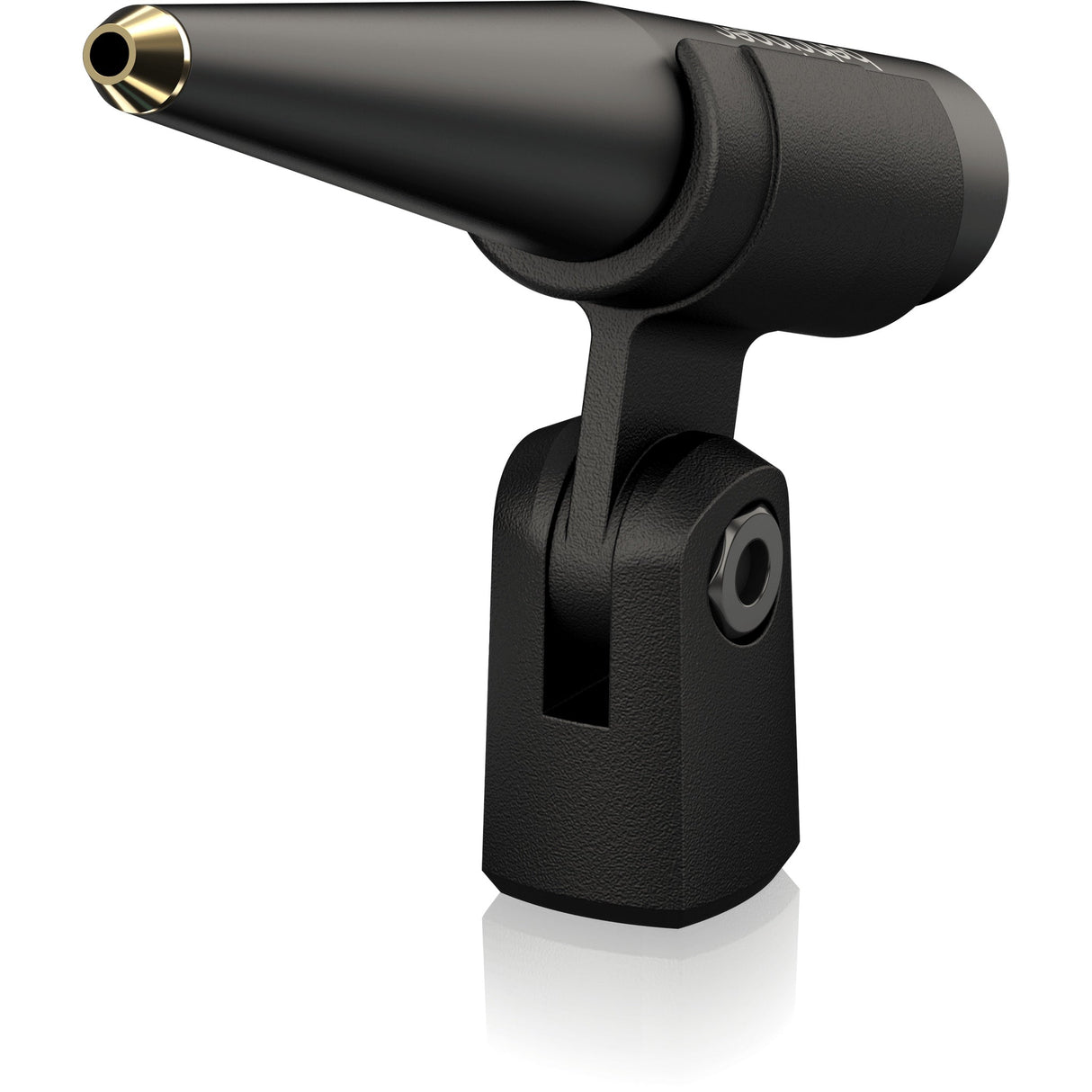

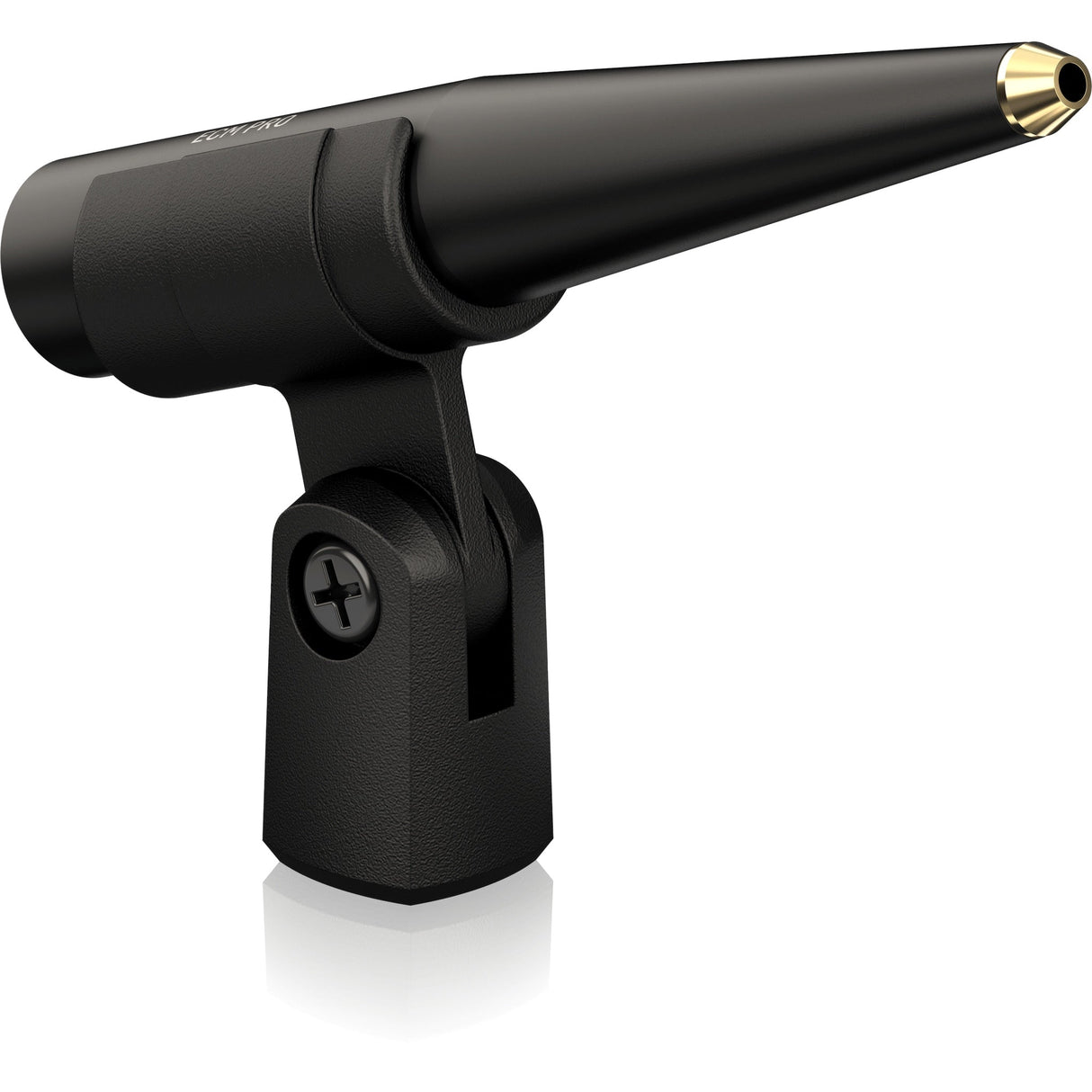

Behringer ECM PRO Measurement Condenser Microphone
Behringer ECM PRO is a condenser measurement microphone designed for acoustic analysis, room calibration, and studio monitor alignment applications. It enables accurate capture of sound pressure levels and frequency response measurements for audio analysis systems. This makes it ideal for studio environments where precise monitoring and system calibration are critical.
The microphone operates with a back electret condenser capsule and omnidirectional pickup pattern to capture sound evenly from all directions. Its extended frequency response allows measurement systems to analyze audio signals with high resolution across the audible spectrum.
This architecture allows engineers and technicians to measure room acoustics and calibrate monitoring systems accurately. It supports use with measurement analyzers and audio processors requiring phantom-powered condenser microphones.
Key Features
- Measurement Microphone Design: Condenser microphone designed for acoustic analysis and calibration.
- Ultra Linear Response: Extended frequency response supports measurement applications up to 30 kHz.
- Omnidirectional Pattern: Evenly weighted pickup pattern captures sound from all directions.
- Studio Calibration Use: Designed for room measurement and monitor alignment workflows.
- Phantom Power Operation: Works with +48 V phantom-powered audio interfaces and analyzers.
- High Resolution Capture: Designed for detailed sound measurement and acoustic analysis.
- Professional XLR Output: Gold plated 3 pin XLR connector for reliable signal transmission.

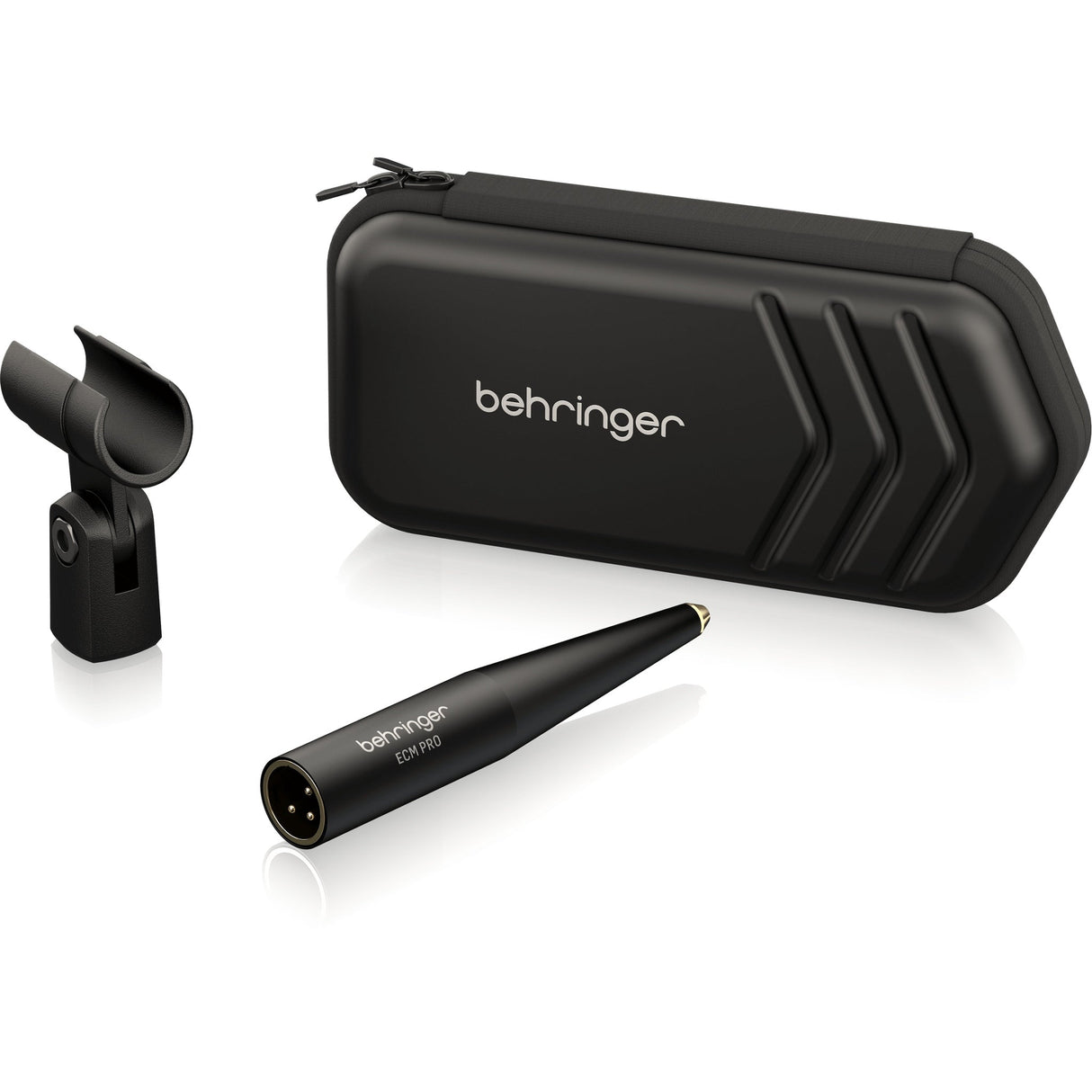

- Included Accessories: Microphone clamp and zipper case for mounting and protection.
Technical Specifications
MicrophoneCapsule Type: Back electret condenser
Directivity: Omni directional
Impedance: 600 Ohm plus minus 20 percent at 1 kHz
Frequency Response: 40 Hz to 30 kHz
Sensitivity: -39.5 dB plus minus 3 dB (1 dB = 1 V per Pa at 1 kHz)
Working Voltage: P48
Maximum Input SPL: 132 dB
Connector: XLR3M
Weight
0.23 lb
Height
4.94"
Width
0.79"
Length
0.79"
