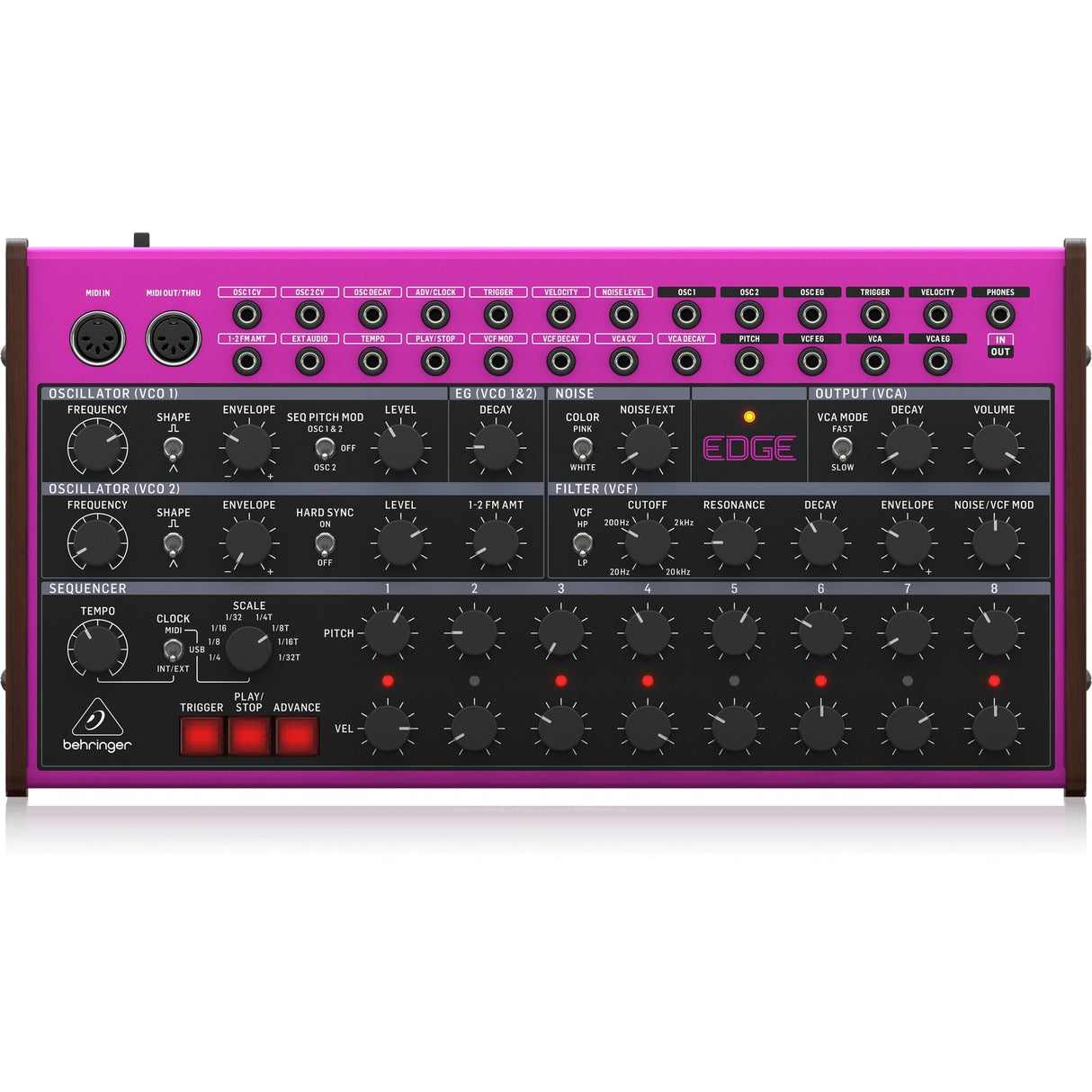

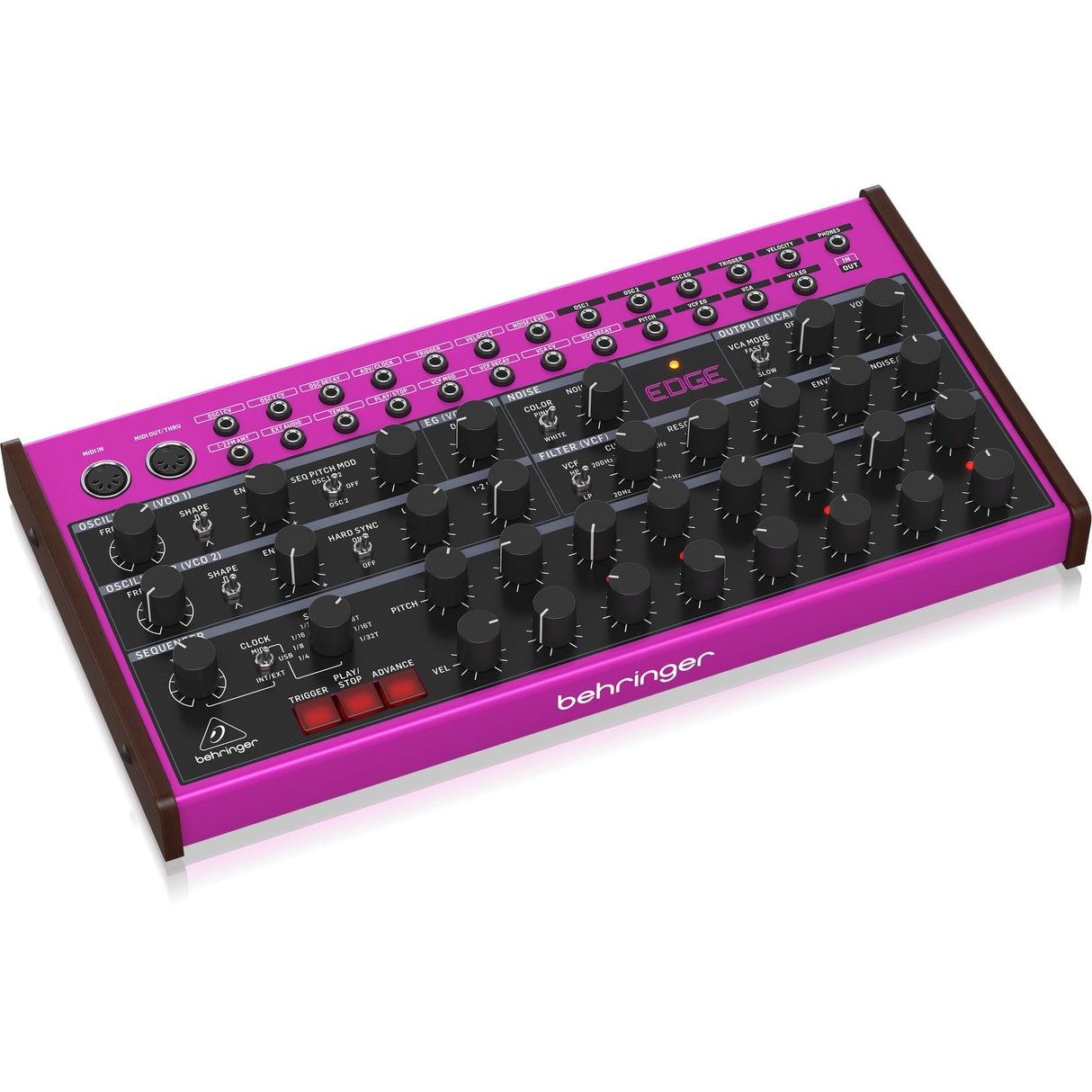

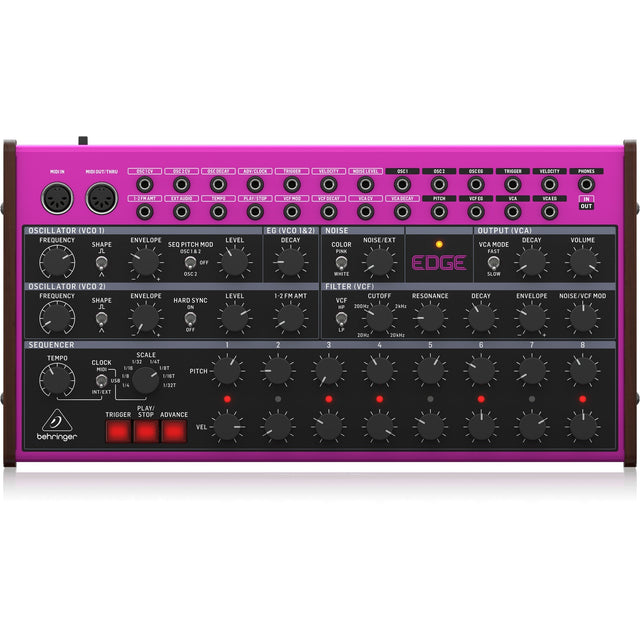

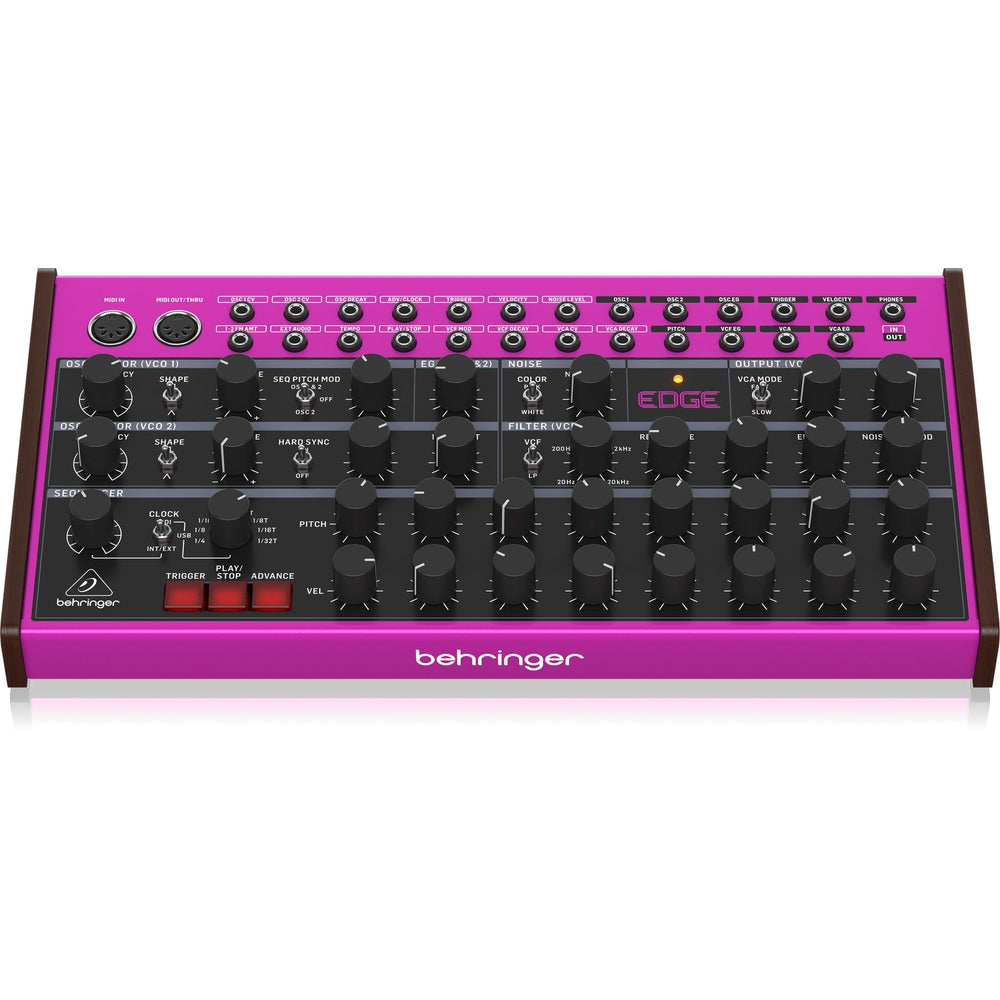

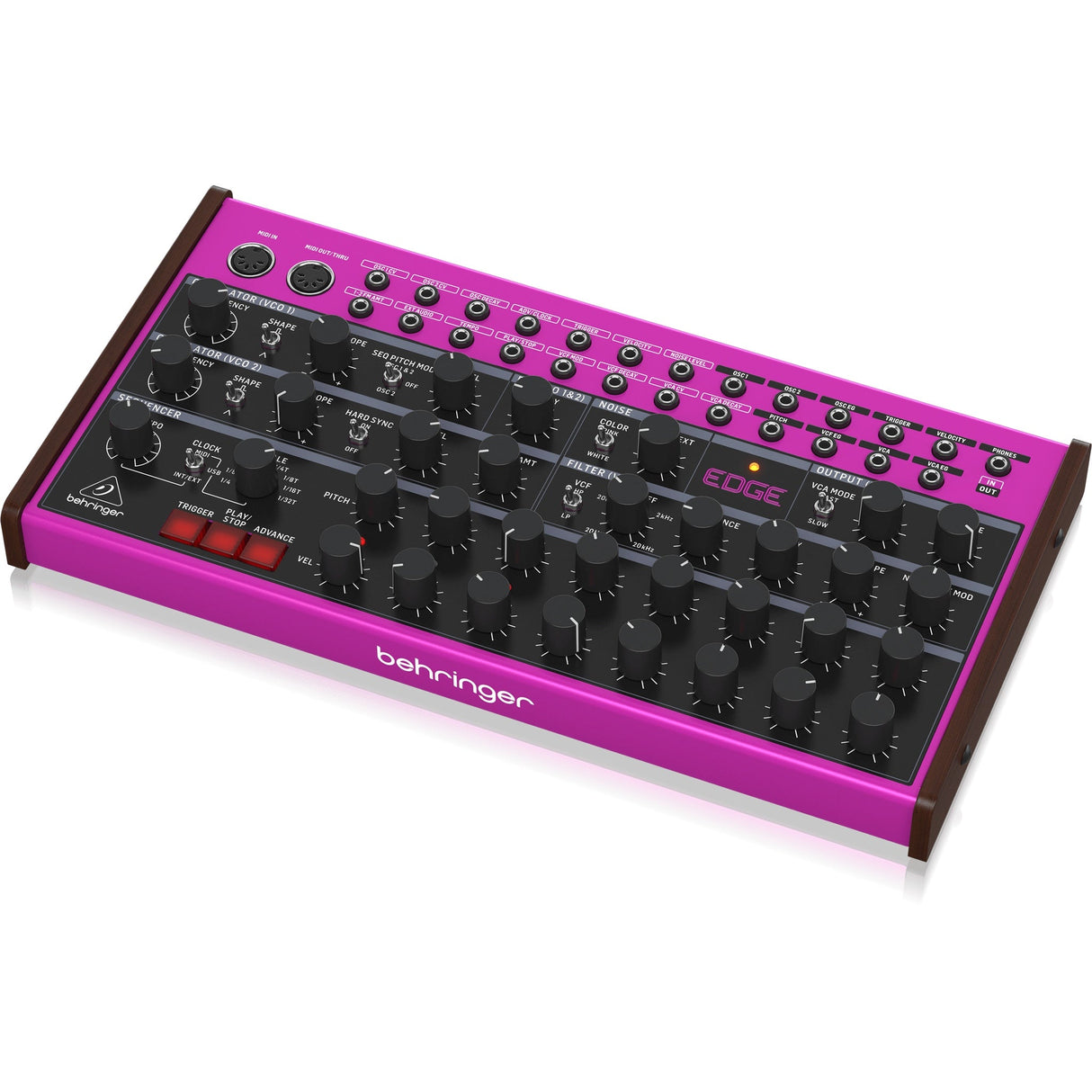

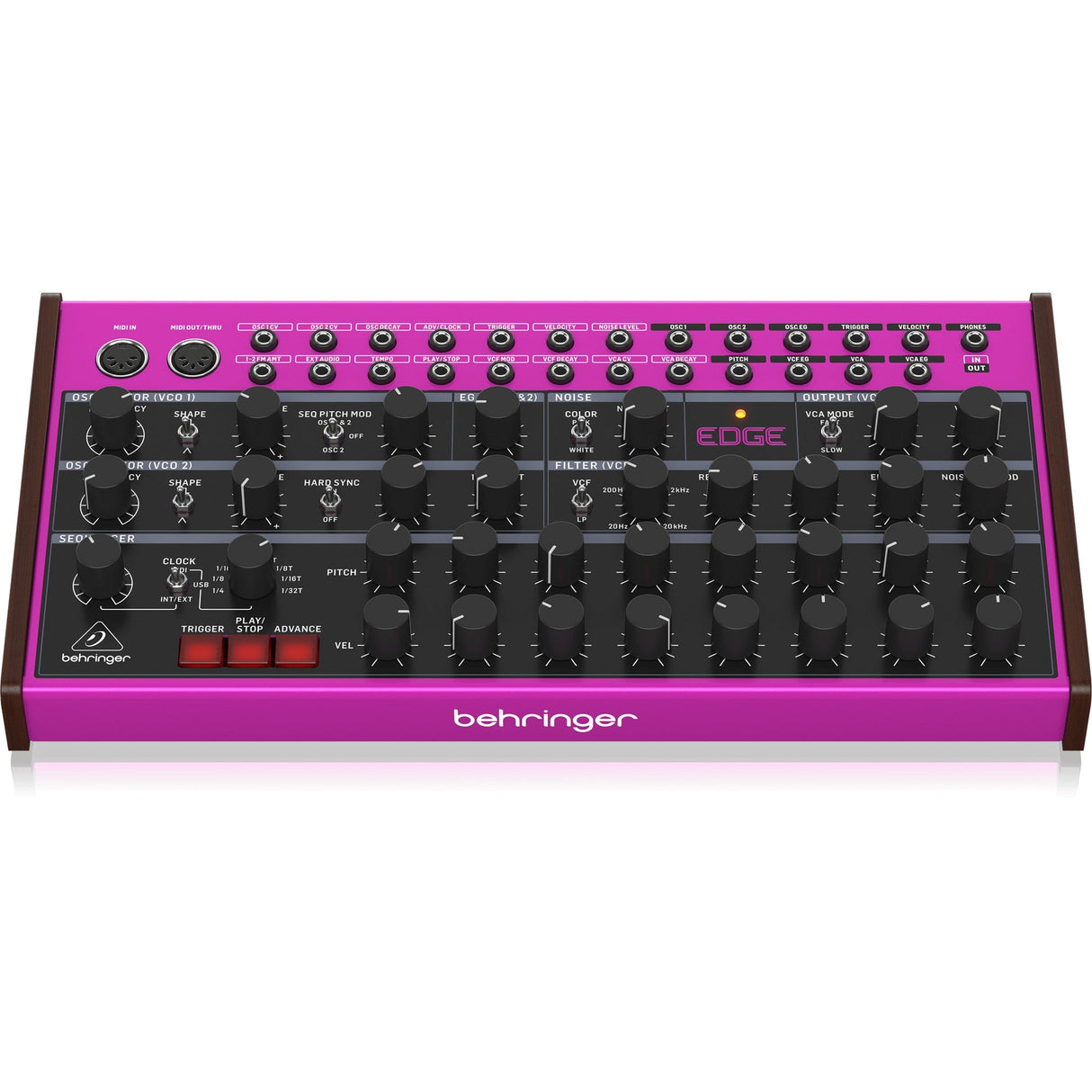

Behringer EDGE Analog Semi-Modular Percussion Synthesizer

Behringer EDGE Analog Semi-Modular Percussion Synthesizer

Behringer EDGE is an analog semi-modular percussion synthesizer designed for rhythmic sound design and analog synthesis workflows. It enables musicians to create percussion sounds, bass patterns, and modulation sequences using analog oscillators, filters, and an integrated sequencer. This makes it ideal for electronic music production environments where hands-on analog sound creation and sequencing are essential.

The synthesizer operates with dual voltage-controlled oscillators, a resonant ladder filter, and envelope-controlled modulation stages. A built-in dual 8-step sequencer provides pitch and velocity control for rhythmic programming and pattern generation.

This architecture allows performers and sound designers to generate percussion textures and modulation sequences through semi-modular patching and internal routing. It supports synchronization with external equipment using MIDI, USB, and external clock sources.

Key Features

• Analog Percussion Synthesizer: Semi-modular analog instrument designed for rhythmic sound design and music creation.
• Dual VCO Architecture: Two oscillators with pulse and triangle waves plus oscillator sync and FM modulation.
• Multi-Mode Ladder Filter: 24 dB resonant ladder filter with selectable low-pass and high-pass operation.
• Dual 8-Step Sequencer: Integrated sequencer with pitch and velocity controls for rhythmic patterns.
• Noise Generator: White/pink noise source and external audio input expand sound design possibilities.
• Envelope Control: Three decay envelopes control pitch, filter cutoff, and amplitude parameters.
• Semi-Modular Architecture: Default internal routing allows immediate operation without patching.
• Patch Matrix: 15 x 10 I/O matrix enables flexible modular-style patching.
• Extensive Controls: 44 front-panel controls provide direct access to synthesis parameters.
• External Synchronization: Multiple clocking sources including MIDI and USB enable integration with other gear.

Technical Specification

Synthesizer Architecture
Number of voices: Monophonic
Type: Analog
Oscillators: 2
VCF: 1 HP/LP 4-pole (-24dB/Oct) ladder filter
Envelope: 1 per VCO, 1 VCA decay, 1 VCF
Noise: White, pink

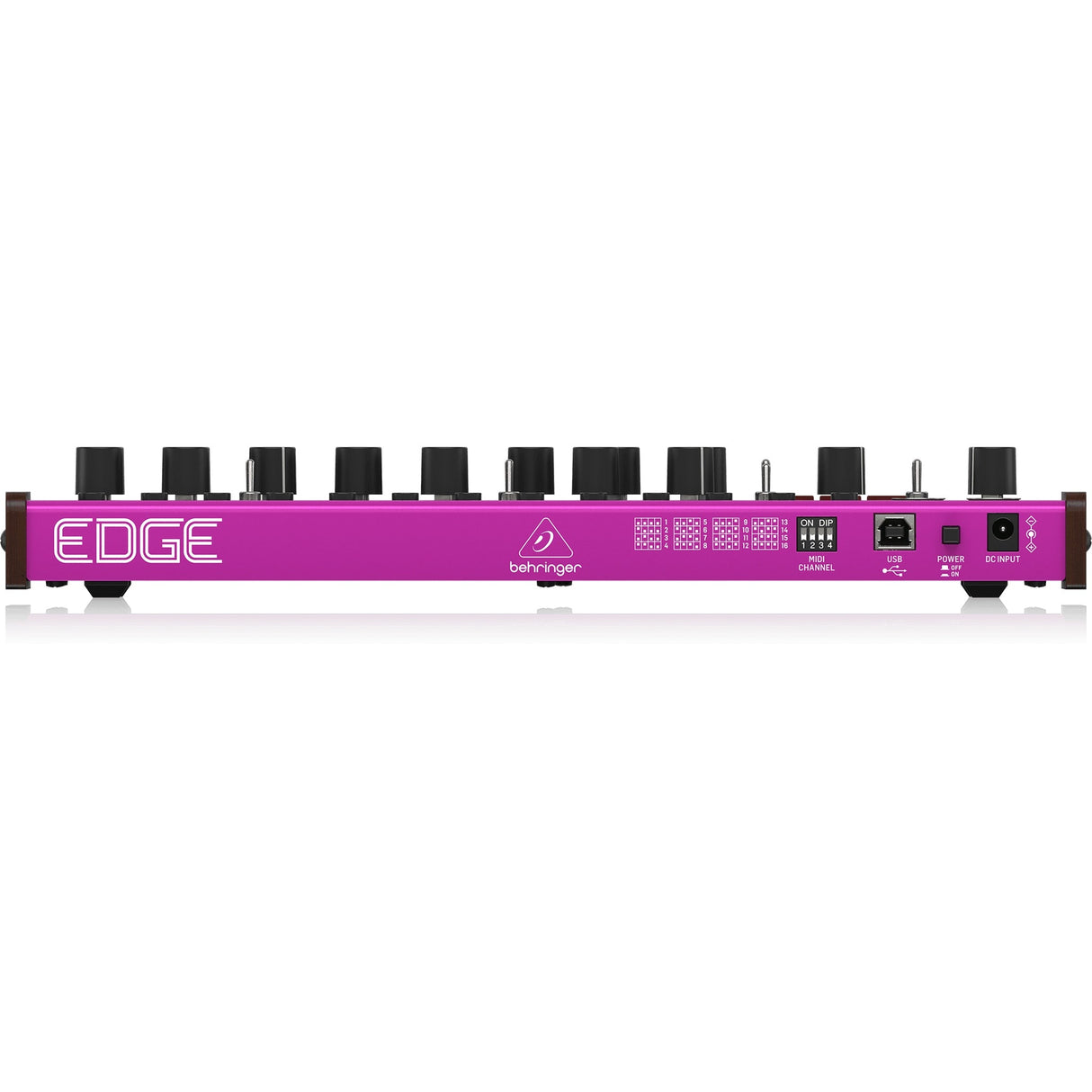

Connectivity
Power input: DC input connector
Power switch: Push button on / off
USB (MIDI): USB 2.0, type B
MIDI In / Out / Thru: 2 x 5-pin DIN / 16 channels
Output: VCA output: 3.5 mm TS, unbalanced, max +14.5 dBu
Headphones: 3.5 mm TRS, max 450mW @ 64 Ω
Headphones output impedance: 470 Ω

Inputs
Type: 3.5 mm TS
OSC 1 CV: -5 V to +5 V
OSC 2 CV: -5 V to +5 V
OSC decay: -5 V to +5 V
ADV/clock: more than 3.2 V (10 V max)
Trigger: 0 to +5 V Pulse or Gate signal (+10 V max)
Velocity: 0 V to 5 V
Noise level: 0 V to 8 V
1-2FM AMT: 0 V to 8 V
Ext audio: 10 V max
Tempo: -5 V to +5 V
Play/stop: more than 3.2 V (10 V max)
VCF mod: -5 V to +5 V
VCF decay: -5 V to +5 V
VCA CV: 0 V to 8 V
VCA decay: -5 V to +5 V

Outputs
Type: 3.5 mm TS
OSC 1: ±5 V
OSC 2: ±5 V
OSC EG: 0 V to 8 V
Trigger: 0 to +5 V Pulse
Velocity: 0 to +5 V
Pitch: ±5 V
VCF EG: 0 V to 8 V
VCA EG: 0 V to 8 V

USB
Type: Class compliant USB 2.0, type B
Supported operating systems: Windows 10 or higher / Mac OS X 10.14 or higher

Oscillator (VCO) 1 Section
Controls: Frequency ±5 octave (10 octave range)
Envelope: -5 to +5
Level: 0 to 10
EG (VCO 1&2) decay: 0 to 10
Switches: Shape: pulse, triangle
Seq pitch mod: osc 1&2, off, osc 2


Oscillator (VCO) 2 Section
Controls: Frequency ±5 octave (10 octave range)
Envelope: -5 to +5
Level: 0 to 10
1-2 FM amt: 0-100%
Switches: Shape: pulse, triangle
Hard sync: on/off

Noise Section
Switch: Color: pink/white

Output (VCA) Section
Controls: Decay: 0 to 10
Volume: 0 to 10
Switch: VCA mode: fast/slow

Filter (VCF) Section
Controls: Cutoff frequency: 0 to 10 (20 Hz - 20 kHz)
Resonance: 0 to 10
Decay: 0 to 10
Envelope: -5 to +5
Noise/VCF MOD: 0 to 10
Switch: VCF: HP/LP

Sequencer
Controls: Tempo 0% - 100%
Scale 1/4, 1/8, 1/16, 1/32, 1/4T, 1/8T, 1/16T, 1/32T
8 Pitch controls ±5 V
8 Velocity controls 0 to 5 V
Switch: Clock: MIDI, USB, INT/EXT
LED: Active step indication
Buttons: Trigger, play/stop, Advance

Power Requirements
External power adapter: 12 V DC 1000 mA
Power consumption: 4 W max
Indicator: Power LED

Weight
3.52 lbs

Height
1.85"

Width
6.46"

Length
12.64"
