Belden 4694RX5 CMR/Outdoor 12G-SDI 5 Coax 4K UHD RG-6 Video Cable, Black, 1000-Feet Reel

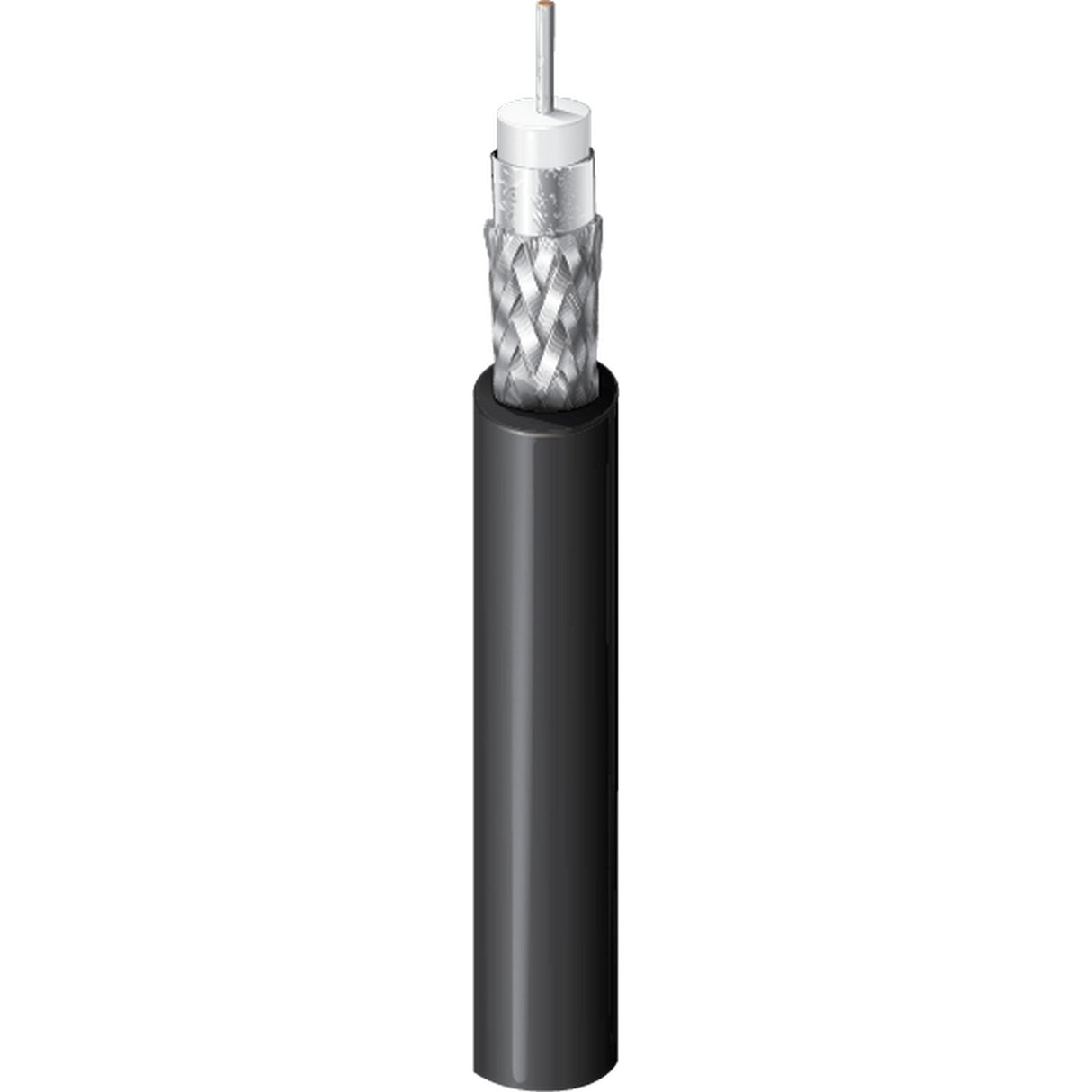

Belden 4694RX5 is a 12G-SDI, 4K UHD Precision Video Cable. It's RG-6 Type, 75 Ohm, with 5 Coax and a 18AWG solid 0.040inch silver-plated copper conductor with gas-injected foamed high-density polyethylene insulation, Duofoil bonded to the core plus a tinned copper braid shield (95% coverage) in PVC inner and outer jackets.

Belden 4K UHD Coax Cables for 12G-SDI maximize 4K signal transmission distance over a single coax, minimizing weight and space utilization compared to multi-link solutions. This solution provides significant headroom and guarantees -15 dB return loss from 4.5 to 12 GHz.

Key Features

• Faster Installation: Using Belden's single-link solution saves time and is significantly lighter than dual or quad-link configurations
• Optimized Design: On Belden 4K UHD Coax Cables for 12G-SDI, the inner foil is bonded to the core to eliminate bunching when installing 1-piece connectors. The outer foil is bonded to the jacket for a quicker, one-step stripping process
• Superior Performance: The 4K UHD coax cable for 12G-SDI are superior in performance and engineered to optimize transmission distance, the cables exceed the SMPTE Return Loss (RL) specifications for UHDTV
• Supports 12 GHz: Belden 4K UHD Coax Cables for 12G-SDI are capable of supporting 12 GHz bandwidth and enable a single-link configuration to transmit 4K

Technical Specifications

Conductor AWG
18
Conductor Stranding
Solid
Conductor Material
SPC- Silver Plated Copper
Conductor Nominal Diameter
0.040inch
Conductor No. of Coax
5
Insulation Material
PE - Polyethylene (Foam)
Insulation Nominal Diameter
0.180 in
Inner Shield Type Layer 1
Tape/Tri-Laminate (Alum+Poly+Alum)/100%
Inner Shield Type Layer 2
Braid/Tinned Copper (TC)/95%
Inner Jacket Material
PVC - Polyvinyl Chloride
Inner Nominal Diameter
0.274inch
Outer Jacket Material
PVC - Polyvinyl Chloride
Outer Nominal Diameter
0.970inch
Nominal Conductor DCR
6.4 Ohm/1000ft
Outer Conductor DCR
2.8 Ohm/1000ft
Nom. Capacitance Conductor to Shield
15.9 pF/ft
Nominal Inductance
0.106 µH/ft
Nominal Characteristic Impedance
75 Ohm
UL Voltage Rating
300 V RMS
UL Temp Rating
60 Degrees C
Operating Temperature Range
-20 Degrees C to +75 Degrees C
NEC/(UL) Compliance
CMR
CEC/C(UL) Compliance
CMG
UL Flammability
UL1666 Vertical Shaft
C(UL) Flammability
FT4
Suitability - Indoor
Yes
Suitability - Outdoor
Yes, BLACK ONLY
Item Includes
4694RX5 12G-SDI 5 Coax 4K UHD RG-6 Video Cable - Black - 1000 Foot Reel
Warranty
Limited 10 Year Warranty
