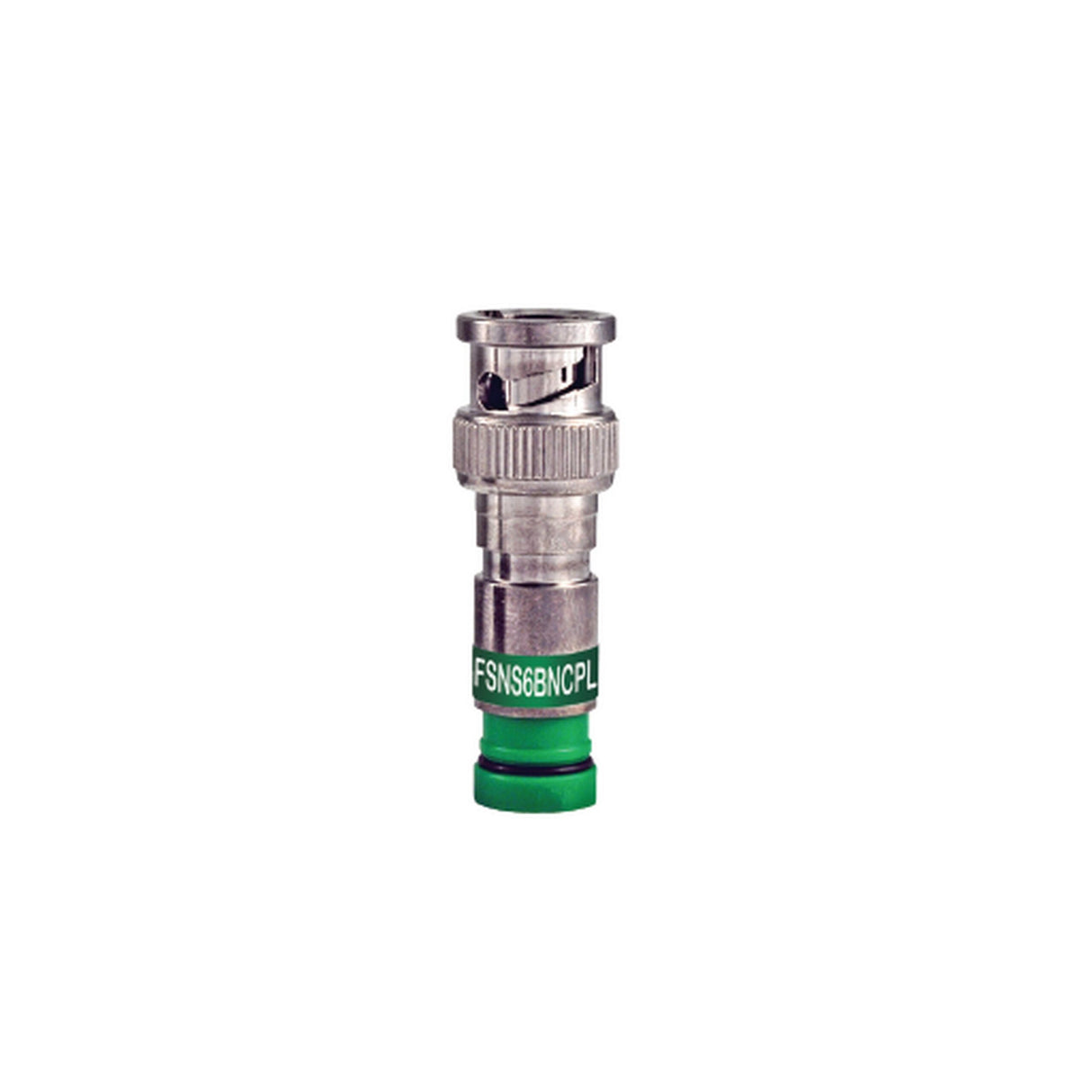

Belden FSNS6BNCPL‑25 ProSNS RG‑6 Plenum BNC Coax Compression Connector – 75 Ω, 25‑Pack
Belden | SKU: BEL-FSNS6BNCPL25
$16900
Free Shipping
Unit price
/
Unavailable
Low In Stock
Pick up available In-StoreEstimated Shipping Widget will be displayed here!
Condition: New
Description
Belden FSNS6BNCPL-25 ProSNS RG-6 Plenum BNC Coax Compression Connector, 25-Pack

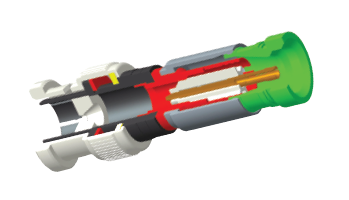

ProSNS RG6 BNC plenum compression connector, non-blind entry with split ferrule design, polymer compression sleeve for easy insertion & lowest possible tool compression force. 25 per Pack
Key Features
- Plenum‑Rated Design: Suitable for air handling spaces where fire and safety codes require plenum‑rated components.
- 75 Ω Impedance: Optimized for low‑loss signal transmission in video and RF applications.
- Compression Termination: Provides consistent, secure connections with compression tools.
- Durable Materials: Constructed with nickel/tin‑plated brass and gold‑plated contact for long‑lasting performance.
- Easy Installation: Split ferrule and polymer compression sleeve allow quick and reliable cable insertion.
- 25‑Pack Bundle: Comes in a convenient 25‑pack for multiple installations or bulk projects.
Technical Specifications
-
Materials
- Nut: Nickel/Tin Plated Brass
- O-Ring: Ethylene Propylene
- Body: Nickel/Tin Plated Brass
- Contact: Gold Plated
-
Electrical Characteristics
- Nominal Characteristic Impedance: 75 Ω
- Return Loss: -30 dB up to 1 GHz typical
- Operating Temperature Range: -40 °F (-40 °C) to 140 °F (60 °C)
-
Mechanical Characteristics
- Footprint/Type: Coax
- Connector Interface Type: BNC
- Gender: Male - plug
- Connector Series Name: ProSNS
- Color Band: Green
- Locking: No
- Tool Compatibility: CPLCCT-SLMR or CPSNSCT-596 (compression), PSA59/6 (strip)
- Termination Type: Compression
- Cable Center Conductor Diameter: 0.0399 – 0.0418 in
- Cable Dielectric Diameter: 0.165 – 0.172 in
- Cable Outer Jacket Diameter: 0.220 – 0.250 in
- Cable Insertion Force: 20 lbf
- Cable Retention Force: 40 lbf
-
Standards
- RG Type: 6
- Series Type: 6
-
Environmental Space
- Indoor/Outdoor: Yes
- Applicable Programs: EU CE Mark
-
Suitability
- Indoor: Yes
- Outdoor: Yes
Package Contents
- 25× Belden ProSNS RG‑6 Plenum BNC Coax Compression Connectors (FSNS6BNCPL‑25)
