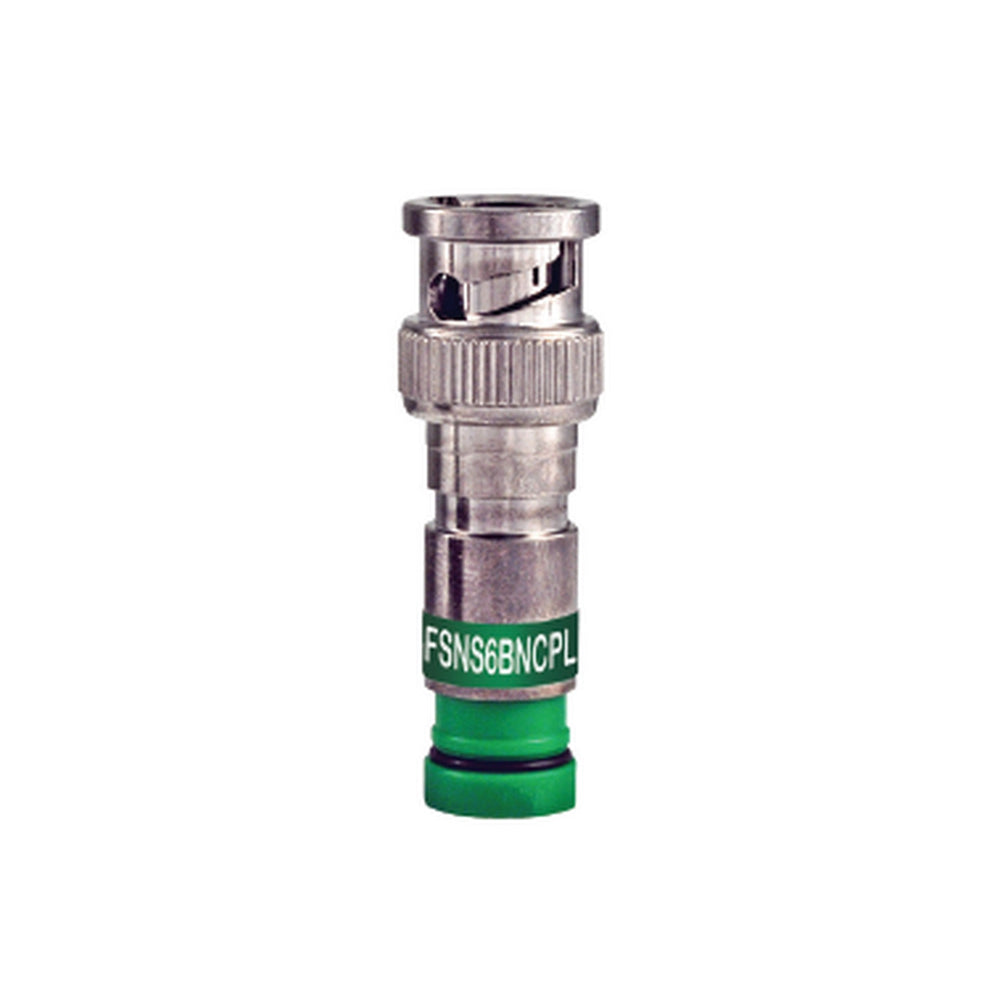

Belden FSNS6BNCPL Snap-N-Seal ProSNS BNC Male for Plenum RG-6 Cable
Belden FSNS6BNCPL Snap-N-Seal ProSNS BNC Male for Plenum RG-6 Cable

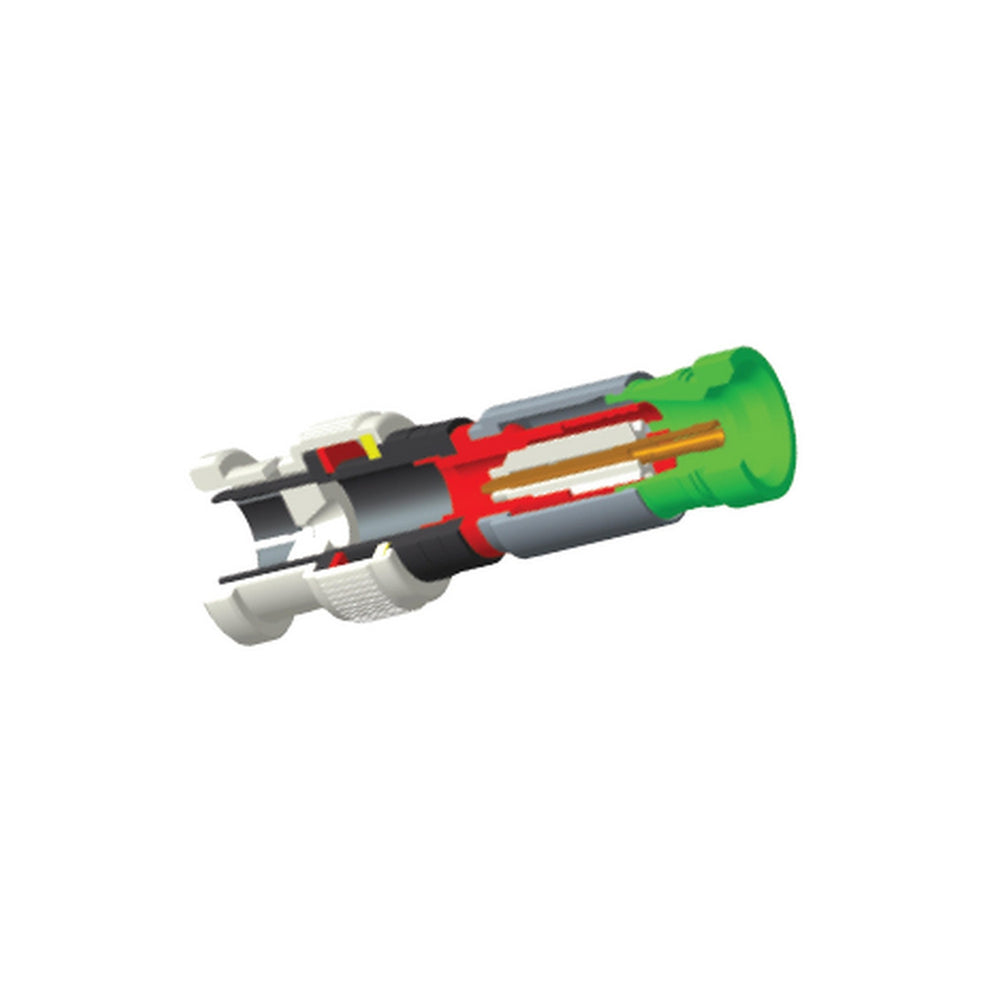

The ProSNS connector series combines patented technologies with traditional, easy-to-use installation techniques to create a high-quality connector family. These connectors are designed with a patented guide and pin basket design, positioning the floating-pin 360Ā° basket at the back end of the connector. This innovative design simplifies the insertion of the cable center conductor, ensuring a secure and reliable connection. The pin basket is compressed around the center conductor by a plastic compression ring, enhancing signal integrity and cable retention.
Plenum and security connectors in the ProSNS series also utilize the patented floating pin and guide sleeve, featuring a split ferrule that makes cable insertion easier without compromising signal quality. These connectors are suitable for various applications, including CCTV, security cameras, and video installations. The ProSNS connectors are engineered for both indoor and outdoor environments, ensuring versatility and durability in diverse settings.
- High-Quality Construction: Nickel/Tin Plated Brass and Gold Plated Contact for superior performance.
- Easy Installation: Patented guide and pin basket design simplifies cable center conductor insertion.
- Reliable Connection: Compression ring ensures secure contact and signal integrity.
- Plenum and Security Options: Patented floating pin and guide sleeve with split ferrule for easy cable insertion.
- Suitable for Various Applications: Ideal for CCTV, security cameras, and video installations.
- Indoor/Outdoor Use: Engineered for versatility in diverse environments.
Specifications:
Number of Pieces: 1
Connectors:
Nut: Nickel/Tin Plated Brass
O-Ring: Ethylene Propylene
Body: Nickel/Tin Plated Brass
Contact: Gold Plated
Nominal Characteristic Impedance: 75 Ohm
Return Loss: Frequency ā„-30 dB up to 1 GHz typical
Operating Temperature Range: -40Ā°F (-40Ā°C) to 140Ā°F (60Ā°C)
Footprint/Type: Coax
Connector Interface Type: BNC
Gender: Male - plug
Connector Series Name: ProSNS
Color Band: Green
Locking: No
Tool Compatibility: CPLCCT-SLMR or CPSNSCT-596 (compression), PSA59/6 (strip)
Termination Type: Compression
Cable Center Conductor Diameter Limits: .0399 - .0418 inch
Cable Dielectric Diameter Limits: .165 - .172 inch
Cable Outer Jacket Diameter Limits: .220 - .250 inch
Cable Insertion Force: 20 lbf
Cable Retention Force: 40 lbf
RG Type: 6
Series Type: 6
Environmental Space: Indoor/Outdoor
EU CE Mark: Yes
Suitability - Indoor: Yes
Suitability - Outdoor: Yes
Plenum (Y/N): Yes
Patent: This product has one or more applicable patents. More information on patents can be found at Belden Patents.
Product Notes: Passes 1000 hours ANSI/SCTE 143 2007 Salt Fog Test, RFI Shielding: -85 dB (60% bonded foil)
