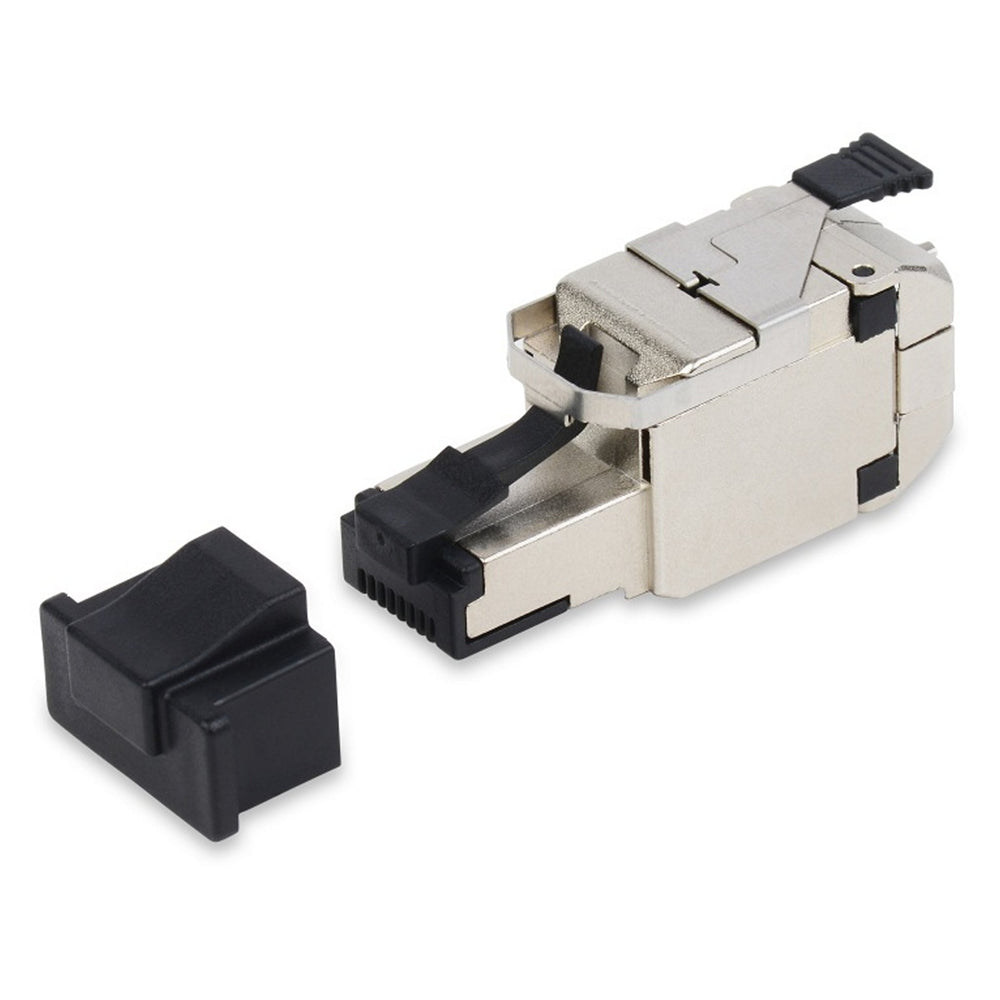

Belden REVConnect Plug 10GX T568 A/B UTP Cable RJ45 Connector Plug, Shielded, 1-Unit
Belden REVConnect Plug 10GX T568 A/B UTP Cable RJ45 Connector Plug,...
Belden REVConnect Plug 10GX T568 A/B UTP Cable RJ45 Connector Plug, Shielded, 1-Unit
The Belden RVAFPSME-EA RevConnect Plug is a top-tier RJ45 connector designed for exceptional performance and reliability in high-speed Ethernet cabling. This advanced plug features a shielded design, which minimizes electromagnetic interference (EMI) and crosstalk, ensuring stable and high-quality data transmission. The RVAFPSME-EA is ideal for professional and commercial applications, including data centers and network installations, where superior connectivity and durability are essential.
Constructed with precision, the RVAFPSME-EA features a front connection with RJ45 copper-clad flexible PCB and gold-plated contacts over palladium/nickel for enhanced signal integrity. The rear connection also uses REVConnect copper-clad flexible PCB with gold-plated contacts. The connector body is made from nickel-plated zinc alloy diecast, providing robust protection and a reliable connection. Designed to meet various industry standards and specifications, this plug supports Power Over Ethernet (PoE) and offers compatibility with a range of tools and certifications, making it a versatile choice for demanding networking environments.
Key Features
- Shielded RJ45 connector for superior EMI protection
- Gold-plated contacts over palladium/nickel for enhanced signal integrity
- Nickel-plated zinc alloy diecast connector body for durability
- Supports Power Over Ethernet (PoE) up to 100W
- Compatible with RVUTT01 Termination Tool for easy installation
Technical Specifications
Front Connection
RJ45 Copper Clad Flexible PCB, Gold plated contacts over Palladium/Nickel
Rear Connection
REVConnect Copper Clad Flexible PCB, Gold plated contacts over Palladium/Nickel
Connector Body
Nickel plated zinc alloy diecast
Footprint/Type
KeyConnect
Plug / Jack Compatibility
RJ45
Cable/Connector Retention
66.723 N
Connector/Hardware Retention
88.964 N
Plug/Connector Retention
50.042 N
Storage Temperature Range
-40Ā°C To +70Ā°C
Installation Temperature Range
-10Ā°C To +60Ā°C
Operating Temperature Range
-10Ā°C To +60Ā°C
Tool Compatibility
RVUTT01 Termination Tool
UL Rating
UL94V-0
IEEE Specification
Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W)
EU Directive 2002/95/EC (RoHS)
Yes
EU RoHS Compliance Date (mm/dd/yyyy)
07/01/2006
MII Order #39 (China RoHS)
EUP 50
Telecommunications Standards
Category 6A - ISO/IEC 11801:2002 Ed.2, TIA 568.2-D
Safety Listing
c(UL)us Listed
Other Specification
UL 1863, IEC 60603-7, FCC part 68-F
UL Flame Test
UL2043 Air Handling Spaces
Suitability - Indoor
Yes - Indoor
Item Includes
RVAFPSME RJ45 Connector Plug Shielded - Each
