Biamp Cambridge Qt X 300 3-Zone Sound Masking Control Generator
The Cambridge Qt X 300/300D control module is a sound masking generator, controller, third-octave band equalizer and amplifier, with two auxiliary audio inputs to allow for distribution of audio from paging controllers and/or (background) music players. The Qt X 300/300D controls up to three zones of Qt standard or active emitters. The Qt X 300/300D control module is a compact three-zone networkable controller suitable for installations of up to 36,000 square feet (3,345 m2). Each zone can be independently adjusted for masking and aux audio levels and spectra. Both models feature full compatibility with Biamp’s SageVue system management software. When multiple controllers are included in a single system audio input can be shared across all controllers via AVB or Dante (300/D).
Key Features
- 3-zone control module: Supports up to three zones
- Integrated system functionality: Combines sound masking generator, controller, third-octave band equalizer, and amplifier
- Qt emitter compatibility: Compatible with Qt Standard emitters and Qt Active emitters
- Auxiliary audio support: Two audio inputs for paging and music
- Independent zone adjustment: Masking and auxiliary audio levels and spectra can be adjusted per zone
- Third-octave equalization: Adjustable equalizer for masking and audio inputs
- Non-correlated masking sources: Four non-correlated sound masking audio sources per zone
- Front-panel LCD: Local system visibility and control
- Front-panel lock: Available via software control
- Auto ramping: Supports automated adjustment behavior
- Event scheduling: Built-in scheduling functionality
- Built-in clock with NTP support: System time synchronization support
- Dual network ports: Separate media and control connections
- Web interface control: Accessible from any web-enabled device
- Third-party control API: Ethernet-based integration support
- Fire alarm integration: Contact closure support
- SageVue compatibility: Fully compatible with Biamp SageVue system management software
- Multi-controller audio sharing: Audio input can be shared across controllers via AVB or Dante (300/D)
- Mounting options: Wall mount bracket included; optional rack mount bracket available
- Compliance and qualification: CE marked, UL listed, RoHS compliant, TAA compliant, and GSA eligible
Technical Specifications
-
General
- Product Type: Sound Masking Control Generator
- Model: Qt X 300
- Controller Type: Compact three-zone networkable controller
- Coverage Area: Up to 36,000 square feet (3,345 m2)
- Country of Manufacture: U.S.A.
- Warranty: Five-year warranty
- TAA Compliant: Yes
- GSA Eligible: Yes
-
Performance
- Zones Supported: Up to 3 zones
- Zone Adjustment: Independent masking and auxiliary audio levels and spectra per zone
- Equalization: Third-octave band equalizer
- Masking Sources: 4 non-correlated sound masking audio sources per zone
- Auto Ramping: Yes
- Event Scheduling: Yes
-
Audio
- Auxiliary Audio Inputs: 2
- Supported Audio Sources: Paging controllers and background music players
- Shared Audio Across Controllers: Via AVB or Dante (300/D)
-
Compatibility
- Emitter Compatibility: Qt Standard emitters and Qt Active emitters
- Software Compatibility: Biamp SageVue system management software
-
Connectivity & Control

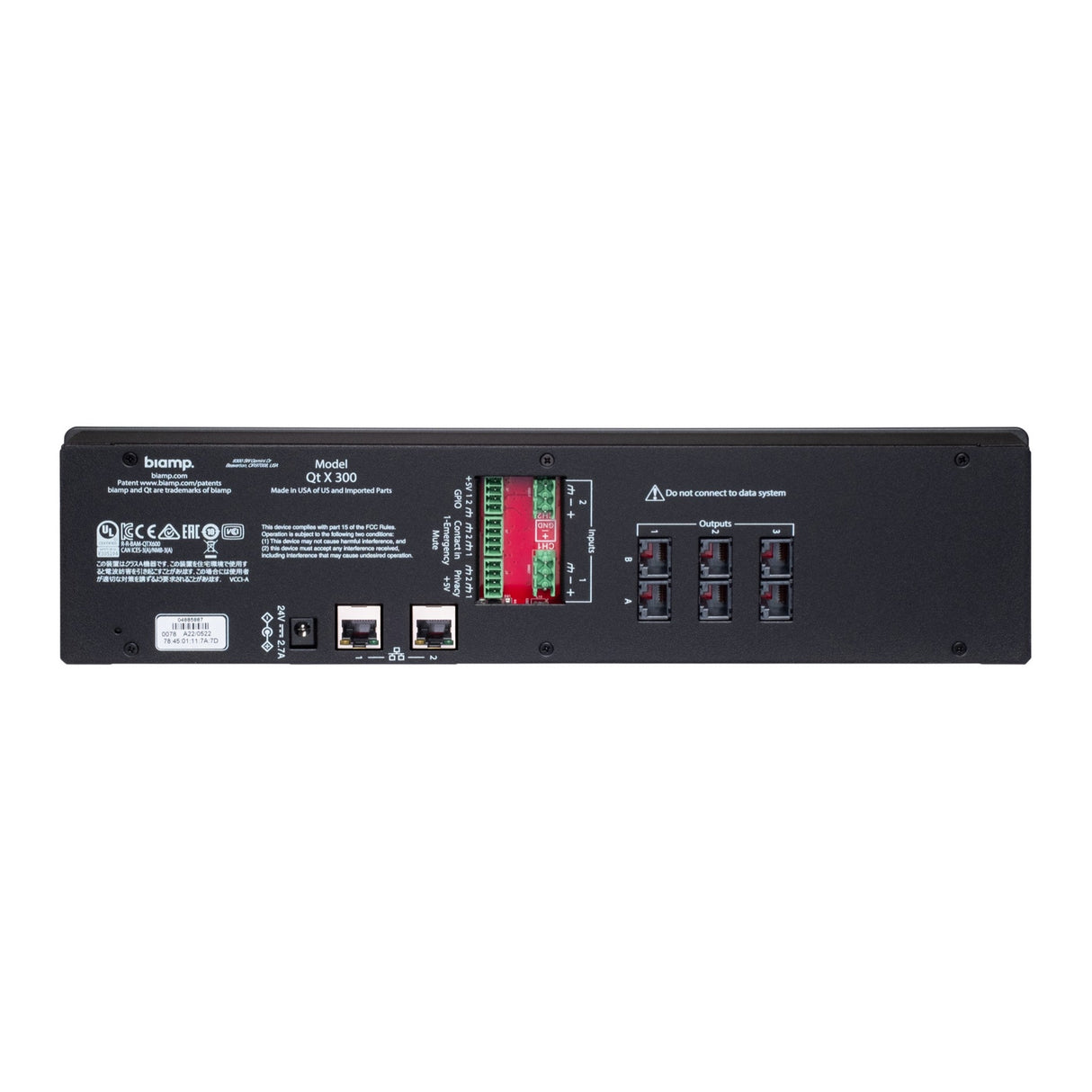

- Network Ports: Dual network ports (media / control)
- Web Interface Control: Yes
- Third-Party Control API: Ethernet
- Fire Alarm Integration: Contact closure
- Clock Support: Built-in clock with system NTP support
- Front Panel: LCD
- Front Panel Lock: Via software control
-
Compliance
- Certifications & Compliance: CE marked, UL listed, RoHS compliant
Use Case
The Qt X 300 is designed for sound masking systems that require up to three independently adjustable zones, auxiliary audio distribution, and centralized control within a compact networkable controller.
Package Contents
- Biamp Cambridge Qt X 300 3-Zone Sound Masking Control Generator
- Wall Mount Bracket
Frequently Asked Questions
When should the Qt X 300 be used instead of a single-zone sound masking controller?
The Qt X 300 is better suited for larger or more complex spaces because it supports up to three independently adjustable zones and covers installations up to 36,000 square feet.
Can each zone be adjusted separately?
Yes. Each zone can have independent masking and auxiliary audio levels and spectra, which helps tune different areas of a facility separately.
What audio sources can be connected to the Qt X 300?
The controller includes two auxiliary audio inputs for paging controllers and background music players.
What type of emitters work with the Qt X 300?
The Qt X 300 is compatible with Qt Standard emitters and Qt Active emitters.
How does the Qt X 300 support more advanced tuning?
It combines a sound masking generator, controller, third-octave band equalizer, and amplifier, giving installers more control over masking and audio performance.
Can the Qt X 300 be managed over a network?
Yes. It includes dual network ports, web interface control, an Ethernet-based third-party control API, and compatibility with Biamp SageVue system management software.
Can multiple controllers share audio?
Yes. In multi-controller systems, audio input can be shared across controllers through AVB or Dante on the 300/D version.
Does the Qt X 300 support scheduling and automated behavior?
Yes. It supports auto ramping, event scheduling, and a built-in clock with NTP support.
