Biamp MPLT62 2-Way Long-Throw Horn Loudspeaker

Biamp | SKU: BIA-MPLT62G-9100149900
$40000

Free Shipping

Estimated Shipping Widget will be displayed here!

Condition: New

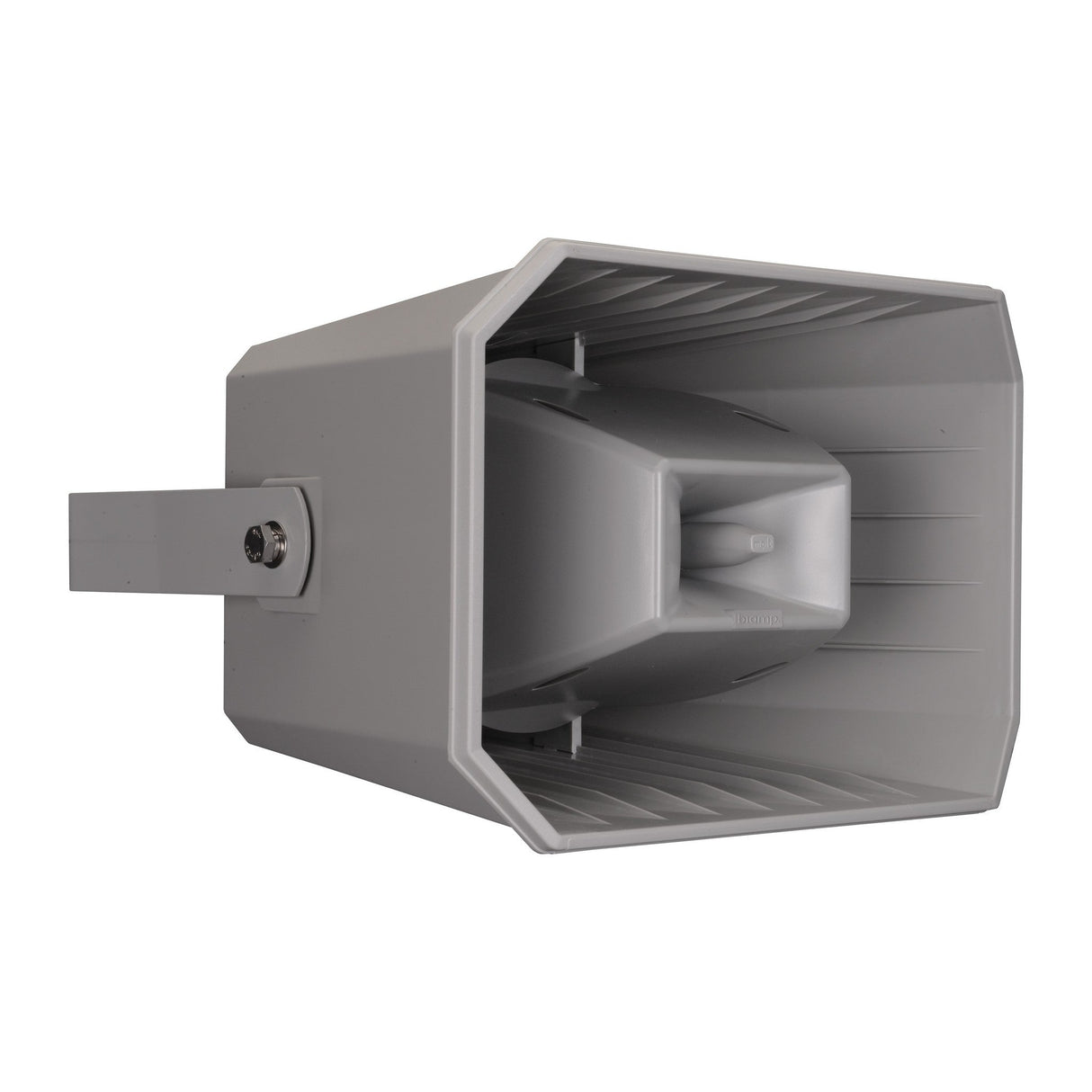

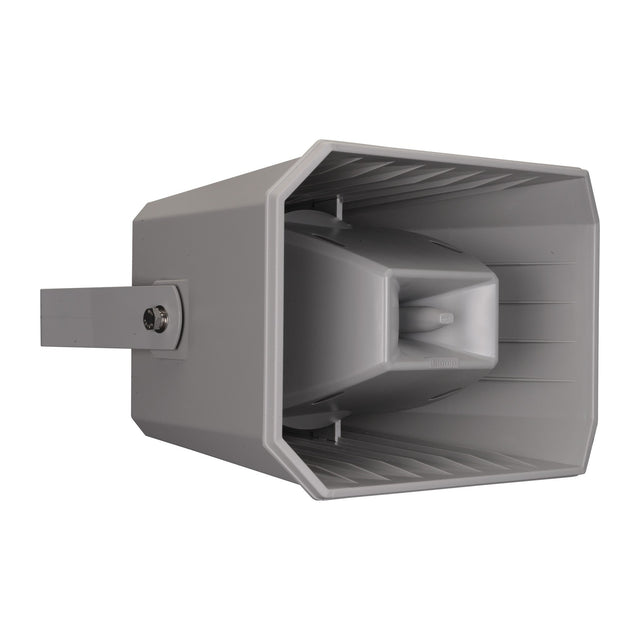

Biamp MPLT62 2-Way Long-Throw Horn Loudspeaker

The MPLT62 is two-way long throw horn 70/100-volt high quality music projector. It has 62 watts rated power handling RMS at 100 volts with transformer taps at 62 - 32 - 16 - 8 watts and 70 volts with taps at 62 - 32 - 16 - 8 - 4 watts. Its long throw output performance brings quality sound over long distances and in wide areas with both music and speech. The two-way characteristic makes your music still sound natural where the horn shape housing makes sure you cover a big distance.

Thanks to the well-considered coverage range, high sensitivity, high output, low distortion and extended frequency response, this MPLT62 horn loaded loudspeaker is ideal for voice, music or even alarm signals. It can be used in outdoor applications such as recreational facilities, schools, parking facilities, as well as large indoor applications such as sports centers, airports, and exhibition halls.

The housing of the MPLT62 is made of high impact ABS. It has a coated 6.5” HD woofer and 1” horn driver. The bracket is made of coated aluminum which makes the loudspeaker fully weatherproof (IP66) and is a guaranteed against corrosion.

The MPLT62 loudspeaker can be painted any color.

Key Features

  • Full-range, high output, BGM, voice paging and signal horn
  • High efficiency, with low power requirements minimizes total system cost
  • Rugged construction for industrial applications
  • IP66 Indoor/Outdoor ready
  • 6-position terminal strip with weather cover and gland nut

Technical Specifications

Operating Mode
Passive with selectable 70 V/100 V operation, Single-amplified with DSP
Operating Environment
Indoor or Outdoor Direct Exposure
Operating Range (-10 dB)
150 Hz to 20 kHz
Nominal Beamwidth (H x V)
95 x 125 Degrees
Transducer
LF 1 x 6.5” (165 mm) weather-resistant cone
HF 1 x 1” (25 mm) voice coil compression driver
Sensitivity
106 dB (2.83 V at transformer secondary)
Nominal Continuous Power Handling
62 W at highest tap
Nominal Maximum SPL (Processed)
@ 1 m
Continuous
112 dB
Peak
118 dB
Transformer
70 V: 62 W, 32 W, 16 W, 8 W, 4 W
100 V: 62 W, 32 W, 16 W, 8 W
Required Accessories
140 Hz, 12 dB / oct. Butterworth high pass filter; DSP preset
Recommended Amplifiers
30 W - 60 W
PHYSICAL
Input Connection
6-position terminal strip, cable gland nut
Controls
None
Mounting Provisions
Heavy-gauge aluminum U-Bracket
Compliance
IEC 62368-1 certified
Environmental Rating
IP66 per IEC 60529
Dimensions H x W x D
261 mm x 360 mm x 293 mm
<10.27” x 14.18” x 11.52”>
Weight (with U-Bracket)
4.9 kg <10.75 lbs>
