Condition: New
Description

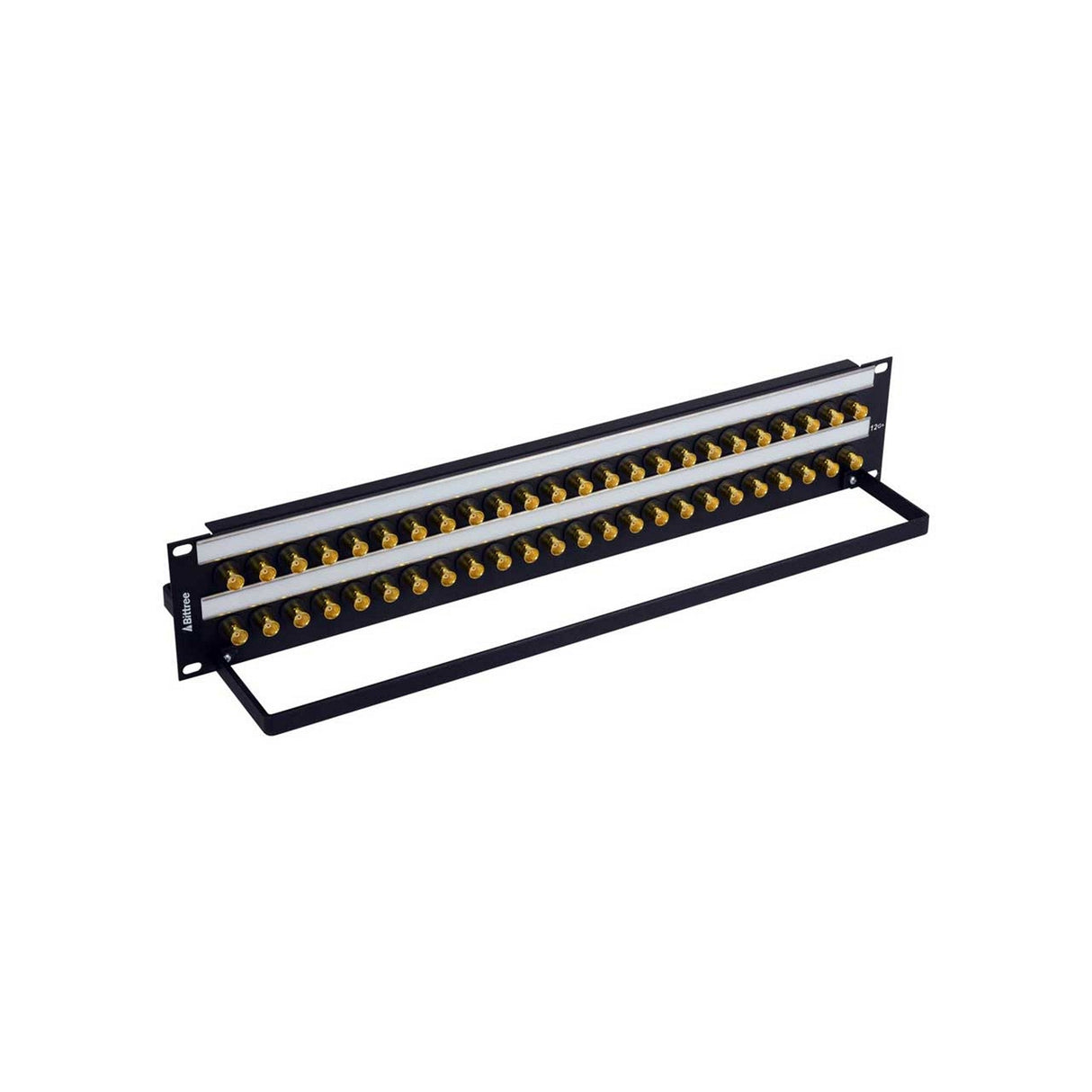

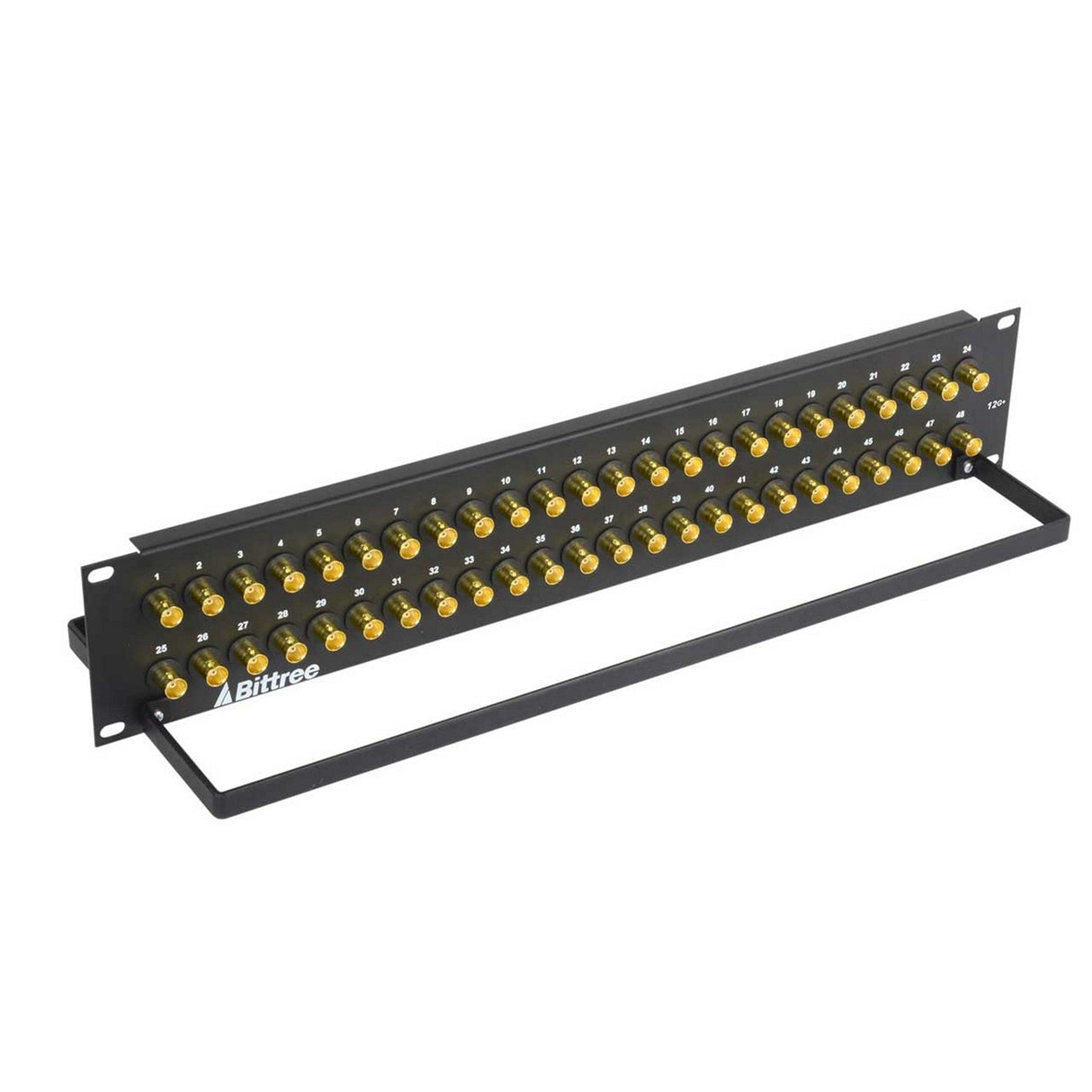

Bittree BH-B224A2B12 12GHz 4K/8K Single-Link BNC Coaxial Bulkhead Patch Panel, 2 x 24 2RU
Bittree's 12G+ BNC Coaxial Bulkhead Patch Panels deliver 20GHz, high-bandwidth performance for SD-SDI, HD-SDI, UHD-SDI, HDR, 4K and 8K single-link video applications. Available in 1x16, 1x24, 1x32, 2x16 and 2x24 configurations, they support data rates up to 48Gb/s and are compliant with SMPTE 292M, 424M, ST2081-1 and ST2082-1.
Bittree offers the largest selection of 12G+ BNC Patch Panels with up to 20 GHz high-bandwidth performance for SD/SDI, HD/SDI, UHD/SDI, 4K, and 8K applications.
Key Features
- 20 GHz high-bandwidth performance for SD/SDI, HD/SDI, 3 Gb/s, 3D, UHD, 4k, and 8K applications
- SMPTE 292M, 424M, 2081-1, and 2082-1 compliant
- 75-ohm impedance with low return loss
- 500 Mating cycles
- Operating temperature: -35 to +165°C
- IP64 (mated)
- 1/16” (0.062 in. / 1.57 mm) folded aluminum panel with a durable black powder-coat finish
- Front & Rear BNC feed-thru Connectors
- Silk screened circuit numbering on both the front and back with optional designation strip available for the front
- Two 3” (7.62 cm) deep lacing bars for cable dressing (both are removable)
- Alternative 6” (15.24 cm) deep lacing bars available; please make a request at checkout if interested
- Front Panel Circuit Identification: 1 x DS580-10 Designation Strip (stainless-steel slider with white styrene and non-glare Lexan inserts)
