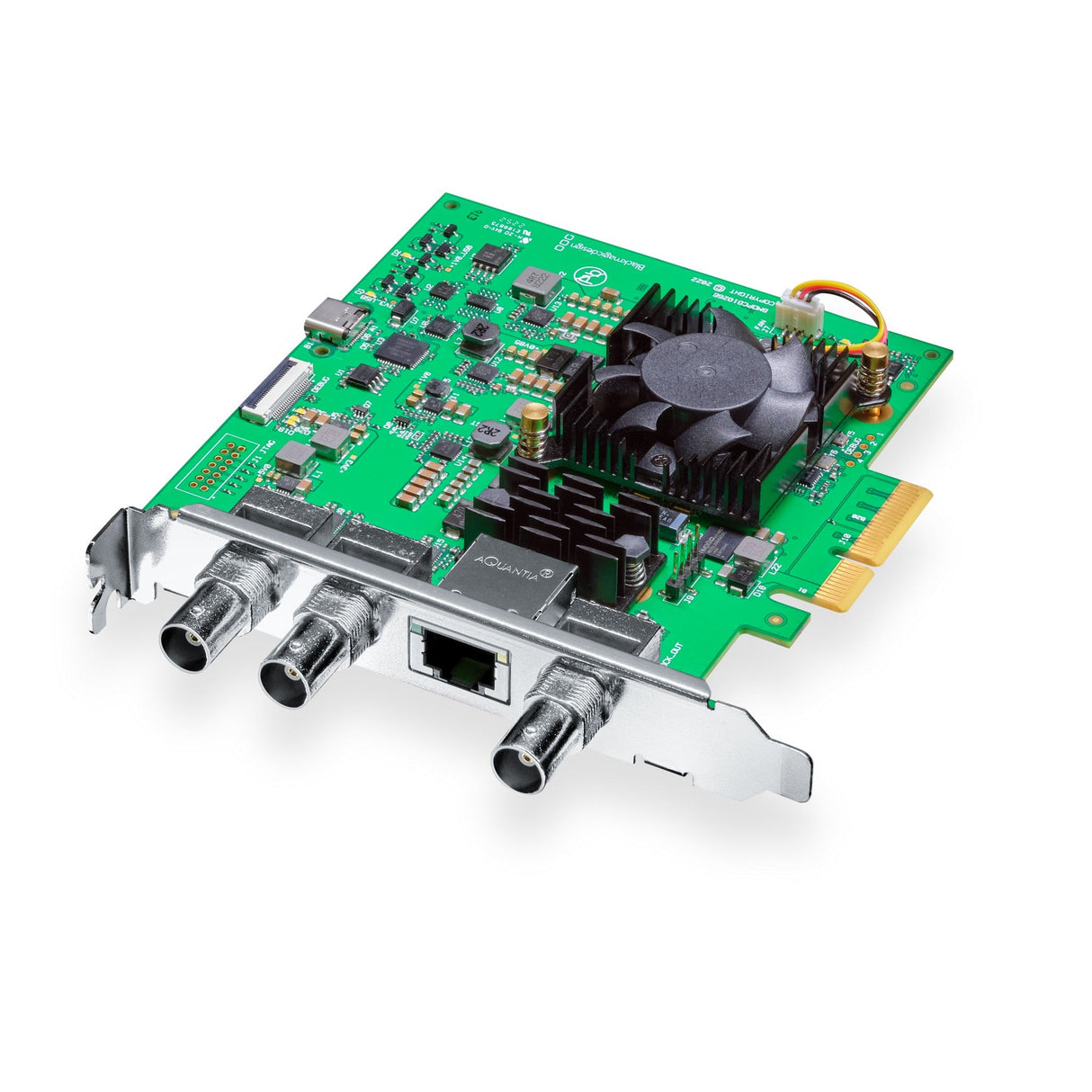

Blackmagic Design DeckLink IP/SDI HD Capture Card

Blackmagic Design DeckLink IP/SDI HD Capture Card

The Blackmagic Design DeckLink IP/SDI HD Capture Card is a powerful and versatile tool designed for professionals who are serious about high-quality video production. This sophisticated capture card connects seamlessly to both 3G-SDI and 2110 IP systems, offering unparalleled flexibility and superior performance. Whether you're looking to capture or playback video, the DeckLink IP/SDI HD delivers with two dedicated channels to 2110 IP via RJ45 Ethernet and bidirectional 3G-SDI connections. Elevate your video production capabilities with support for a variety of video standards and formats, including Apple ProRes and DNxHD. This capture card is a must-have for videographers, content creators, and video production studios aiming to produce top-tier content.

Designed to work with the highest quality video formats, the DeckLink IP/SDI HD Capture Card offers versatile configuration options, making it compatible with a multitude of systems and software applications. From DaVinci Resolve to Adobe Premiere Pro, this capture card integrates seamlessly into your workflow, allowing for incredible efficiency and enhanced creativity. Built with the latest technology, it supports a wide array of video standards up to 1080p60, ensuring you can capture stunning visuals with exceptional clarity and color precision. With enhanced features like 10-bit uncompressed support and hardware-based real-time processing, you can trust this card to get the job done with the utmost quality.

The DeckLink IP/SDI HD Capture Card also boasts robust support for numerous codecs and standards, including all major SD and HD video formats, ensuring you have the flexibility you need no matter the project. Built for reliability and performance, it is equipped with advanced features like HDR support, precision time protocol, and comprehensive IP video compliance. Whether you’re working in broadcast, film, or live production, the Blackmagic Design DeckLink IP/SDI HD Capture Card is engineered to meet your most demanding video capture and playback needs.

Key Features

• Two capture and playback channels to 2110 IP via RJ45 Ethernet
• Two bidirectional and independently configurable 3G-SDI connections
• Support for popular video formats like Apple ProRes, DNxHD, and 10-bit uncompressed
• Comprehensive video standard support including 525i, 625i, 720p, 1080i, and 1080p up to 1080p60
• Embedded 16-channel audio in SD and HD
• HDR support including HLG and PQ transfer characteristics
• Real-time color space conversion and effects processing
• Extensive software compatibility including DaVinci Resolve, Final Cut Pro, Adobe Premiere Pro, and more
• Precision Time Protocol (PTP) and full IP video compliance

Specifications

• SDI Ports: 2 x bidirectional 12-bit SD/HD
• 10G Ethernet Port: 1 x 10G BASE-T
• Computer Interface: PCI Express 4 lane generation 2
• Supported Codecs: Apple ProRes, DNxHD, AVC-Intra, AVCHD, and more
• Software Included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility
• Video Standards: SD - 525i59.94 NTSC, 625i50 PAL; HD - 720p50, 720p60, 1080i50, 1080p upto 60
• SDI Compliance: SMPTE 259M, 292M, 296M, 424M, and more
• Audio Sampling: 48 kHz, 24-bit
• Color Precision: 8, 10, 12-bit RGB 4:4:4 and 8, 10-bit YUV 4:2:2
• Operating Systems: Mac 12.0 Monterey or later, Windows 10/11, Linux
• Power Consumption: 10 Watts
• Environmental: Operating Temp 5°C - 40°C, Storage Temp -20°C - 45°C, Relative Humidity 0% - 90%

Package Contents

• DeckLink IP/SDI HD Capture Card
• Welcome wallet with QR code for software download
• 3 Year Limited Manufacturer's Warranty
