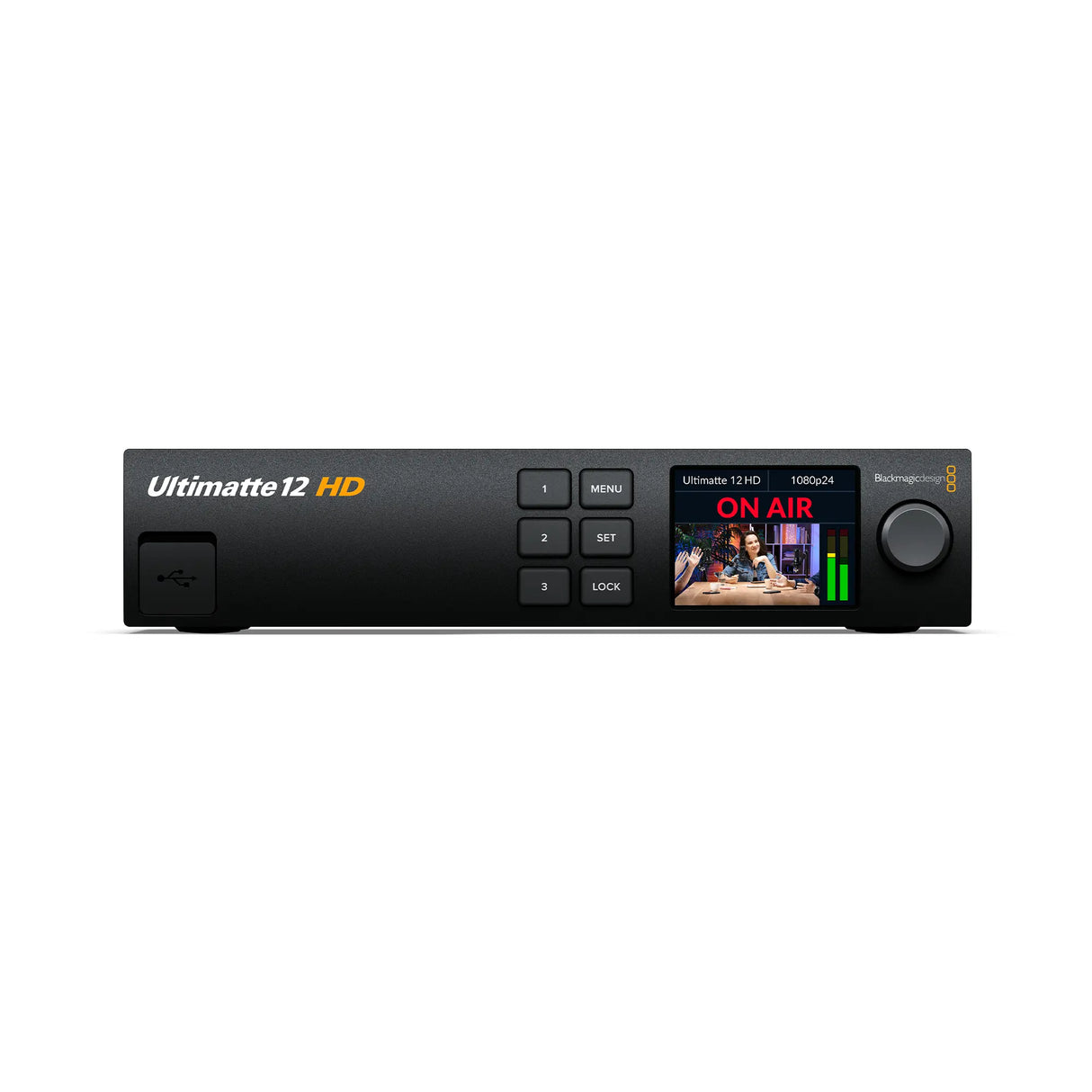

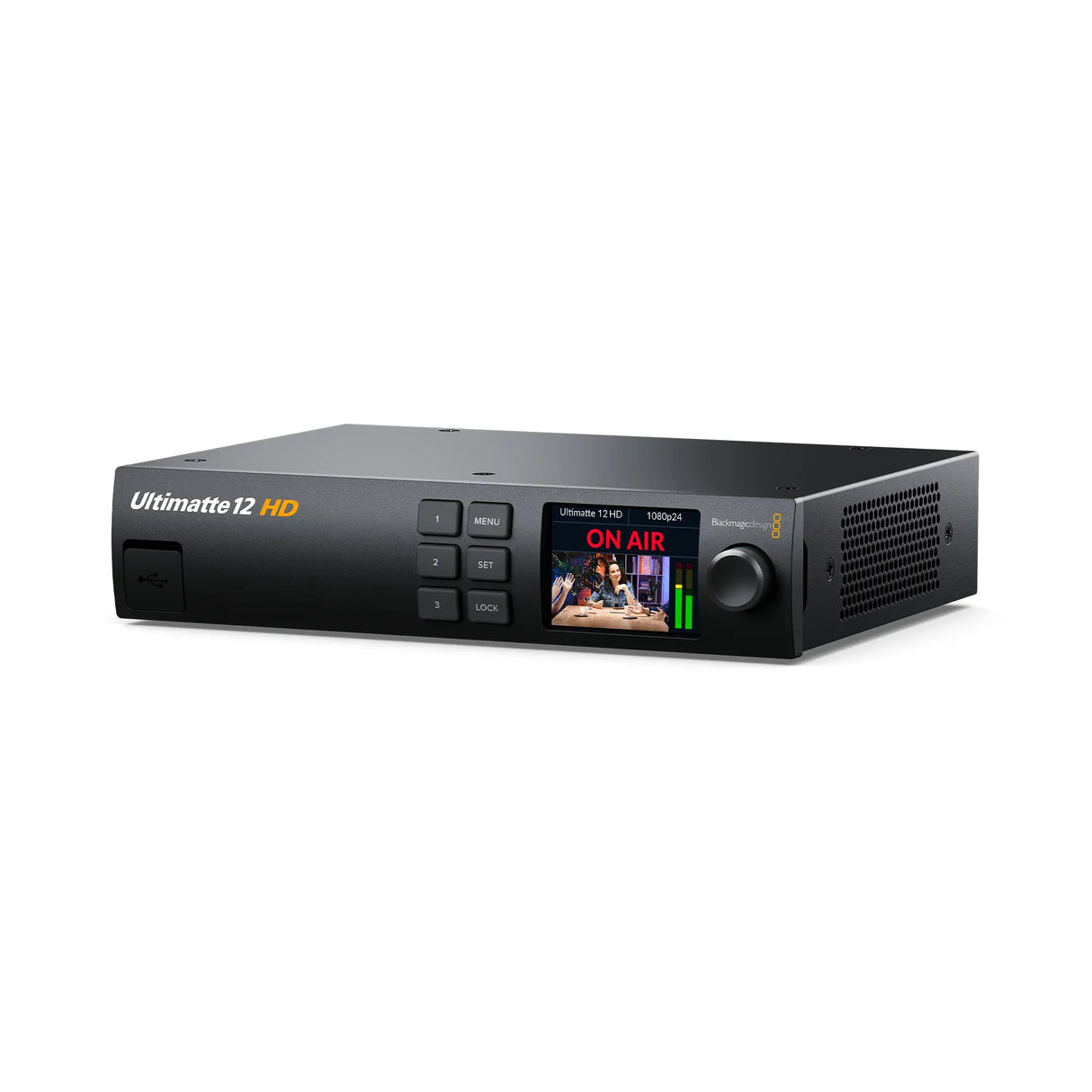

Blackmagic Design Ultimatte 12 HD Advanced Real Time Compositing Processor

Blackmagic Design Ultimatte 12 HD Advanced Real Time Compositing Processor

The Blackmagic Design Ultimatte 12 HD is a state-of-the-art real-time compositing processor that is perfect for anyone aiming to achieve impeccable video keying. This cutting-edge processor allows users to merge live-action footage with next-generation broadcast graphics and virtual sets, taking video production quality to new heights. With advanced algorithms and enhanced color science, the Ultimatte 12 HD ensures superior edge handling, brilliant color separation, and exceptional spill suppression, making it a must-have for professionals.

The Ultimatte 12 HD's high-performance 3G-SDI design equips you to work seamlessly in HD using sub-pixel processing to achieve stunningly clear and precise imagery. The enhanced spill suppression technology ensures that the final composite looks as natural as possible, while the color fidelity of this device is unmatched, delivering vibrant and true-to-life outputs. Whether you are creating a virtual set, keying out live-action video, or incorporating broadcast graphics, the Ultimatte 12 HD offers unmatched performance and versatility.

Key Features

• Advanced real-time compositing processor for high-quality video keying
• New algorithms and color science for superior edge handling and color separation
• 3G-SDI high-performance design enabling sub-pixel processing
• Better spill suppression delivering natural-looking composite outputs
• Supports multiple HD and SD video standards

Specifications

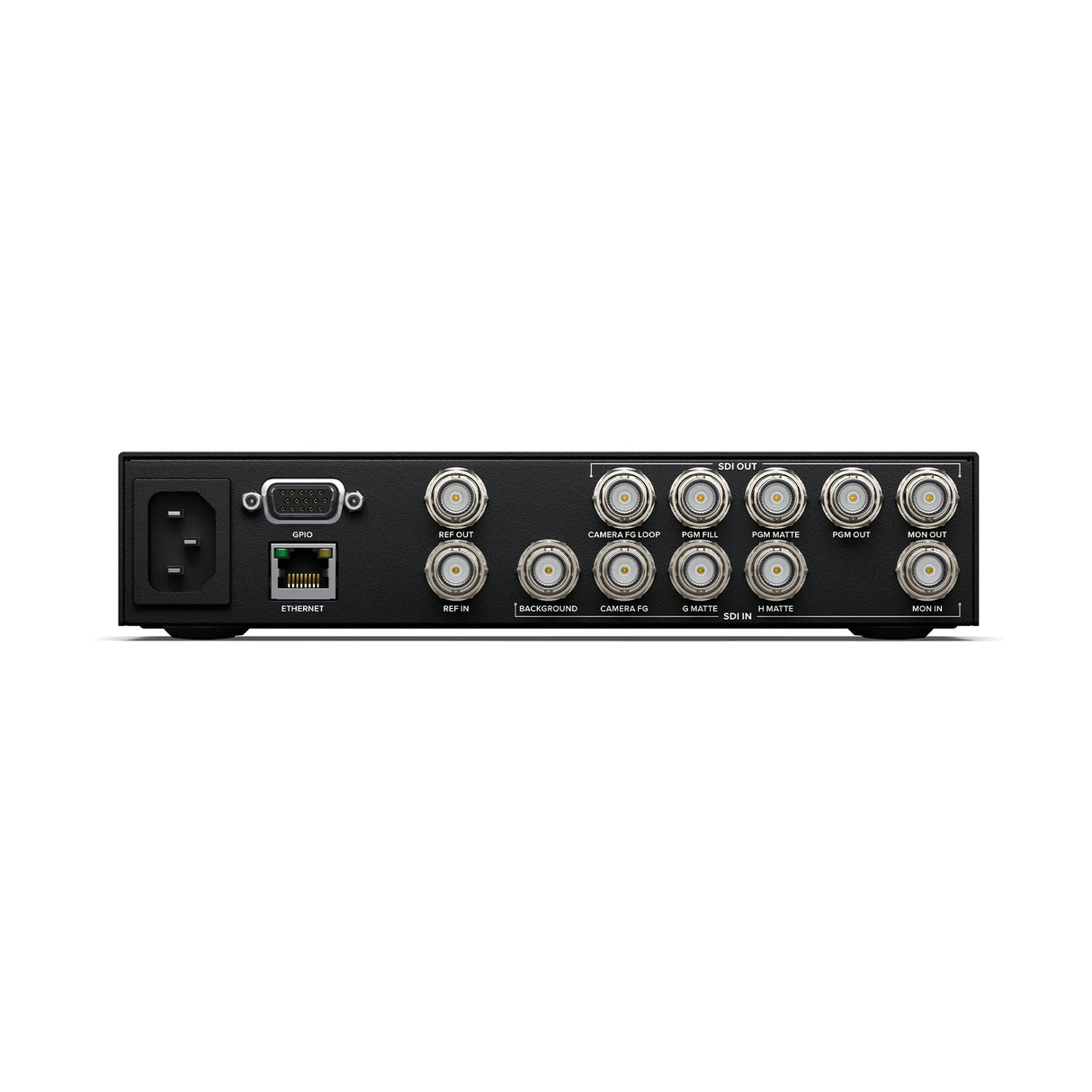

• SDI Video Inputs: 5
• SDI Video Outputs: 4
• SDI Video Loop Outputs: 1 (reclocked SD or HD Camera FG)
• SDI Rates: 270Mb, 1.5G, 3G
• Video Input Re-Sync: On all inputs
• Reference Connections: 1 x BNC In, 1 x BNC Out (Tri-Sync or Black Burst)
• GPIO: DE15
• Ethernet: Up to 1Gb/s for device control and loading stills into Media Pool
• Computer Interface: 1 x USB-C 3.0 for device configuration and software updates
• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B
• Video Sampling: 4:2:2
• Color Precision: 10-bit
• Color Space: REC 601, REC 709, REC 2020
• Multiple Rate Support: Auto detection of SD and HD
• Composite Sources: Foreground (1 x 3G-SDI In with Loop Out), Background (1 x 3G-SDI In, still from Media Pool, Background Matte, Internal Window, still from Media Pool), Garbage Matte (1 x 3G-SDI In, Internal Window, still from Media Pool), Holdout Matte (1 x 3G-SDI In, Internal Window, still from Media Pool)
• Layer: Still from Media Pool, Layer Matte (Internal Window from Media Pool), Composite Outputs: Fill (1 x 3G-SDI), Matte (1 x 3G-SDI), Program (1 x 3G-SDI), Monitor (In: 1 x 3G-SDI for monitor cascade, Out: 1 x 3G-SDI for monitoring various inputs/outputs)
• Media Pool: 6GB non-volatile internal storage, supports various image formats (TGA, TIFF, BMP, PNG, JPG)
• Displays: Built-in 2.2-inch color display for device name, video preview, video standard audio meters, status, and menus
• Control: Network or direct Ethernet connection to a computer running Ultimatte Software Control or Ultimatte Smart Remote 4
• Software Updates: Using USB‑C or Ethernet connection to Mac or Windows computers
• Configuration: Ultimatte IP address set via front panel or Ultimatte setup utility connected via USB
• Operating Systems: Mac 11.0 Big Sur or later, Windows 10, 64-bit, Windows 11
• Power Supply: 1 x Internal 100-240V AC, 50/60Hz
• Power Usage: 15W
• Physical Installation: Half rack unit width, 1 rack unit height
• Physical Dimensions: Height: 1.74 in, Depth: 6.95 in, Width: 8.27 in
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Relative Humidity: 0% to 90% non-condensing

Package Contents

• Ultimatte 12 HD
• Welcome wallet with QR code for software download
• 12-Month Limited Manufacturer's Warranty
