Blackmagic Design UltraStudio 4K Mini Portable Thunderbolt 3 Capture and Playback Device
Free Shipping
Estimated Shipping Widget will be displayed here!
Condition: New
Description

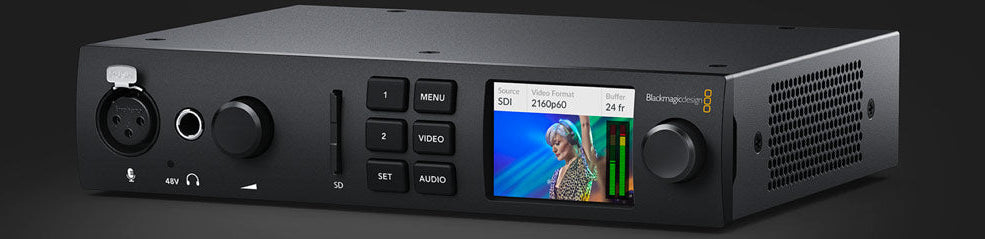

Blackmagic Design UltraStudio 4K Mini Portable Thunderbolt 3 Capture and Playback Device
The Blackmagic Design UltraStudio 4K Mini is the ultimate capture and playback solution for professionals looking to elevate their video production capabilities. This portable device is equipped with Thunderbolt 3 technology, delivering unparalleled speed and performance for both capture and playback tasks. Whether you're in a studio or on the go, the UltraStudio 4K Mini ensures you're equipped with the latest in broadcast technology, supporting high dynamic range (HDR) capture in 8, 10, and 12-bit formats. It handles everything from standard definition (SD) up to full 4K DCI at 60 frames per second, making it an essential tool for serious video professionals.
Designed with versatility in mind, the UltraStudio 4K Mini features multiple connectivity options including 12G-SDI, HDMI 2.0, and analog connections, ensuring it's compatible with a wide range of equipment and workflows. The built-in SD card reader adds an additional layer of convenience, allowing you to mount camera media directly onto your computer for immediate editing access. This makes the UltraStudio 4K Mini an invaluable asset for quick turnaround projects where speed and efficiency are paramount.
Beyond its impressive hardware capabilities, the UltraStudio 4K Mini is also compatible with a variety of professional software applications, including DaVinci Resolve, Adobe Premiere Pro CC, Avid Media Composer, and Final Cut Pro X. This broad software compatibility ensures that you can integrate the UltraStudio 4K Mini seamlessly into your existing workflow, making it easier to produce stunning, broadcast-quality content.
Key Features
- Portable Thunderbolt 3 capture and playback device
- Supports HDR capture in 8, 10, and 12-bit formats
- Handles SD to 4K DCI at 60 FPS
- 12G-SDI, HDMI 2.0, and analog connections

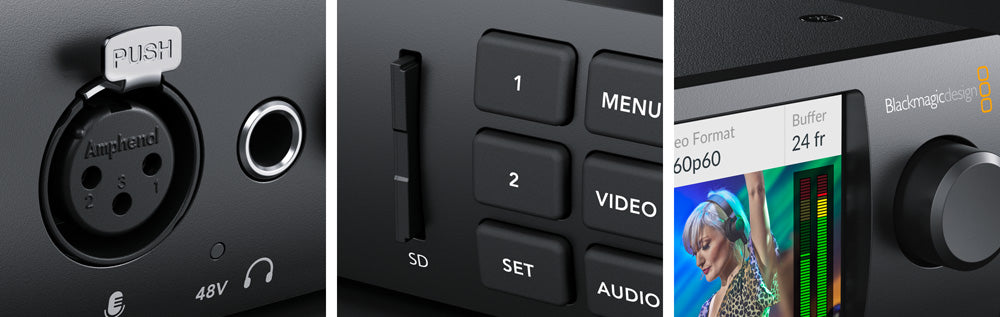

- Built-in SD card reader for immediate media mounting
- Compatible with leading video editing software
- Includes DaVinci Resolve software
Specifications
- SDI Video Inputs: 1
- SDI Video Outputs: 2 x program out, 1 x loop out
- SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G
- Analog Video Inputs: Component YUV or Composite NTSC/PAL
- Analog Audio Inputs: 2 channels of professional balanced analog audio with 1/4 inch Jack connectors
- Analog Audio Outputs: 2 channels of professional balanced analog audio with 1/4 inch Jack connectors
- SDI Audio Inputs: 16 Channels embedded in SD/HD/2K/UHD/4K
- SDI Audio Outputs: 16 Channels embedded in SD/HD/2K/UHD/4K
- HDMI 2.0b Video Inputs: 1
- HDMI 2.0b Video Outputs: 1
- HDMI Audio Inputs: 8 Channels embedded in SD/HD/UHD/4K
- HDMI Audio Outputs: 8 Channels embedded in SD/HD/UHD/4K
- Mic Input: 1 x XLR microphone input
- Sync Input: Tri-Sync or Black Burst
- Device Control: Sony compatible RS-422 deck control port
- USB: 1 x USB-C 3.1 Gen 1 (up to 5 Gb/s)
- SD Card Reader: UHS-I and UHS-II compatible
- Computer Interface: Thunderbolt 3 (Mac OS, Windows, Linux) with 45W host charging capability
- Supported Codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, etc.
- Software Included: DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility
- Operating Systems: Mac 10.13 or later, Windows 7 or later, Linux
- Power Supply: 1 x Internal 100 - 240V AC
- Power Usage: 75.3W max
- Operating Temperature: 5 to 40°C
- Storage Temperature: -20 to 45°C
- Relative Humidity: 0% to 90% non-condensing
Installation / Use Cases
- Capturing and playing back professional video with a portable Thunderbolt 3 capture and playback device in studio and mobile workflows
- Handling HDR video capture in 8, 10, and 12-bit formats for professional post-production and broadcast environments
- Working with SD, HD, UHD, and 4K DCI signals up to 60 fps across editing, monitoring, and mastering setups
- Connecting cameras, decks, and video gear using 12G-SDI, HDMI 2.0, and analog video/audio connections
- Mounting media directly to a computer with the built-in SD card reader for faster ingest and turnaround
- Integrating with DaVinci Resolve, Adobe Premiere Pro, Avid Media Composer, and Final Cut Pro in professional editing workflows
Package Contents
- UltraStudio 4K Mini
- SD card with software and manual
- Power Cable
Frequently Asked Questions
What is the Blackmagic Design UltraStudio 4K Mini used for?
The UltraStudio 4K Mini is used for professional video capture and playback in studio or mobile workflows using Thunderbolt 3 connectivity.
What video formats does the UltraStudio 4K Mini support?
According to the AVLGear page, it supports everything from standard definition up to full 4K DCI at 60 frames per second.
Does the UltraStudio 4K Mini support HDR capture?
Yes. The AVLGear listing states that it supports HDR capture in 8, 10, and 12-bit formats.
What connections are available on the Blackmagic UltraStudio 4K Mini?
The product page lists 12G-SDI, HDMI 2.0, analog video and audio connections, Thunderbolt 3, USB-C, an SD card reader, and RS-422 deck control.
Can the UltraStudio 4K Mini work with professional editing software?
Yes. The AVLGear page lists compatibility with DaVinci Resolve, Adobe Premiere Pro CC, Avid Media Composer, and Final Cut Pro X.
