Description

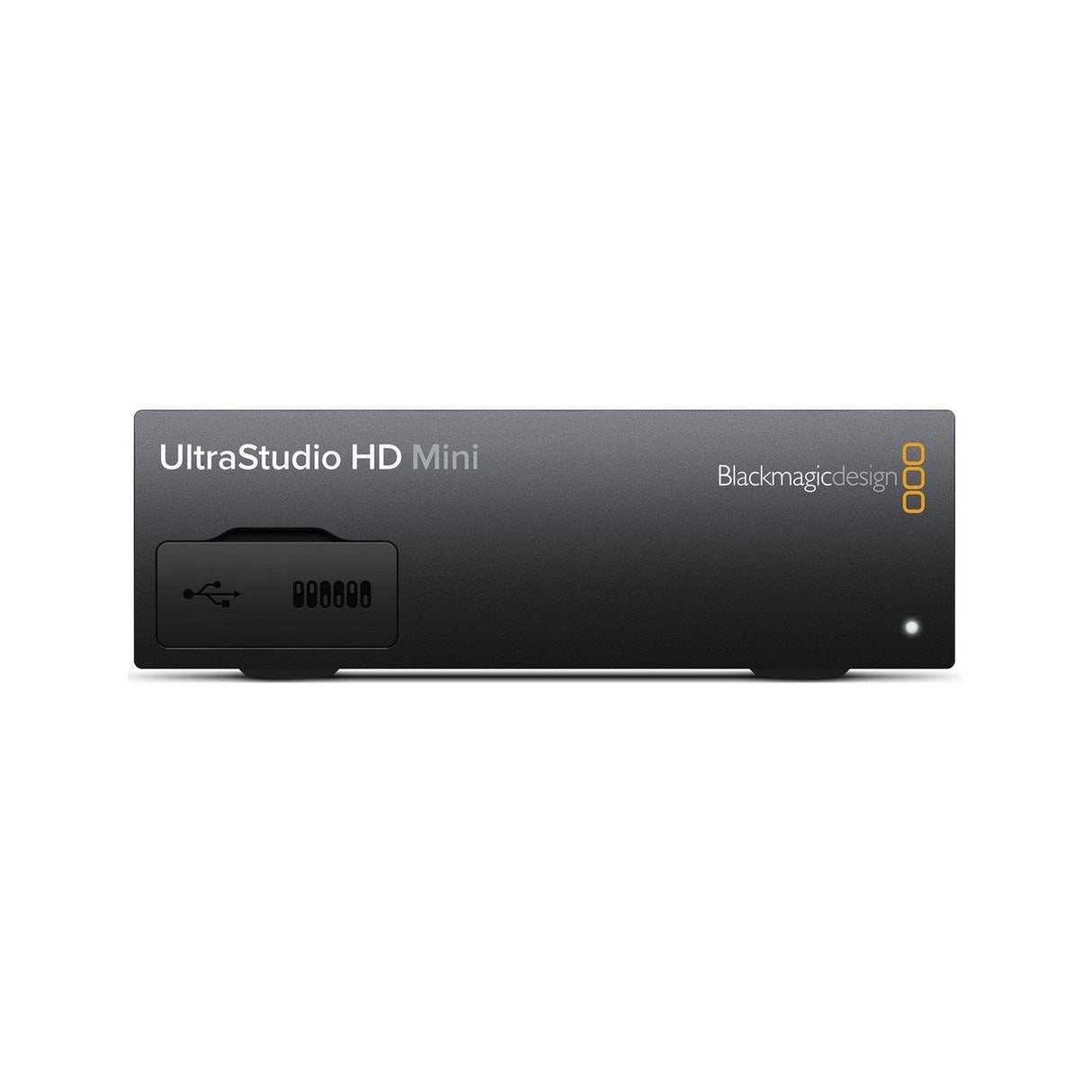

Blackmagic Design UltraStudio HD Mini Video Capture Playback Device
The Blackmagic Design UltraStudio HD Mini is a state-of-the-art video capture and playback device that offers professional-grade broadcast quality for a wide array of video standards. With its compact form and array of connections, this device is perfect for media professionals who demand high performance and reliability. Whether you are working with analog YUV, composite NTSC/PAL video, or 3G-SDI inputs, the UltraStudio HD Mini ensures seamless integration into your workflow. Additionally, this device can effortlessly handle video output via HDMI or dual-link 3G-SDI for precise monitoring on a big screen television.
Designed to offer unparalleled flexibility, the UltraStudio HD Mini is equipped with both balanced and unbalanced analog audio connections, enabling you to work with both professional and consumer-grade audio equipment. The inclusion of RS-422 control also allows for remote management of professional broadcast decks. With its Thunderbolt 3 interface, this device not only ensures high-speed data transfer but also powers directly from your host computer, making setup a breeze.
The UltraStudio HD Mini is compatible with a broad range of professional video and audio software, including DaVinci Resolve, Final Cut Pro X, Adobe Premiere Pro CC, and many more. This device supports a multitude of codecs and video standards, from SD to HD and even 2K formats, ensuring it can handle any project you throw at it. With real-time effects and color space conversion, the UltraStudio HD Mini is an indispensable tool for any serious media professional.
Key Features
- 3G-SDI, analog YUV, and composite NTSC/PAL video inputs
- HDMI and dual link 3G-SDI outputs for versatile monitoring options
- Balanced and unbalanced analog audio inputs
- RS-422 port for remote control of professional broadcast decks
- Thunderbolt 3 interface for high-speed data transfer and power
- Supports a wide range of codecs including ProRes, DNxHD, and Uncompressed
- Real-time color space conversion and down conversion
- Compatible with leading video and audio editing software
Specifications
- SDI Video Inputs: 1 x 3Gb/s SD/HD switchable
- SDI Video Outputs: 2 x 3Gb/s SD/HD switchable
- SDI Rates: 270Mb, 1.5G, 3G
- HDMI Video Outputs: 1 x HDMI 1.4b type A connector
- Analog Video Inputs: Y, B-Y, R-Y/NTSC/PAL
- Analog Audio Inputs: 2 x 1/4 inch jack connectors
- SDI Audio Inputs/Outputs: 16 Channels embedded in SD and HD
- Reference Input: Tri-Sync or Black Burst
- Software Included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility
- Software Applications: DaVinci Resolve, Final Cut Pro X, Premiere Pro CC, Avid Media Composer
- SD Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards: Up to 1080p60
- 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
- Audio Sampling: 48kHz and 24-bit
- Computer Capture: 1 x Thunderbolt 3
- Operating Systems: Mac OS X 10.11 and later, Windows 7 and later, Linux
Package Contents
- Blackmagic Design UltraStudio HD Mini Video Capture Playback Device
- Thunderbolt 3 Cable
- Software Installation CD
- User Manual
