Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher

Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher

The Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher is a cutting-edge solution for high-definition live production environments. This compact yet powerful switcher is specifically designed to enhance the flexibility and efficiency of your live broadcasts. Featuring a single M/E design, it comes with a remarkable set of 10 standards-converted 3G-SDI inputs and 6 independent 3G-SDI aux outputs, allowing for seamless switching and output of various video sources. These capabilities ensure that your production runs smoothly, even in the most demanding broadcast environments.

Central to the versatility of the ATEM 1 M/E Constellation HD are its integrated features. The switcher includes advanced components such as USB webcam output, Digital Video Effects (DVE), and sophisticated chroma keyers for live keying, as well as media players to integrate stunning visuals directly into your broadcasts. The multiview capability gives you the ability to monitor and manage multiple feeds from a single view, thereby providing greater control over your live production. This level of integration brings a professional edge to any live event, from studio productions to on-location broadcasts.

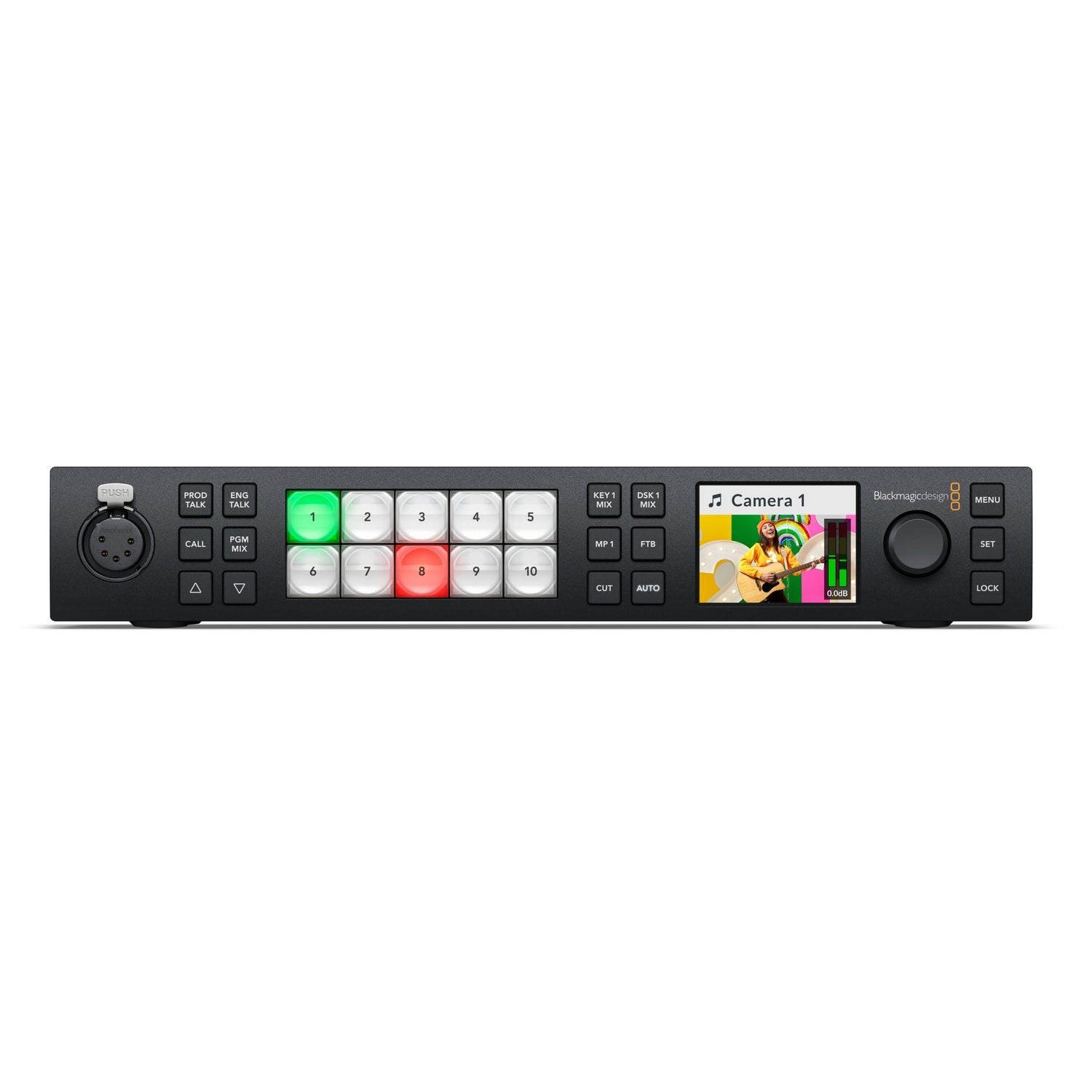

Ease of use is a standout attribute of this switcher. With a front panel that includes a built-in 2.2-inch LCD monitor, operators have immediate access to essential information and controls. The menu control knob, LED buttons, and source selection features allow for quick on-the-fly adjustments. The integrated 28-channel audio mixer, equipped with dynamics and EQ, ensures pristine sound quality for any production scenario. Moreover, the comprehensive connectivity options, including Ethernet for panel connections and USB-C interfacing, make this switcher adaptable for both studio and remote environments.

Key Features

• 10 standards-converted 3G-SDI inputs
• 6 independent 3G-SDI aux outputs
• USB webcam output supporting up to 1080p
• Digital Video Effects (DVE) for real-time effects
• Advanced chroma keyers for live keying
• Internal 28-channel audio mixer with advanced controls
• Intuitive front panel with emergency switching features
• Configurable multiview output
• Supports various video standards up to 1080p60

Specifications

• Operating System: Mac 11.1 Big Sur, Mac 12.0 Monterey or later, Windows 10 and 11
• Physical Dimensions: 2/3 rack unit width, 1 rack unit height
• Power Supply: Internal 100 - 240 AC
• Power Usage: 36W
• Weight: 3.6 kg (8 lbs)
• Operating Temperature: 0° to 40° C (32° to 104° F)
• Storage Temperature: -20° to 60° C (-4° to 140° F)
• Humidity: 0% to 90% non-condensing

Package Contents

• Blackmagic Design ATEM 1 M/E Constellation HD switcher
• Welcome wallet with QR code for software download
• 12 Month Limited Manufacturer's Warranty
