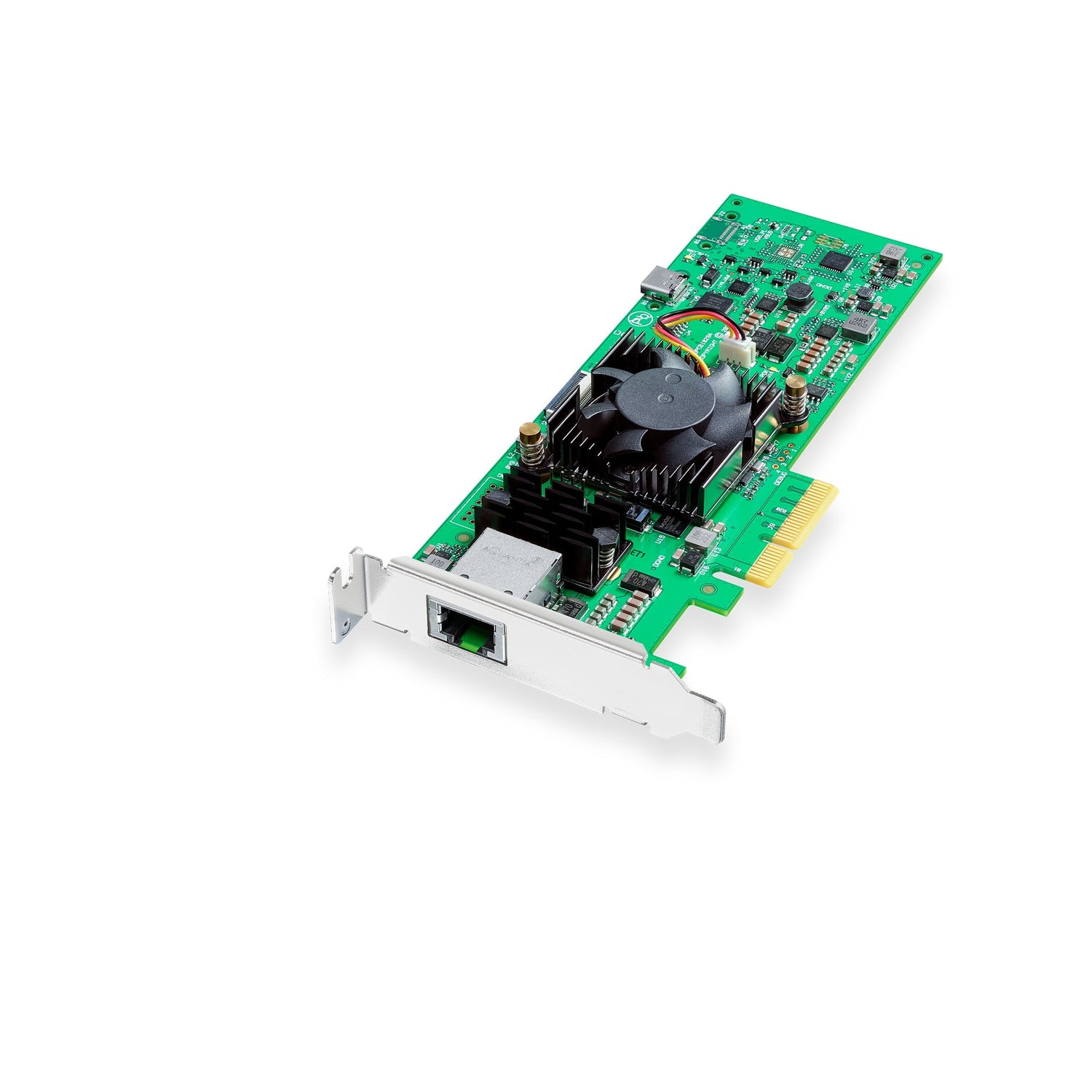

Blackmagic Design DeckLink IP HD Capture Card

Blackmagic Design DeckLink IP HD Capture Card

Introducing the Blackmagic Design DeckLink IP HD Capture Card, your go-to solution for seamless video capture and playback to 2110 IP broadcast systems. Featuring three channels of video capture and three channels of video playback via a single RJ45 Ethernet connection, this versatile card is designed to handle the highest quality video standards. Whether working with Apple ProRes, DNxHD, or 10-bit uncompressed formats, DeckLink IP HD ensures you get exceptional video quality and dependable performance for all your broadcast needs.

Designed with professional broadcast applications in mind, the DeckLink IP HD Capture Card supports multi-rate 525i, 625i, 720p, 1080i, and 1080p video standards up to 1080p60. Its 10G Ethernet port conforms to SMPTE ST2110 standards for video, audio, and ancillary data transport over managed IP networks. Plus, it features a built-in video firewall for robust IP network security and a high-speed 4-lane PCI Express interface for low-latency performance. Ideal for use in compact, low-cost computers and rack-mount servers, this capture card guarantees ultimate flexibility and reliability in any broadcast setup.

Key Features

• Supports three channels for video capture and playback over a single RJ45 Ethernet connection
• Conforms to SMPTE ST2110 standards for video, audio, and ancillary data transport
• Supports multi-rate SD and HD formats up to 1080p60
• Built-in video firewall for enhanced IP network security
• High-speed 4-lane PCI Express interface
• Supports popular video formats: Apple ProRes, DNxHD, and 10-bit uncompressed
• Includes NMOS protocol for virtual router functionality
• Robust compatibility with broadcast graphics tools like Fusion and Adobe After Effects

Specifications

• 10G Ethernet Port with 1 x 10G BASE-T, supporting 3 input and 3 output channels
• PCI Express 4-lane generation 2 interface, compatible with 4, 8, and 16 lane PCI Express slots
• Supported codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4
• Video standards support: 525i59.94 NTSC, 625i50 PAL for SD; 720p50, 720p59.94, 720p60; 1080i50, 1080i59.94, 1080i60; 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59, 1080p59.94, 1080p60; 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 (PsF SDI only)
• Audio sampling: 48 kHz, 24-bit
• Color precision: 8, 10, 12-bit RGB 4:4:4 up to 1080p30, 8, 10-bit YUV 4:2:2 in all modes
• Color spaces supported: REC 601, REC 709, REC 2020
• SMPTE compliance for IP Video: SMPTE 2110-20, 2110-21, 2110-30, 2110-40
• Operating systems support: Mac 12.0 Monterey, Mac 13.0 Ventura or later; Windows 10 64-bit, Windows 11; Linux
• Power consumption: 10 Watts
• Environmental: Operating temperature 5-40°C (32-104°F), Storage temperature -20-45°C (-4-113°F), Relative humidity 0-90% non-condensing

Package Contents

• DeckLink IP HD Capture Card
• Low profile slot bracket
• Welcome wallet with QR code for software download
