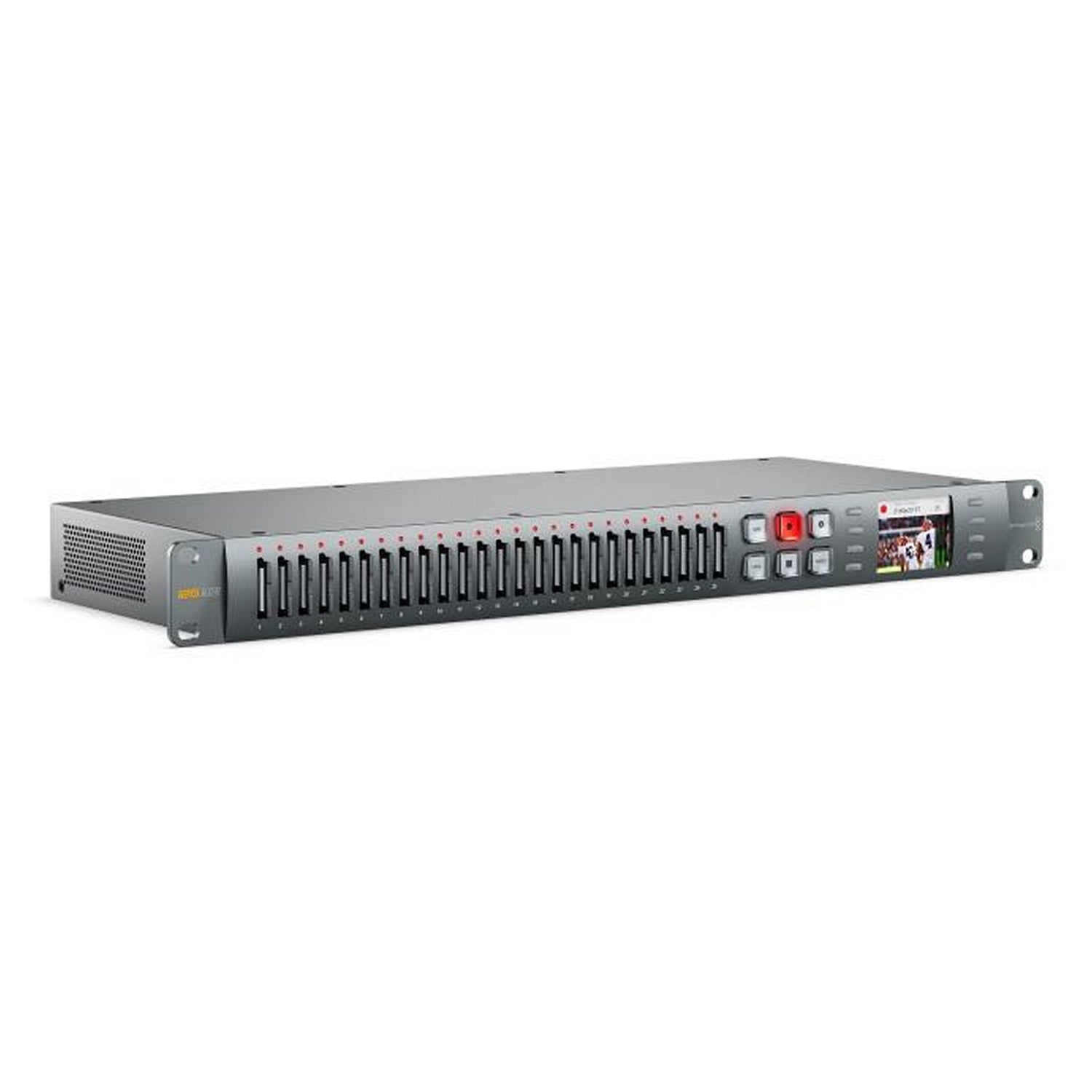

Blackmagic Design Duplicator 4K Realtime H.265 Encoding Multi Rate 12G-SDI Connections Ultra HD Live Events Video Delivering Device

Blackmagic Design Duplicator 4K | Realtime H.265 Encoding Multi Rate 12G-SDI Connections Ultra HD Live Events Video Delivering Device

The Blackmagic Design Duplicator 4K is your ideal solution for delivering Ultra HD content directly at live events. Harnessing the power of H.265 encoding, this device allows you to easily and efficiently record video onto affordable SD cards in real-time. Equipped with multi-rate 12G-SDI connections, it supports a plethora of video formats, ensuring seamless compatibility and outstanding versatility. With the capability to encode and distribute Ultra HD content immediately post-event, this cutting-edge device revolutionizes how you deliver content to your audience, compatible with modern 4K TVs and Windows 10 computers.

This powerful recorder features 25 built-in SD card slots, enabling you to shoot, record, and distribute high-quality footage effortlessly. The ergonomic design combined with advanced technology makes it a must-have for event videographers, sports broadcasters, and anyone needing to deliver Ultra HD video in real-time. Transform your live event recordings into a revenue stream instantly, offering your audience access to the highest quality playback they crave.

The Blackmagic Design Duplicator 4K ensures the utmost reliability and quality with its various input and output options, recording capabilities up to 2160p60, and robust build. Simplify your workflow, increase your revenue, and deliver unparalleled video quality with this state-of-the-art device designed to meet the high demands of today’s video production industry.

Key Features

• Realtime H.265 encoding
• Multi-rate 12G-SDI connections
• Supports SD, HD, and Ultra HD formats up to 2160p60
• 25 built-in SD card recorders
• Deliver Ultra HD content instantly post-event
• Compatibility with 4K televisions and Windows 10 computers

Specifications

• SD Card Support: Class 10 minimum, UHS-I and UHS-II cards
• SDI Video Input: 1 x 10 b It'sD/HD/UHD auto switching
• SDI Video Output: Matches SD/HD/UHD 12G-SDI input
• SDI Audio Input: 16 channels embedded
• Optical Input: 1 x 10 b It'sD/HD/UHD auto switching
• Optical Output: 1 x 10 b It'sD/HD/UHD auto switching
• SD Card Interface: 25 x SD Card Slots
• Device Control: Sony compatible RS422 deck control port x 2
• Computer Interface: 1 x USB 2.0 Mini-port
• Ethernet: Supports 10/100/1000 BaseT
• SD Format Support: 525i59.94 NTSC, 625i50 PAL
• HD Format Support: 720p50, 59.94; 1080p23.98, 24, 25, 29.97, 30, 59.94, 60; 1080PsF23.98, 24; 1080i 60
• Ultra HD Format Support: 2160p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• SDI Compliance: SMPTE 259M, 292M, 296M, 425M
• Audio Sampling: 48 kHz and 24 bit uncompressed
• Video Sampling: 4:2:2
• Codecs: H.265@ 4:2:0 with AAC audio
• Software Included: Blackmagic Duplicator Internal Software Upgrade
• Display: 1x high res LCD 320 x 240
• Operating Systems: Mac OS X 10.9+, Windows 8.1 64-bit, Windows 10 64-bit
• Power Supply: IEC Connector with fuse, 110v-240v
• Physical Dimensions: 1.75 x 7.8 x19 inches, 4.4 lbs
• Operating Temperature: 5 to 50 deg C
• Storage Temperature: -20 to 50 deg C
• Relative Humidity: 0% to 90% non-condensing

Package Contents

• Blackmagic Duplicator 4K
• Software SD Card
• 12 Month Limited Manufacturer's Warranty
