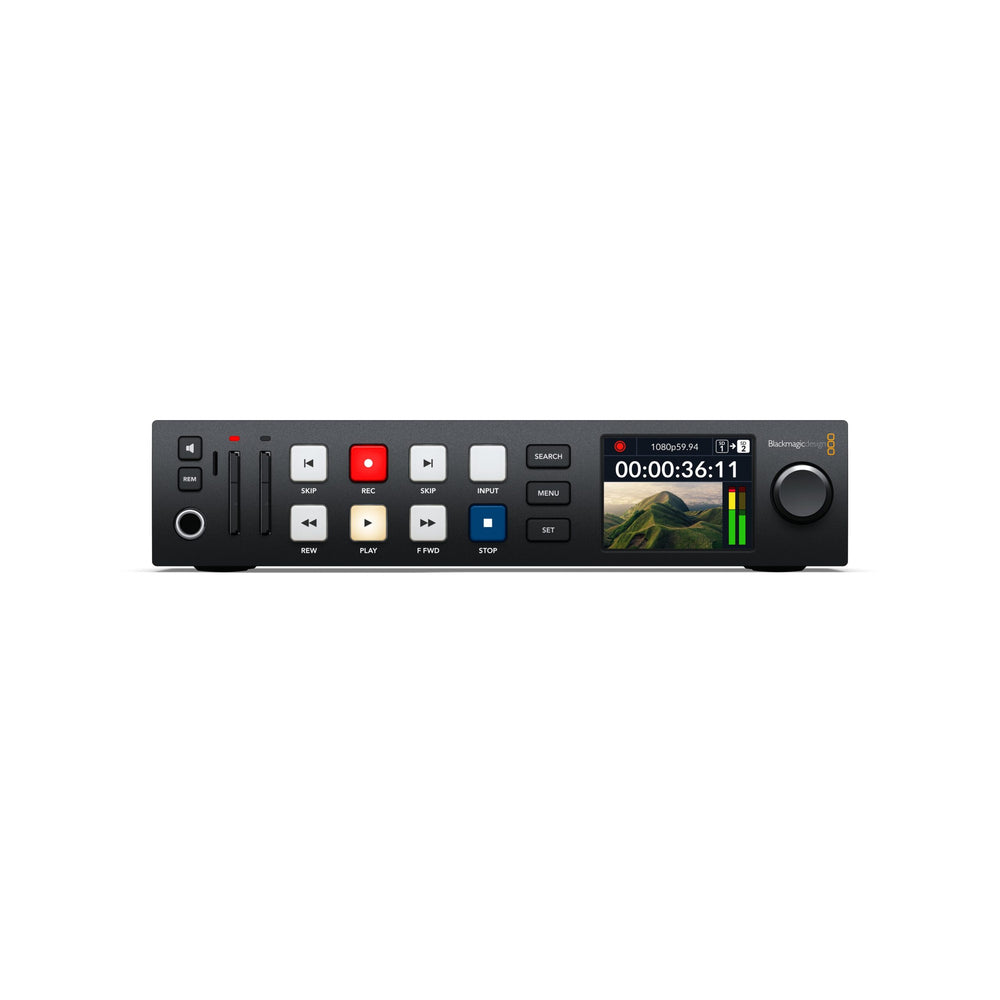

Blackmagic Design HyperDeck Studio HD Plus

The Blackmagic Design HyperDeck Studio HD Plus is a powerhouse of a video recorder that brings superior performance and versatility to your studio or production setup. Expanding on the features of the HyperDeck Studio Mini, this enhanced model offers broader connectivity options, advanced controls, and support for higher quality video formats. Whether you're capturing live events, producing films, or broadcasting, the HyperDeck Studio HD Plus ensures uncompromised quality and reliability.

The HyperDeck Studio HD Plus comes with 6G-SDI support, enabling seamless recording and playback of ProRes formats up to Ultra HD at 30fps. The inclusion of dual 6G-SDI outputs for fill and key playback up to 1080p60 and an HDMI input enhances the versatility of this device. Moreover, it features a dedicated 3G-SDI monitoring output with overlays and HDR support, making it ideal for professional video production and monitoring tasks. With upgraded transport control buttons, a headphone socket, and a built-in speaker on the front panel, the HyperDeck Studio HD Plus offers enhanced user experience and convenience.

Key Features

• 6G-SDI support for Ultra HD ProRes recording and playback up to 30fps
• Dual 6G-SDI outputs for 1080p60 fill and key playback
• HDMI input and dedicated 3G-SDI monitoring output with overlays
• RS-422 remote output for broadcast-style control
• Upgraded front panel with enhanced transport controls, headphone socket, and built-in speaker
• SDI loop out and HDR support for superior video quality
• XLR DC power connector for reliable and stable power supply

Specifications

• SDI Video Inputs: 1
• SDI Video Outputs: 2
• SDI Monitor Outputs: 1
• SDI Rates: 270Mb, 1.5G, 3G, 6G
• HDMI 2.0 Video Inputs: 1
• HDMI 2.0 Video Outputs: 1
• Built-in Speaker: Mono
• Audio Output: 1 x 6.35 mm headphone jack
• Screen: 2.2 inch LCD
• Timecode Connections: 1 x BNC In, 1 x BNC Out
• Reference Connections: 1 x BNC In, 1 x BNC Out
• SDI Audio Inputs: 16 channels embedded audio
• SDI Audio Outputs: 16 channels embedded audio
• HDMI Audio Inputs: 8 channels embedded audio
• HDMI Audio Outputs: 8 channels embedded audio
• Remote Control: 1 x RS-422 In, 1 x RS-422 Out
• Recorder Configuration: Via user interface or Blackmagic HyperDeck Ethernet Protocol
• Ethernet: 1Gb/s
• Computer Interface: 1 x USB Type-C 3.0
• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
• 2K DCI Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
• 4K DCI Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 20811, SMPTE 208110, SMPTE 2084, SMPTE 21081
• Audio Sampling: 24bit, 48 kHz
• Video Sampling: 4:2:2 YUV
• Color Precision: 10bit
• Color Space: REC 601, REC 709, REC 2020
• 3D LUTs: 33 point can be applied to SDI monitor out
• HDR Support: Hybrid Log Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084
• Multi Rate Support: Auto detection of SD, HD, and 6G-SDI
• Copy Protection: HDMI input is unable to capture from copy-protected sources

Package Contents

• Blackmagic Design HyperDeck Studio HD Plus unit
• Power Supply
• Quick Start Guide
