Blackmagic Design Smart Videohub CleanSwitch 12x12 | 6G-SDI Video Router

The Blackmagic Design Smart Videohub CleanSwitch 12x12 is an advanced 6G-SDI video router designed to deliver seamless switching between video sources of the same standard. This compact, robust device features built-in re-synchronizers on all inputs, ensuring clean transitions and reliable signal integrity. Whether you’re dealing with standard definition, high definition, or Ultra HD video formats, the Smart Videohub CleanSwitch offers exceptional versatility and performance. With 12 inputs and 12 outputs, it supports simultaneous routing of multiple formats, making it ideal for complex video environments.

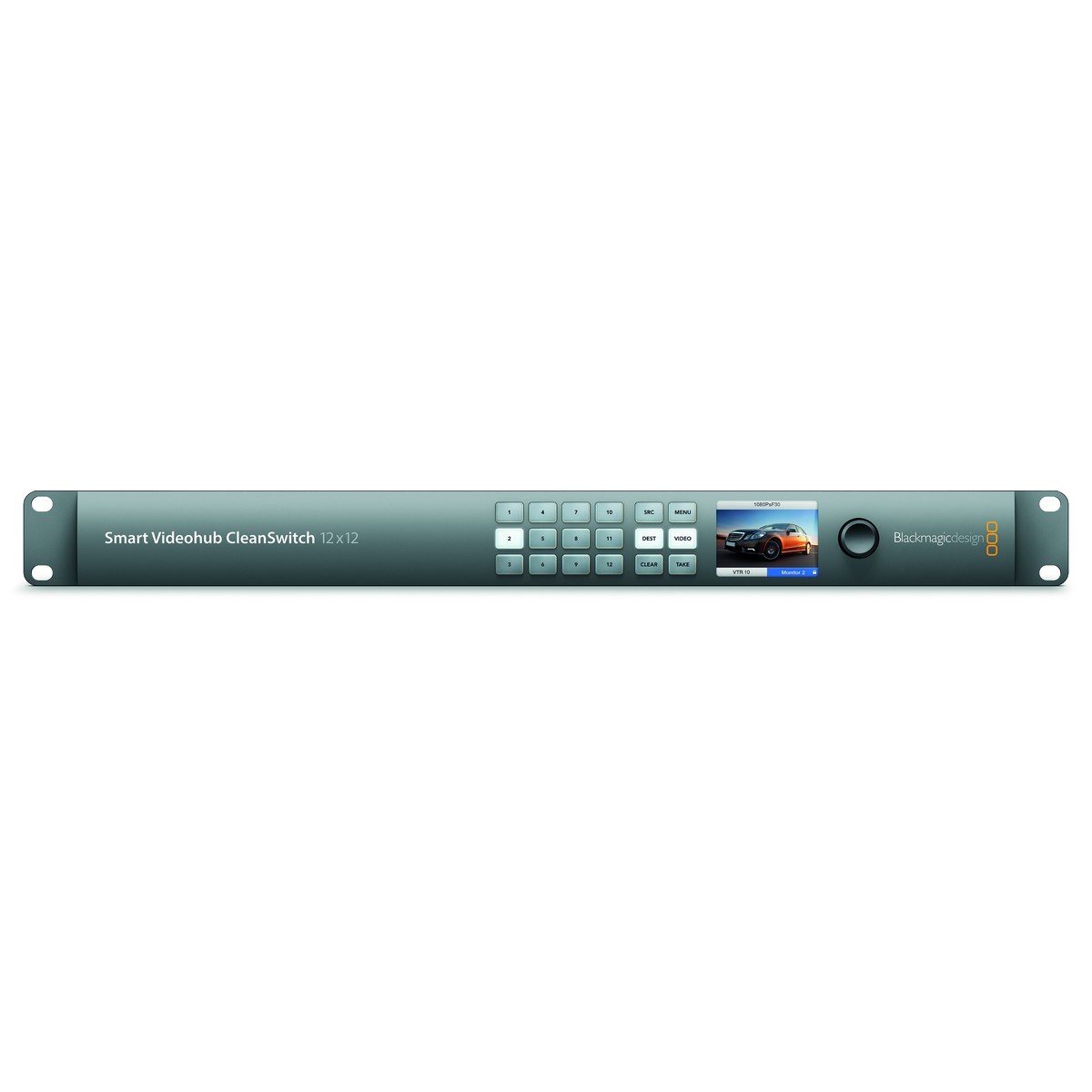

The Smart Videohub CleanSwitch stands out with its elegant machined metal front panel, integrating both front panel button and spin knob routing. It also includes an LCD for both routing display and video monitoring, alongside remote Ethernet control capabilities. Whether you’re in a broadcast studio, production environment, or live event setting, this video router provides a user-friendly interface and robust functionality. Automated re-timing of SDI feeds ensures precision and consistency, while its support for auto-switching between multiple video standards adds significant operational flexibility.

Key Features

• Seamless 6G-SDI routing
• Supports SD, HD, and Ultra HD formats
• 12 inputs and 12 outputs
• Built-in re-synchronizers on all inputs
• Elegant machined metal front panel
• Front panel button and spin knob routing
• LCD for display and monitoring
• Remote Ethernet control
• Support for multiple video formats simultaneously
• Automatic re-timing of SDI feeds

Specifications

• SDI Video Input: 12 x 10-bit SD-SDI, HD-SDI, and 6G-SDI
• SDI Video Output: 12 x 10-bit SD-SDI, HD-SDI, and 6G-SDI
• Reference Input: Black burst and Tri-Sync for SD, HD and 4K
• Multi Rate Support: Auto detection of SD, HD, or 6G-SDI
• Updates: USB or Ethernet
• Front Panel Router Control: 12 buttons for control, 6 buttons and scroll wheel for LCD
• Router Configuration: Via front panel LCD or RJ45 Ethernet
• Reclocking: On all SDI outputs
• Supported SD Formats: PAL, NTSC
• Supported HD Formats: 720p, 1080i, 1080p
• Supported 2K Formats: 2048 x 1080p
• Supported 4K Formats: 3840 x 2160p, 4096 x 2160p
• SDI Compliance: SMPTE and ITU-R standards
• SDI Video Rates: SD, HD, 4K with automatic switching
• SDI Video Sampling: 4:2:2 and 4:4:4
• SDI Audio Sampling: 48kHz, 24-bit
• SDI Color Precision: 10-bit
• SDI Color Space: YUV or RGB
• Power Supply: 90 - 240V AC input
• Display: Built-in LCD
• Operating Systems: Mac OS X, Windows 7 or 8
• Physical Installation: 1 rack unit size
• Environmental Specifications: Operating Temperature: 0-40°C, Storage Temperature: -20-45°C, Humidity: 0% to 90% non-condensing

Package Contents

• Smart Videohub CleanSwitch 12x12
• Software
• SD card
