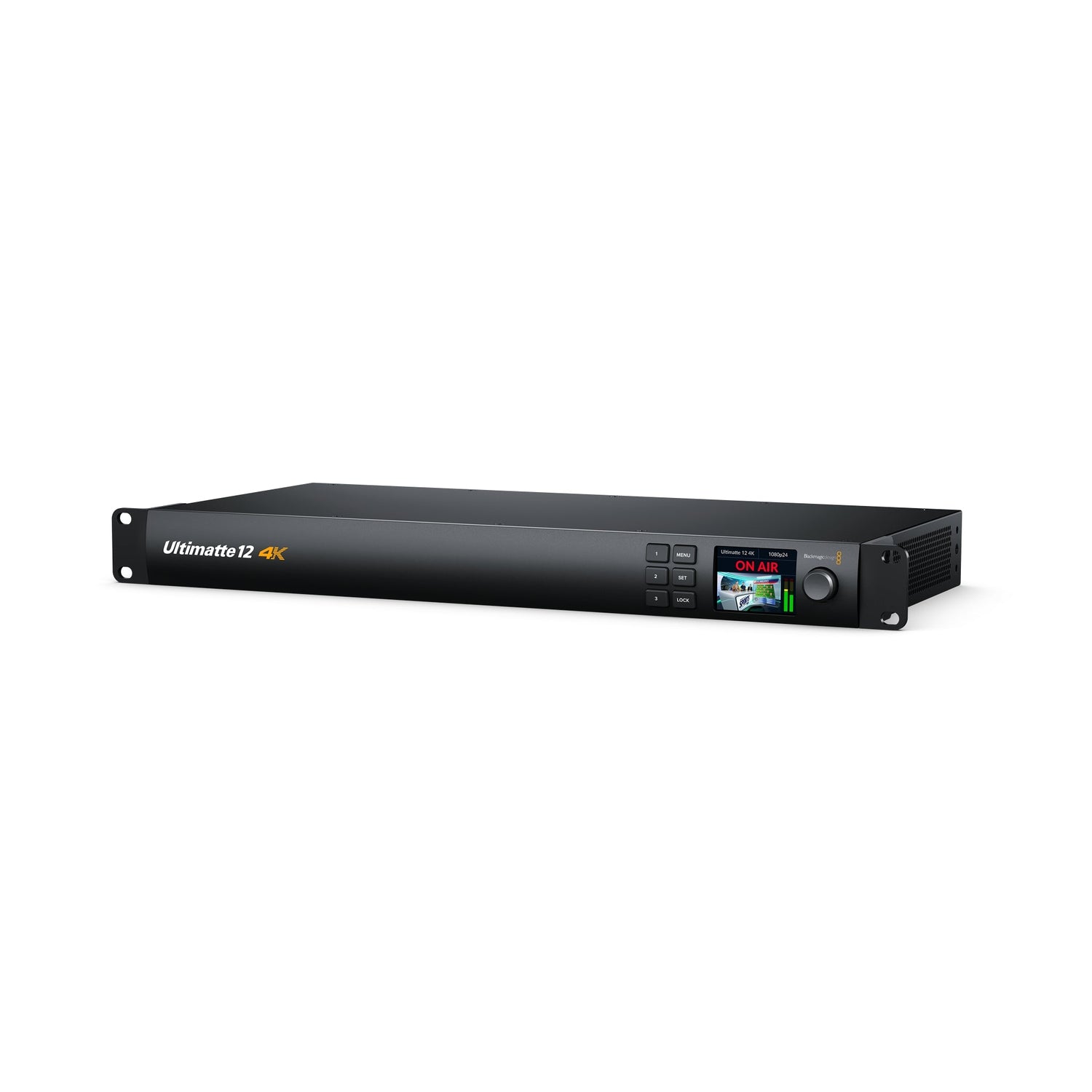

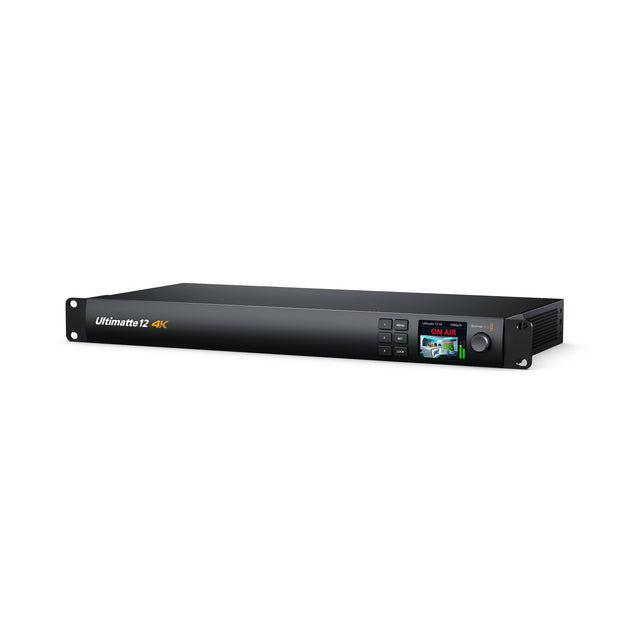

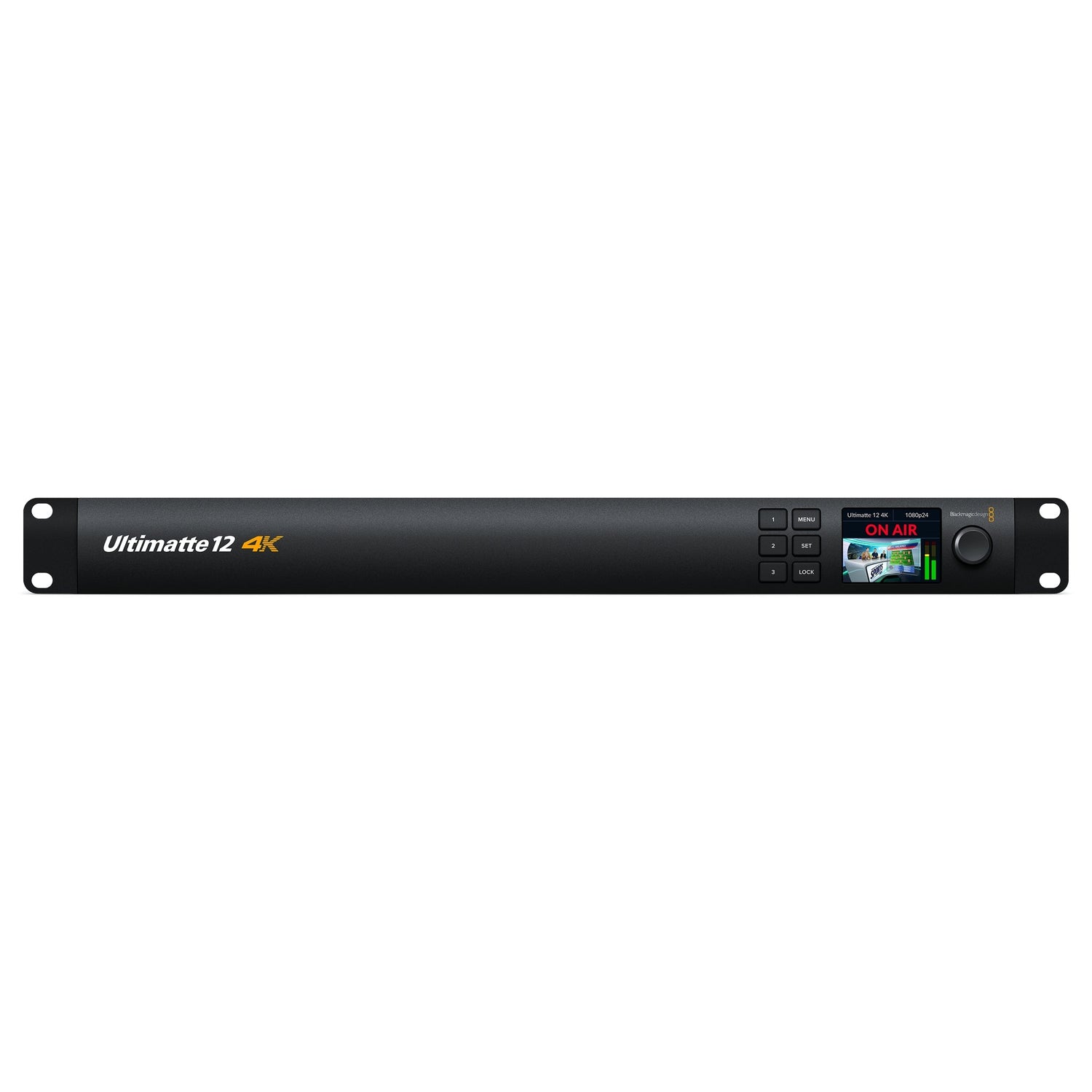

Blackmagic Design Ultimatte 12 Advanced Real-Time Compositing Processor

The Blackmagic Design Ultimatte 12 Advanced Real-Time Compositing Processor is a groundbreaking piece of technology designed to meet the demands of next-generation broadcast graphics. This processor isn’t just any keyer; it integrates advanced real-time compositing capabilities that offer broadcasters and filmmakers unparalleled quality and precision. With entirely new algorithms and sophisticated color science, Ultimatte 12 delivers true photorealistic composites that make it an essential tool for anyone involved in high-quality video production.

Whether you're working on broadcast news, sports, or even complex virtual set systems, the Ultimatte 12 excels in creating incredibly lifelike images. Its design features high-performance 12G-SDI with sub-pixel processing that provides the power to operate in both Ultra HD and HD formats. This ensures that every detail, from edge handling to color separation, is captured perfectly. The Ultimatte 12 truly shines in environments where you need to layer computer-generated augmented reality objects seamlessly into the scene, complete with realistic transparency that your talent can interact with naturally.

Ultimatte 12’s versatility is further highlighted by its one-touch keying technology, which automatically sets over 100 parameters to deliver exceptional results quickly. This feature not only simplifies the keying process but also allows operators to focus on the overall program without being bogged down by technical details. With this advanced processor, live production becomes more efficient, ensuring that every broadcast maintains the highest standards of quality.

Key Features

• Advanced real-time compositing processor
• New algorithms and color science for photorealistic composites
• High-performance 12G-SDI design
• Sub-pixel processing for Ultra HD and HD
• Exceptional edge handling and color separation
• Better spill suppression, even in dark or transparent areas
• One-touch keying technology for fast and accurate results
• Perfect for broadcast news, sports, virtual sets, and augmented reality
• Compatible with both fixed and automated virtual set systems

Specifications

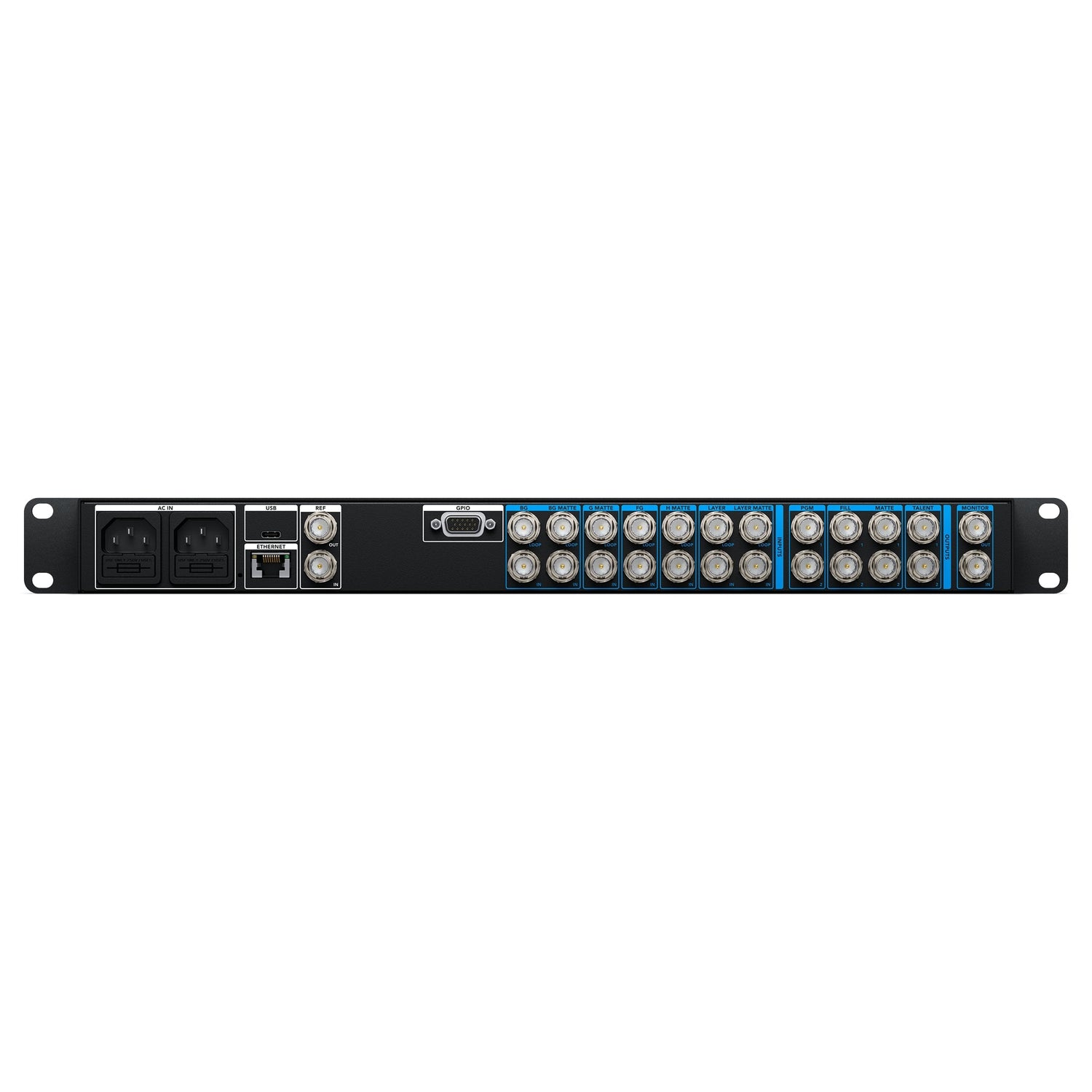

• SDI Video Inputs: 7, plus monitor in
• SDI Video Outputs: 9
• SDI Video Loop: 7 x reclocked SD, HD, Ultra HD for corresponding inputs
• SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G multi-rate support
• Reference Input: Tri-Sync or Black Burst
• Reference Loop Output: Tri-Sync or Black Burst
• Control Panel Connection: Ethernet supports 10/100Mbps
• GPIO: 5 x GPI In; 1 x GPI Out; 1 x Tally In
• SD Video Standards: 625i50 PAL, 525i59.94 NTSC
• HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• SDI Compliance: SMPTE 259, SMPTE 292, SMPTE 424, SMPTE 2081, SMPTE 2082
• Video Sampling: 4:2:2
• Color Precision: 10-bit
• Color Space: REC 601, REC 709, REC 2020
• Software: Updates using USB-C connection directly connected to Mac or Windows computers
• Configuration: Ultimatte IP address set via the Ultimatte setup utility connected via USB
• Control System: Control Panel Required, Ultimatte Smart Remote 4
• Power Supply: 2 x Internal 100-240V AC, 50/60Hz
• Power Usage: 100W
• Physical Installation: 1 Rack Unit size
• Width: 19 in
• Length: 9.25 in
• Height: 1.73 in
• Operating Temperature: 0 Degrees to 40 Degrees C (32 Degrees to 104 Degrees F)
• Storage Temperature: -20 Degrees to 60 Degrees C (-4 Degrees to 140 Degrees F)
• Relative Humidity: 0% to 90% non-condensing

Package Contents

• Ultimatte 12 processor
• SD card containing software and manual
