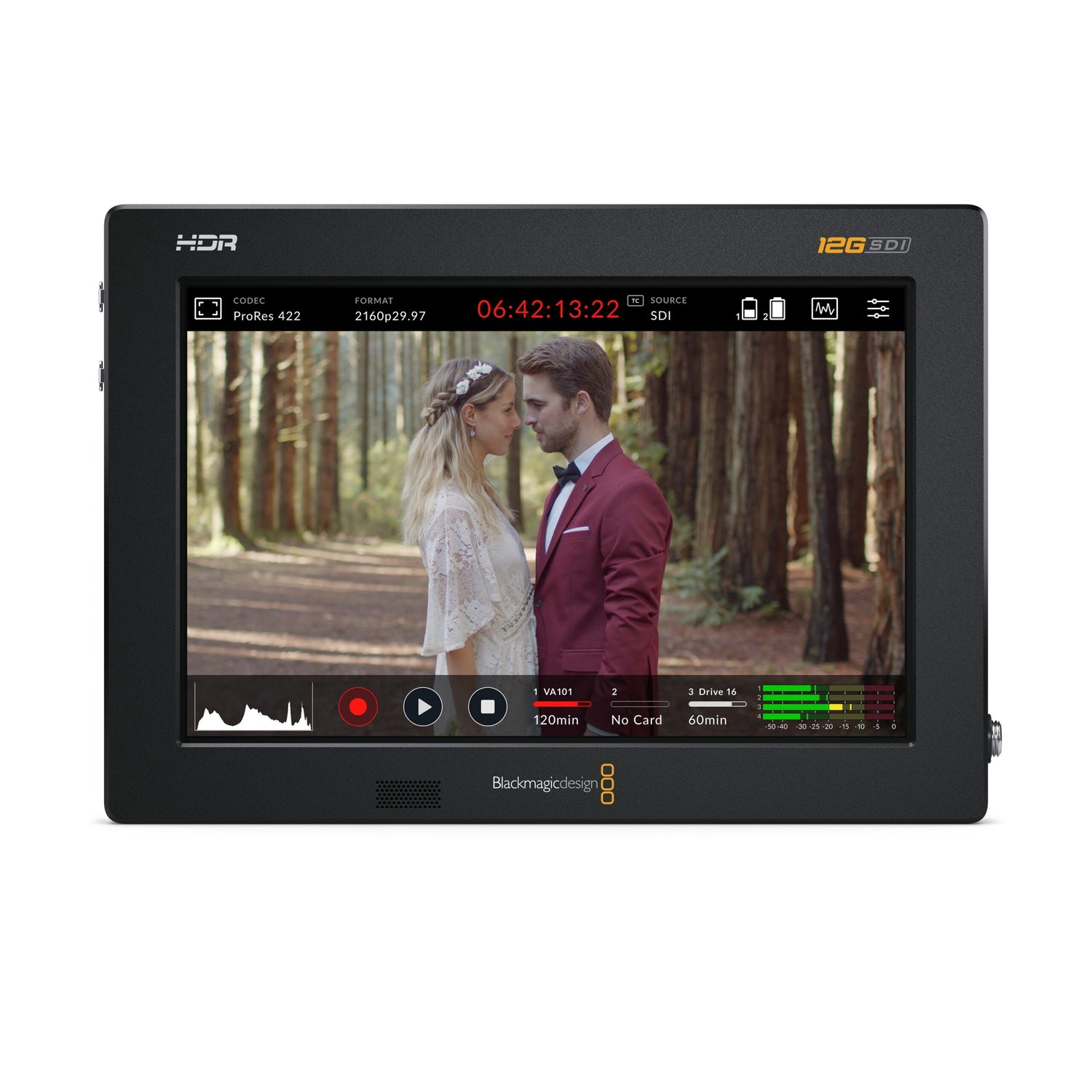

Blackmagic Design Video Assist 7-Inch 12G HDR Professional Monitor Recorder

Blackmagic Design Video Assist 7-Inch 12G HDR Professional Monitor Recorder

The Blackmagic Design Video Assist 7-Inch 12G HDR Professional Monitor Recorder is a game-changer for videographers and cinematographers seeking high-quality monitoring and recording solutions. This versatile device adds professional monitoring and recording capabilities to any SDI or HDMI camera across HD, Ultra HD, 2K, and 4K DCI formats. Its super bright 2500nit 7-inch HDR monitor supports 3D LUTs, professional scopes, and includes powerful focus assist and exposure tools that ensure you capture precise shots every time. Dual built-in SD card recorders allow for seamless file saving in 10-bit 4:2:2 ProRes or DNx formats, eliminating the need for post-conversion editing. This effectively streamlines your workflow, letting you get to the creative process faster.

Besides unparalleled video quality, the Blackmagic Video Assist also excels in audio recording. It features two mini XLR connections with 48V of phantom power and a noise floor of -128dBV, ensuring high-quality, crystal-clear audio capture. The monitor's intuitive touchscreen LCD enables easy navigation through settings and menus, making it suitable for both novice users and seasoned professionals. Furthermore, this robust device comes with a range of input and output options, ensuring compatibility with various devices and cameras. Its rugged build and professional-grade features make it an indispensable tool for anyone serious about videography.

Key Features

• 7-inch HDR monitor with 2500nit brightness
• Supports 3D LUTs and professional scopes
• Powerful focus assist and exposure tools
• Dual built-in SD card recorders for 10-bit 4:2:2 ProRes or DNx formats
• Two mini XLR connections with 48V phantom power
• Supports HD, Ultra HD, 2K, and 4K DCI formats
• High-quality audio recording with -128dBV noise floor
• Intuitive touchscreen LCD for easy navigation
• Multiple input and output options including SDI and HDMI

Specifications

• SDI Video Inputs: 1
• SDI Video Outputs: 1
• HDMI 2.0a Video Inputs: 1
• HDMI 2.0a Video Outputs: 1
• Analog Audio Inputs: 2 x balanced mini XLR with phantom power
• Analog Audio Outputs: 1 x 3.5 mm headphone jack
• Screen Dimensions: 7 inch, 1920 x 1200 resolution
• Screen Brightness: 2500nits
• Screen Color: P3 wide color gamut
• SDI Audio Inputs: 16 channels embedded via 12G-SDI
• SDI Audio Outputs: 16 channels embedded via 12G-SDI
• HDMI Audio Inputs: 8 channels embedded via HDMI 2.0a
• HDMI Audio Outputs: 8 channels embedded via HDMI 2.0a
• Remote Control: 1 x 2.5mm LANC for Record Start and Stop
• SD Interface: Dual UHS-II SD slots
• Storage Type: Removable SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards
• Computer Interface: 1 x USB Type-C 3.1 Gen 1 for external drive recording, initial setup, software updates and Video Assist Utility software control
• Supported Video Standards: 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60, 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60, 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
• Color Precision: 10-bit
• Color Space: REC 601, REC 709, REC 2020
• HDR Support: HDR10, Hybrid Log Gamma
• Power Supply: 1 x External 12V power supply
• Temperature: Operating 0° to 40° C (32° to 104° F), Storage -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non-condensing

Package Contents

• Blackmagic Video Assist 7” 12G HDR
• Universal power supply with locking connector and international adapters
• 12 Month Limited Manufacturer’s Warranty
