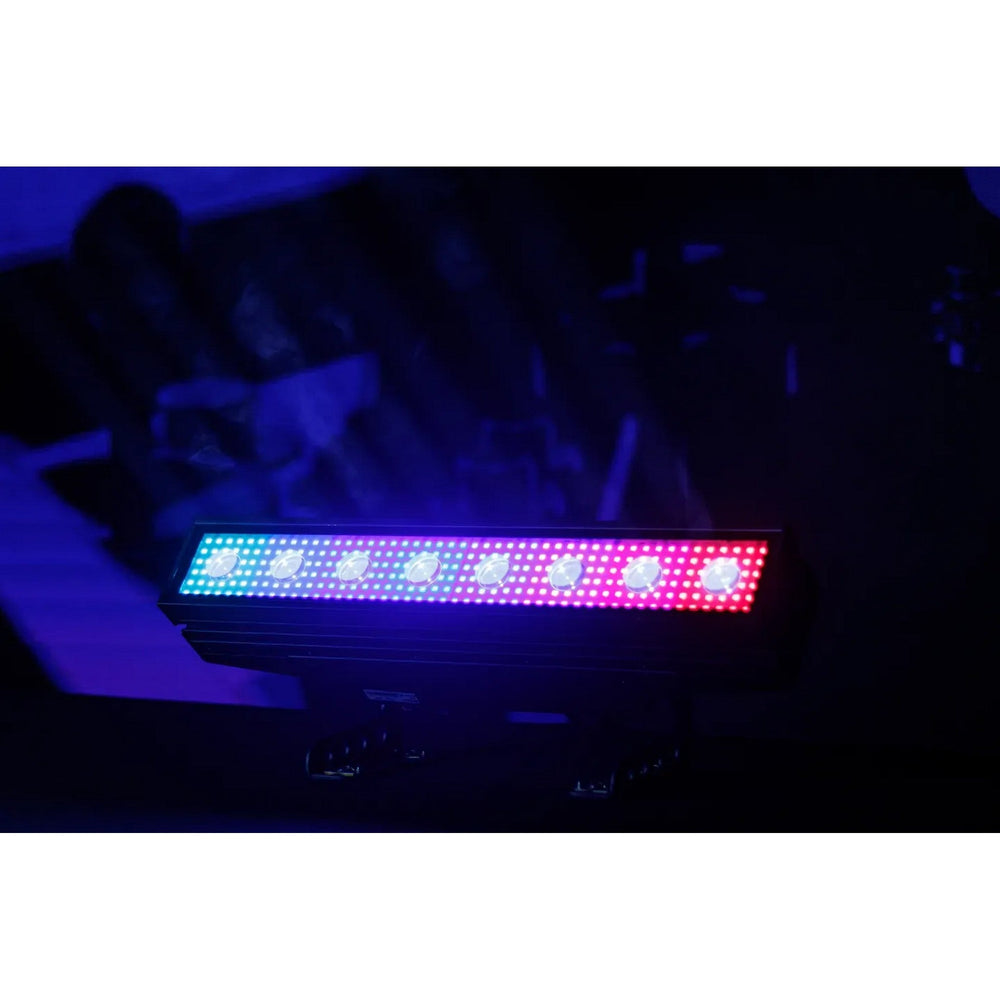

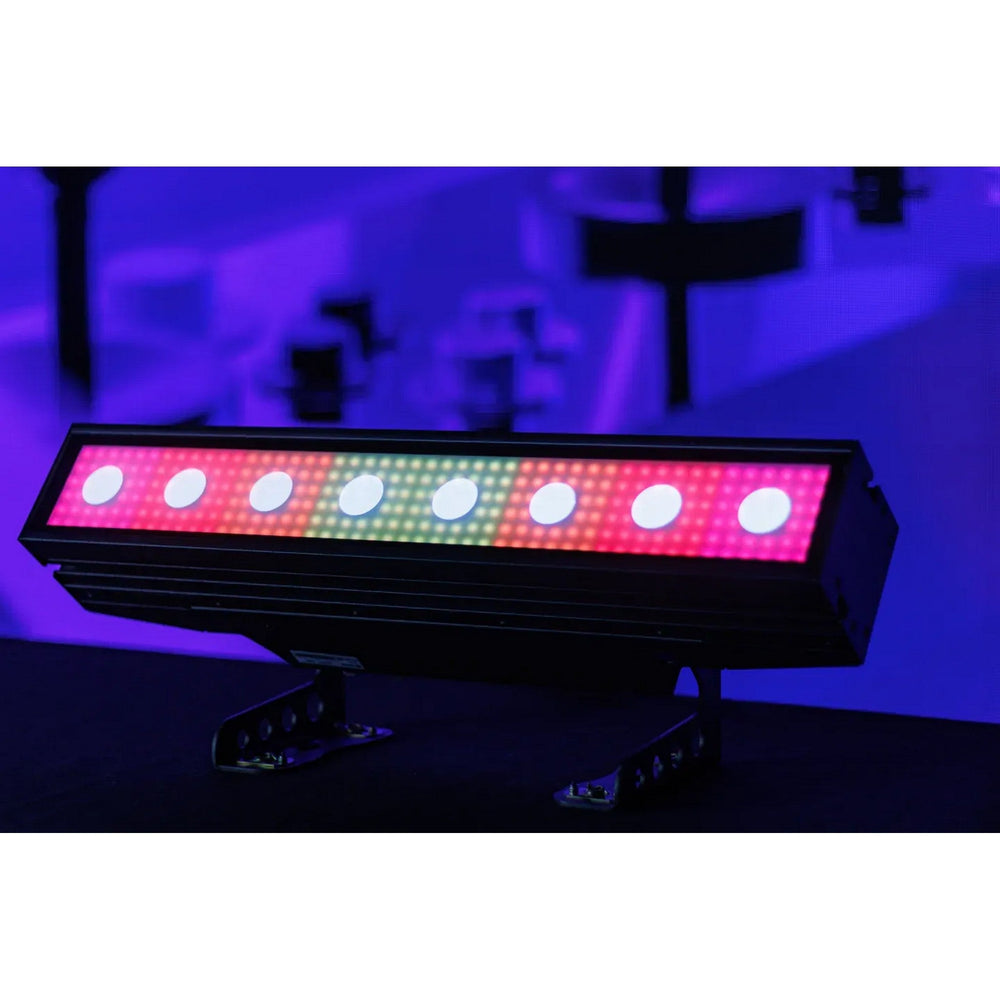

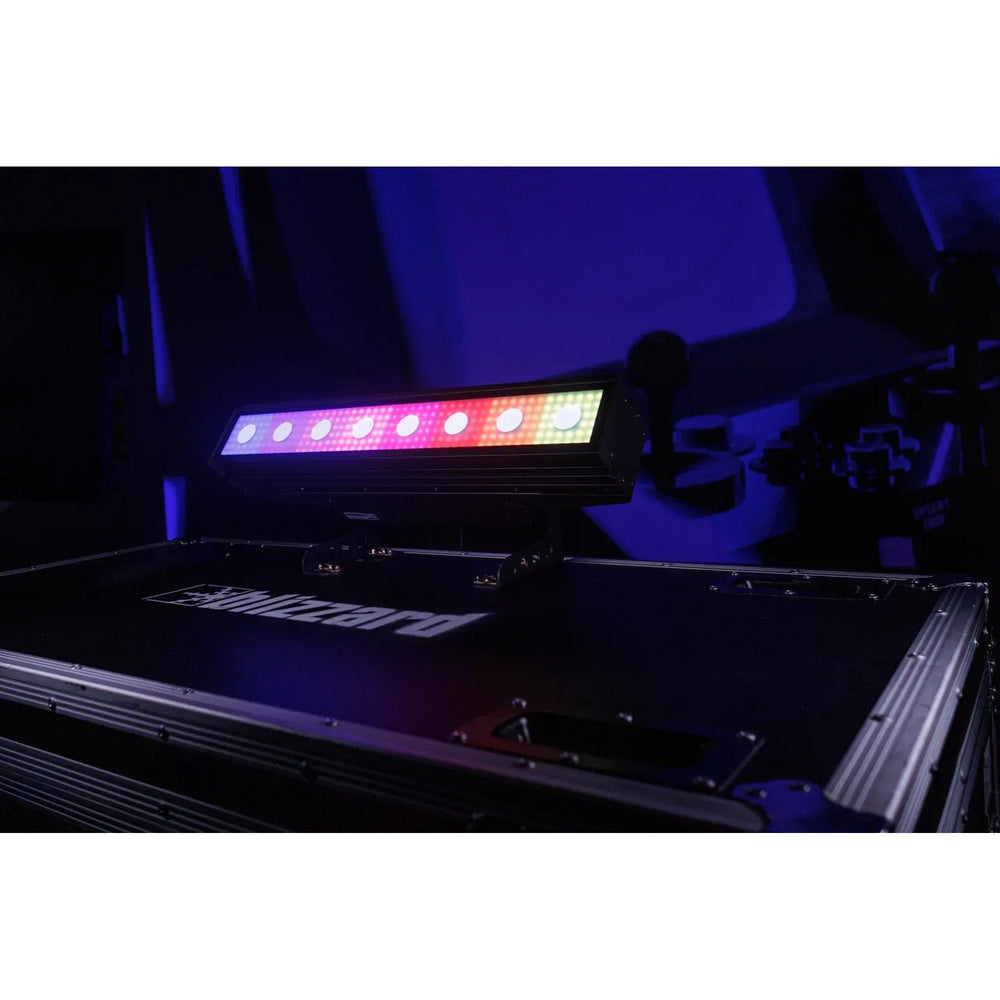

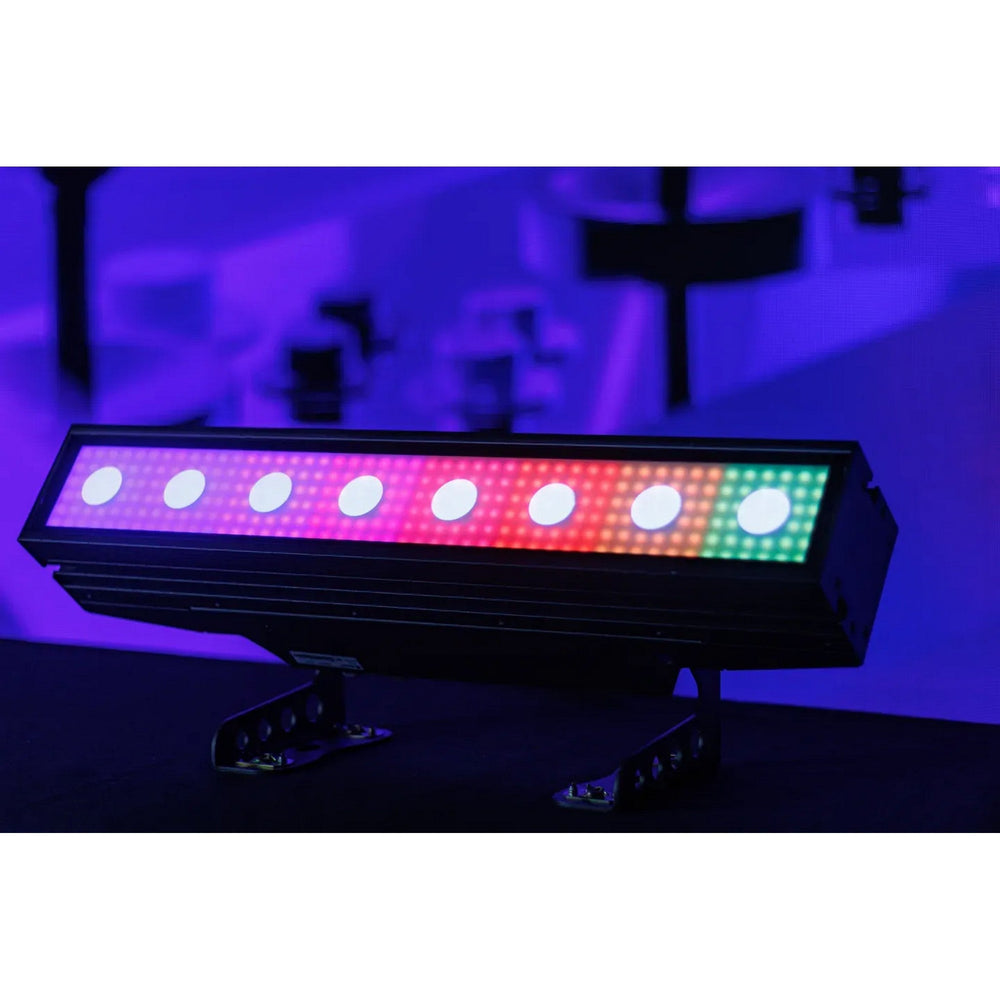

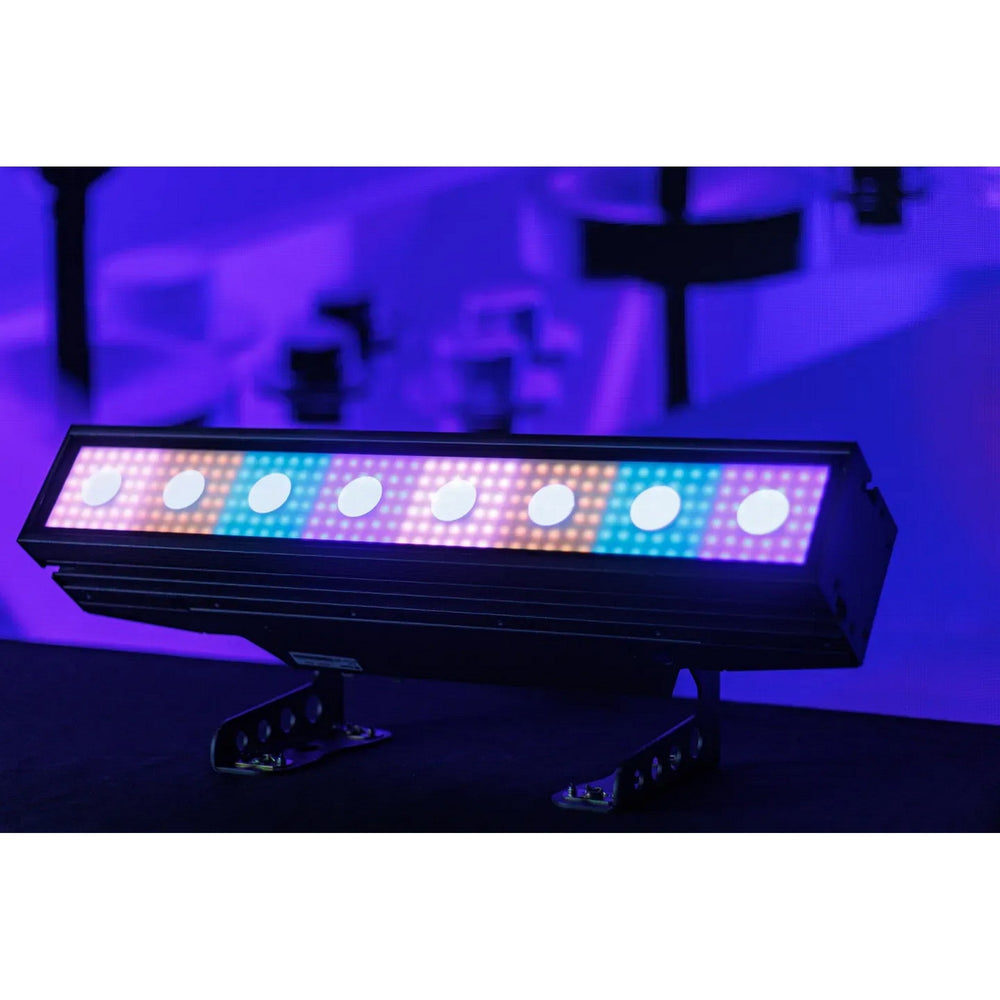

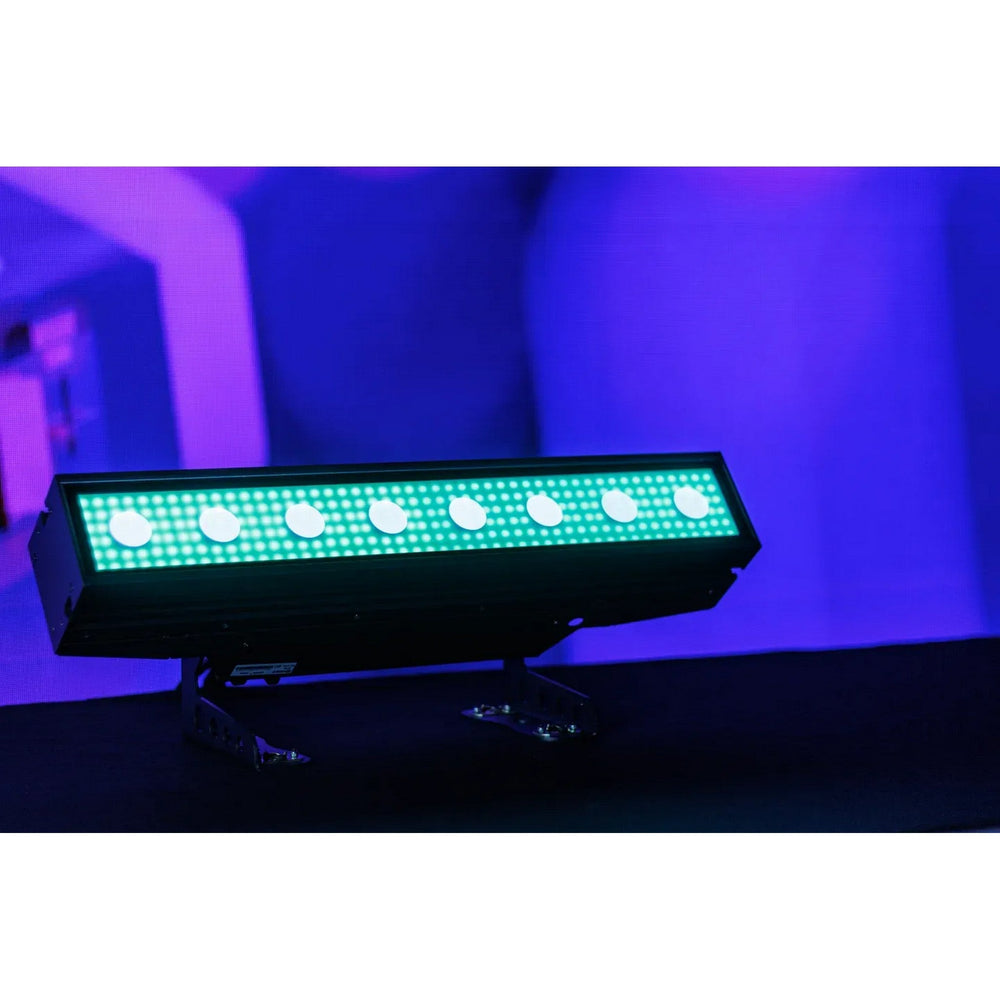

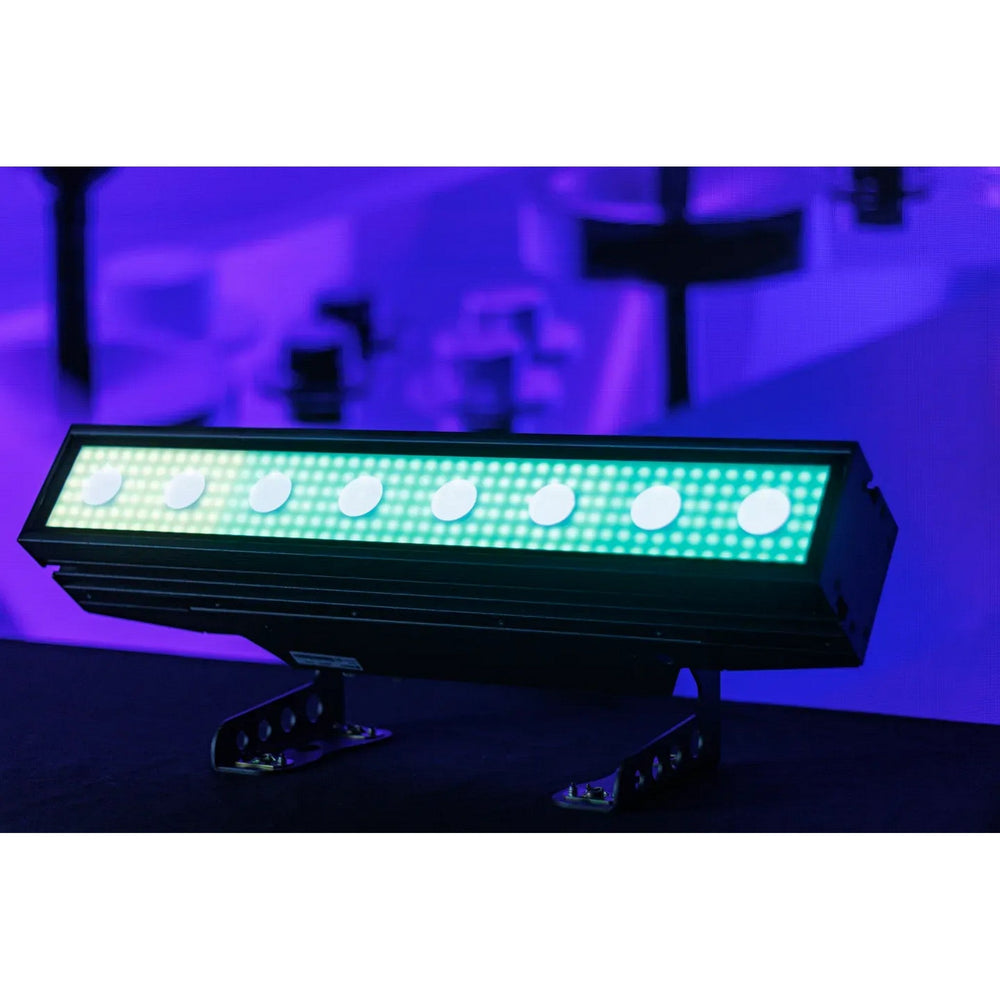

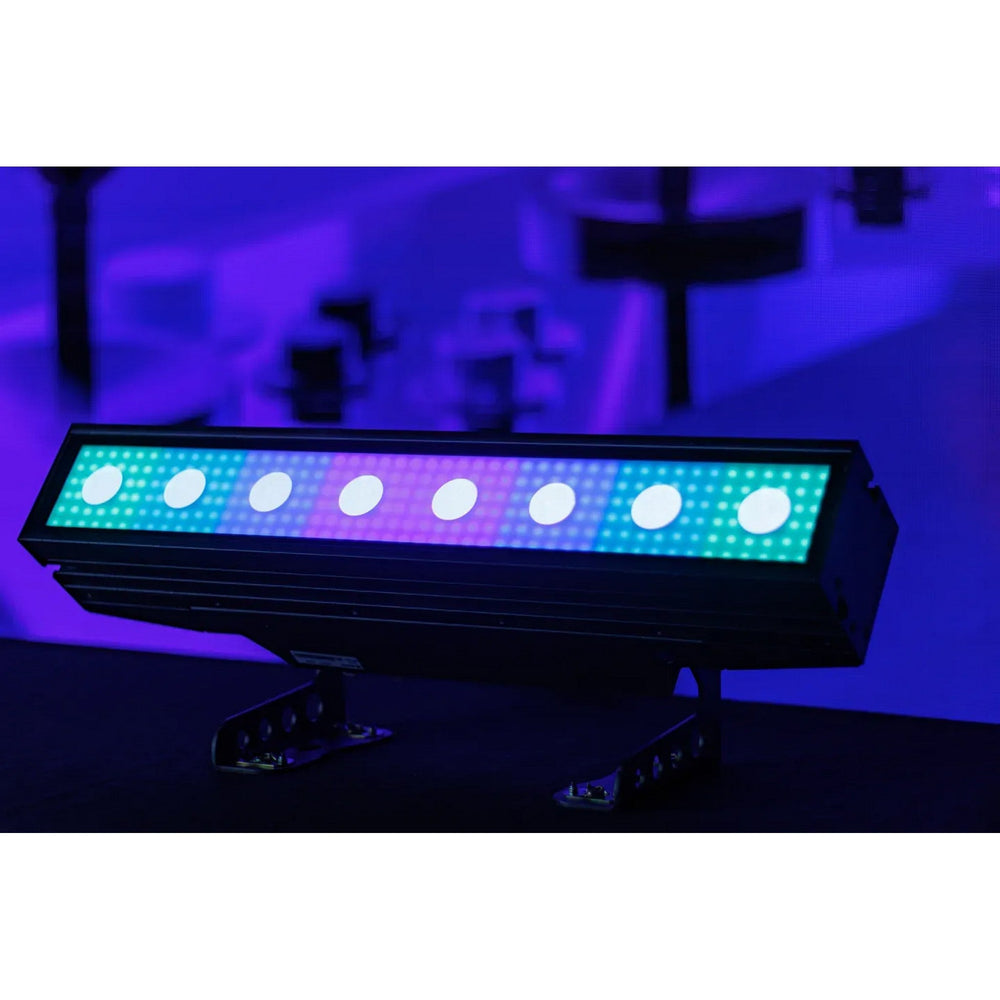

Infinipix Arcade - High-Performance Lighting Fixture
Illuminate your events with the Infinipix Arcade, a cutting-edge lighting fixture engineered to deliver vibrant, dynamic lighting effects that captivate and engage audiences. Designed for versatility and high performance, this fixture is ideal for concerts, stage shows, and various entertainment applications. With its advanced LED technology and robust build, the Infinipix Arcade ensures powerful light output and exceptional reliability.
The Infinipix Arcade features an array of lighting options, including white LEDs for sharp, focused beams and RGBW LEDs for a full spectrum of colors. The fixtureās precision optics and high luminous intensity provide stunning visual effects that enhance any event. Its sleek design and durable construction make it both a practical and stylish addition to your lighting setup.
Designed for ease of use, the Infinipix Arcade offers multiple control modes and connectivity options, allowing for seamless integration into any lighting rig. Whether you're setting up for a live performance or a special event, this fixture provides the flexibility and performance needed to create memorable lighting experiences.
Key Features
- Advanced LED technology for vibrant lighting effects
- High luminous intensity for powerful illumination
- Sleek and durable design suitable for various settings
- Multiple control modes and connectivity options
- Precision optics for focused and dynamic light output
Technical Specifications
Dimensions
Width: 21.7 in.
Depth: 6.9 in.
Height: 5.6 in.
Weight
13.25 lbs.
Power
Operating Voltage: AC 100V-240V/50-60Hz
Power Consumption: 265W, 2.54A, PF: .91
Fuse: 10A, 250V
Light Source

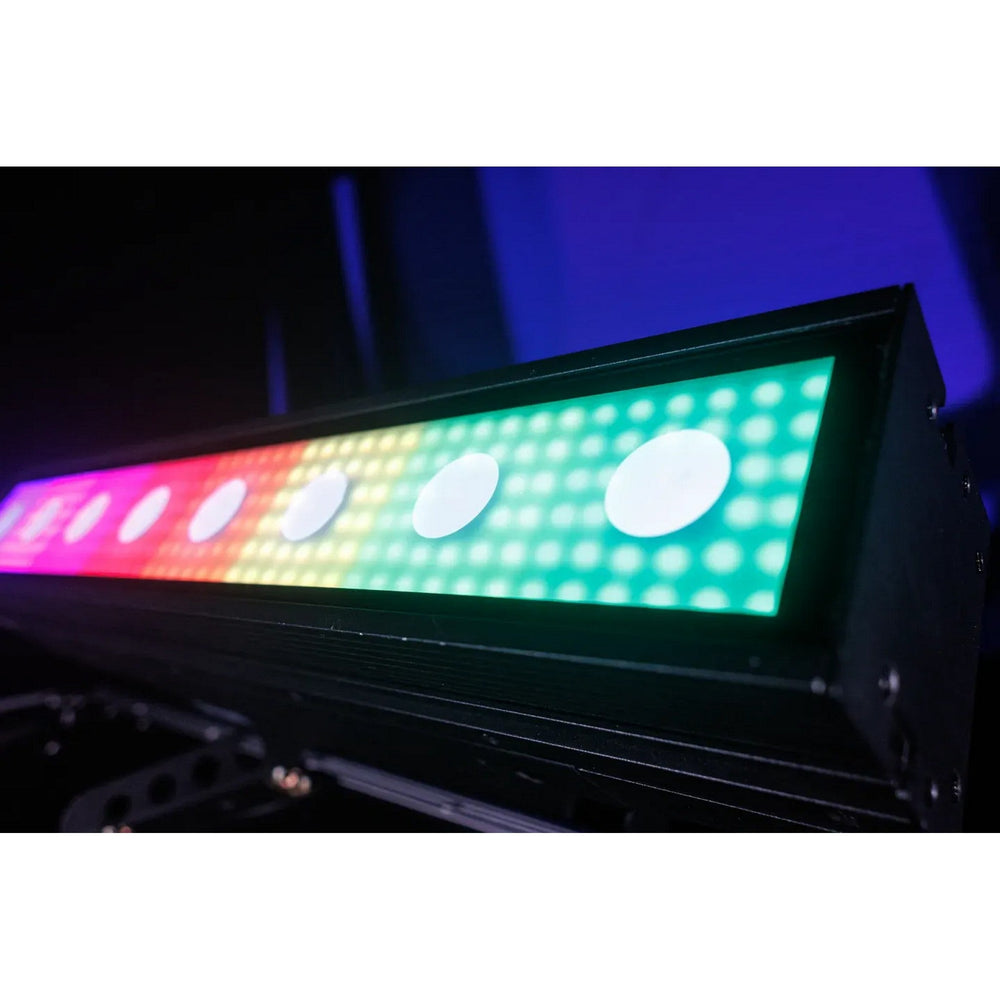

LED: 8x 20W white LEDs (beams)
256x SMD 5050 RGBW 0.5W LEDs (32x8 LED sections)
Luminous Intensity RGBW SMD LEDs: 270 Lux
White Beams Only (no frost): 2.5M = 20,366 Lux
White Beams Only (with frost): 2.5M = 560 Lux
White Beams Only (no frost): 5M = 10,557 Lux
White Beams Only (with frost): 5M = 272 Lux
Optical
Beam Angle White LEDs: 3Ā° beam angle (x8)
SMD RGBW LEDs: 104Ā° (110Ā° with frost)
Thermal
Max. Operating Temp.: 104 degrees F (40 degrees C) ambient
Control
Protocol: USITT DMX-512, RDM
DMX Channels: 11/20/21/41-channel DMX modes

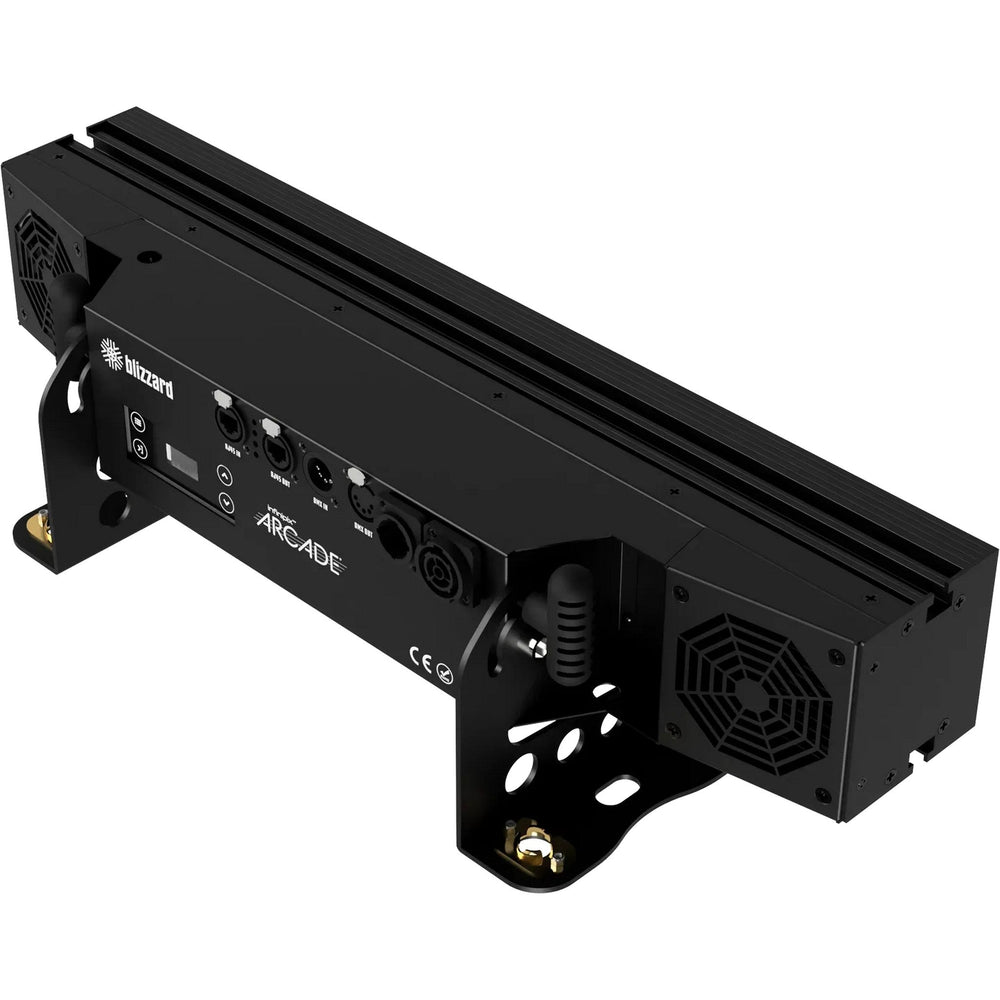

Input/Output: 5-pin XLR Male/Female
Other Operating Modes: DMX512, M/S, Auto Mode
Warranty
2-year limited warranty, does not cover malfunction caused by damage to LEDs.
