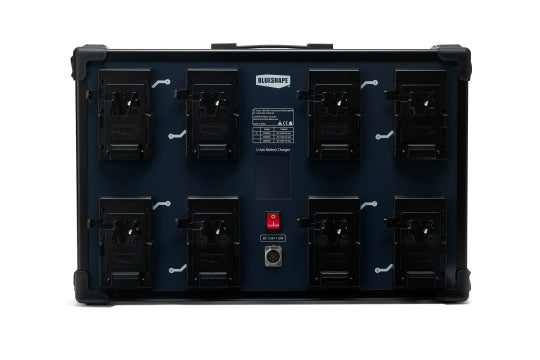

Blueshape CVS8X 8 Channel Simultaneous Portable Charger
Blueshape CVS8X 8 Channel Simultaneous Portable Charger
Designed exclusively for V-Lock Li-Ion batteries, can charge up to 8 batteries: 4 batteries fully simultaneously, 4 batteries in sequence.
The LCD display shows battery digital information in real time like: state of charge, charge time to full, status information.
4 batteries are mounted on the chargers and a further 4 can be connected through CV-BA adapters to extend the total number of channels to 8.
Compact and robust design with a convenient handle for easy transportation. Redundant electronic design with 4 power supplies for increased reliability, it features IPCS and CTP for improved battery and
charger protection.
Provided with 1 Auxiliary DC output power source at 13.8V 110W through an XLR 4 pin socket.
USB connection to interface the CVS8X with computer: up to 4 chargers can be monitored by a single PC through BSCVMon (provided in the box with the special USB cable).
Technical Specifications
Input
AC 100-240V 47-63Hz
Output
- 8x DC 16.8V 4.8A
- 1x AUX DC 13.8V 110W max.
Charging current
- 4.8A per channel when only 2 batteries are charging
- 3.0A per channel when more than 2 batteries are charging
Data socket
Size
170 x 150 x 280mm (6.39" x 5.91" x 11.02)
Weight
2.9Kg (6.41lbs)
