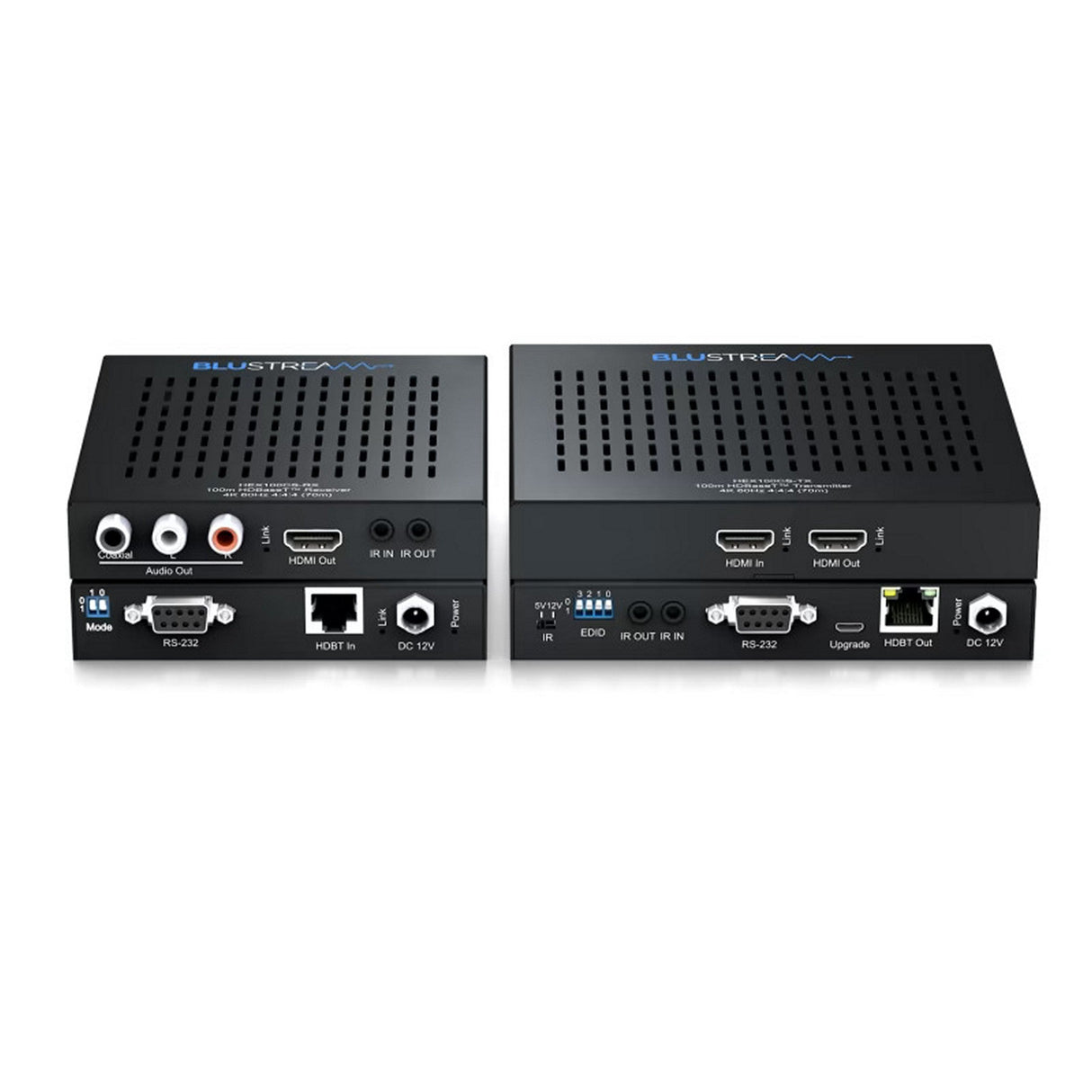

Blustream HEX100CS-KIT HDBaseT HDMI 18G Extender Kit
Blustream HEX100CS-KIT HDBaseT HDMI 18G Extender Kit
The Blustream HEX100CS-KIT HDMI 2.0 4K @ 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT extender set offers market leading features and outstanding value utilizing CSC technology with video down conversion.

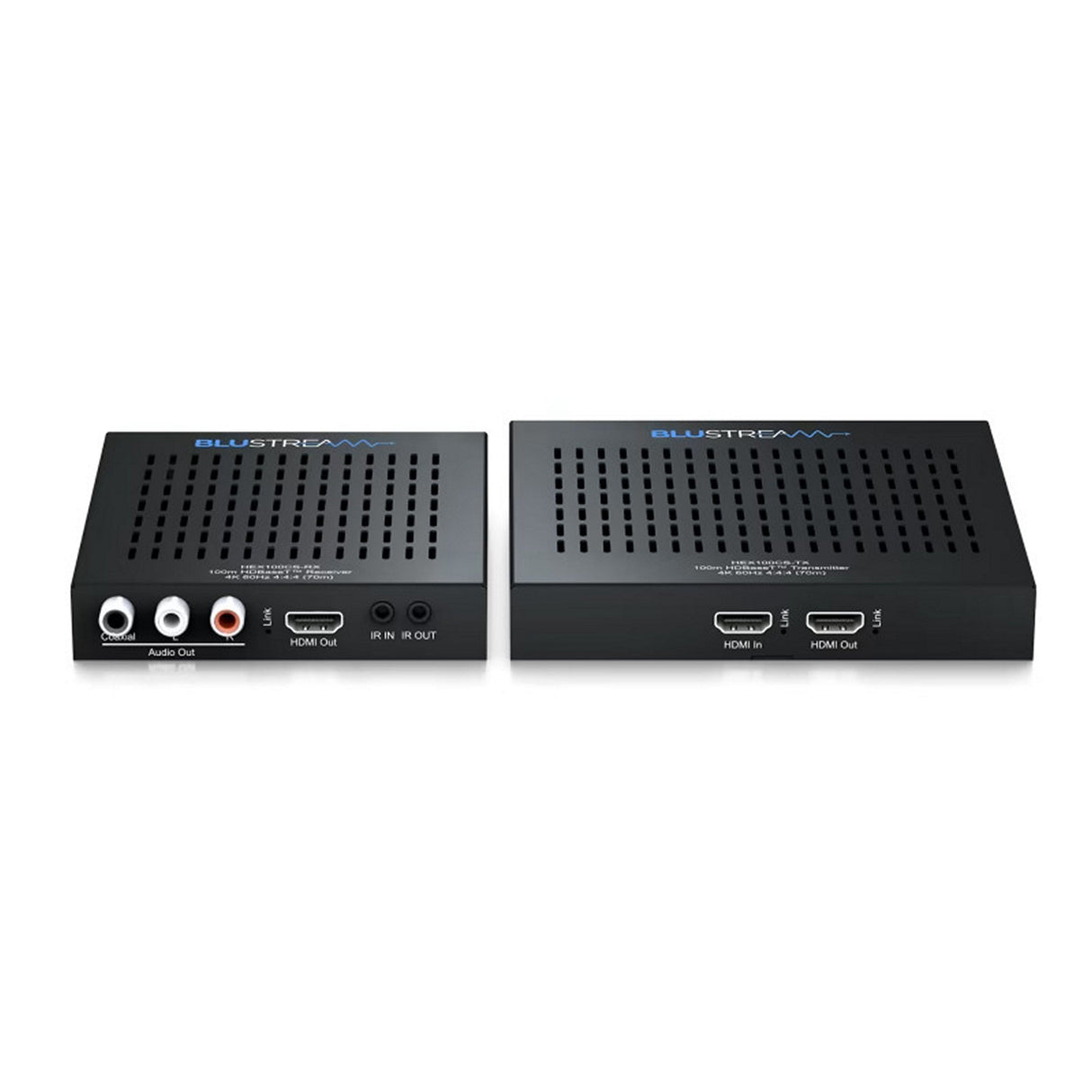

The product extends HDMI, Bi-directional IR & RS-232 and Bi-directional PoH (PoE) up to lengths of 100m (4K to 70m). The Transmitter includes a HDMI loop-out for integrating local displays or cascading to multiple devices. The Receiver features simultaneous analog stereo and digital coax audio breakout.
Key Features
- Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable
- Advanced Color Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
- Video down-conversion on HDMI Receiver output allows a display only capable of supporting lower video resolutions (4K @ 60Hz 4:2:0 or 1080p) to receive the native 4K @ 60Hz 4:4:4 or 4K @ 60Hz 4:2:0 video content while still showing maximum original 4K UHD resolution on the Transmitter HDMI loop out.
- Supports 4K @ 60Hz 4:4:4 UHD video up to 70m
- Extends HDMI 1080p video up to 100m
- Features 1 x HDMI loop-out on HEX100CS-TX for integrating local displays or cascading to multiple devices
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
- HDMI re-clocking on the HDBaseT Receiver to help solve HDMI, HDCP, compatibility and handshaking issues
- HDMI audio breakout to analog L/R audio and coaxial digital outputs concurrently
- Supports bi-directional RS-232 pass through
- Supports bi-directional IR pass through
- Supplied with Blustream 5V IR receiver and emitter
- Advanced EDID management
- HDCP 2.2 compliant
Technical Specifications

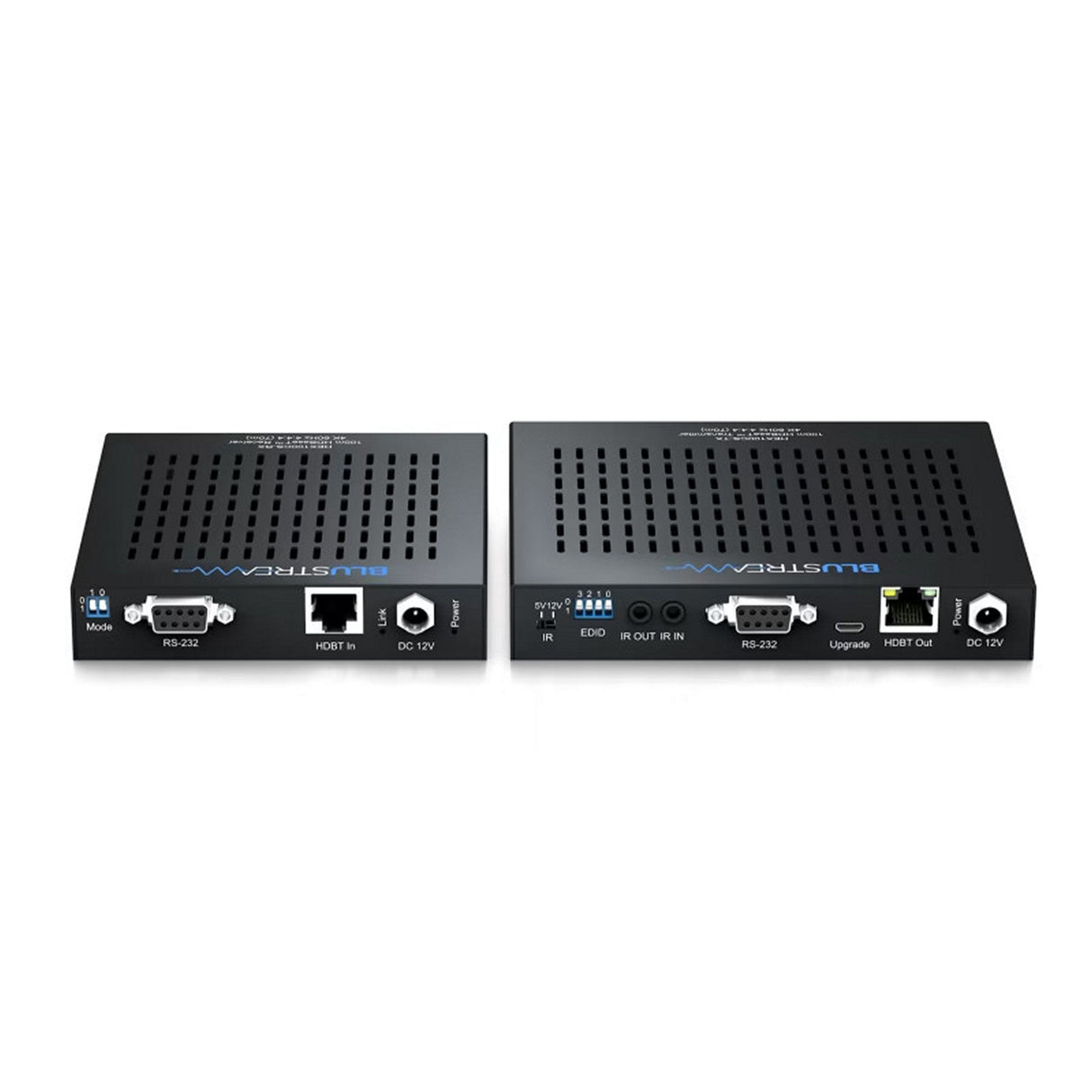

HEX100CS-TX Transmitter
Video Input Connectors
1 x HDMI Type A, female
Video Output Connectors
1 x HDBaseT RJ45 connector, 1 x HDMI Type A, female
RS-232 serial port
1 x DB-9 female
IR Input ports
1 x 3.5mm stereo jack
IR Output ports
1 x 3.5mm mono jack
EDID DIP switch
4-pin
HEX100CS-RX Receiver
Video Input Connectors
1 x HDBaseT RJ45 connector
Video Output Connectors
1 x HDMI Type A, female
RS-232 serial port
1 x DB-9 female
IR Input ports
1 x 3.5mm stereo jack
IR Output ports
1 x 3.5mm mono jack
Audio Output Connectors
1 x RCA (S/PDIF) & 2 x Analog RCA (Left / Right)
Power Supply
12V/2A DC, screw type connector
Power Consumption
12.7W
Transmitter Dimensions (W x D x H)
143 x 134 x 22mm (without connections)
Transmitter Dimensions (W x D x H)
143 x 141 x 22mm (with connections)
Receiver Dimensions (W x D x H)
113 x 124 x 22mm (without connections)
Receiver Dimensions (W x D x H)
113 x 138 x 22mm (with connections)
Ind. Extender Weight
0.35kg (excluding accessories)
Shipping Weight
1.4kg
Operating Temperature
32°F to 104°F (0°C to 40°C)
Storage Temperature
-4°F to 140°F (-20°C to 60°C)
Item Includes
1x HEX100CS-TX
1x HEX100CS-RX
2x Mounting Brackets
1x 12V/2A Power Supply
1x IR Emitter
1x IR Receiver
1x Quick Reference Guide
Warranty
3 Year Warranty
