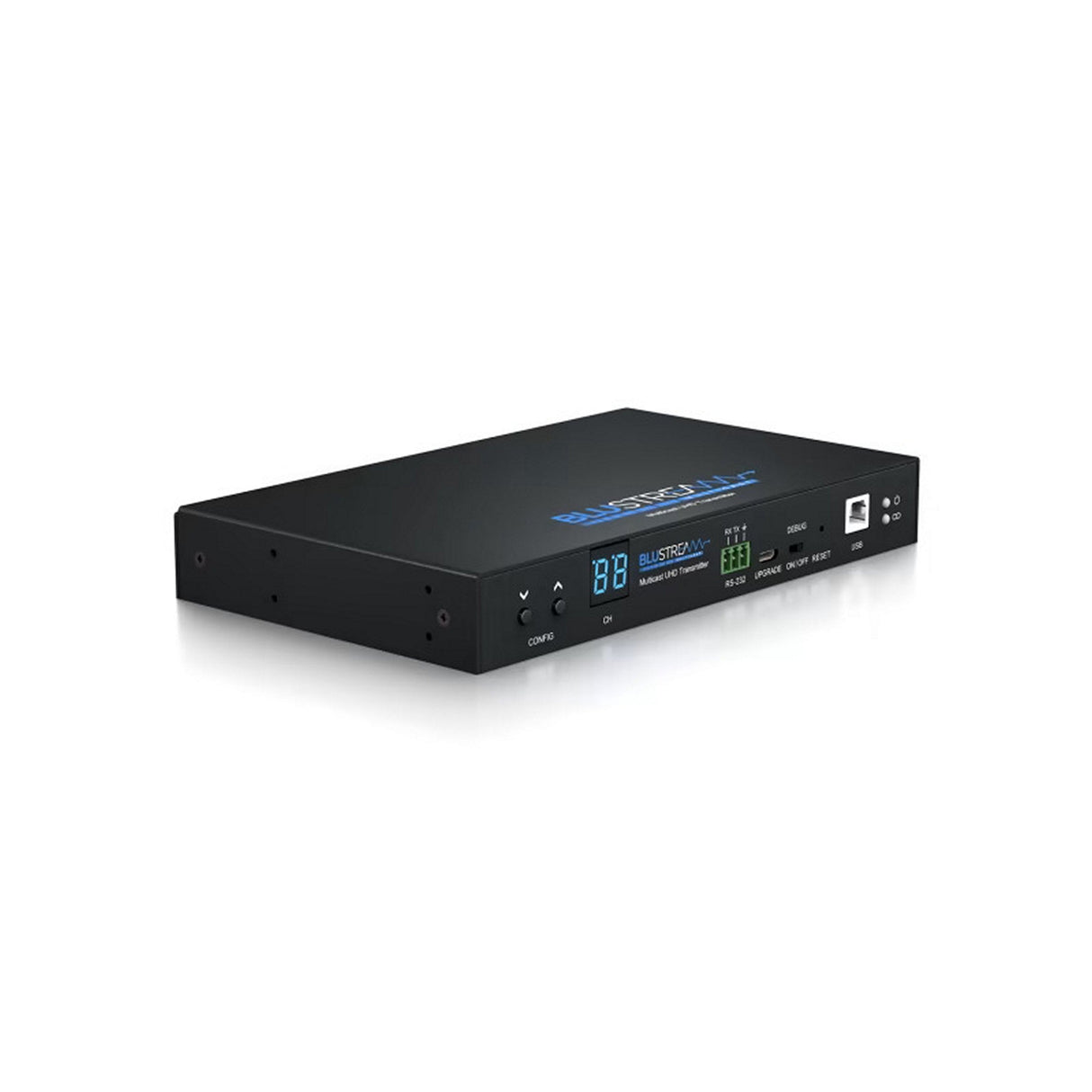

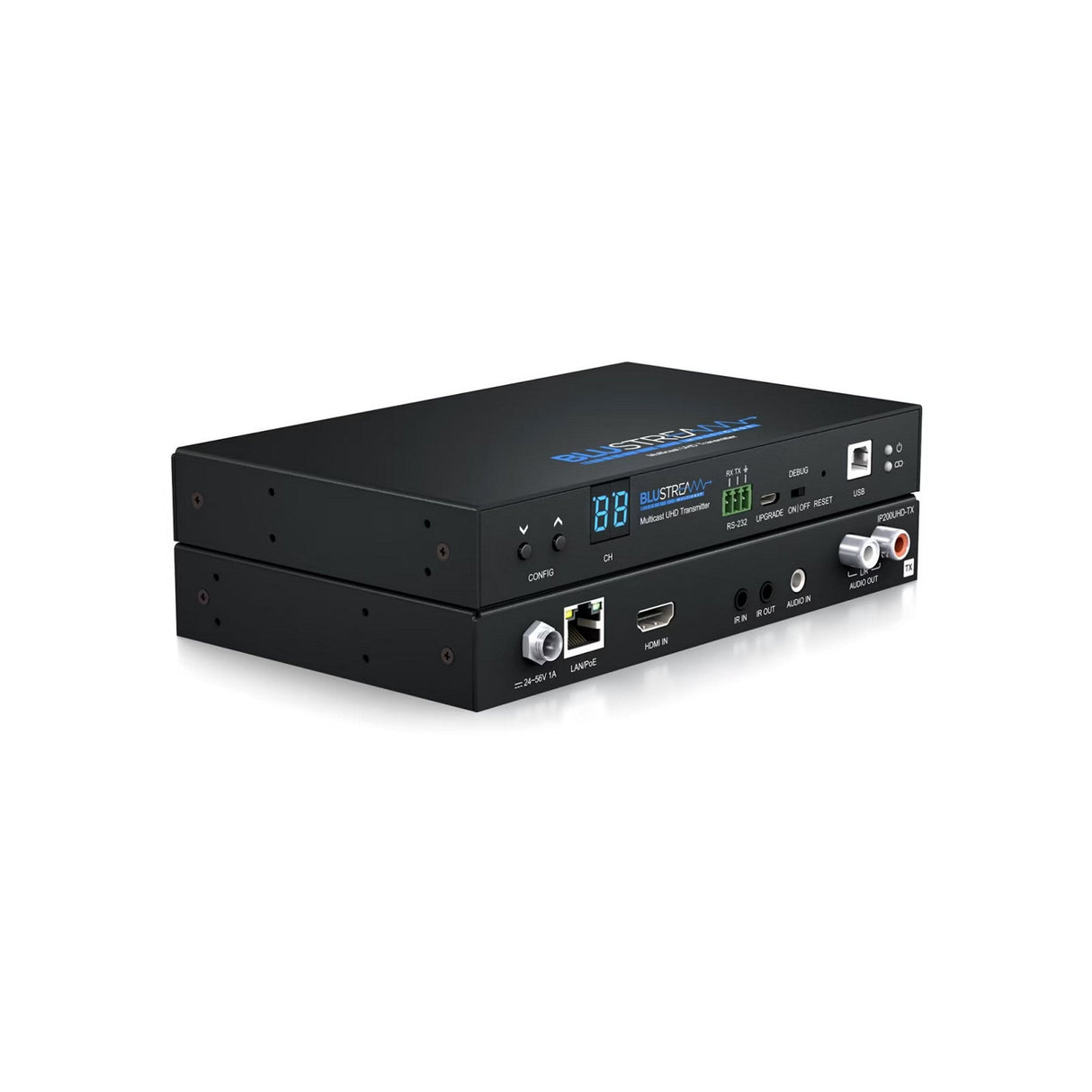

Blustream IP200UHD-TX IP Multicast HDMI UHD Video KVM over 1GB Network Transmitter
Blustream IP200UHD-TX IP Multicast HDMI UHD Video KVM over 1GB Network Transmitter
The Blustream UHD Multicast distribution platform allows virtually latency free (1 frame) distribution of HDMI video over a 1Gb Network switch.
The IP200UHD-TX is an industry leading 4K HDCP 2.2 HDMI transmitter that uses visually lossless compression technology to deliver HDMI, Bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture.
The IP200UHD-TX can be powered via PoE from the Network switch or locally should the switch not support PoE. With multiple configuration options available, the Multicast solution is ideal for both commercial and residential installations.
Please Note: the BLU-IP200UHD-RX receiver is required, sold seperately.
Key Features
- Advanced UHD video over 1Gb Network
- Virtually unlimited system size
- Extends HDMI up to a distance of 100m over a single CAT cable
- Supports up to 4K HDR UHD video sources (3840 x 2160 @ 30Hz 4:4:4, 4096 x 2160 @ 24Hz 4:4:4, and 4K @ 60Hz 4:2:0)
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio transmission
- Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio and video
- PoE (Power over Ethernet) to power Blustream products from PoE switch
- HDCP2.2 compliant with advanced EDID management
- Analog L/R audio embedding
- Analog L/R audio breakout
- Local 24-56V power supply (should Ethernet switch not support PoE) - sold separately
- Matrix distribution (requires 1Gb network switch)
- Video wall (requires 1Gb network switch)
- One-to-one HDMI extender (no network switch required)
- One-to-many HDMI extender (no network switch required)
Technical Specifications
Video input
1 x HDMI Type A, female
Video output
1 x LAN RJ45 connector
Audio input
1 x 3.5mm L/R Analog audio
Audio output connectors
2 x RCA L/R Analog audio
Ethernet port
1 x LAN RJ45 connector
RS-232 Serial port
1 x 3-Pin Phoenix connector
USB/KVM Port
1 x USB - Type B
IR input
1 x 3.5mm stereo jack
IR output
1 x 3.5mm mono jack
Firmware Update
1 x Micro-USB
Dimensions (W x D x H)
190mm x 114mm x 25mm
Shipping Weight
0.8kg
Operating Temperature
32°F to 104°F (0°C to 40°C)
Storage Temperature
-4°F to 140°F (-20°C to 60°C)
Item Includes
1x IP200UHD-TX
1x (IRR) IR Receiver
1x (IR1) IR Transmitter
1x Serial 3-pin Phoenix Connector
1x Mounting Kit
Warranty
3 Year Warranty
