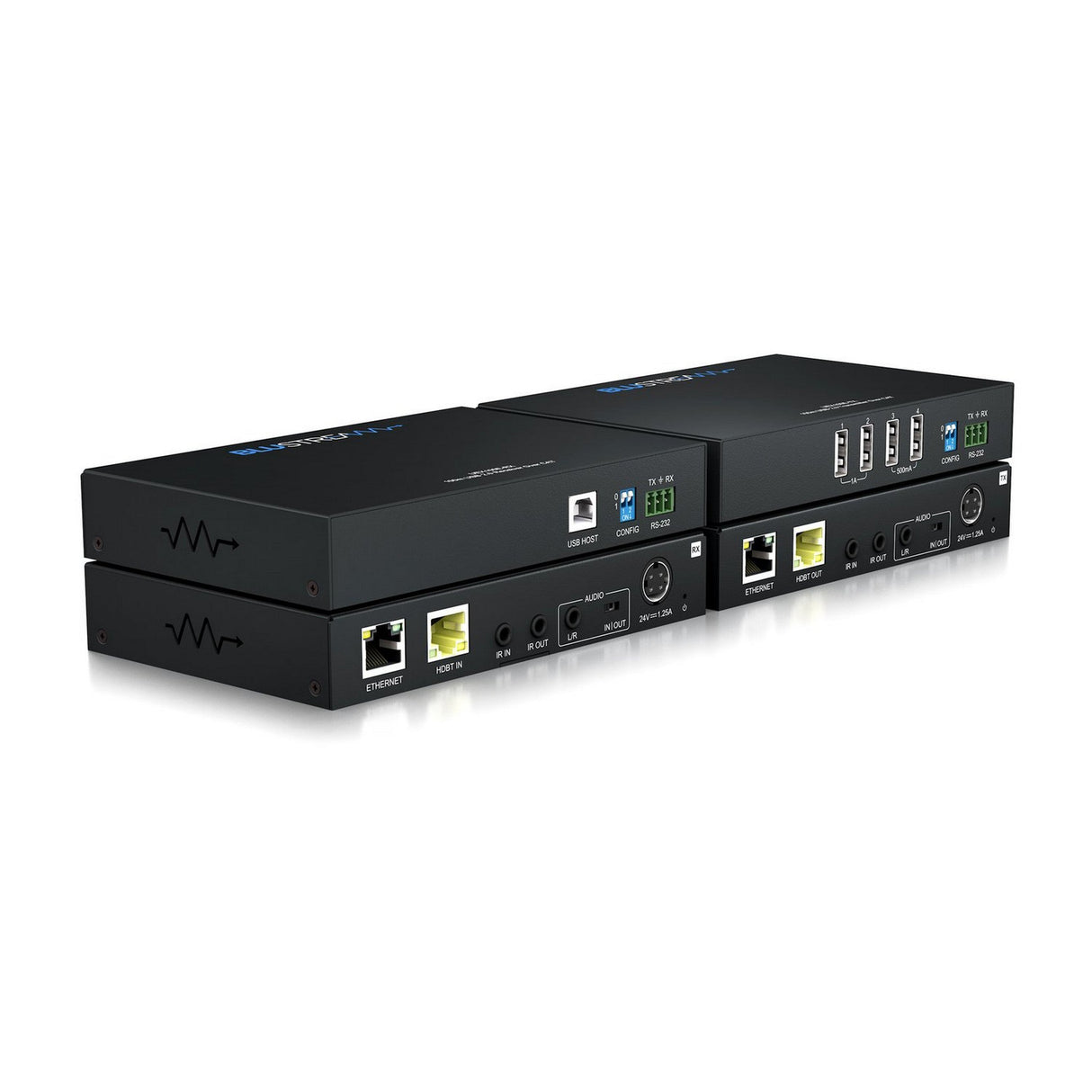

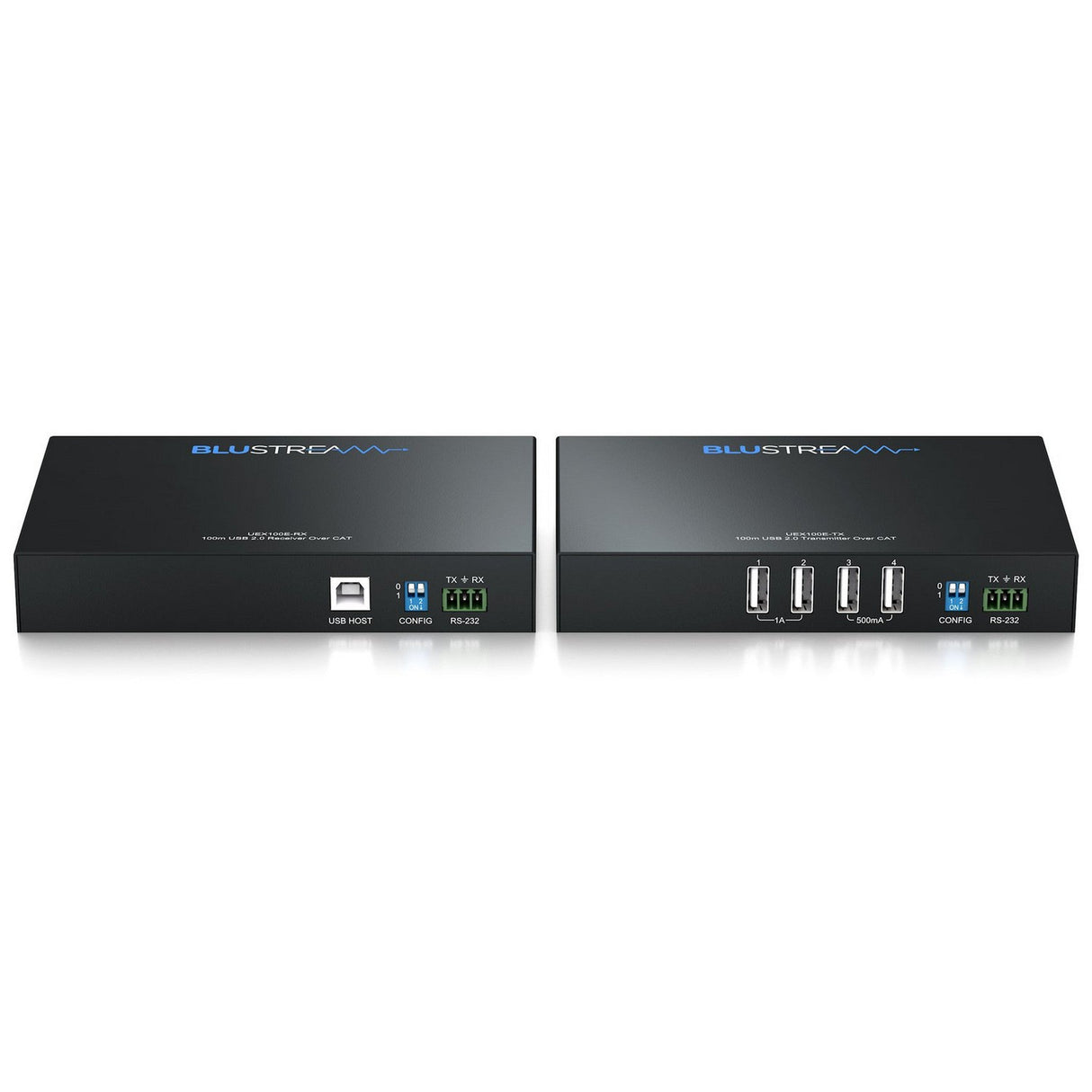

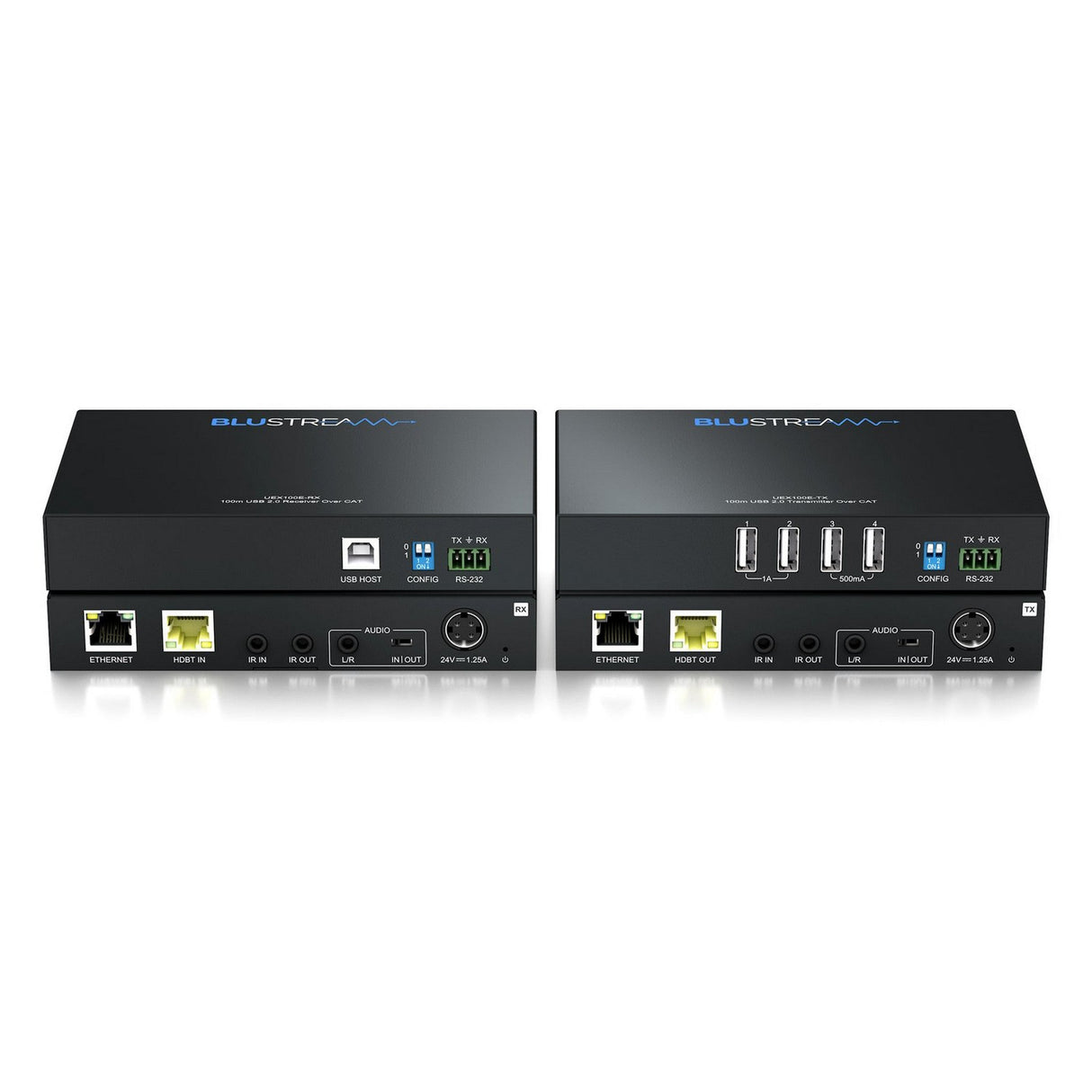

Blustream UEX100E-KIT Advanced USB 2.0 HDBaseT Extender Set
The Bluestream UEX100E-KIT is a USB extender kit utilizing HDBaseT technology to extend USB 2.0 data, 2ch analog audio, and control signals up to 100m over a single CAT cable.
The UEX100E-KIT allows up to 4x USB devices to be connected to a single USB host with support for a combined transmission data bandwidth of up to 480Mbps, and is backwards compatible with USB 1.1 devices.
The UEX100E-KIT also provides bi-directional Power over Cable (PoC), bi-directional IR, RS-232, 2ch analog audio, and 100Mbps Ethernet/LAN pass through.
Key Features
- Extends USB up to a distance of 100m over a single CAT cable using HDBaseT technology
- Supports USB 2.0 signal extension
- Backwards compatible with USB 1.1 devices
- Transmitted data bandwidth up to 480Mbps (combined)
- 1 x USB-B port on the receiver for connection to host device
- 4 x USB-A ports on transmitter for connection to devices
- USB-A ports 1-2 support 5V 1A, USB-A ports 3-4 support 5V 500mA
- Bi-directional Ethernet pass-through (100Mbps)
- Bi-directional IR & RS-232 pass through
- Supports 2ch PCM Analog Audio pass through (direction selectable)
- Bi-directional PoC (Power over Cable) to power extenders from either the transmitter or receiver
- Simple plug and play, no driver installation or setup required
Technical Specifications
UEX100E Receiver
CAT Connector
1 x RJ45 connector, female
USB Port
1 x USB-Type B
Audio Input/Output Connector
1x Analog L/R audio (3.5mm stereo jack)
Ethernet Port
1 x RJ45 connector, female
RS-232 Serial Port
1 x 3-pin Phoenix connector
IR Input Ports
1 x 3.5mm stereo jack
IR Output Ports
1 x 3.5mm mono jack
Config Switch
2-pin DIP switch
UEX100E Transmitter
CAT Connectors
1 x RJ45 connector, female
USB Ports
4 x USB-Type A
Audio Input/Output Connector
1x Analog L/R audio (3.5mm stereo Jack)
Ethernet Port
1x RJ45 connector, female
RS-232 Serial Port
1x 3-pin Phoenix connector
IR Input Ports
1x 3.5mm stereo jack
IR Output Ports
1x 3.5mm mono jack
Config Switch
2-pin DIP switch
Power Supply
24V/1.25A DC
Product Dimensions (W x D x H)
5.9 x 4 x 1”
Shipping Weight
3.5lb
Operating Temperature
32 Degrees F to 104 Degrees F
Storage Temperature
-4 Degrees F to 140 Degrees F
Item Includes
1x UEX100E-TX
1x UEX100E-RX
1x USB-A to USB-B cable (1m)
1x 24V/1.25A DC power supply
2x Mounting kits
1x Quick Reference Guide
