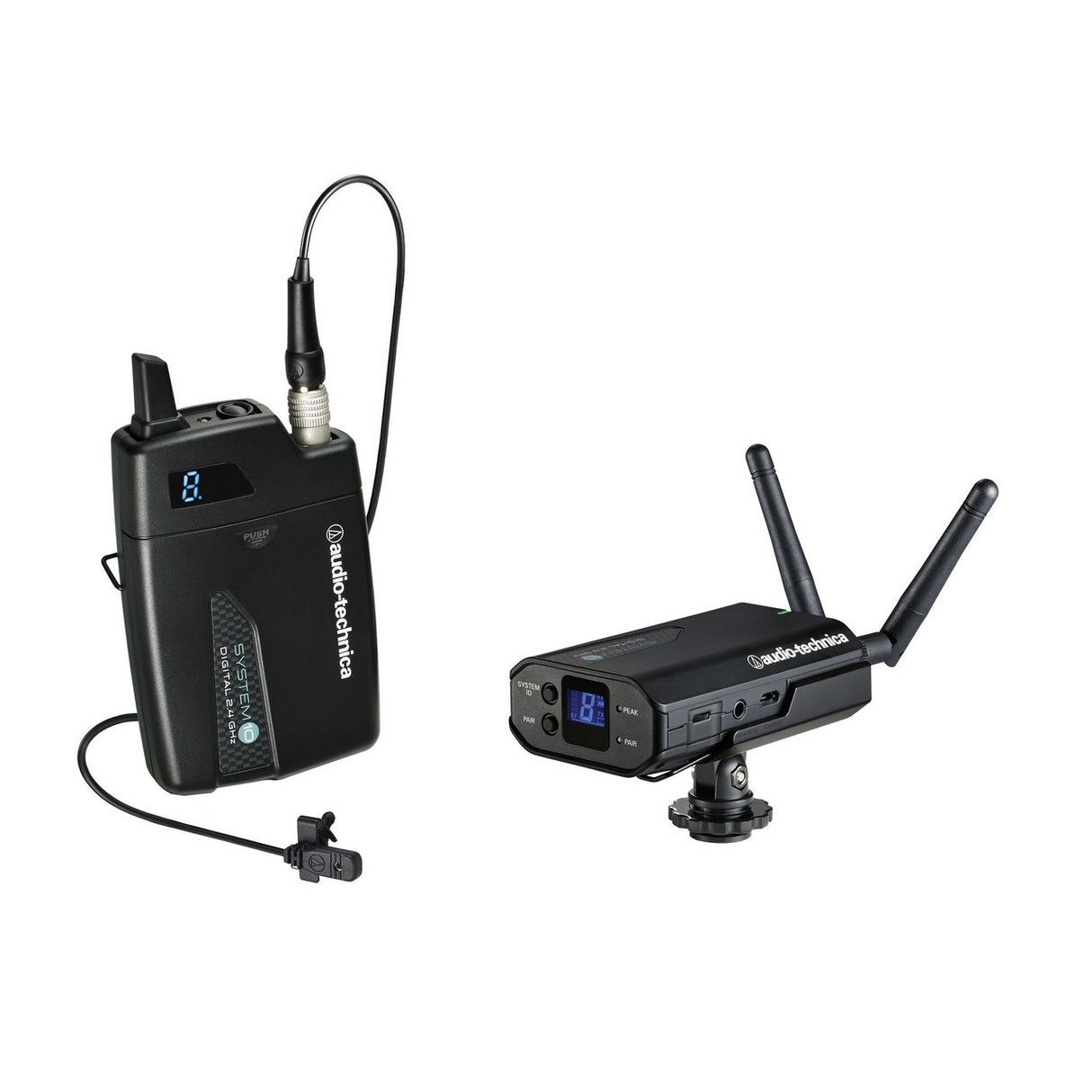

Audio Technica ATW-1701/L Digital Wireless System with Bodypack Transmitter and Lavalier Microphone

Audio Technica ATW-1701/L Digital Wireless System with Bodypack Transmitter and Lavalier Microphone

The Audio Technica ATW-1701/L Digital Wireless System is an innovative solution for capturing high-fidelity audio in various mobile settings. This compact and portable system includes the ATW-R1700 receiver and ATW-T1001 UniPak transmitter with an MT830cW omnidirectional lavalier microphone, making it perfect for video production, electronic news gathering (ENG), and other mobile applications. With its digital 24-bit/48 kHz wireless operation, the System 10 Camera-Mount ensures ultimate sound quality and reliable performance, free from TV interference thanks to its 2.4 GHz operating range.

Designed for ease of use, the ATW-1701/L features instantaneous channel selection, sync, and setup, ensuring a hassle-free experience for users. The receiver offers multiple mounting options to accommodate various cameras and recording devices, while providing three levels of diversity assurance—frequency, time, and space—for a seamless audio experience. Whether you're a professional videographer or an aspiring content creator, this wireless system delivers exceptional audio capture capabilities that are essential for any mobile media endeavor.

Additionally, the ATW-1701/L's ultra-compact receiver includes a selectable balanced and unbalanced output jacks with level control, an internal rechargeable 12-hour battery, a separate headphone port with volume control, and a multi-pairing function that supports up to eight transmitters. This comprehensive feature set makes the Audio Technica ATW-1701/L a versatile and indispensable tool for any on-the-go audio recording needs.

Key Features

• Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
• Operates in the 2.4 GHz range, completely free from TV interference
• Ultra-compact receiver size with multiple mounting options
• Selectable balanced and unbalanced output jacks with level control
• Internal rechargeable 12-hour battery
• Separate headphone port and volume control for local audio monitoring
• Multi-pairing function to link a single receiver with up to eight body-pack or handheld transmitters
• Three levels of diversity assurance: frequency, time, and space
• Automatic frequency selection for seamless, interference-free operation
• Extremely easy operation with instantaneous channel selection, sync, and setup

Specifications

• Operating Frequencies: 2.4 GHz ISM band
• Dynamic Range: >109 dB (A-weighted), typical
• Total Harmonic Distortion: <0.05% typical
• Operating Range: 30 m (100') radius, 60 m (200') diameter typical
• Operating Temperature Range: 0 °C to +40 °C (32 °F to 104 °F)
• Frequency Response: 20 Hz to 20 kHz
• Audio Sampling: 24 bits / 48 kHz
• Maximum Output Level: 3.5 mm (1/8"), TRS balanced: +6 dBV; Dual mono, unbalanced: 0 dBV
• Power Source: 100-240V AC (50/60 Hz) to 5V DC 0.5A switched mode external USB-type external power supply
• Internal Battery: 3.7V rechargeable Li-ion battery
• Battery Life: 12 hours (depending on environmental conditions)
• Battery Charging Time: 4 hours 30 minutes (depending on environmental conditions)
• Charging Temperature Range: 5 °C to +35 °C (41 °F to 95 °F)
• Dimensions: 56.0 mm (2.20") W x 91.4 mm (3.60") H x 27.8 mm (1.09") D
• Net Weight: 105 grams (3.7 oz)

Package Contents

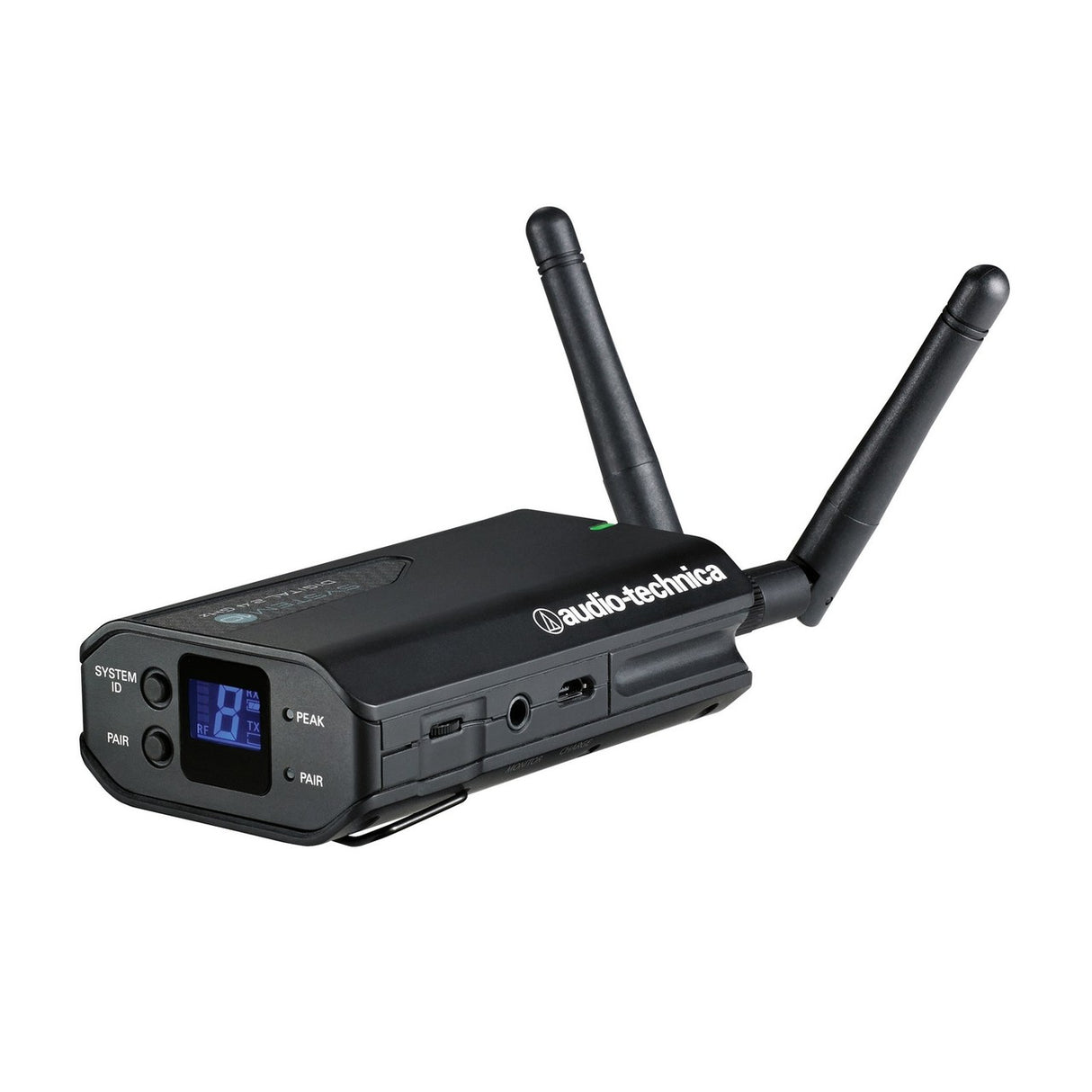

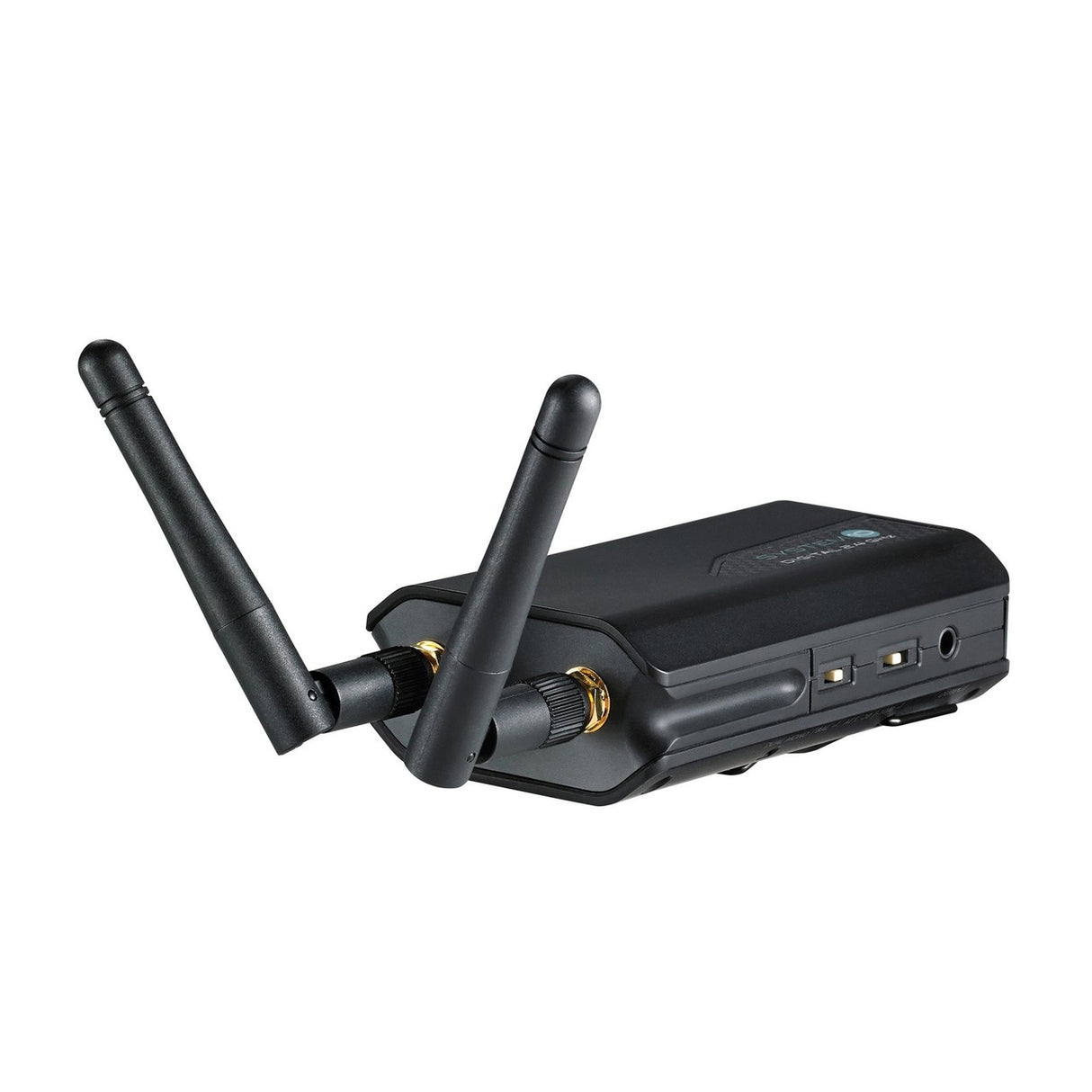

• ATW-R1700 receiver

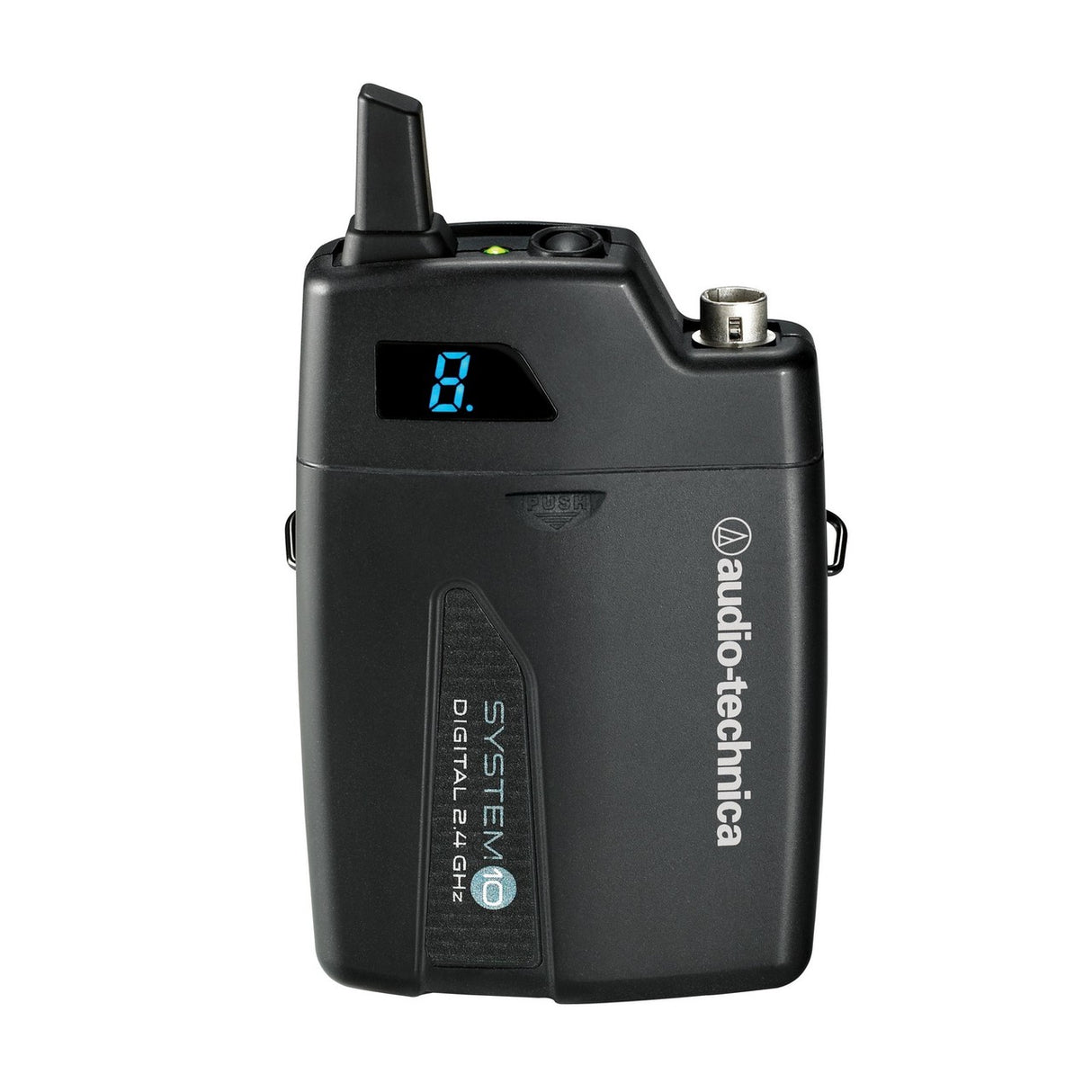

• ATW-T1001 UniPak transmitter
• MT830cW omnidirectional lavalier microphone
• Two antennas
• Camera shoe mount
• AC adapter (USB-type)
• USB cable
• 3.5 mm (1/8") stereo cable
